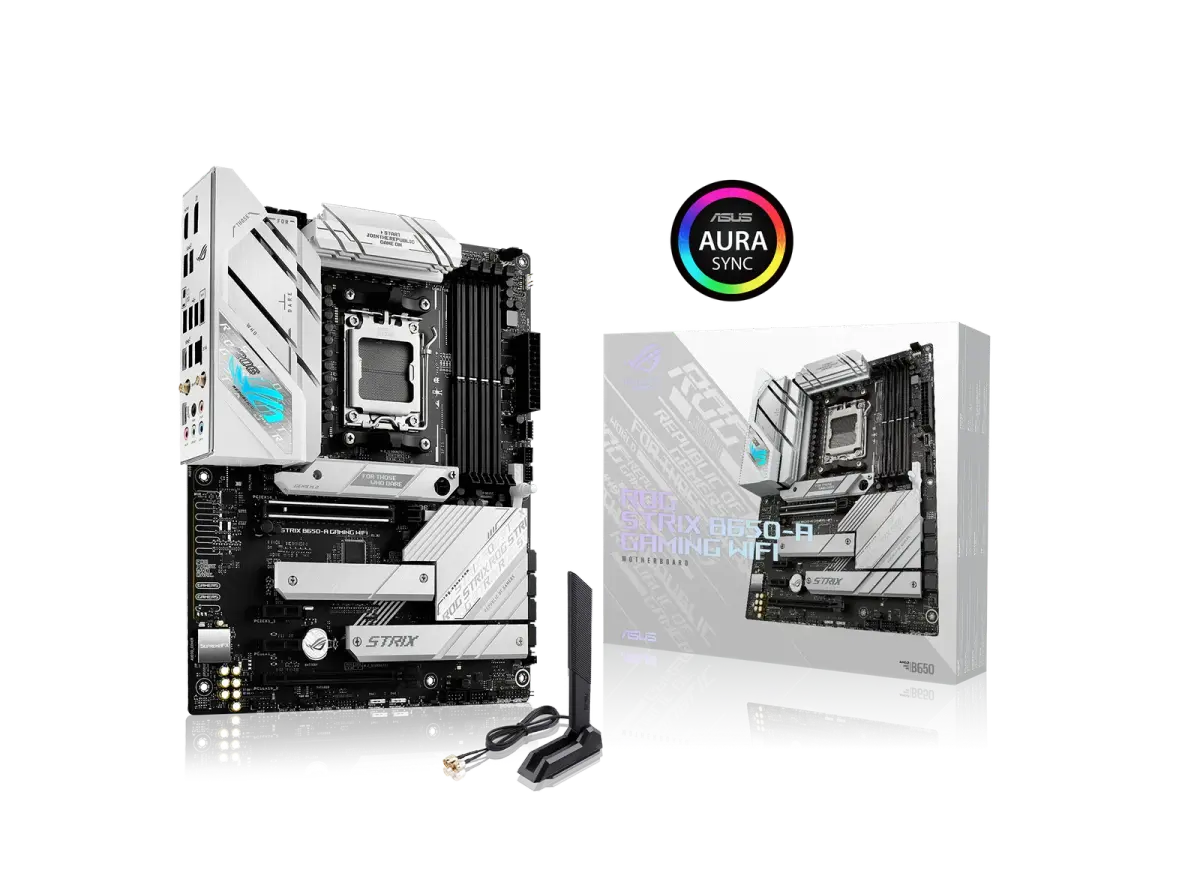

לוח אם – ASUS ROG STRIX B650-A GAMING WIFI ATX AM5 DDR5 – צבע שחור/לבן
חדש
מק"ט: 90MB1BP0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B650, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.
₪1,070.00כולל מע"מ
במלאיפריסת תשלומים
₪1,070.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss* Refer to www.asus.com for CPU support list* |
| תמיכה בזיכרונות | 4x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list |
| גרפיקה מובנית | 1x DisplayPort* 1x HDMI® port** Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1 |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (support x8/x4 mode)* AMD B650 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode)** 2x PCIe 4.0 x1 slots Specification vary by CPU types. PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3 |
| USB | Rear USB (Total 9 ports) 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1x USB 3.2 Gen 2 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 headers supports additional 4 USB 2.0 ports |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 4x SATA 6Gb/s port AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. Specification vary by CPU types. M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, PCIe 4.0 x16 slot will be disabled |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Audio cover The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis |
| כרטיס רשת קווי | 1x Intel® 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later |
| חיבורים פנימיים | :Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 1x 4-pin +12V Power connector :Storage related 3x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 3.2 Gen 2 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 headers supports additional 4 USB 2.0 ports :Miscellaneous 3x Addressable Gen 2 headers 1x AURA RGB header 1x Clear CMOS header 1x CPU Over Voltage jumper 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x 20-3 pin System Panel header with Chassis intrude function 1x Thermal Sensor header 1x Thunderbolt™header 1x COM_DEBUGheader |
| חיבורים ויציאות | 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 1x HDMI® port 1x Wi-Fi Module 1x Intel® 2.5Gb Ethernet port 5x Audio jacks 1x BIOS FlashBack™ button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-LED - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
| תוכנות מצורפות | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Additional Cooling Kit 1x Thermal pad for M.2 :Miscellaneous 1x ASUS Wi-Fi moving antennas 1x Cable ties pack 1x M.2 Q-Latch package 1x ROG key chain 1x ROG Strix stickers 1x ROG Strix thank you card 2x M.2 Rubber Packages :Documentation 1x User guide |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
