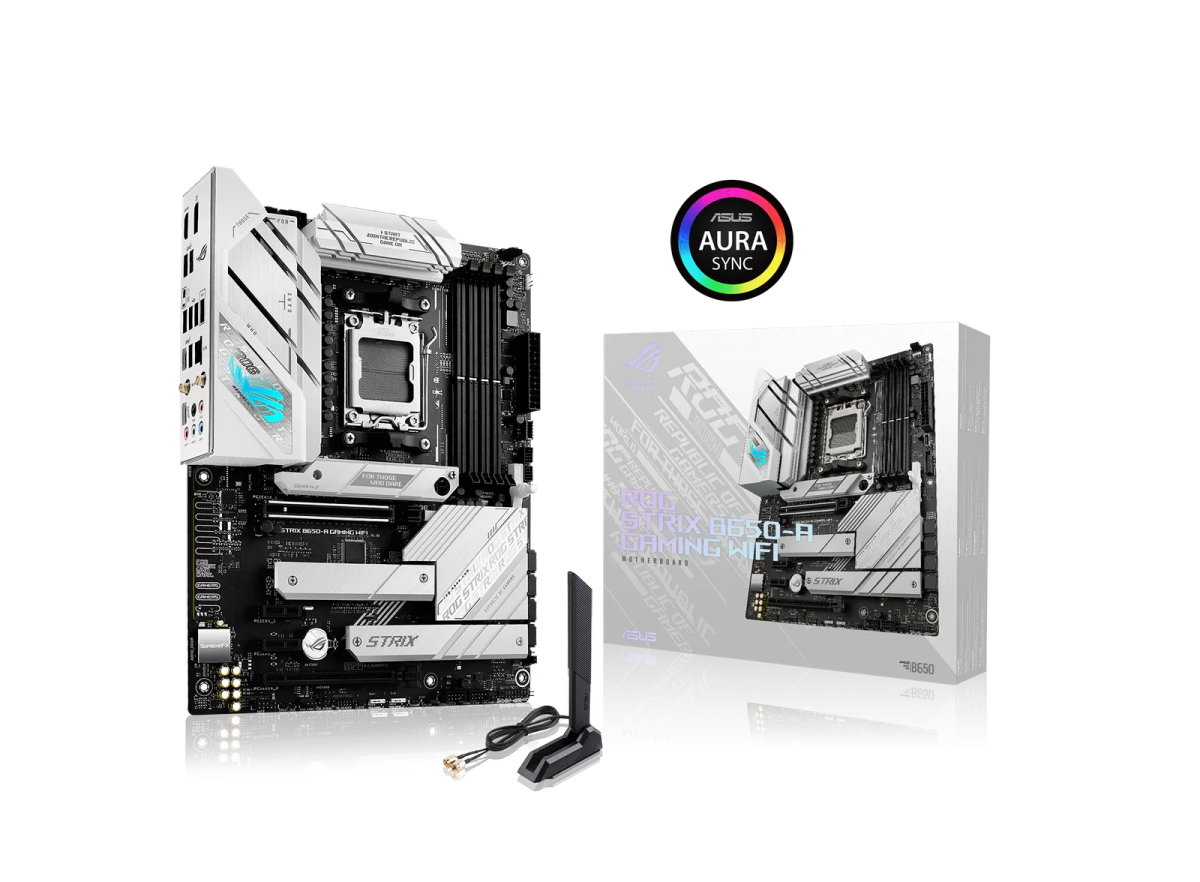

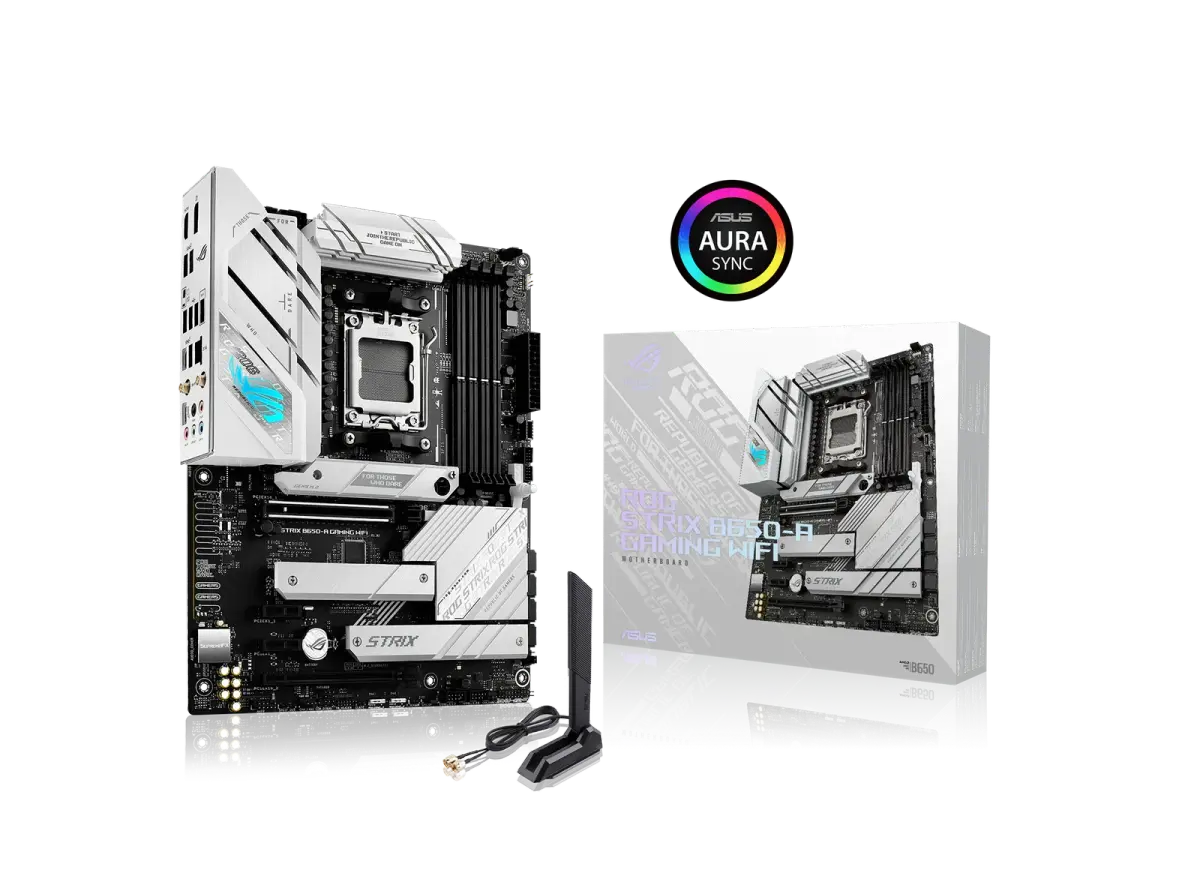

לוח אם – ASUS ROG STRIX B650-A Gaming ATX AM5 DDR5 – צבע שחור/לבן
חדש
מק"ט: 90MB1BP0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM5, ערכת שבבים B650, תאימות לזכרונות DDR5 ובעל יציאות HDMI ,DisplayPort.
₪1,085.00כולל מע"מ
במלאיפריסת תשלומים
₪1,085.00 לחודש
עד 2 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss* Refer to http://www.asus.com for CPU support list* |
| תמיכה בזיכרונות | 4x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list* |
| גרפיקה מובנית | 1x DisplayPort* 1x HDMI® port** Supports max. 8K@60Hz as specified in DisplayPort 1.4* Supports 4K@60Hz as specified in HDMI 2.1** |
| חריצי הרחבה | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1x PCIe 4.0 x16 slot (support x8/x4 mode)* AMD B650 Chipset 1x PCIe 4.0 x16 slot (supports x4 mode)** 2x PCIe 4.0 x1 slots Specification vary by CPU types* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3** |
| USB | Rear USB (Total 9 ports) 1x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1x USB 3.2 Gen 2 connector (supports USB Type-C®) 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 headers supports additional 4 USB 2.0 ports |
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 4x SATA 6Gb/s port AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10* Specification vary by CPU types** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, PCIe 4.0 x16 slot will be disabled*** |
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback :Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors – Audio cover The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis* |
| כרטיס רשת קווי | 1x Intel® 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be* ready in Windows 11 or later |
| חיבורים פנימיים | :Fan and Cooling related x1 4-pin CPU Fan header x1 4-pin CPU OPT Fan header x1 4-pin AIO Pump header x4 4-pin Chassis Fan headers :Power related x1 24-pin Main Power connector x1 8-pin +12V Power connector x1 4-pin +12V Power connector :Storage related x3 M.2 slots (Key M) x4 SATA 6Gb/s ports :USB x1 USB 3.2 Gen 2 connector (supports USB Type-C®) x1 USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports x2 USB 2.0 headers supports additional 4 USB 2.0 ports :Miscellaneous 3 x3 Addressable Gen 2 headers x1 AURA RGB header x1 Clear CMOS header x1 CPU Over Voltage jumper x1 Front Panel Audio header (AAFP) x1 S/PDIF Out header x1 20-3 pin System Panel header with Chassis intrude function x1 Thermal Sensor header x1 Thunderbolt™header x1 COM_DEBUGheader |
| חיבורים ויציאות | 1x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4x USB 2.0 ports (4 x Type-A) 1x DisplayPort 1x HDMI® port 1x Wi-Fi Module 1x Intel® 2.5Gb Ethernet port 5x Audio jacks 1x BIOS FlashBack™ button |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-LED Q-DIMM Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED ProCool Pre-mounted I/O shield SafeSlot SafeDIMM AURA Sync AURA RGB header Addressable Gen 2 headers |
| תוכנות מצורפות | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| אביזרים כלולים | :Cables x2 SATA 6Gb/s cables Additional Cooling Kit x1 Thermal pad for M.2 :Miscellaneous x1 ASUS Wi-Fi moving antennas x1 Cable ties pack x1 M.2 Q-Latch package x1 ROG key chain x1 ROG Strix stickers x1 ROG Strix thank you card x2 M.2 Rubber Packages :Documentation x1 User guide |
| תצורה | ATX Form Factor 12inch x 9.6inch ( 30.5 cm x 24.4 cm ) |
