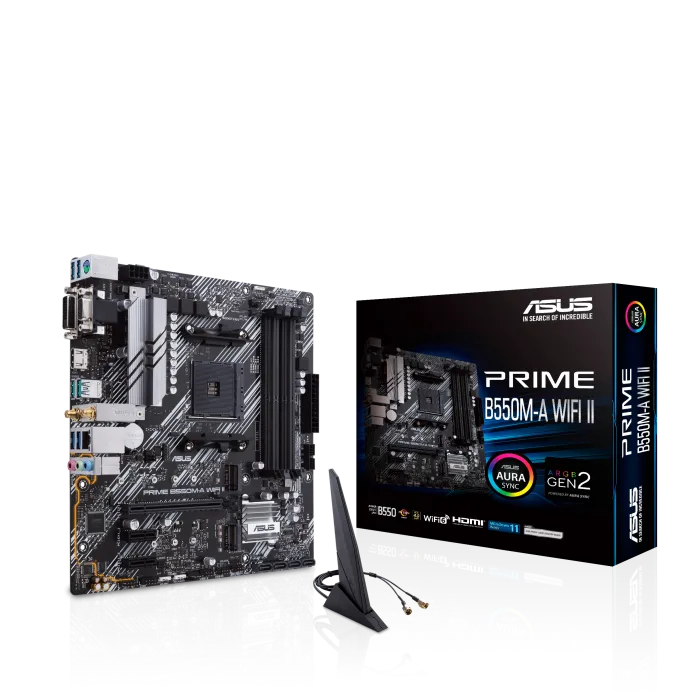

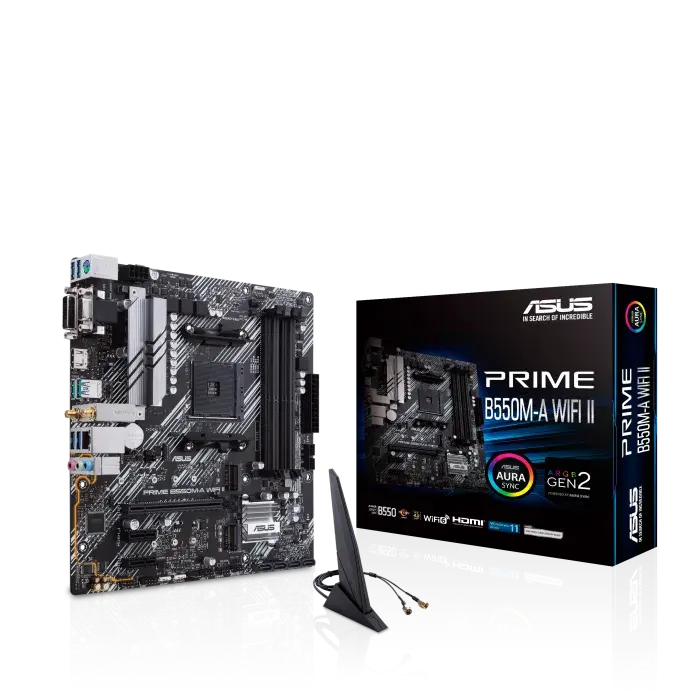

לוח אם – ASUS PRIME B550M-A WIFI II Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: 90MB19X0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM4, ערכת שבבים B550M, תאימות לזיכרונות DDR4 ובעל יציאות HDMI ,VGA ,DVI-D.
₪545.00כולל מע"מ
במלאיפריסת תשלומים
₪545.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Refer to http://www.asus.com for CPU support list* |
| תמיכה בזיכרונות | 4x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory* Dual Channel Memory Architecture .ECC memory (ECC mode) support varies by CPU* .Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types* |
| גרפיקה מובנית | 1x D-Sub port 1x DVI-D port 1x HDMI® port** .Graphics specifications may vary between CPU types* Supports 4K@60Hz as specified in HDMI 2.1** |
| חריצי הרחבה | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset 2x PCIe 3.0 x1 slots |
| USB | 2x USB 3.2 Gen 2 ports (2 x Type-A) 4x USB 3.2 Gen 1 ports (4 x Type-A) Front USB:Total 6 ports 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports |
| ממשק אחסון | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4x SATA 6Gb/s ports Support RAID 0, 1, 10 |
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding LED-illuminated audio trace path design Premium audio capacitors Dedicated audio PCB layers .A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
| כרטיס רשת קווי | 1x Realtek 1Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | Wi-Fi 6 Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| חיבורים פנימיים | :Fan and Cooling related 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 2x 4-pin Chassis Fan headers :Power related 1x 24-pin Main Power connector 1x 8-pin +12V Power connector :Storage related 2x M.2 slots (Key M) 4x SATA 6Gb/s ports :USB 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports :Miscellaneous 1x Addressable Gen 2 header 2x AURA RGB headers 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x Speaker header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header |
| חיבורים ויציאות | 2x USB 3.2 Gen 2 ports (2 x Type-A) 4x USB 3.2 Gen 1 ports (4 x Type-A) 1x D-Sub port 1x DVI-D port 1x HDMI® port 1x Wi-Fi Module 1x Realtek 1Gb Ethernet port 3x Audio jacks 1x PS/2 Keyboard/Mouse combo port |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-Slot ASUS Thermal Solution VRM heatsink design :AURA Sync AURA RGB headers Addressable Gen 2 header |
| תוכנות מצורפות | ASUS Exclusive Software Armoury Crate AURA Creator AURA Sync AI Suite 3 Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ EZ update Lighting Control ASUS CPU-Z AI Charger DAEMON Tools MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS :ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | :Cables 2x SATA 6Gb/s cables :Miscellaneous 1x ASUS Wi-Fi moving antennas 1x I/O Shield 1x M.2 SSD screw package :Installation Media 1x Support DVD :Documentation 1x User manual |
| תצורה | mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
