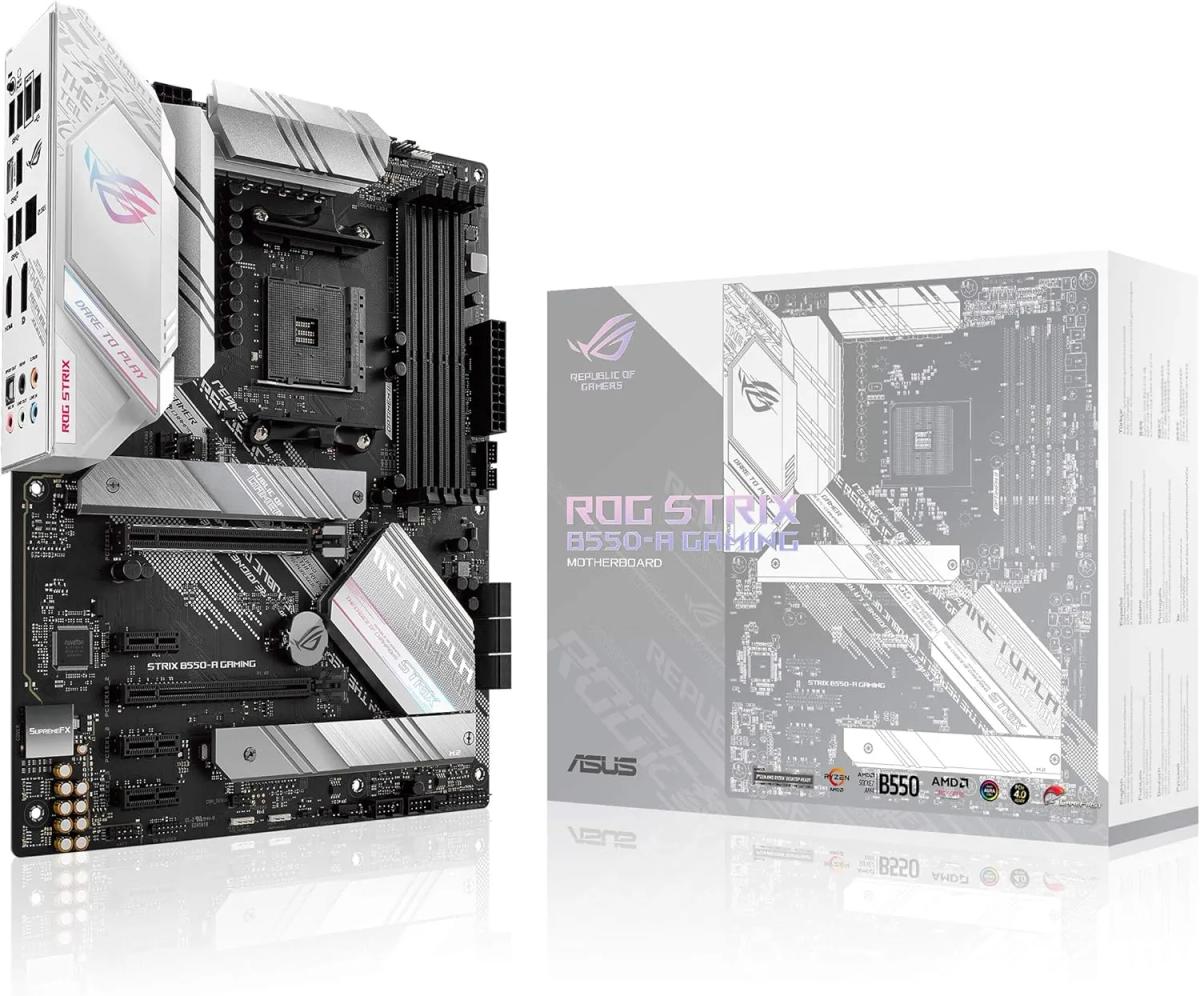

לוח אם – ASUS ROG STRIX B550-A GAMING ATX AM4 DDR4 - צבע שחור/לבן
חדש
מק"ט: 90MB15J0-M0EAY0
לוח אם איכותי מבית Asus, בעל תושבת AM4, ערכת שבבים B550, תאימות לזיכרונות DDR4 ובעל יציאות HDMI ,DisplayPort.
₪760.00כולל מע"מ
במלאיפריסת תשלומים
₪760.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Refer to http://www.asus.com for CPU support list |
| תמיכה בזיכרונות | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory AMD RyzenTM 4000 G-Series Processors 4x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture OptiMem II ECC Memory (ECC mode) support varies by CPU. Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists)* |
| גרפיקה מובנית | Integrated Graphics Processor 1x DisplayPort 1.2 1x HDMI 2.1(4K@60HZ) Graphics specifications may vary between CPU types* |
| חריצי הרחבה | :AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x PCIe 4.0 x16 (x16 mode) :AMD RyzenTM 4000 G-Series Processor 1x PCIe 3.0 x16 (x16 mode) :AMD B550 Chipset 1x PCIe 3.0 x16 (x4 mode) 3x PCIe 3.0 x1 |
| USB | :Rear USB Port (Total 8) 2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) 2x USB 2.0 port(s) :Front USB Port (Total 6) 2x USB 3.2 Gen 1 port(s) 4x USB 2.0 port(s) |
| ממשק אחסון | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports :AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) :AMD RyzenTM 4000 G-Series Processor 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* :AMD B550 Chipset 1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| שמע | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A Dual OP Amplifiers Impedance sense for front and rear headphone outputs Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/192kHz playback * :Audio Feature SupremeFX Shielding™ Technology Gold-plated jacks Optical S/PDIF in port(s) at back panel Audio Shielding Premium Japanese audio capacitors Audio Cover Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio* |
| כרטיס רשת קווי | Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 3x Chassis Fan connector(s) 1x AIO_PUMP connector 1x AAFP connector 2x Aura RGB Strip Header(s) 1x Addressable Gen 2 header(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6x SATA 6Gb/s connector(s) 1x Thunderbolt header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x System panel(s) 1x Thermal sensor connector(s) 1x Clear CMOS jumper(s) |
| חיבורים ויציאות | 1x Intel® I225-V 2.5Gb Ethernet 1x DisplayPort 1x HDMI 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4x USB 3.2 Gen 1 2x USB 2.0 1x Optical S/PDIF out 1x BIOS FlashBack™ Button(s) 5x Gold-plated audio jacks |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | Aura Sync Standard RGB header(s) Addressable Gen 2 RGB header(s) ASUS Q-Design ASUS Q-DIMM ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) ASUS Q-Slot ASUS Thermal Solution Aluminum M.2 heatsink ASUS EZ DIY BIOS FlashBack™ button -BIOS FlashBack™ LED Clear CMOS header ProCool Pre-mounted I/O shield SafeSlot |
| תוכנות מצורפות | OG Exclusive Software RAMCache III ROG CPU-Z GameFirst VI Sonic Studio III + Sonic Studio Virtual Mixer Sonic Radar III DTS® Sound Unbound Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate Aura Creator Aura Sync AI Noise Cancelling Microphone AI Suite 3 PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO EZ update WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | User´s manual 4x SATA 6Gb/s cable(s) 1x Supporting DVD 1x ROG Strix stickers 1x Cable ties pack(s) 1x Extension cable for Addressable LED 1x ROG Thank you card 1x M.2 SSD screw package(s) 1x M.2 Rubber Package(s) |
| תצורה | ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
