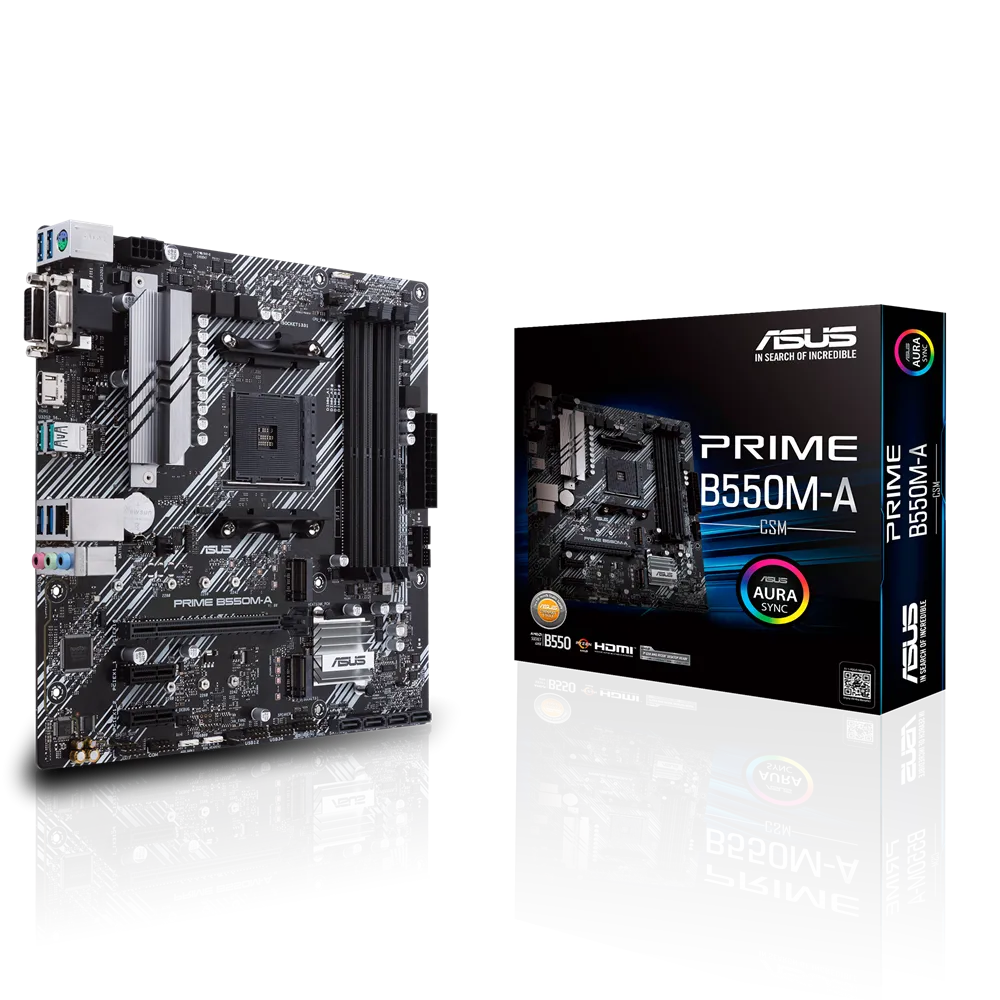

לוח אם – ASUS PRIME B550M-A/CSM Micro-ATX AM4 DDR4 - צבע שחור
חדש
מק"ט: 90MB14I0-M0EAYC
לוח אם איכותי מבית Asus, בעל תושבת AM4, ערכת שבבים B550M, תאימות לזיכרונות DDR4 ובעל יציאות HDMI ,VGA ,DVI-D.
₪455.00כולל מע"מ
במלאיפריסת תשלומים
₪455.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | Asus |
| תמיכה במעבדים | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors * Refer to http://www.asus.com for CPU support list* |
| תמיכה בזיכרונות | 4x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU .Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types* |
| גרפיקה מובנית | 1x D-Sub 1x DVI-D 1x HDMI 2.1(4K@60HZ) Graphics specifications may vary between CPU types* |
| חריצי הרחבה | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x PCIe 4.0 x16 (x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2x PCIe 3.0 x1 |
| USB | :Rear USB Port ( Total 6 ) 2x USB 3.2 Gen 2 port(s)(2 x Type-A) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) :Front USB Port ( Total 6 ) 2x USB 3.2 Gen 1 port(s)(2 x Type-A) 4x USB 2.0 port(s)(4 x Type-A) |
| ממשק אחסון | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support :AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support :AMD B550 Chipset 1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| שמע | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback :Audio Feature LED-illuminated design Audio Shielding Dedicated audio PCB layers Premium Japanese audio capacitors Choose the chassis with HD audio module in front panel to support 8-channel audio output* |
| כרטיס רשת קווי | Realtek RTL8111H 1Gb Ethernet |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 2x Chassis Fan connector(s) 2x Aura RGB Strip Headers 1x Addressable Gen 2 header(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1x SPI TPM header 4x SATA 6Gb/s connector(s) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin EATX 12V Power connectors 1x Front panel audio connector(s) (AAFP) 1x Clear CMOS jumper(s) 1x System panel connector 1x COM port header 1x Speaker connector |
| חיבורים ויציאות | 1x PS/2 keyboard/mouse combo port(s) 1x DVI-D 1x D-Sub 1x HDMI 1x LAN (RJ45) port(s) 2x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4x USB 3.2 Gen 1 (blue) Type-A 3x Audio jack(s) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| תכונות ייחודיות | :ASUS 5X PROTECTION III ASUS DIGI+ VRM ASUS LANGuard ASUS Overvoltage Protection ASUS SafeSlot Core ASUS Stainless-Steel Back I/O :ASUS Q-Design ASUS Q-DIMM ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design :AURA Sync Standard RGB headers Addressable Gen 2 RGB header ASUS Lighting Control |
| תוכנות מצורפות | :ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| אביזרים כלולים | 1x ACC Express Activation Key Card I/O Shield 2x SATA 6Gb/s cable(s) 1x Supporting DVD User manual 1x M.2 SSD screw package(s) |
| תצורה | mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
