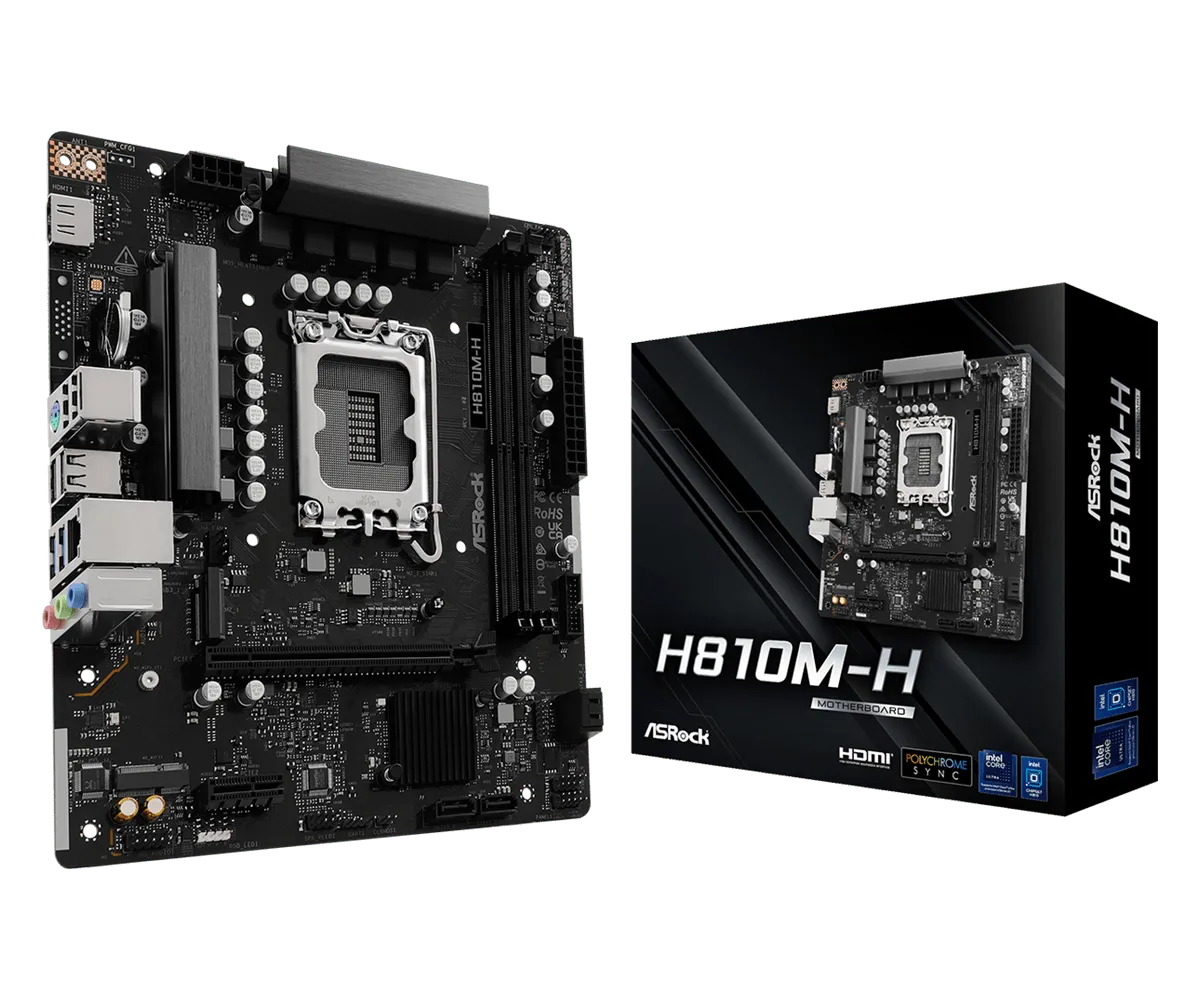

לוח אם – ASRock H810M-H Micro-ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90-MXBSZ0-A0UAYZ
לוח אם איכותי מבית ASRock, בעל תושבת LGA1851, ערכת שבבים H810, תאימות לזיכרונות DDR5 ובעל יציאת תצוגה של HDMI.
₪319.00כולל מע"מ
במלאיפריסת תשלומים
₪319.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology - 2x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB* - Supports Intel® Extreme Memory Profile (XMP) 3.0x* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| גרפיקה מובנית | Intel® Xe LPG Graphics Architecture 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| חריצי הרחבה | :CPU 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 1x PCIe 4.0 x1 Slot (PCIE2)* 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports NVMe SSD as boot disks* |
| USB | :Chipset 4x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6x USB 2.0 (4 Rear, 2 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :Chipset 1x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks* |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) |
| כרטיס רשת קווי | Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x SPI TPM Header 1x Power LED and Speaker Header 1x RGB LED Header* 2x Addressable LED Headers** 1x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**** 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector 1x Front Panel Audio Connector 1x USB 2.0 Header (Supports 2 USB 2.0 ports) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1 supports the fan power up to 1A (12W)*** CHA_FAN1 supports the fan power up to 3A (36W)**** CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 2x Antenna Mounting Points 1x PS/2 Mouse/Keyboard Port 1x HDMI Port 2x USB 3.2 Gen1 Ports 4x USB 2.0 Ports 1x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology EZ Update - ASRock Auto Driver Installer |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| תצורה | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
