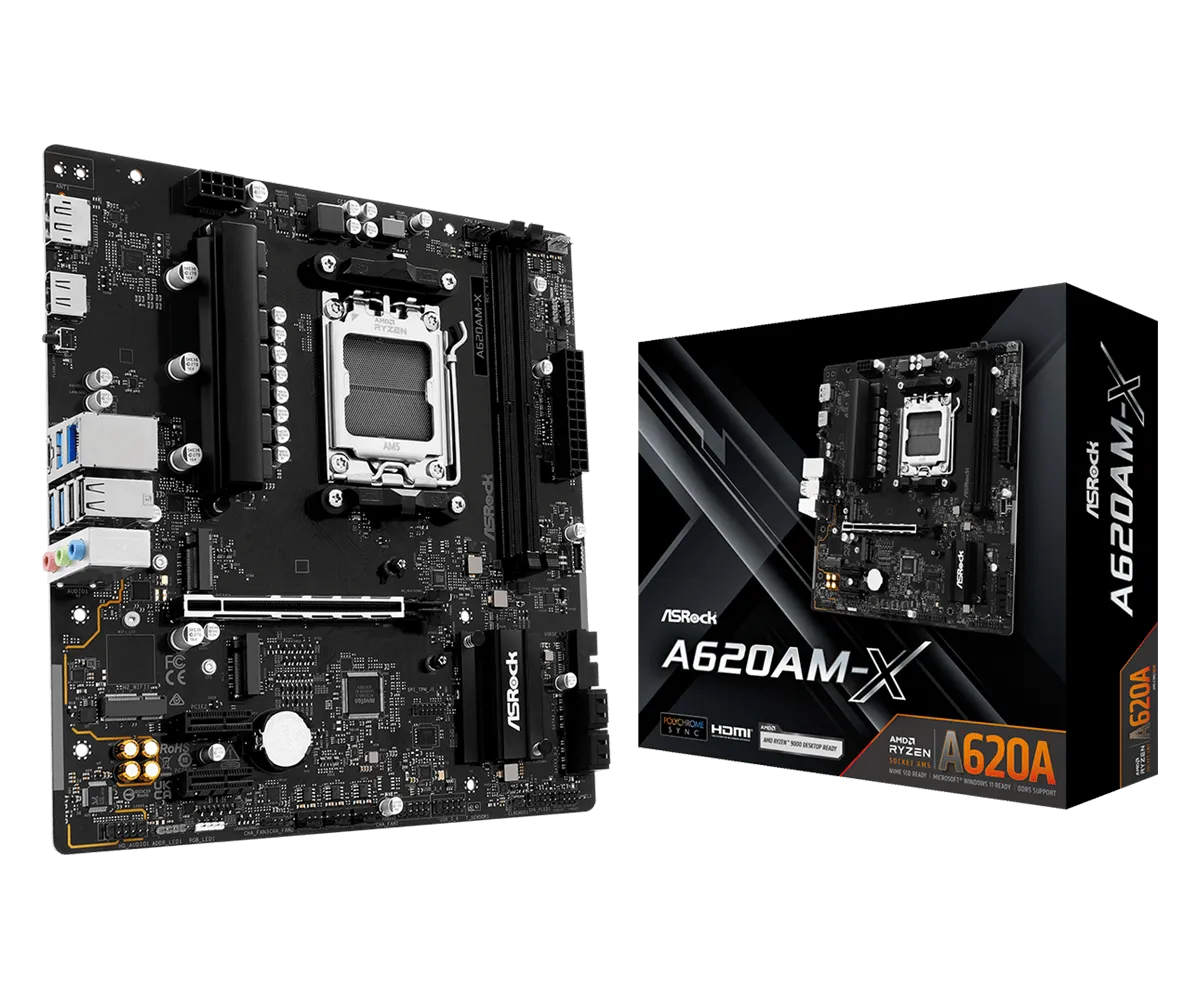

לוח אם – ASRock A620AM-X Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90-MXBSTO-AQUAYZ
לוח אם איכותי מבית ASRock, בעל תושבת AM5, ערכת שבבים A620, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪340.00כולל מע"מ
במלאיפריסת תשלומים
₪340.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* Please refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/) |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology - 2x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* Please refer to Memory Support List on ASRock's website for more information |
| גרפיקה מובנית | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| חריצי הרחבה | :CPU 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 2x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) Supports NVMe SSD as boot disks* |
| USB | :CPU 3x USB 3.2 Gen1 Type-A (Rear) Chipset: 2x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 2x USB 3.2 Gen1 Type-A (Front) 6x USB 2.0 (2 Rear, 4 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :CPU 1x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* :Chipset 4x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks* Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* Requires additional M.2 NVMe expansion cards to support RAID 10 |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) |
| כרטיס רשת קווי | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x SPI TPM Header 1x Power LED and Speaker Header 1x RGB LED Header* 3x Addressable LED Headers** 1x CPU Fan Connector (4-pin)*** 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector 1x Front Panel Audio Connector 2x USB 2.0 Headers (Support 4 USB 2.0 ports) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1 supports the fan power up to 1A (12W)*** CHA_FAN1~3/WP support the fan power up to 2A**** (24W) CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 2x Antenna Mounting Points 1x HDMI Port 1x DisplayPort 1.4 1x USB 3.2 Gen1 Type-C Port 3x USB 3.2 Gen1 Type-A Ports 2x USB 2.0 Ports 1x RJ-45 LAN Port 1x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, Dr.MOS for VCore Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1x User Manual 1x I/O Shield 2x SATA Data Cables 3x Screws for M.2 Sockets |
| תצורה | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
