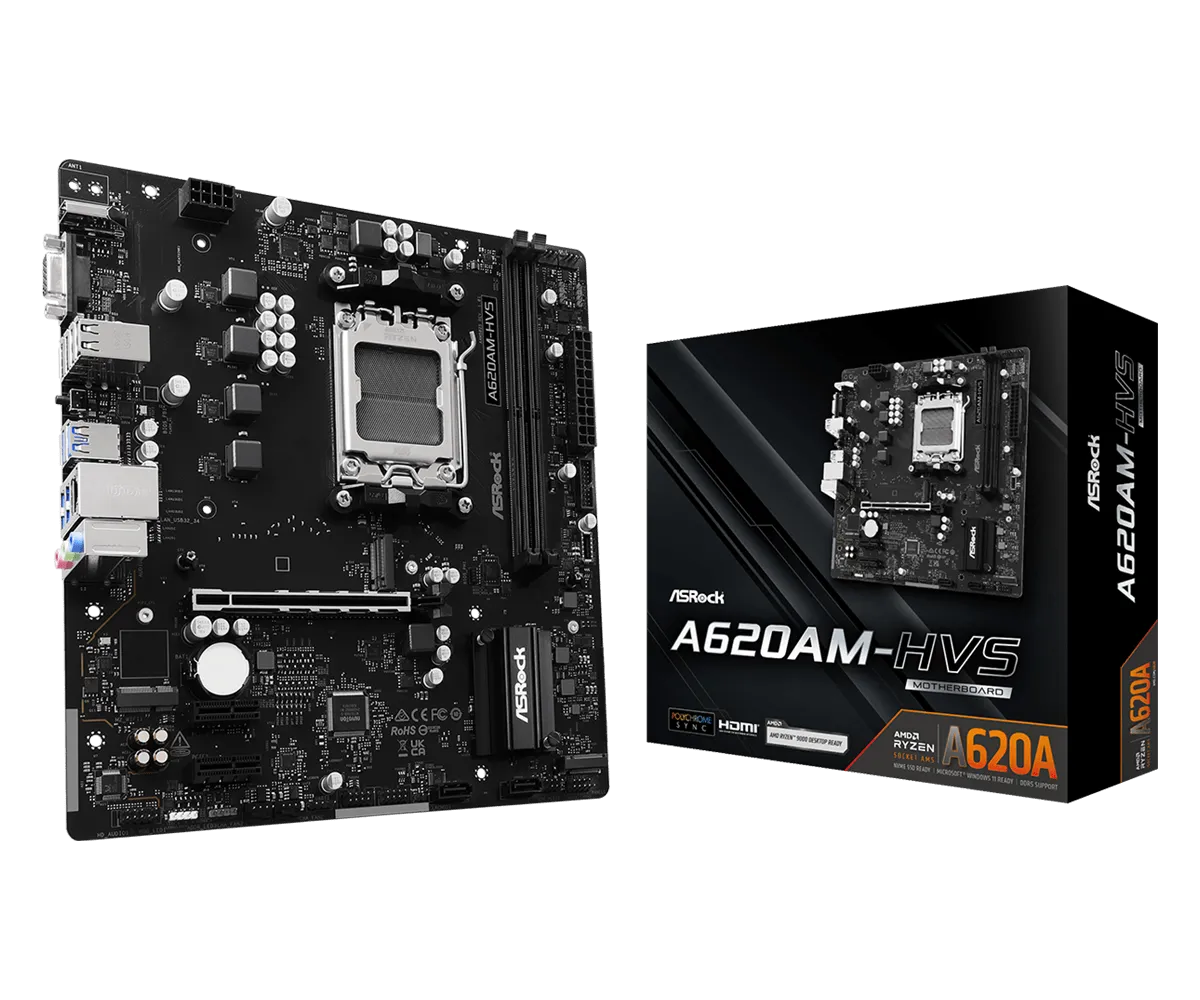

לוח אם – ASRock A620AM-HVS Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90-MXBSRO-AOUAYZ
לוח אם איכותי מבית ASRock, בעל תושבת AM5, ערכת שבבים A620, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,VGA.
₪285.00כולל מע"מ
במלאיפריסת תשלומים
₪285.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* Please refer to CPU Support List on ASRock's website for more information. The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology 2x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Please refer to Memory Support List on ASRock's website for more information |
| גרפיקה מובנית | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| חריצי הרחבה | :CPU 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 2x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors Supports NVMe SSD as boot disks |
| USB | :CPU 3x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) :Chipset 1x USB 3.2 Gen1 Type-C (Front) 3x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) 8x USB 2.0 (4 Rear, 4 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :CPU 1x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* :Chipset 1x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* 2x SATA3 6.0 Gb/s Connectors M2_1 is the first priority for M.2 installation* Supports NVMe SSD as boot disks Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 10 |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) |
| כרטיס רשת קווי | Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x Power LED and Speaker Header 1x RGB LED Header* 3x Addressable LED Headers** 1x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector (Hi-Density Power Connector) 1x Front Panel Audio Connector 2x USB 2.0 Headers (Support 4 USB 2.0 ports) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1 supports the fan power up to 1A (12W)*** CHA_FAN1~3/WP support the fan power up to 3A (36W) CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 2x Antenna Mounting Points 1x D-Sub Port 1x HDMI Port 4x USB 3.2 Gen1 Type-A Ports 4x USB 2.0 Ports 1x RJ-45 LAN Port 1x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1x I/O Shield 2x SATA Data Cables 1x Screw for M.2 Socket |
| תצורה | Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm 2oz Copper PCB |
