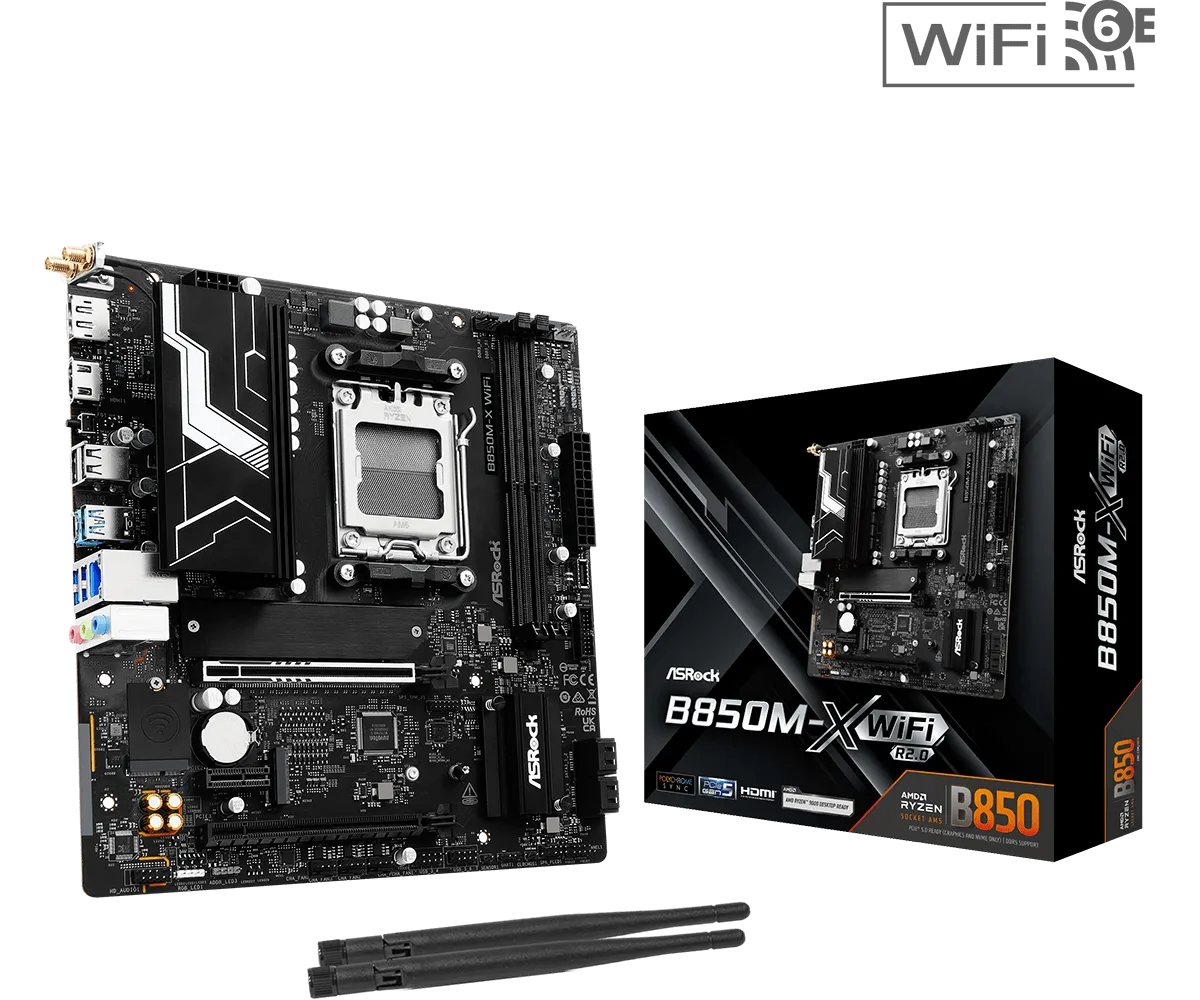

לוח אם – ASRock B850M-X WiFi R2.0 Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90-MXBSHO-AQUAYZ
לוח אם איכותי מבית ASRock, בעל תושבת AM5, ערכת שבבים B850, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪479.00כולל מע"מ
אזל במלאיפריסת תשלומים
₪479.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology - 2x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Please refer to Memory Support List on ASRock's website for more information |
| גרפיקה מובנית | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| חריצי הרחבה | :CPU - 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* :Chipset - 1x PCIe 4.0 x1 Slot (PCIE2)* - 1x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks |
| USB | :CPU 3x USB 3.2 Gen1 Type-A (Rear) 1x USB 2.0 (Rear (USB_2)) :Chipset 2x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 2x USB 3.2 Gen1 Type-A (Front) 5x USB 2.0 (1 Rear (USB_1), 4 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :CPU - 1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* :Chipset - 4x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 10 |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| כרטיס רשת קווי | 2.5Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| מודול תקשורת אלחוטית | 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality |
| חיבורים פנימיים | 1x Thermistor Cable Header - 1x SPI TPM Header - 1x Power LED and Speaker Header - 1x RGB LED Header* - 3x Addressable LED Headers** - 2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1x 24 pin ATX Power Connector - 1x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1x Front Panel Audio Connector - 2x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1 supports the fan power up to 1A (12W)*** CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 2x Antenna Ports 1x HDMI Port 1x DisplayPort 1.4 1x USB 3.2 Gen1 Type-C Port 3x USB 3.2 Gen1 Type-A Ports 2x USB 2.0 Ports 1x RJ-45 LAN Port 1x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, Dr.MOS for VCore Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1x I/O Shield 2x SATA Data Cables 2x ASRock WiFi 2.4/5/6 GHz Antennas |
| תצורה | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
