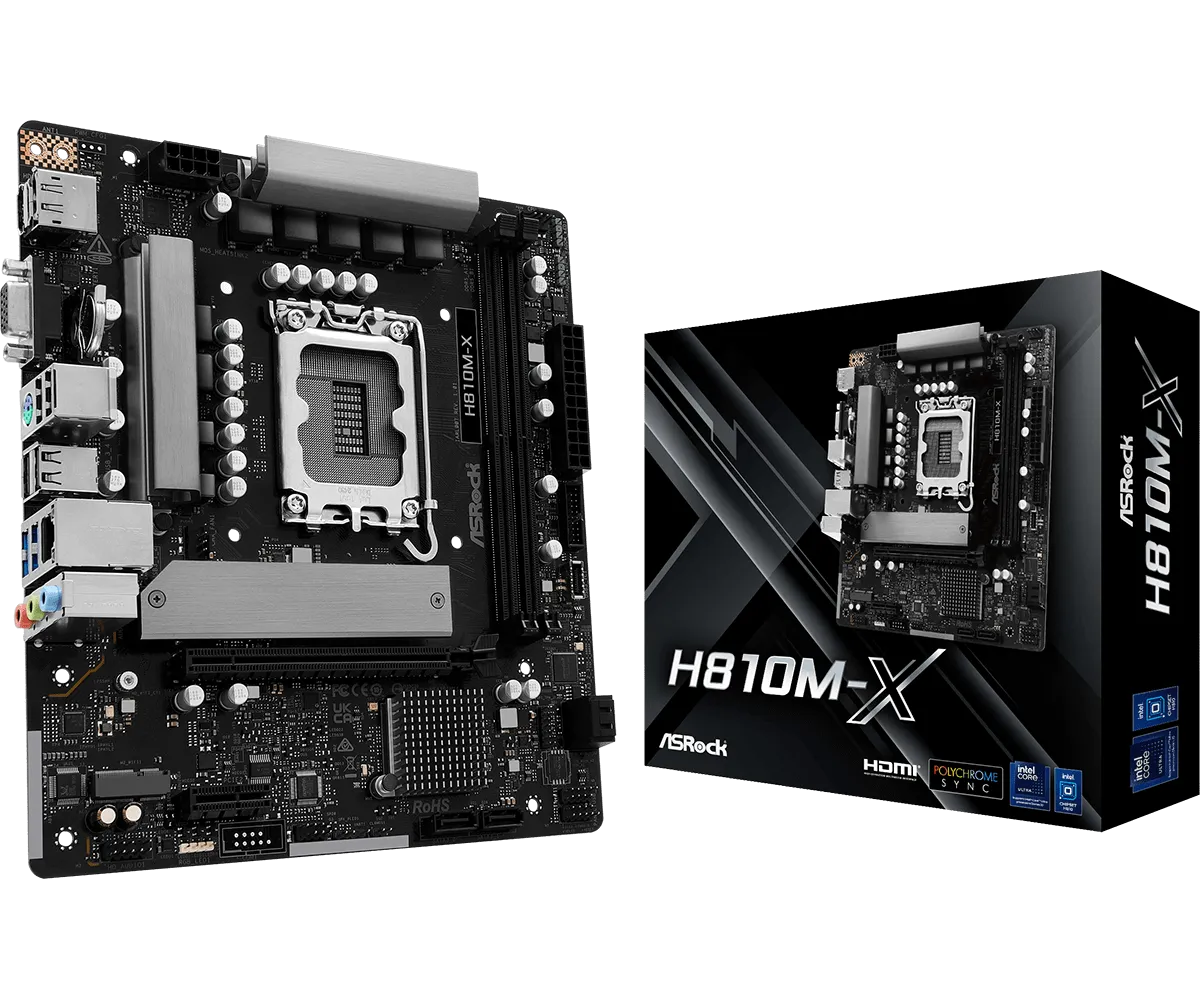

לוח אם – ASRock H810M-X Micro-ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90-MXBS40-A0UAYZ
לוח אם איכותי מבית ASRock, בעל תושבת LGA1851, ערכת שבבים H810, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,VGA ,DisplayPort.
₪380.00כולל מע"מ
במלאיפריסת תשלומים
₪380.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology - 2x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB* - Supports Intel® Extreme Memory Profile (XMP) 3.0x* Please refer to Memory Support List on ASRock's website for more information Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| גרפיקה מובנית | Intel® Xe LPG Graphics Architecture 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| חריצי הרחבה | CPU 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 1x PCIe 4.0 x1 Slot (PCIE2)* 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports NVMe SSD as boot disks* |
| USB | :Chipset 1x USB 3.2 Gen1 Type-C (Front) 4x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6x USB 2.0 (4 Rear, 2 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :Chipset 1x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks* |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) |
| כרטיס רשת קווי | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x SPI TPM Header 1x Power LED and Speaker Header 1x RGB LED Header* 2x Addressable LED Headers** 1x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 1x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**** 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector 1x Front Panel Audio Connector 1x USB 2.0 Header (Supports 2 USB 2.0 ports) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1 supports the fan power up to 1A (12W)*** CHA_FAN1 supports the fan power up to 3A (36W)**** CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 2x Antenna Mounting Points 1x PS/2 Mouse/Keyboard Port 1x D-Sub Port 1x HDMI Port 1x DisplayPort 1.4 2x USB 3.2 Gen1 Ports 4x USB 2.0 Ports 1x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1+1+1 Power Phase - ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1x I/O Shield 2x SATA Data Cables 1x Screw for M.2 Socket |
| תצורה | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
