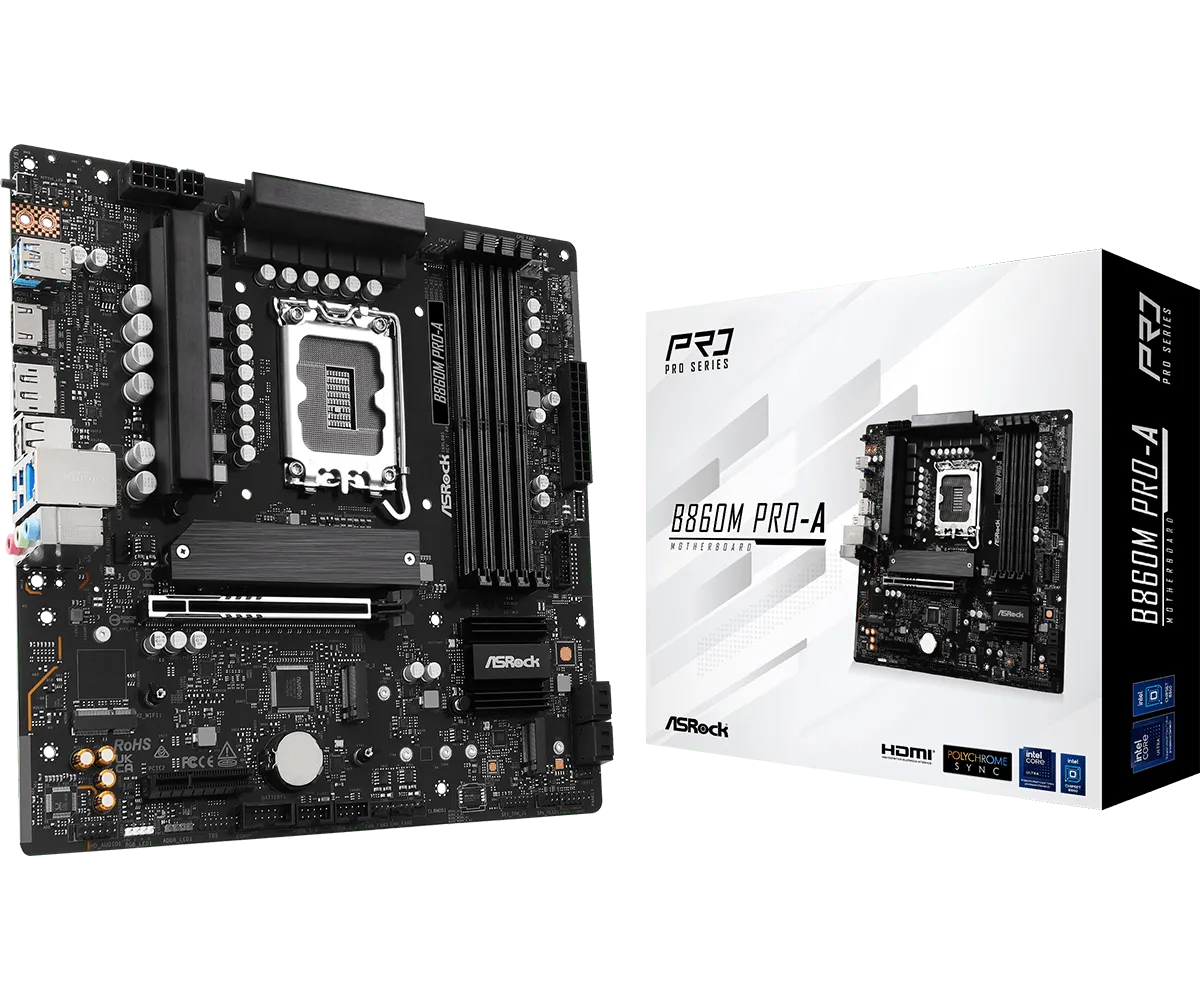

לוח אם – ASRock B860M Pro-A Micro-ATX LGA1851 DDR5 - צבע שחור
חדש
מק"ט: 90-MXBRR0-A0UAYZ
לוח אם איכותי מבית ASRock, בעל תושבת LGA1851, ערכת שבבים B860, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪490.00כולל מע"מ
במלאיפריסת תשלומים
₪490.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology - 4x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel® Extreme Memory Profile (XMP) 3.0x 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively |
| גרפיקה מובנית | Intel® Xe LPG Graphics Architecture 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| חריצי הרחבה | :CPU 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports NVMe SSD as boot disks* |
| USB | :CPU 1x USB 3.2 Gen2x2 Type-C (Rear) :Chipset 1x USB 3.2 Gen1 Type-C (Front) 5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6x USB 2.0 (2 Rear, 4 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :CPU 1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* :Chipset 1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4x SATA3 6.0 Gb/s Connectors Supports Intel® Volume Management Device (VMD)* Supports NVMe SSD as boot disks Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) |
| כרטיס רשת קווי | 2.5Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x COM Port Header 1x SPI TPM Header 1x Power LED and Speaker Header 1x RGB LED Header* 3x Addressable LED Headers** 2x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 3x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector (Hi-Density Power Connector) 1x 4 pin 12V Power Connector (Hi-Density Power Connector) 1x Front Panel Audio Connector 2x USB 2.0 Headers (Support 4 USB 2.0 ports) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 port) 1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1 supports the fan power up to 1A (12W)*** CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W) CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 2x Antenna Mounting Points 1x HDMI Port 1x DisplayPort 1.4 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 3x USB 3.2 Gen1 Ports 2x USB 2.0 Ports 1x RJ-45 LAN Port 1x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1x I/O Shield 2x SATA Data Cables 1x Screw for M.2 Socket |
| תצורה | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
