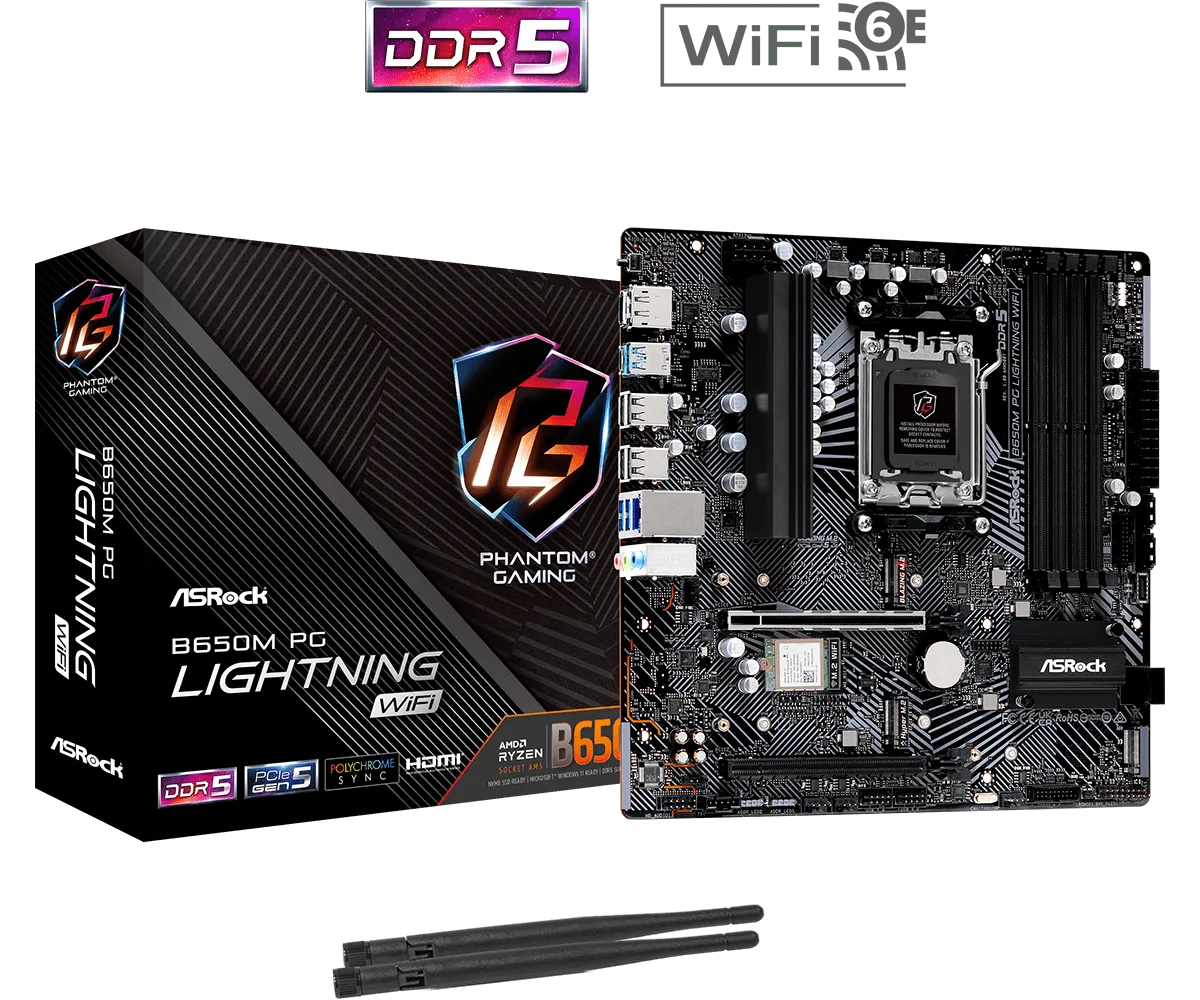

לוח אם – ASRock B650M PG Lightning WiFi Micro-ATX AM5 DDR5 - צבע שחור
חדש
מק"ט: 90-MXBMW0-AOUAYZ
לוח אם איכותי מבית ASRock, בעל תושבת AM5, ערכת שבבים B650, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,DisplayPort.
₪570.00כולל מע"מ
במלאיפריסת תשלומים
₪570.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology - 4x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Please refer to Memory Support List for more information* |
| גרפיקה מובנית | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| חריצי הרחבה | :CPU 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* :Chipset 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) Supports NVMe SSD as boot disks* |
| USB | 1x USB 3.2 Gen2 Type-C (Rear) 1x USB 3.2 Gen2 Type-A (Rear) 1x USB 3.2 Gen1 Type-C (Front) 6x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) 8x USB 2.0 (4 Rear, 4 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :CPU 1x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* :Chipset 1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* 4x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks* Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 10 |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| כרטיס רשת קווי | 2.5Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| מודול תקשורת אלחוטית | 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2x antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available A 6GHz compatible router is required for 6E functionality |
| חיבורים פנימיים | 1x SPI TPM Header 1x Power LED and Speaker Header 1x RGB LED Header* 3x Addressable LED Headers** 1x CPU Fan Connector (4-pin)*** 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector (Hi-Density Power Connector) 1x Front Panel Audio Connector 1x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2x USB 2.0 Headers (Support 4 USB 2.0 ports) 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip* Support in total up to 5V/3A, 15W LED Strip* CPU_FAN1 supports the fan power up to 1A (12W)*** CPU_FAN2/WP supports the fan power up to 2A (24W)**** CHA_FAN1~3/WP support the fan power up to 2A (24W)***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 2x Antenna Ports 1x HDMI Port 1x DisplayPort 1.4 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2x USB 3.2 Gen1 Type-A Ports 4x USB 2.0 Ports 1x RJ-45 LAN Port 1x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1x User Manual 1x I/O Shield 2x SATA Data Cables 2x SMA WiFi Antenna Cables 2x ASRock WiFi 2.4/5/6 GHz Antennas 1x Plastic Cover for Wi-Fi Module 3x Screws for M.2 Sockets |
| תצורה | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
