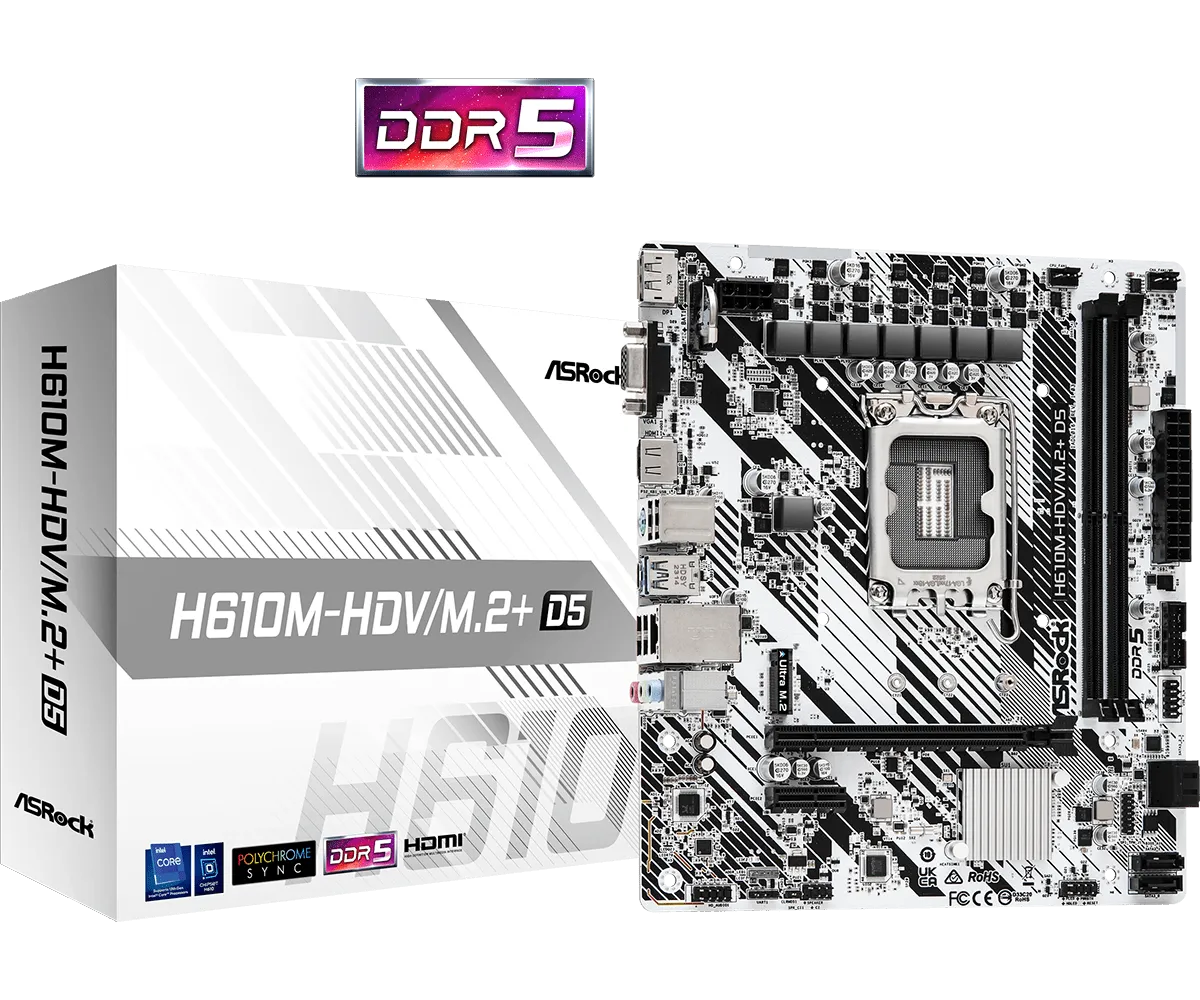

לוח אם – ASRock H610M-HDV/M.2+ D5 Micro-ATX LGA1700 DDR5 - צבע לבן
חדש
מק"ט: 90-MXBM50-A0UAYZ
לוח אם איכותי מבית ASRock, בעל תושבת LGA1700, ערכת שבבים H610, תאימות לזיכרונות DDR5 ובעל יציאות תצוגה של HDMI ,VGA ,DisplayPort.
₪265.00כולל מע"מ
במלאיפריסת תשלומים
₪265.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology |
| תמיכה בזיכרונות | Dual Channel DDR5 Memory Technology 2x DDR5 DIMM Slots 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600* 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800* Max. capacity of system memory: 96GB Supports Intel® Extreme Memory Profile (XMP) 3.0 Actual support may vary by CPU* |
| גרפיקה מובנית | Intel® Xe Graphics Architecture (Gen 12)* 1x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| חריצי הרחבה | :CPU 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* :Chipset 1x PCIe 3.0 x1 Slot (PCIE2)* Supports NVMe SSD as boot disks* |
| USB | 1x USB 3.2 Gen1 Type-C (Rear) 3x USB 3.2 Gen1 Type-A (1 Rear, 2 Front) 6x USB 2.0 (4 Rear, 2 Front) All USB ports support ESD Protection* |
| ממשק אחסון | :Chipset 1x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 4x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks* |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) |
| כרטיס רשת קווי | Gigabit LAN 10/100/1000 Mb/s Realtek 8111H |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x SPI TPM Header 1x Chassis Intrusion and Speaker Header 1x Addressable LED Header* 1x CPU Fan Connector (4-pin)** 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1x 24 pin ATX Power Connector 1x 8 pin 12V Power Connector 1x Front Panel Audio Connector 1x USB 2.0 Header (Supports 2 USB 2.0 ports) 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Support in total up to 5V/3A, 15W LED Strip* CPU_FAN1 supports the fan power up to 1A (12W)** CHA_FAN1/WP supports the fan power up to 2A (24W)*** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 1x PS/2 Mouse/Keyboard Port 1x D-Sub Port 1x HDMI Port 1x DisplayPort 1.4 1x USB 3.2 Gen1 Type-C Port 1x USB 3.2 Gen1 Type-A Port 4x USB 2.0 Ports 1x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| תכונות ייחודיות | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | 1x User Manual 1x I/O Shield x SATA Data Cables 1x Screw for M.2 Socket |
| תצורה | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
