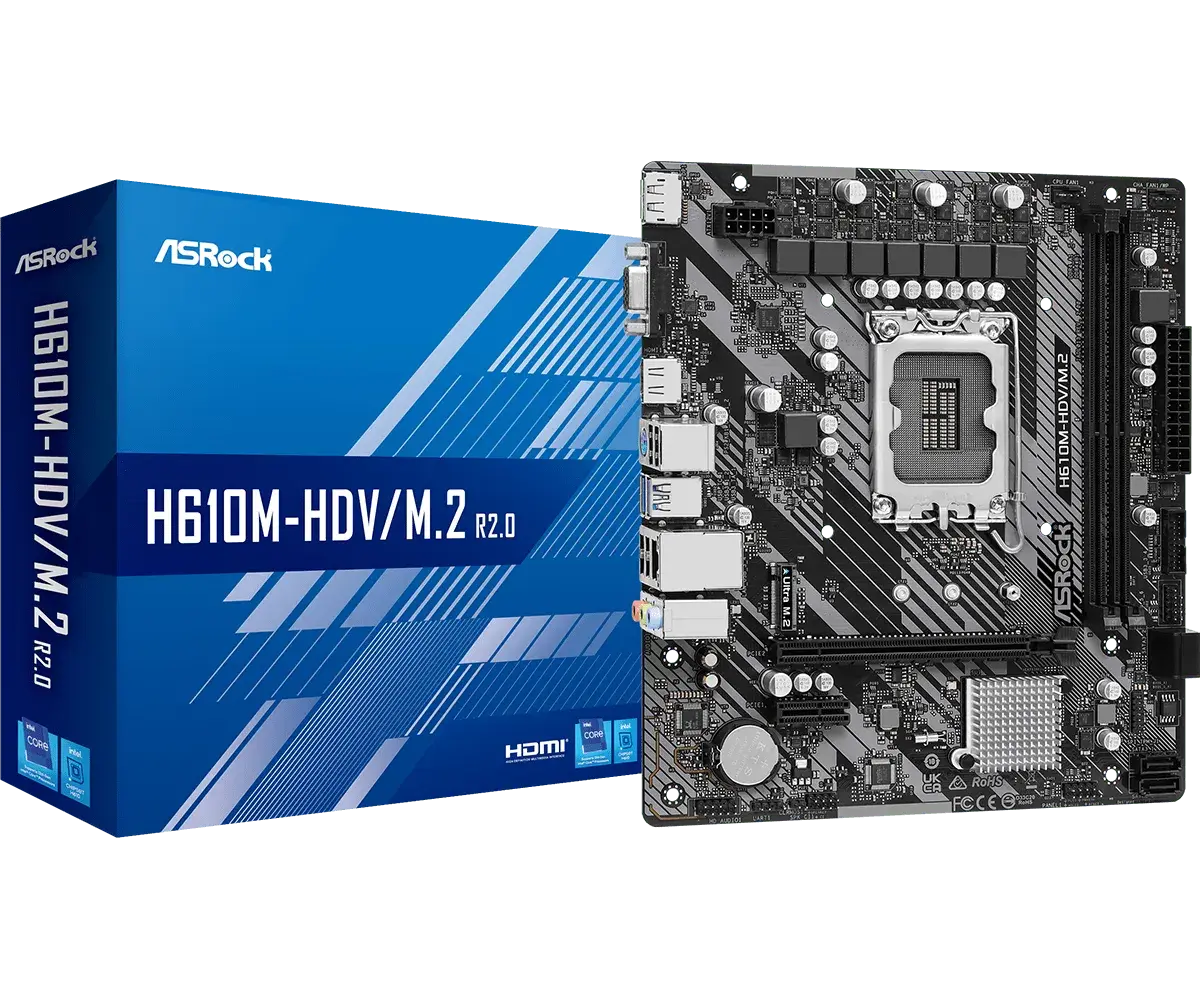

לוח אם – ASRock H610M-HDV/M.2 R2.0 Micro-ATX LGA1700 DDR4 - צבע שחור
חדש
מק"ט: 90-MXBJH0-A0UAYZ
לוח אם איכותי מבית ASRock, בעל תושבת LGA1700, ערכת שבבים H610, תאימות לזיכרונות DDR4 ובעל יציאות תצוגה של HDMI ,VGA ,DisplayPort.
₪425.00כולל מע"מ
אזל במלאיפריסת תשלומים
₪425.00 לחודש
עד 1 תשלומים ללא ריבית
מפרט טכני
| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
| יצרן לוח אם | ASRock |
| תמיכה במעבדים | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - 6+1+1 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| תמיכה בזיכרונות | Dual Channel DDR4 Memory Technology - 2x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation |
| גרפיקה מובנית | Intel® Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
| חריצי הרחבה | :CPU - 1x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* :Chipset - 1x PCIe 3.0 x1 Slot (PCIE1) Supports NVMe SSD as boot disks* |
| ממשק אחסון | :Chipset - 1x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks* Supports ASRock U.2 Kit |
| שמע | 7.1CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection |
| כרטיס רשת קווי | PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| מודול תקשורת אלחוטית | ללא |
| חיבורים פנימיים | 1x SPI TPM Header - 1x Chassis Intrusion and Speaker Header - 1x CPU Fan Connector (4-pin)* - 1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1x 24 pin ATX Power Connector - 1x 8 pin 12V Power Connector - 1x Front Panel Audio Connector - 1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use |
| חיבורים ויציאות | 1x PS/2 Mouse/Keyboard Port 1x D-Sub Port 1x HDMI Port 1x DisplayPort 1.4 2x USB 3.2 Gen1 Ports (Supports ESD Protection) 4x USB 2.0 Ports (Supports ESD Protection) 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment |
| תכונות ייחודיות | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| תוכנות מצורפות | Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update & APP Shop |
| אביזרים כלולים | I/O Shield 2x SATA Data Cables 1x Screw for M.2 Socket |
| תצורה | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm Solid Capacitor design |
