| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Gigabyte
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
B850
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
3
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
:AMD Socket AM5, support for
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)
|
| תמיכה בזיכרונות |
Support for DDR5 8600(OC)/ 8400(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC and non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
|
| גרפיקה מובנית |
:Integrated Graphics Processor with AMD Radeon™ Graphics support
1x USB Type-C® port (Note) with DisplayPort video output, supporting a maximum resolution of 3840×2160@144 Hz.
Support for DisplayPort 1.4 version and HDR*
1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3, and HDR*
Support for native HDMI 2.1 TMDS compatible ports**
(Graphics specifications may vary depending on CPU support)
(Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors
|
| חריצי הרחבה |
:1x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode*
The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot*
:1x PCI Express x16 slot (PCIEX8), integrated in the CPU
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
The PCIEX8 slot become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used*
:Chipset
1x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)
The PCIEX2 slot shares bandwidth with the M2C_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2C_SB connector*
|
| USB |
:CPU
3x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1x USB Type-C® port (Note) on the back panel
:CPU+USB 2.0 Hub
4x USB 2.0/1.1 ports on the back panel
:Chipset
1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
2x USB 3.2 Gen 1 ports available through the internal USB header
4x USB 2.0/1.1 ports available through the internal USB headers
:Chipset+USB 3.2 Gen 1 Hub
4x USB 3.2 Gen 1 ports on the back panel
(Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors
|
| ממשק אחסון |
:1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
:1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
4x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors*
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
|
| שמע |
Realtek® ALC1220 CODEC
The back panel line out jack supports DSD audio*
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
Support for S/PDIF Out
|
| כרטיס רשת קווי |
2x Marvell® AQtion AQC113C 10GbE LAN chips
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
| מודול תקשורת אלחוטית |
Realtek® Wi-Fi 7 RTL8922AE
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment)
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)*
Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations**
|
| חיבורים פנימיים |
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
4x system fan headers
2x system fan/water cooling pump headers
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
4x SATA 6Gb/s connectors
3x M.2 Socket 3 connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 2×2 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x noise detection header
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1x power button
1x reset button
1x reset jumper
1x Clear CMOS jumper
2x temperature sensor headers
|

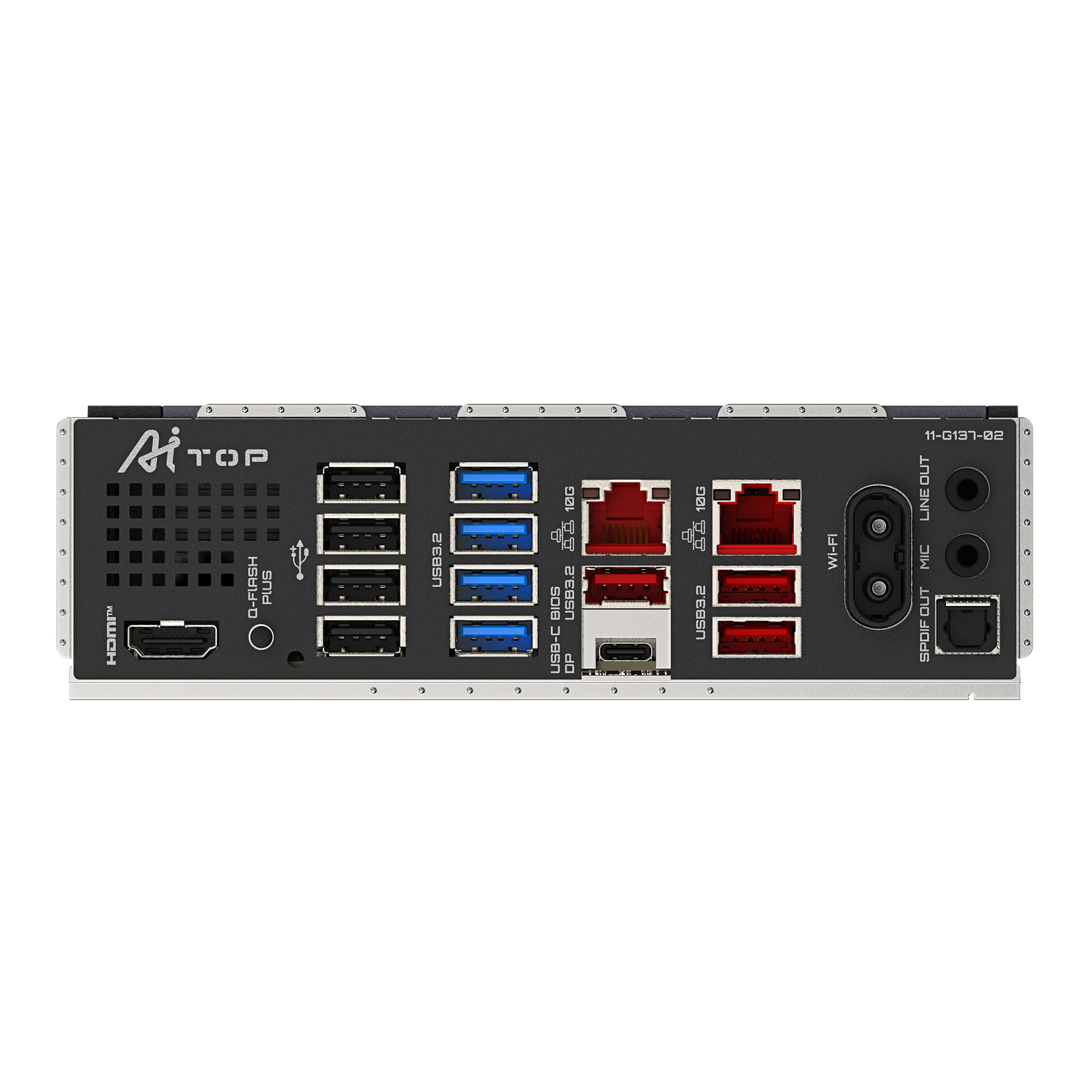

| חיבורים ויציאות |
1x Q-Flash Plus button
2x SMA antenna connectors (2T2R)
1x HDMI port (Note 1)
1x USB Type-C® port (Note 2) (DisplayPort (Note 1))
3x USB 3.2 Gen 2 Type-A ports (red)
4x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports
2x RJ-45 ports
1x optical S/PDIF Out connector
2x audio jacks
(Note 1) Actual support may vary by CPU.
(Note 2) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors
|
| BIOS |
1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| תכונות מיוחדות |
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
|
| תוכנות מצורפות |
Norton® Internet Security (OEM version)
LAN bandwidth management software
Service discontinued as a result of contract termination by the software provider*
|
| תצורה |
ATX Form Factor; 30.5cm x 24.4cm
|
| קישור לאתר היצרן |
https://www.gigabyte.com/Motherboard/B850-AI-TOP
|
