| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Gigabyte |
|---|
| מבוסס לוח אם | AMD |
|---|
| תושבת | AM5 |
|---|
| ערכת שבבים | B650 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | ATX |
|---|
| NVMe PCIe M.2 Connector | 3 |
|---|
| קישוריות | WIFI & Bluetooth |
|---|
| תמיכה במעבדים | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Please refer "CPU Support List" for more information) |
|---|
| תמיכה בזיכרונות | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information) |
|---|
| גרפיקה מובנית | :Integrated Graphics Processor with AMD Radeon™ Graphics support
1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3*
Support native HDMI 2.1 TMDS compatible ports**
(Graphics specifications may vary depending on CPU support) |
|---|
| חריצי הרחבה | :1x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot*
:Chipset
1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector*
1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|---|
| USB | :CPU
1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2x USB 3.2 Gen 2 Type-A ports (red) on the back panel
:CPU + USB 2.0 Hub
4x USB 2.0/1.1 ports on the back panel
:Chipset
1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
1x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2x USB 3.2 Gen 1 ports available through the internal USB header
4x USB 2.0/1.1 ports available through the internal USB headers
:Chipset+USB 3.2 Gen 1 Hub
4x USB 3.2 Gen 1 ports on the back panel |
|---|
| מודול תקשורת אלחוטית | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment) |
|---|
| חיבורים פנימיים | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x CPU fan header
1x water cooling CPU fan header
4x system fan headers
2x system fan/water cooling pump headers
2x addressable LED strip headers
2x RGB LED strip headers
1x CPU cooler LED strip/RGB LED strip header
3x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 2×2 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x noise detection header
1x THB_U4 add-in card connector
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1x serial port header
1x reset button
1x reset jumper
2x temperature sensor headers
1x Clear CMOS jumper |
|---|

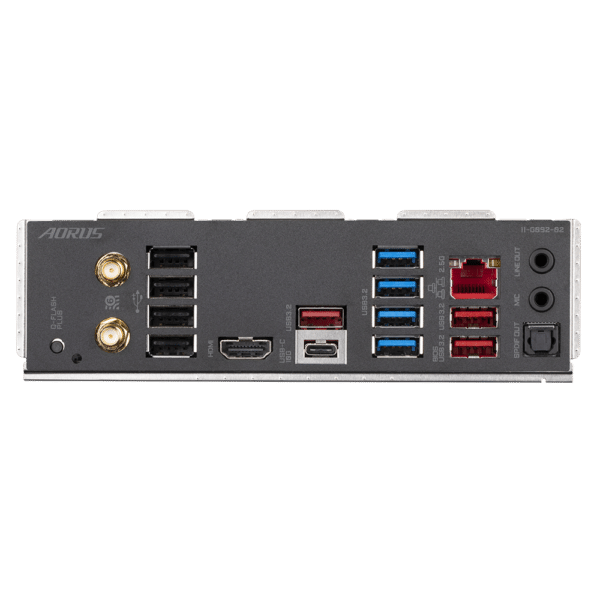

| חיבורים ויציאות | 1x Q-Flash Plus button
2x SMA antenna connectors (2T2R)
4x USB 2.0/1.1 ports
1x HDMI port
3x USB 3.2 Gen 2 Type-A ports (red)
1x USB Type-C® port, with USB 3.2 Gen 1 support
4x USB 3.2 Gen 1 ports
1x RJ-45 port
2x audio jacks
1x optical S/PDIF Out connector |
|---|
| BIOS | 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| תכונות מיוחדות | Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
Support for Q-Flash
Support for Q-Flash Plus |
|---|
| תוכנות מצורפות | Norton® Internet Security (OEM version)
LAN bandwidth management software |
|---|
| תצורה | ATX Form Factor; 30.5cm x 24.4cm |
|---|
| קישור לאתר היצרן | https://www.gigabyte.com/Motherboard/B650-AORUS-PRO-AX-rev-1x#kf |
|---|
