| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
B650
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
3
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Refer to http://www.asus.com for CPU support list*
|
| תמיכה בזיכרונות |
x4 DIMM, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
|
| גרפיקה מובנית |
x1 DisplayPort
x1 HDMI® port
|
| חריצי הרחבה |
:AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1x PCIe 4.0/3.0 x16 slot(s)
:AMD Ryzen™ 8000 Series Desktop Processors*
1x PCIe 4.0 x16 slot (supports x8/x4 mode)**
:AMD B650 Chipset
1x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1x PCIe 4.0/3.0 x1 slots
Please check PCIe bifurcation table on*
support site (https://www.asus.com/support/FAQ/1037507/).
Specifications vary by CPU types**
To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
:Rear USB (Total 8 ports)
2x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3x USB 5Gbps port(s) (3 x Type-A)
3x USB 2.0 port(s) (3 x Type-A)
:Front USB (Total 7 ports)
1x USB 20Gbps connector (supports USB Type-C®)
1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
|
| ממשק אחסון |
:Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
:AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
:AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
:AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both*
PCIe RAID 0/1/10 and SATA RAID 0/1/10
Specifications vary by CPU types**
|
| שמע |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio*
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output**
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
TUF LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
WiFi 6E 6GHz regulatory may vary between countries*
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications**
|
| חיבורים פנימיים |
:Fan and Cooling related
x1 4-pin CPU Fan header(s)
x1 4-pin CPU OPT Fan header(s)
x1 4-pin AIO Pump header(s)
x4 4-pin Chassis Fan header(s)
:Power related
x1 24-pin Main Power connector
x1 8-pin +12V Power connector
x1 4-pin +12V Power connector
:Storage related
x3 M.2 slots (Key M)
x4 SATA 6Gb/s ports
:USB
x1 USB 20Gbps connector (supports USB Type-C®)
x1 USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
x2 USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
:Miscellaneous
x3 Addressable Gen 2 header(s)
x1 Aura RGB header(s)
x1 Clear CMOS header
x1 COM Port header
x1 Front Panel Audio header (AAFP)
20-3pin System Panel header with Chassis intrude function
|

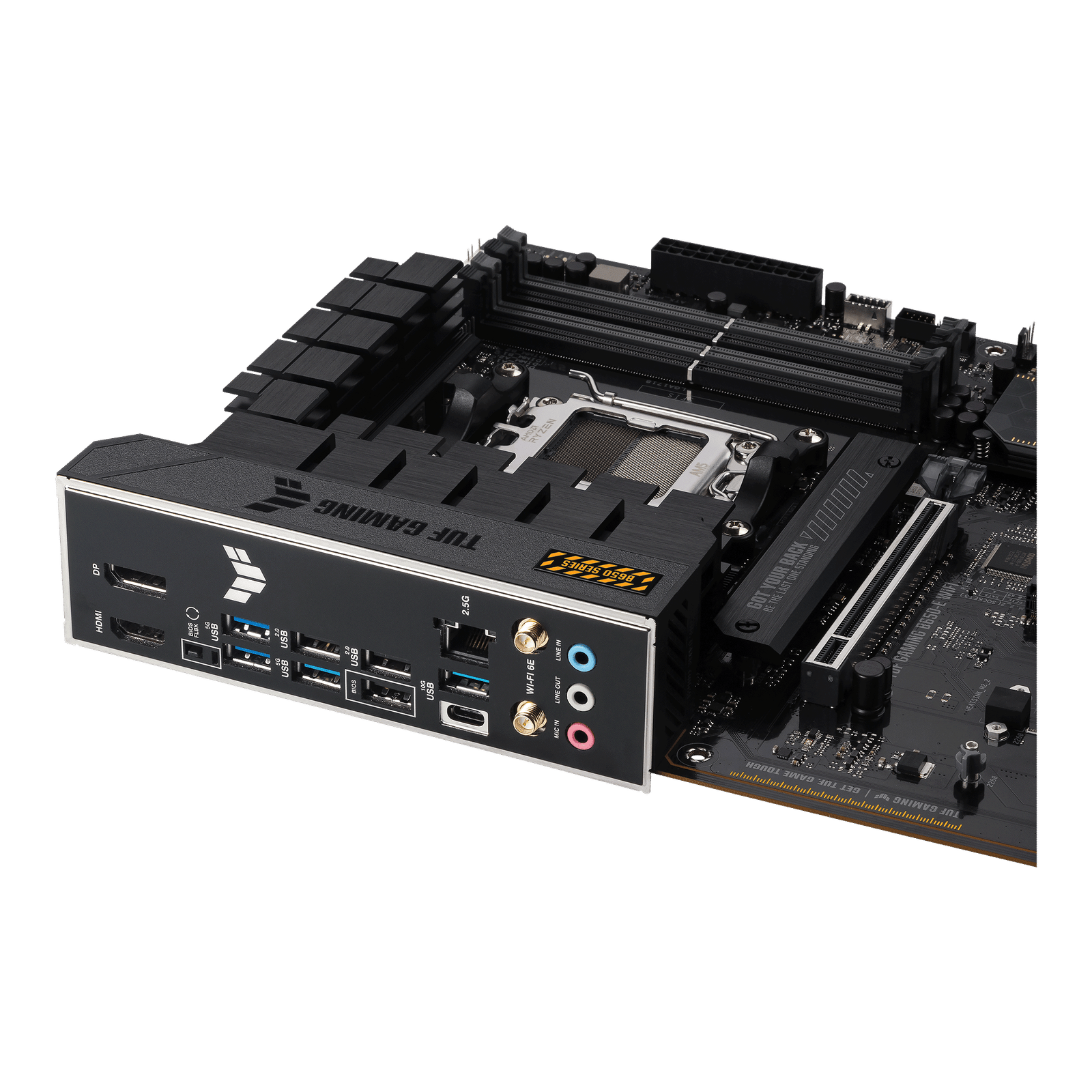

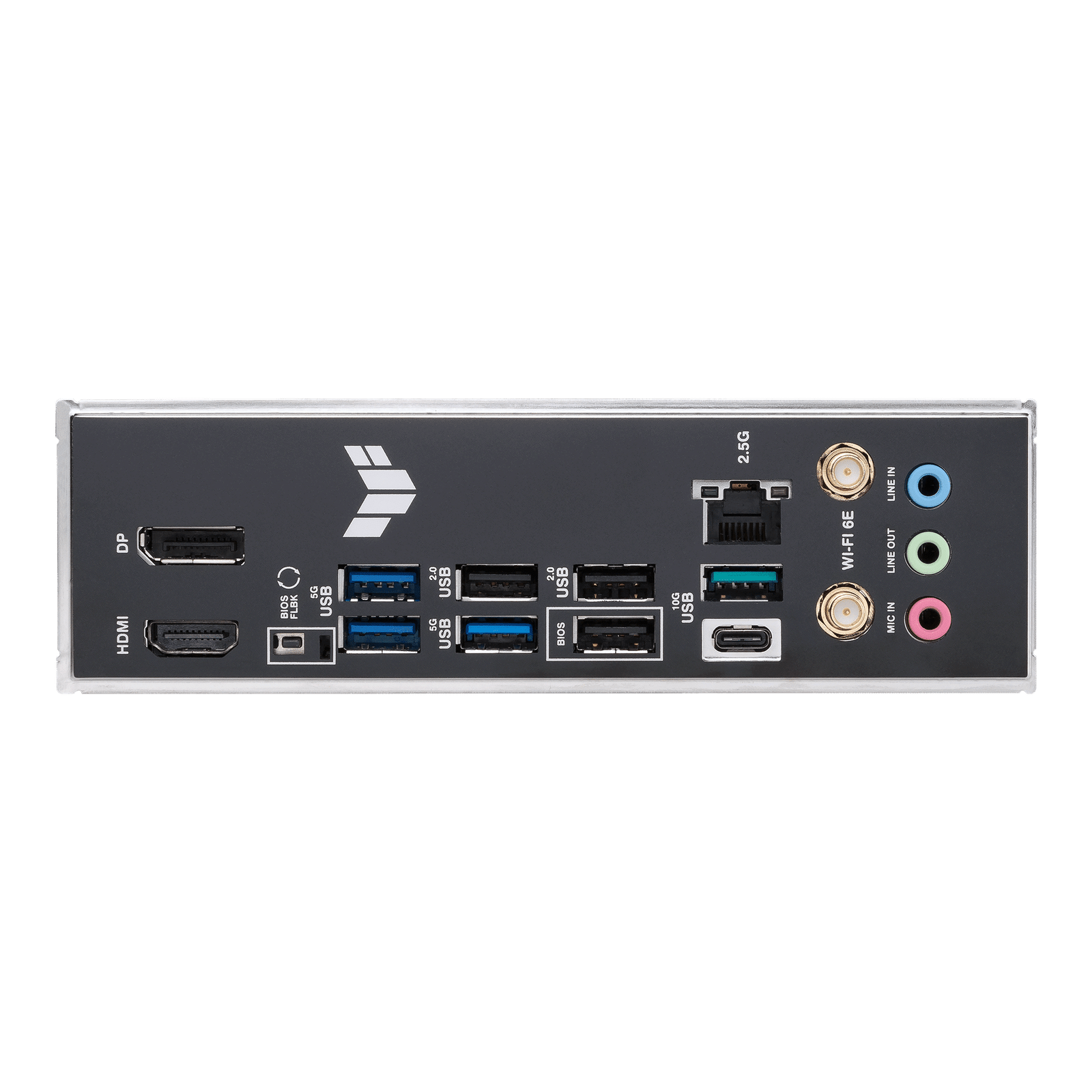

| חיבורים ויציאות |
x2 USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
x3 USB 5Gbps port(s) (3 x Type-A)
x3 USB 2.0 port(s) (3 x Type-A)
x1 DisplayPort
x1 HDMI® port
x1 Wi-Fi Module
x1 Realtek 2.5Gb Ethernet port
x5 Audio jacks
x1 BIOS FlashBack™ button
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
SafeDIMM
Aura Sync
Aura RGB header(s)
Addressable Gen 2 header(s)
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|
| אביזרים כלולים |
:Cables
x2 SATA 6Gb/s cables
:Miscellaneous
x1 ASUS Wi-Fi moving antennas
x1 TUF Gaming sticker
x1 M.2 Rubber Package
x1 Screw package for M.2 SSD
:Documentation
x1 TUF Certification card
x1 User guide
|
| תצורה |
ATX Form Factor
12inch x 9.6inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650-e-wifi/
|
