תקופת אחריות |
3 שנים
|
דגם |

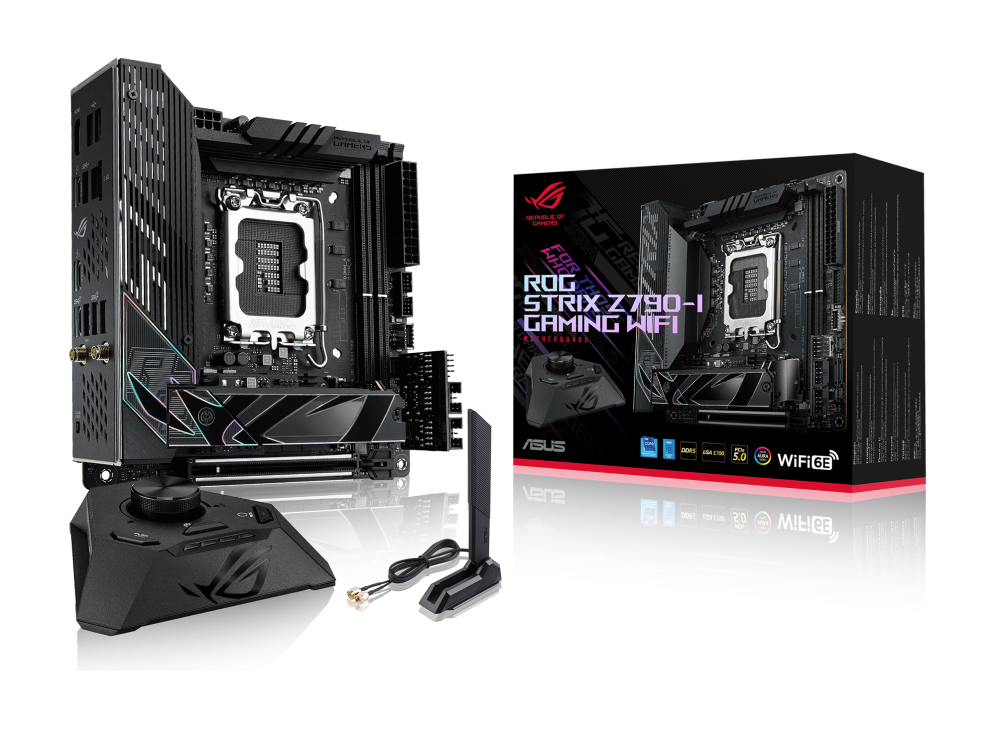

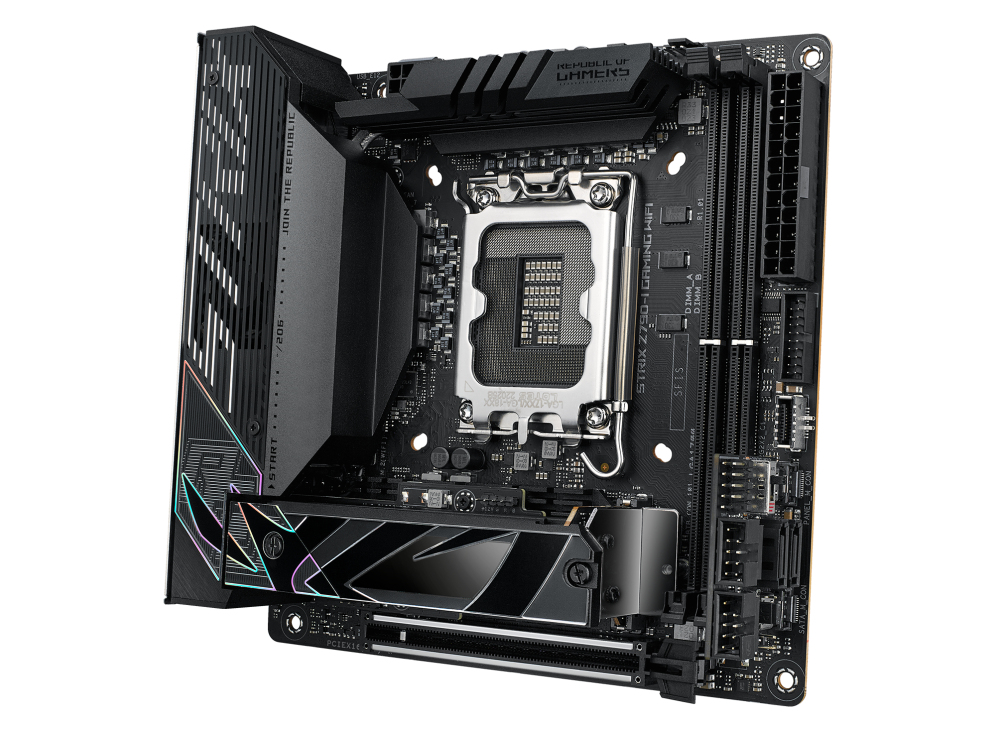

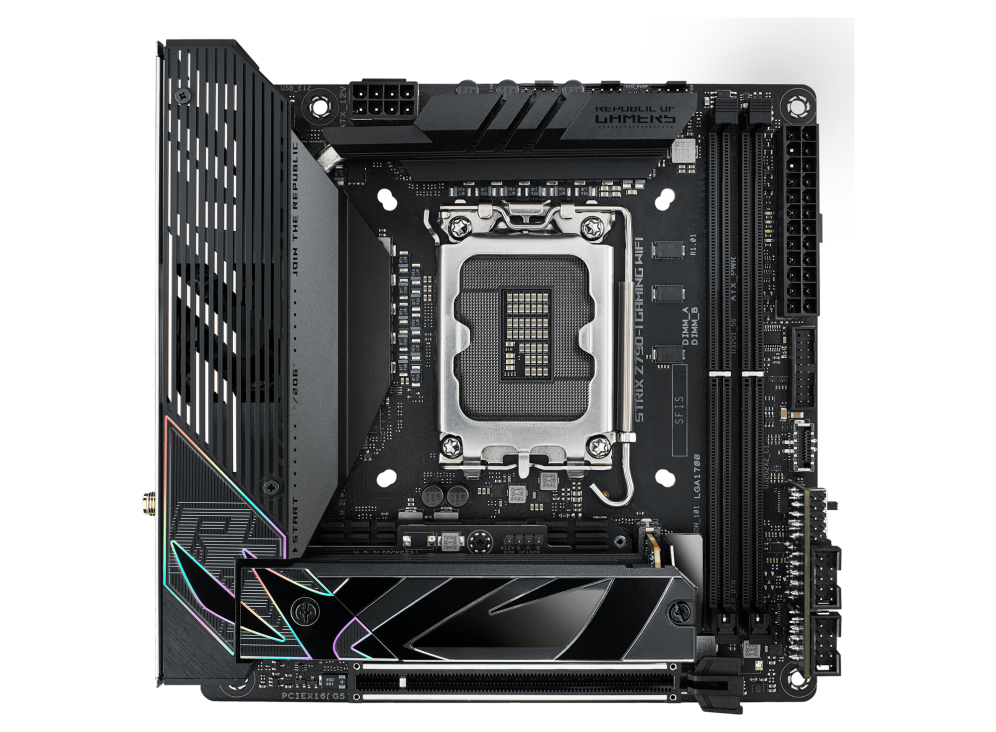

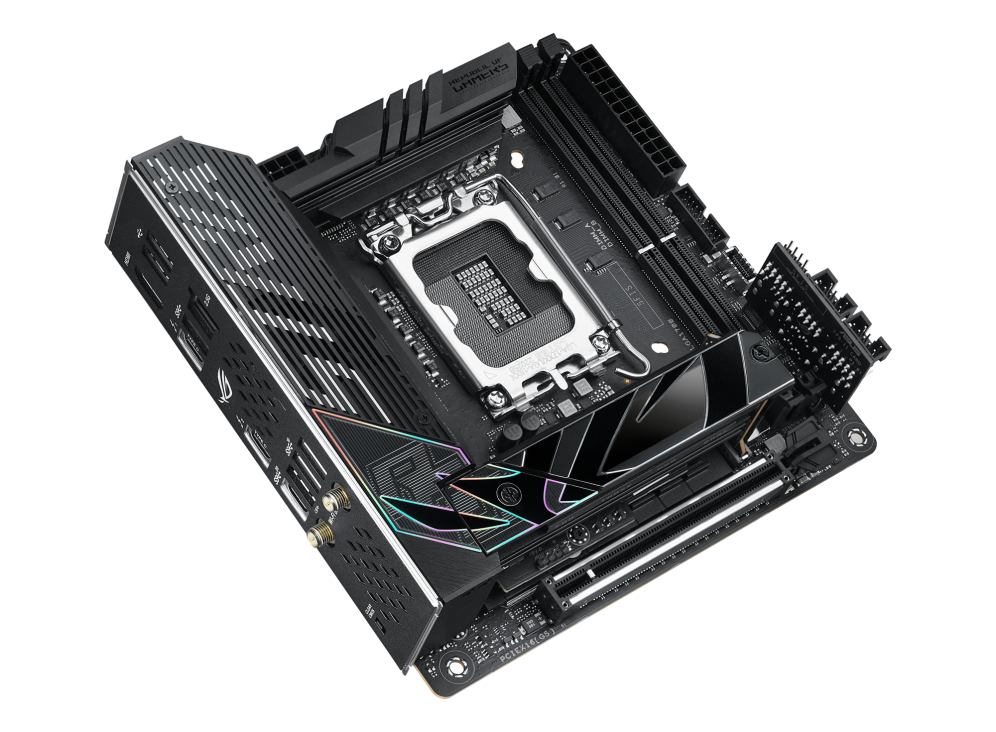

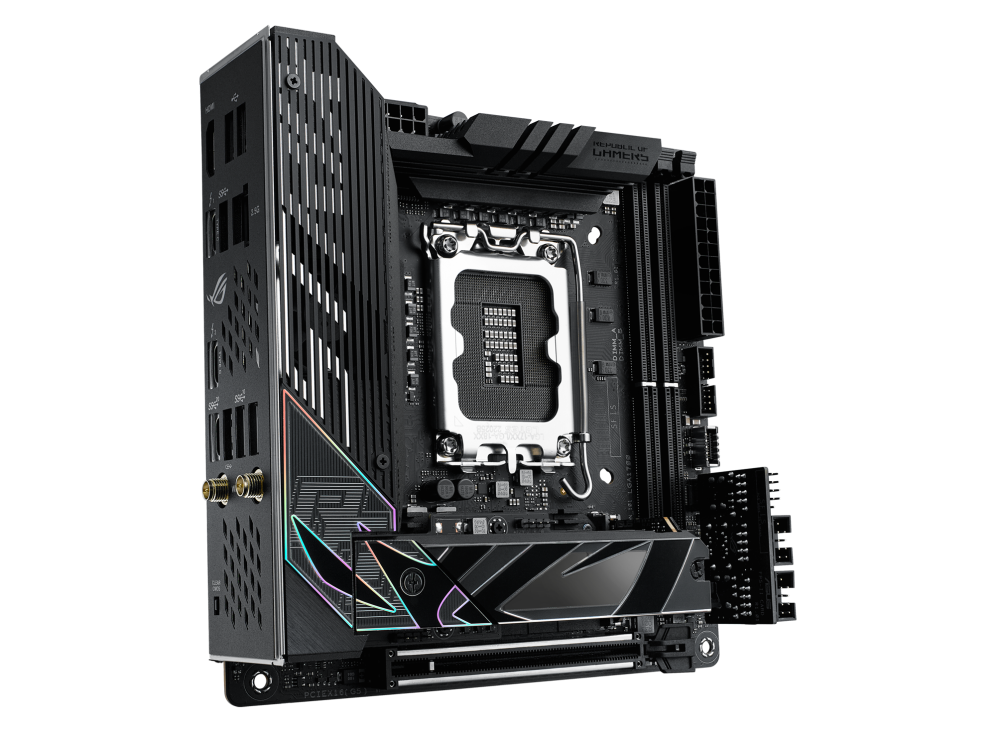

ROG STRIX Z790-I GAMING WIFI
|
תמיכת מעבד |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
ערכת שבבים |
Z790 Chipset
|
זיכרון RAM |
2x DIMM, Max. 64GB, DDR5
7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) /
5600 / 5400 / 5200 / 5000 / 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
|
חיבורי גרפיקה |
1x HDMI® port***
2x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
|
חריצי הרחבה |
1x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. A resolution support depends on processors' or graphic cards' resolution.
|
אחסון |
Total supports 2 xM.2 slots and 2x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
2x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports.
|
תקשורת |
1x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
|

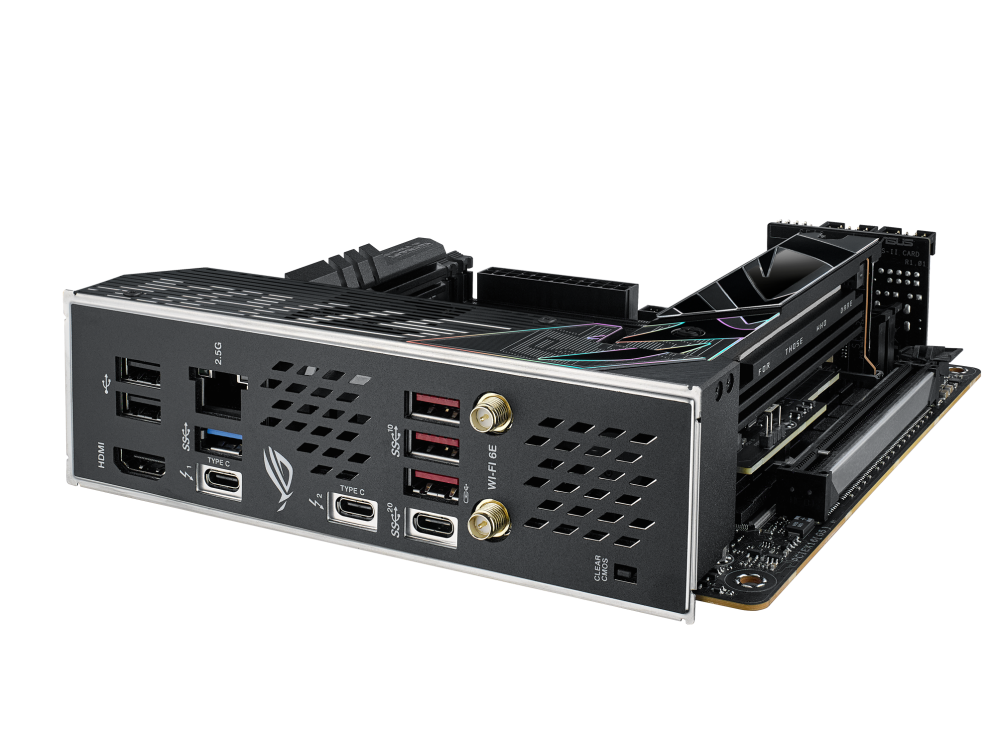

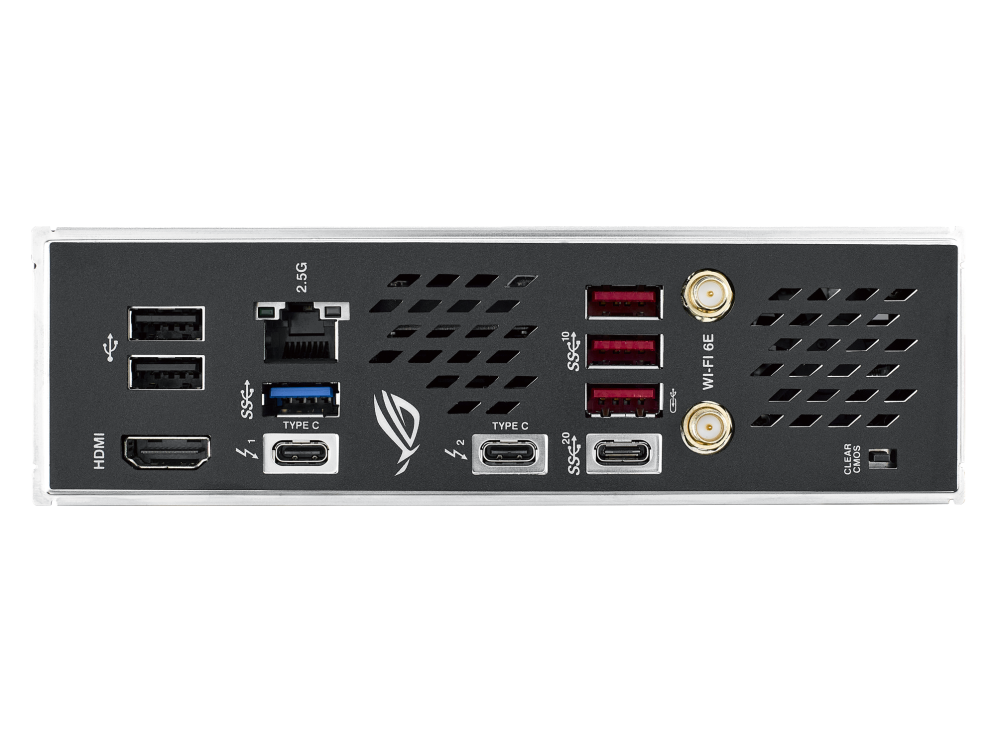

חיבורים ויציאות |
2x Thunderbolt™ 4 USB Type-C® port(s)
1x USB 3.2 Gen 2×2 port(s) (1x USB Type-C®)
3x USB 3.2 Gen 2 port(s) (3x Type-A) (supports ROG STRIX HIVE)
1x USB 3.2 Gen 1 port(s) (1x Type-A)
2x USB 2.0 port(s) (2x Type-A)
1x HDMI® port
1x Wi-Fi Module
1x Intel® 2.5Gb Ethernet port
1x Clear CMOS button
|
חיבורים פנימיים |
1x 4-pin CPU Fan header(s)
1x 4-pin AIO Pump header(s)
1x 4-pin Chassis Fan header(s)
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
2x M.2 slots (Key M)
1x USB 3.2 Gen 2×2 connector (support(s) USB Type-C® )
1x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
1x Addressable Gen 2 header(s)
1x Aura RGB header(s)
1x Thermal Sensor header
2x USB Type-C® connectors to Install ROG FPS-II card
2x SATA 6Gb/s ports
1x CPU Over Voltage jumper
1x Thermal Sensor header
1x Front Panel header
1x Alternative PCIe Mode switch
2x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports
|
תכונות מיוחדות |
5K Black Metallic Capacitors
M.2 Q-Latch
Q-DIMM
Q-Slot
M.2 heatsink backplate
M.2 heatsink
VRM heatsink design
Clear CMOS button
CPU Socket lever protector
ProCool II
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura RGB header(s)
Addressable Gen 2 header(s)
1x USB Type-C® connects to Motherboard
1x USB 3.2 Gen 2 port(s) (1x USB Type-C®)
1x USB 2.0 port(s) (1x Type-A with BIOS FlashBack™)

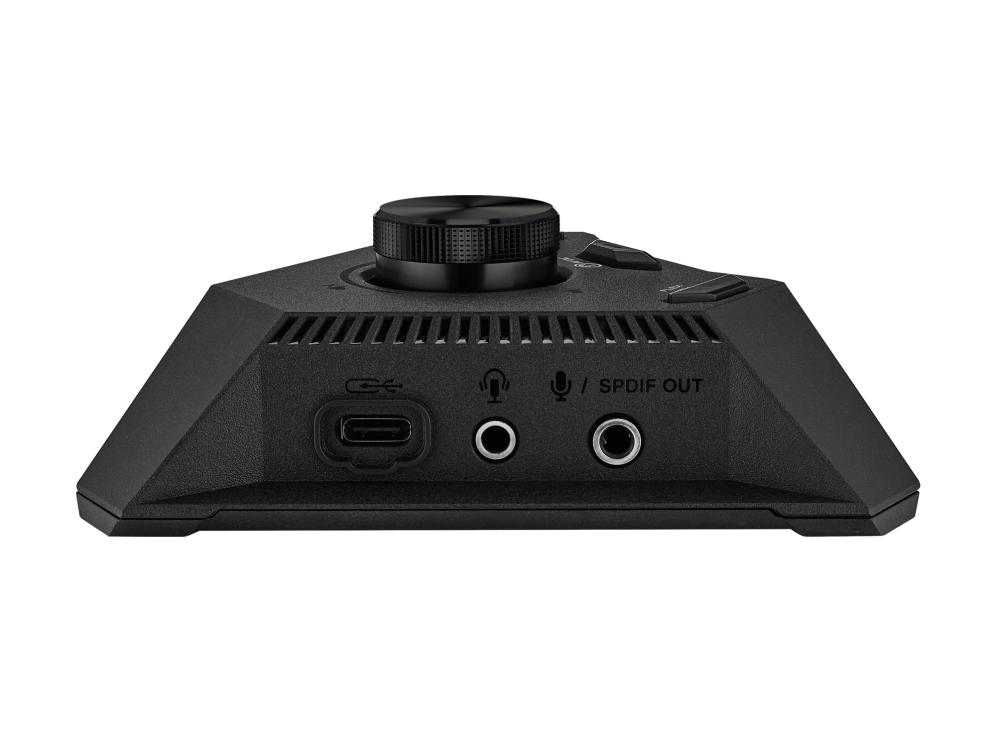

1x Headphone jack with Mic in
1x Mic in jack with Optical S/PDIF out
1x AI OC button
1x FlexKey button
1x BIOS FlashBack™ button

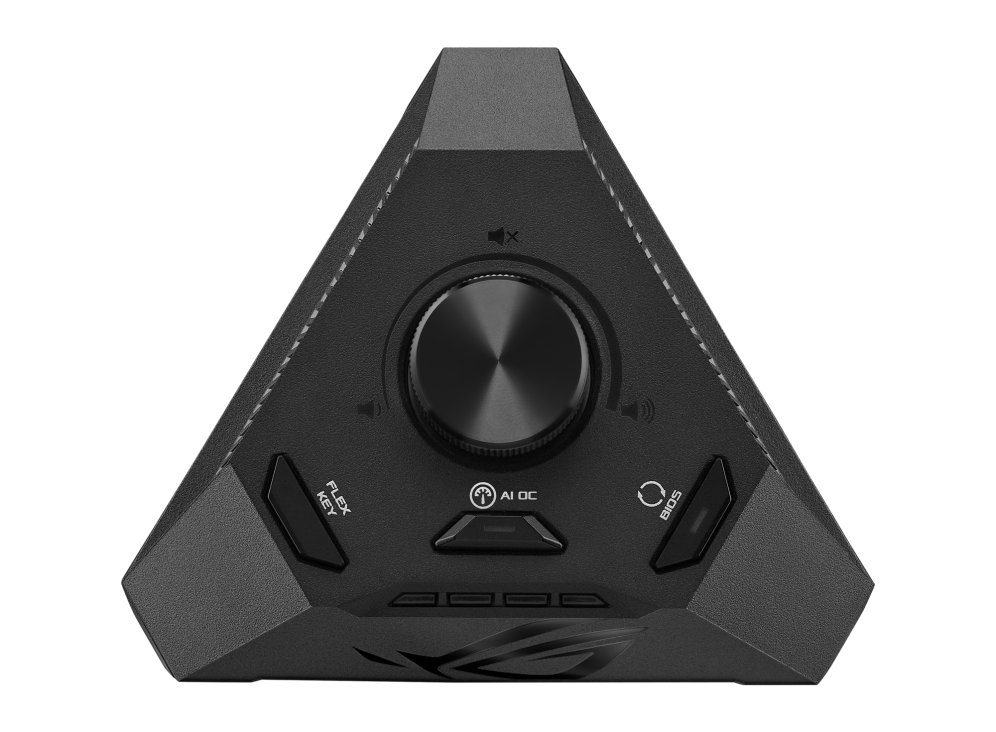

1x Volume Control Knob with Mute Button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
|

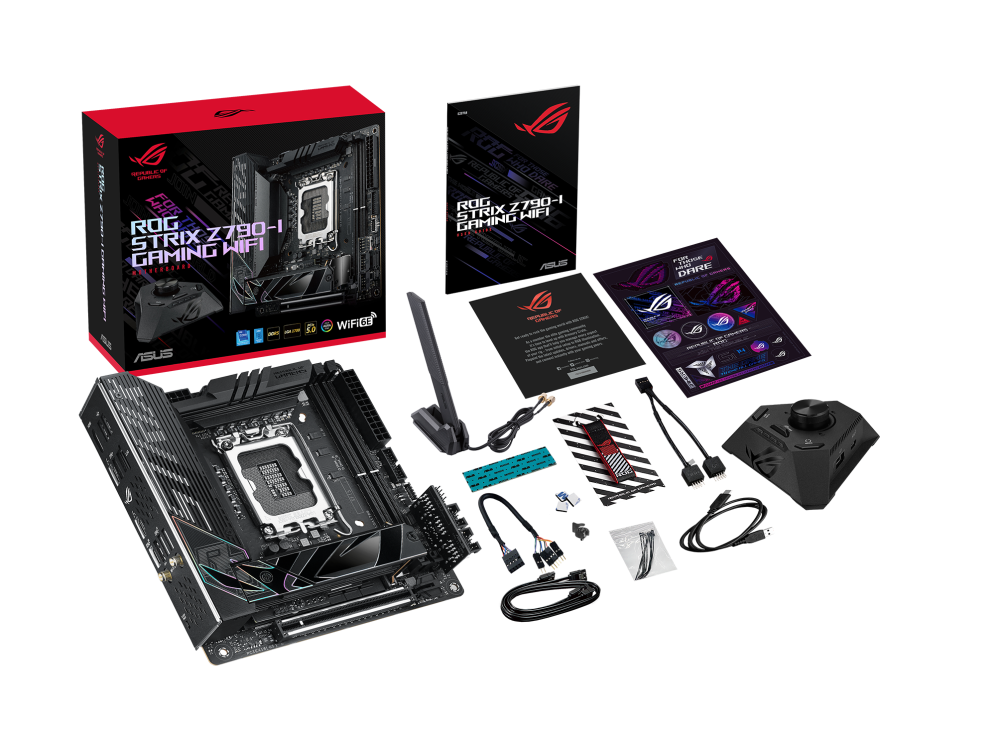

אביזרים |
2x SATA 6Gb/s cables
1x ROG USB2.0 splitter cable
1x Panel Cable

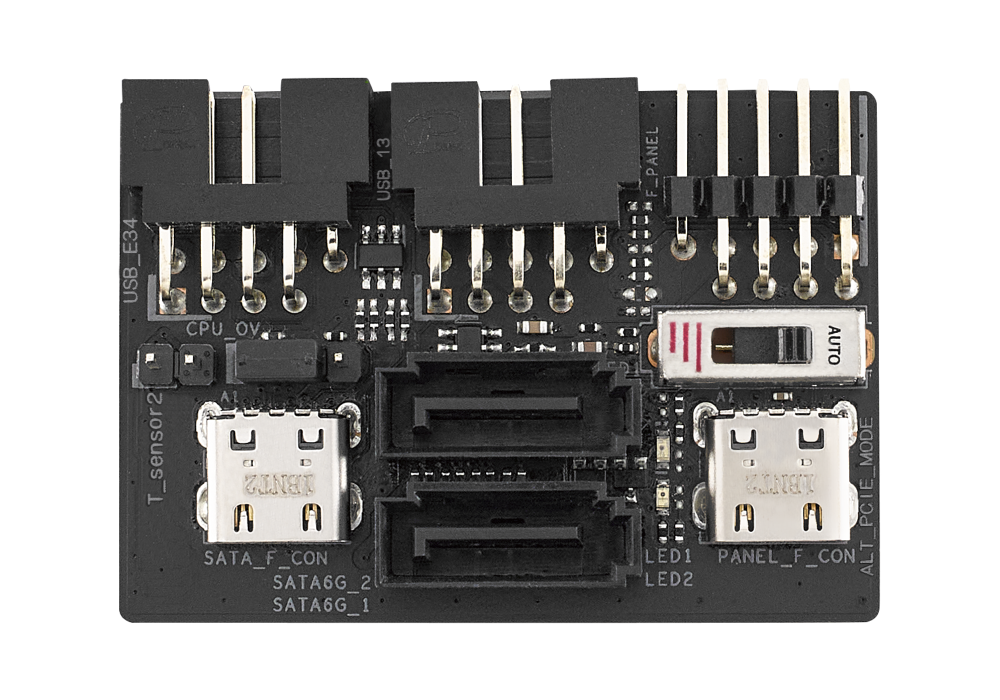

1x ROG FPS-II Card

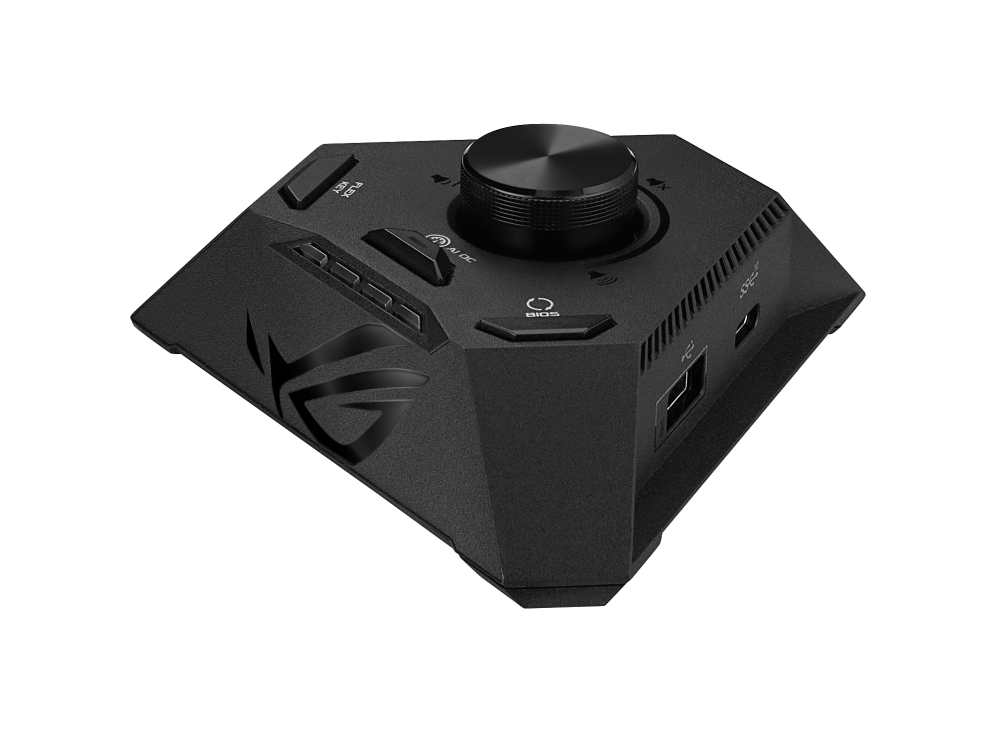

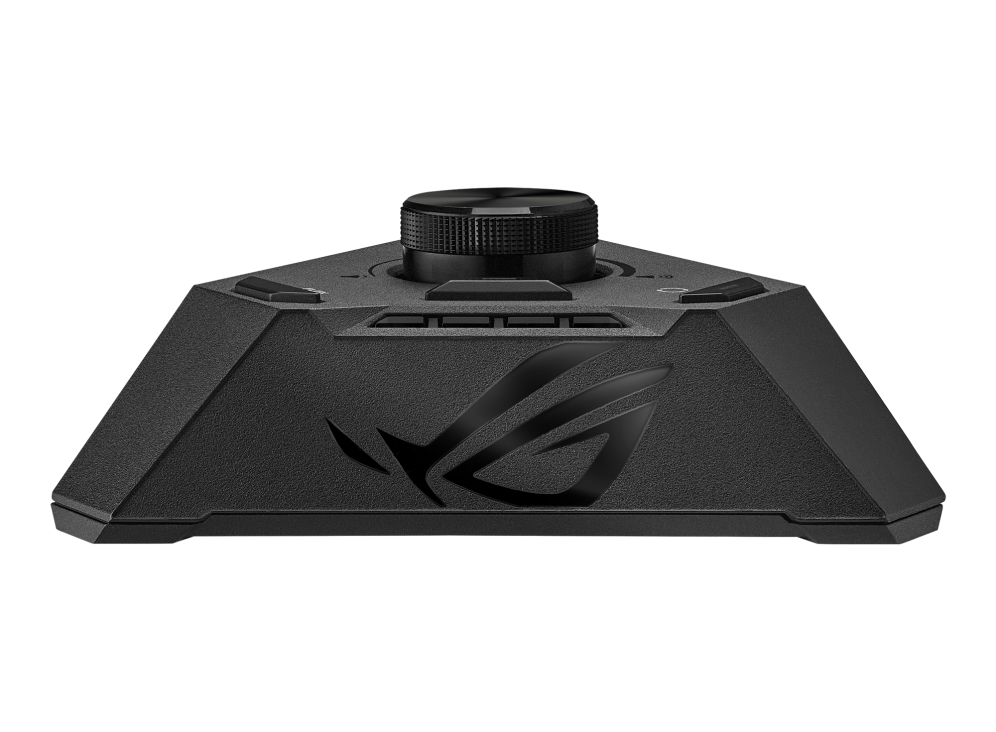

1x ROG STRIX HIVE
1x USB Type-C® power connection cable
1x Thermal pad for M.2
1x ASUS Wi-Fi moving antennas
1x Cable ties pack
1x Rubber Package(s) for M.2
1x Q-Latch package(s) for M.2
1x ROG key chain
1x ROG Strix stickers
1x ROG Strix thank you card
1x User guide
|
תצורה |
Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)
|
