| תקופת אחריות |
3 שנים
|
| דגם |

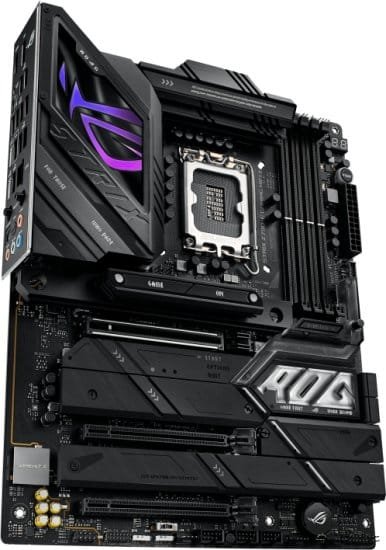

ROG STRIX Z790-E GAMING WIFI II
|
| תמיכת מעבד |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
| ערכת שבבים |
Z790 Chipset
|
| זיכרון RAM |
x4 DIMM slots, max. 192GB
DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
OptiMem II
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
| חיבורי גרפיקה |
x1 DisplayPort**
x1 HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specifiead in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
|
| חריצי הרחבה |
x1 PCIe 5.0 x16 slot (support x16 mode)**
x2 PCIe 4.0 x16 slots (support x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
|
| אחסון |
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
x4 SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
|
| תקשורת |
x1 Intel® 2.5Gb Ethernet
ASUS LANGuard
Intel® Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth® v5.4****
* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
|
| חיבורים ויציאות |
x1 USB 20Gbps port (1 x USB Type-C®)
x11 USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®)
x1 DisplayPort
x1 HDMI™ port
x1 Wi-Fi Module
x1 Intel® 2.5Gb Ethernet port
x5 Gold-plated audio jacks
x1 Optical S/PDIF out port
x1 BIOS FlashBack™ button
x1 Clear CMOS button
|
| חיבורים פנימיים |
x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x5 4-pin Chassis Fan headers
x1 24-pin Main Power connector
x2 8-pin +12V Power connectors
x5 M.2 slots (Key M)
x4 SATA 6Gb/s ports
x1 USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
x2 USB 5Gbps headers support 4 additional USB 5G ports
x3 USB 2.0 headers support 6 additional USB 2.0 ports
x3 Addressable Gen 2 headers
x1 Alternation PCIe Mode Switch
x1 AURA RGB header x1 CPU over voltage jumper
x1 Front panel audio header (F_AUDIO)
x1 Start button
x1 20-3 pin System Panel header with Chassis intrude function
x1 Thermal Sensor header
x1 Thunderbolt™ (USB4®) header
|
| תכונות מיוחדות |
ROG CPU-Z
DTS® Sound Unbound
Armoury Crate
AIDA64 Extreme (60 days free trial)
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
GameFirst
Power Saving
Sonic Studio
Two-Way AI Noise Cancellation
AI Suite 3
Easy Optimization with AI Overclocking
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
USB Wattage Watcher
Intel® Unison™
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
AI Overclocking Guide
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
FlexKey
MemTest86
|
| אביזרים |
x2 SATA 6Gb/s cables
x1 Thermal pad for M.2
x1 ASUS Wi-Fi Q-Antenna
x1 Cable ties package
x1 M.2 backplate Q-Latch package
x1 M.2 Q-Latch package
x1 ROG key chain
x1 ROG Strix stickers
x2 M.2 Rubber Packages
x1 M.2 backplate Rubber Package
x1 Quick start guide
|
| תצורה |
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
