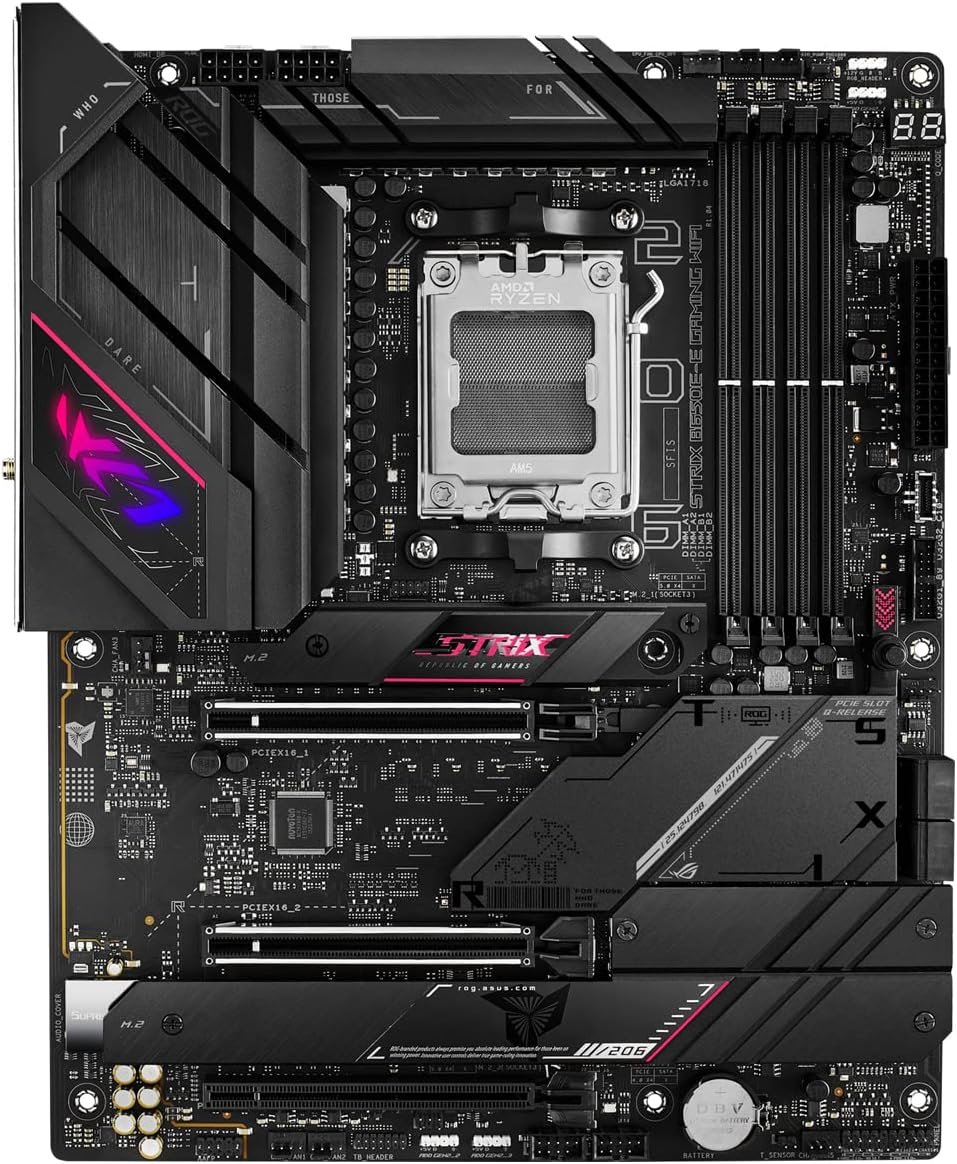

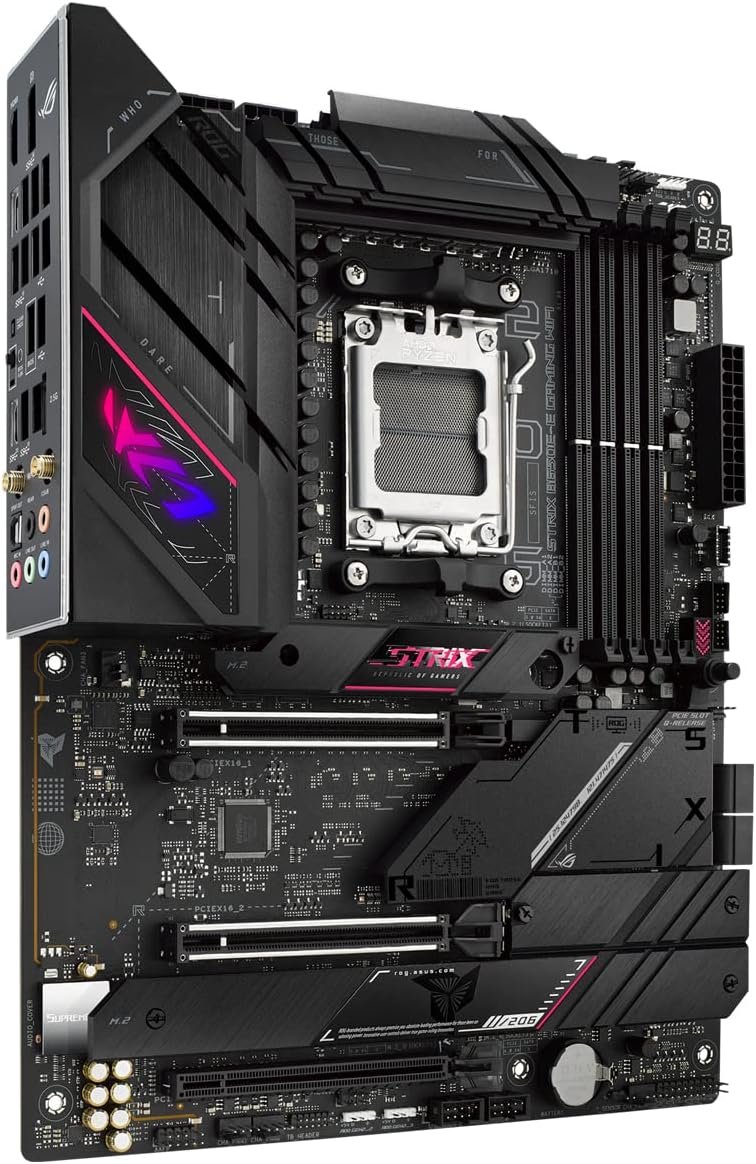

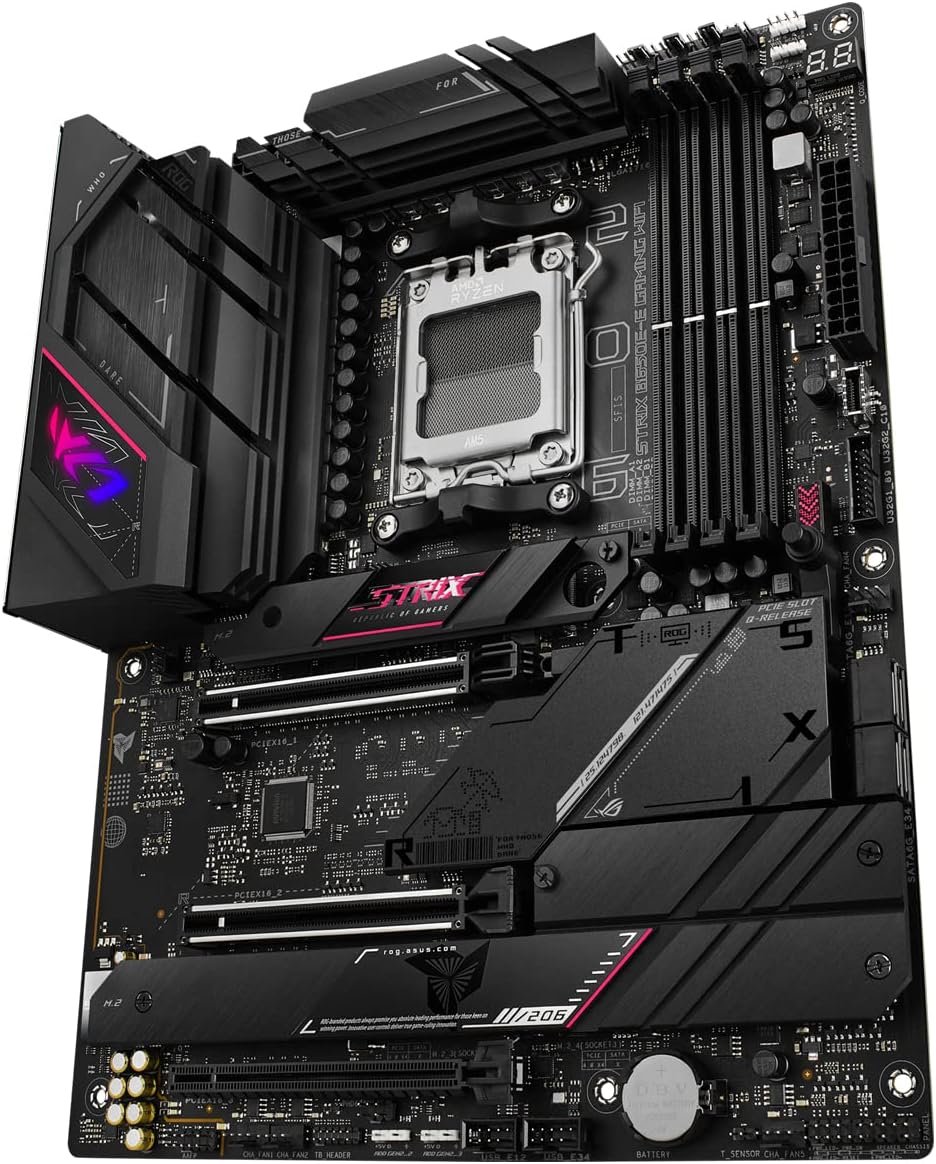

| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Asus |
|---|
| מבוסס לוח אם | AMD |
|---|
| תושבת | AM5 |
|---|
| ערכת שבבים | B650 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | ATX |
|---|
| NVMe PCIe M.2 Connector | 4 |
|---|
| קישוריות | WIFI & Bluetooth |
|---|
| תמיכה במעבדים | AMD Socket AM5 for AMD Ryzen™ Desktop Processors*
Refer to http://www.asus.com for CPU support list* |
|---|
| תמיכה בזיכרונות | 4x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list
Non-ECC, Un-buffered DDR5 Memory supports*
On-Die ECC function |
|---|
| גרפיקה מובנית | 1x DisplayPort*
1x HDMI® port**
Supports max. 8K@60Hz as specified in DisplayPort 1.4*
Supports max. 4K@60Hz as specified in HDMI 2.1** |
|---|
| חריצי הרחבה | AMD Ryzen™ Desktop Processors*
2x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes)
AMD B650 Chipset**
1x PCIe 4.0 x16 slot (supports x4 mode)
Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/)* |
|---|
| USB | :Rear USB (Total 12 ports)
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
7x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
4x USB 2.0 ports :Front USB (Total 7 ports)
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports |
|---|
| ממשק אחסון | :Total supports 4 x M.2 slots* and 4 x SATA 6Gb/s ports
:AMD Ryzen™ Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
:AMD B650 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) :ASMedia ASM1061 Controller**
4x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10*
RAID configuration is not supported on the SATA6G_E1-4 ports** |
|---|
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback"
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover |
|---|
| כרטיס רשת קווי | 1x Intel® 2.5Gb Ethernet
ASUS LANGuard |
|---|
| מודול תקשורת אלחוטית | Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
WiFi 6E 6GHz regulatory may vary between countries* |
|---|
| חיבורים פנימיים | :Fan and Cooling related
x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x5 4-pin Chassis Fan headers :Power related
x1 24-pin Main Power connector
x2 8-pin +12V Power connector :Storage related
x4 M.2 slots (Key M)
x4 SATA 6Gb/s ports :USB
x1 USB 3.2 Gen 2 connector (supports USB Type-C®)
x1 USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
x2 USB 2.0 headers support additional 4 USB 2.0 ports :Miscellaneous
x3 Addressable Gen 2 headers
x1 Aura RGB header
x1 CPU Over Voltage jumper
x1 Front Panel Audio header (AAFP)
x1 20-3 pin System Panel header with
:Chassis intrude function
x1 Thermal Sensor header
x1 Thunderbolt™ (USB4®) header |
|---|

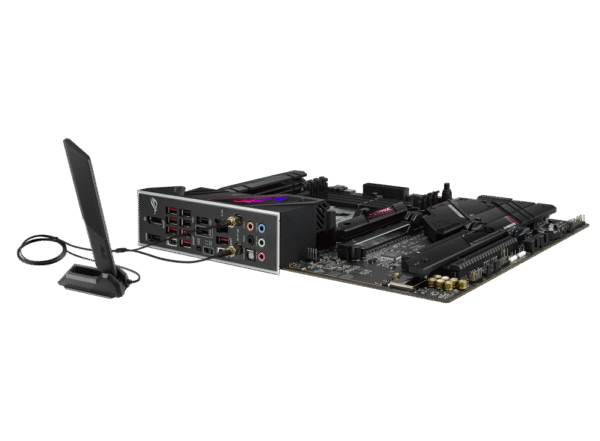

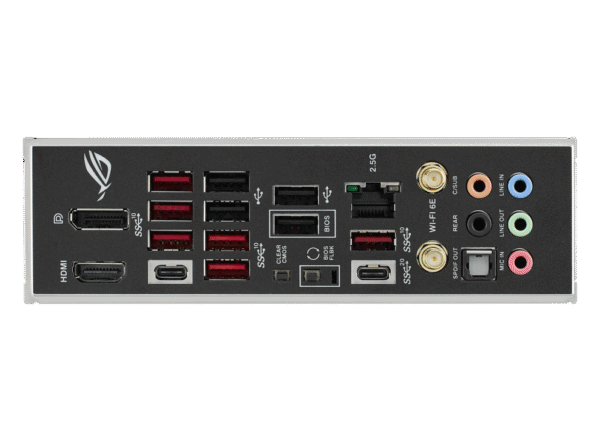

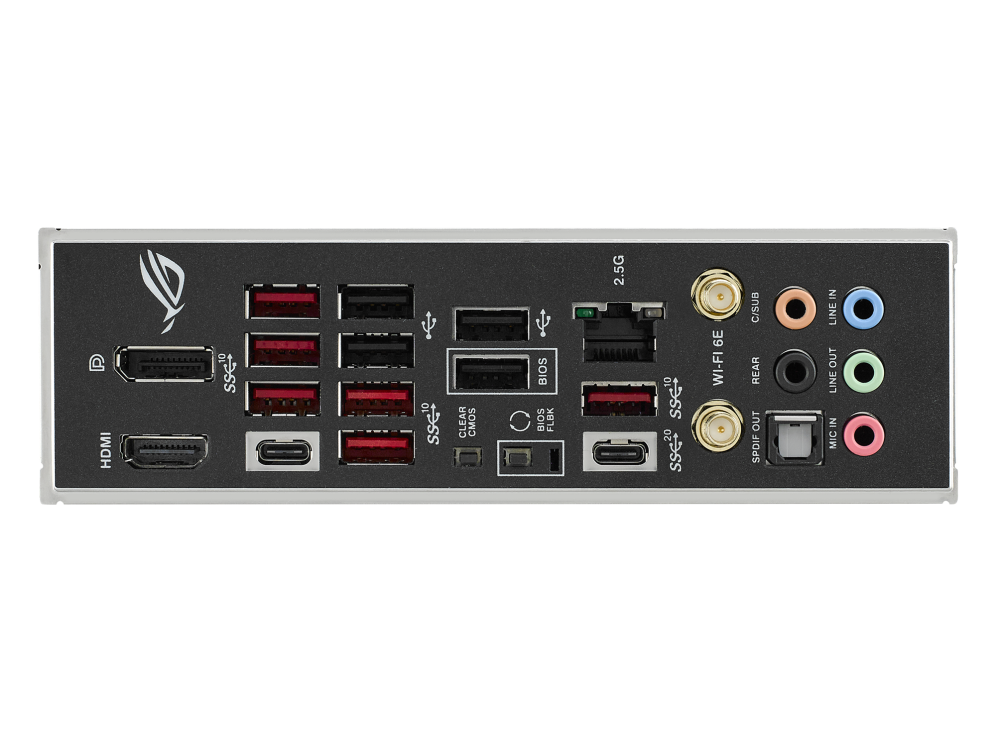

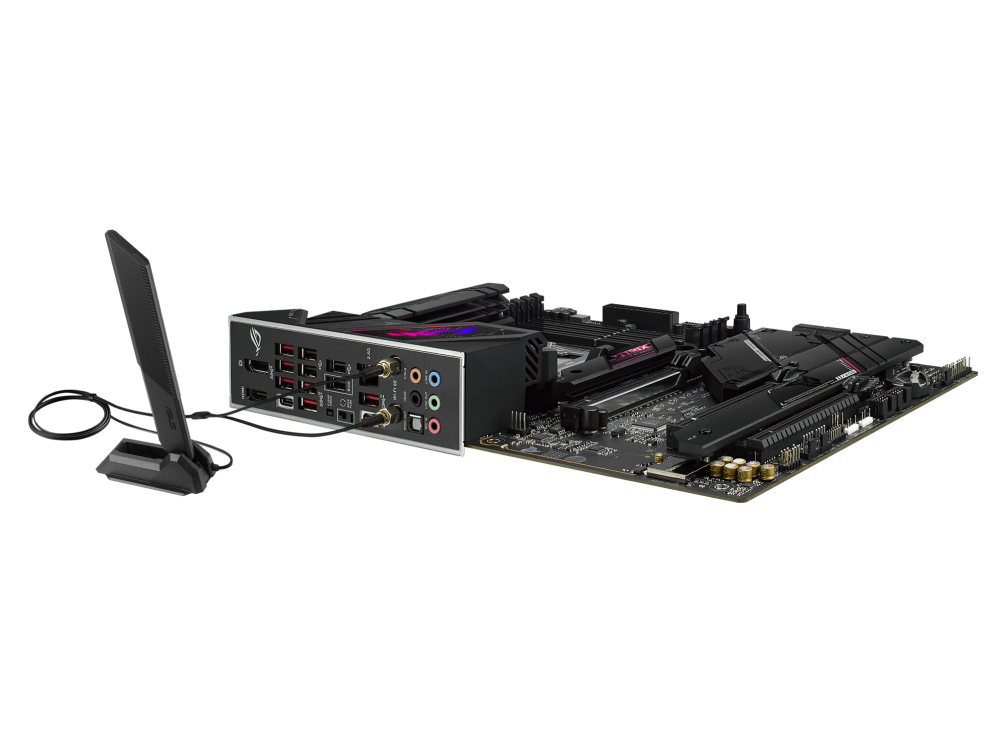

| חיבורים ויציאות | x1 USB 3.2 Gen 2×2 port (1 x Type-C®)
x7 USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C®)
x4 USB 2.0 ports
x1 DisplayPort
x1 HDMI® port
x1 Wi-Fi Module
x1 Intel® 2.5Gb Ethernet port
x5 Audio jacks
x1 Optical S/PDIF out port
x1 BIOS FlashBack™ button
x1 Clear CMOS button |
|---|
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
|---|
| תכונות מיוחדות | +Extreme Engine Digi
5K Black Metallic Capacitors
ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsinks
M.2 heatsink backplate
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Aura RGB header
Addressable Gen 2 headers |
|---|
| תוכנות מצורפות | ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey |
|---|

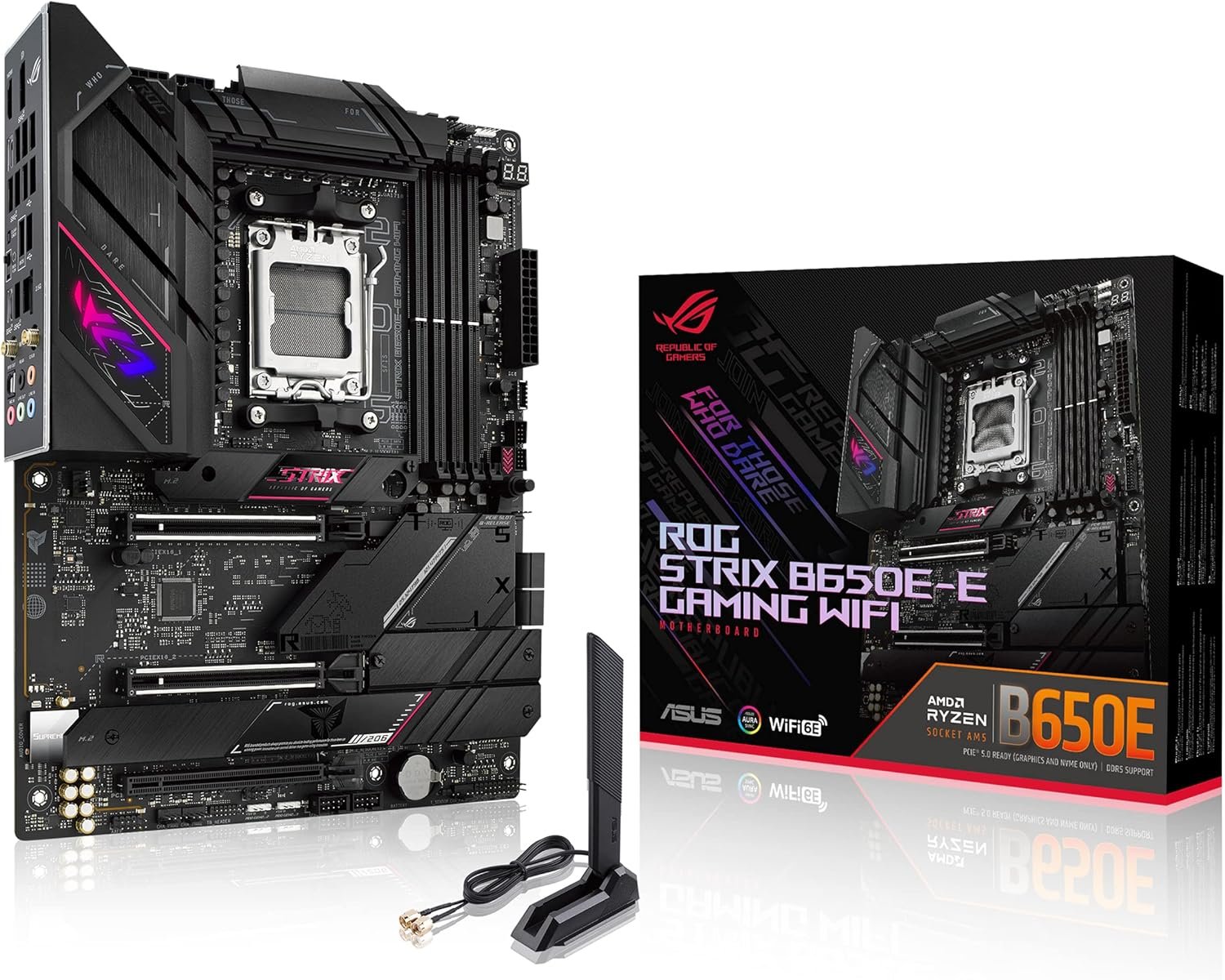

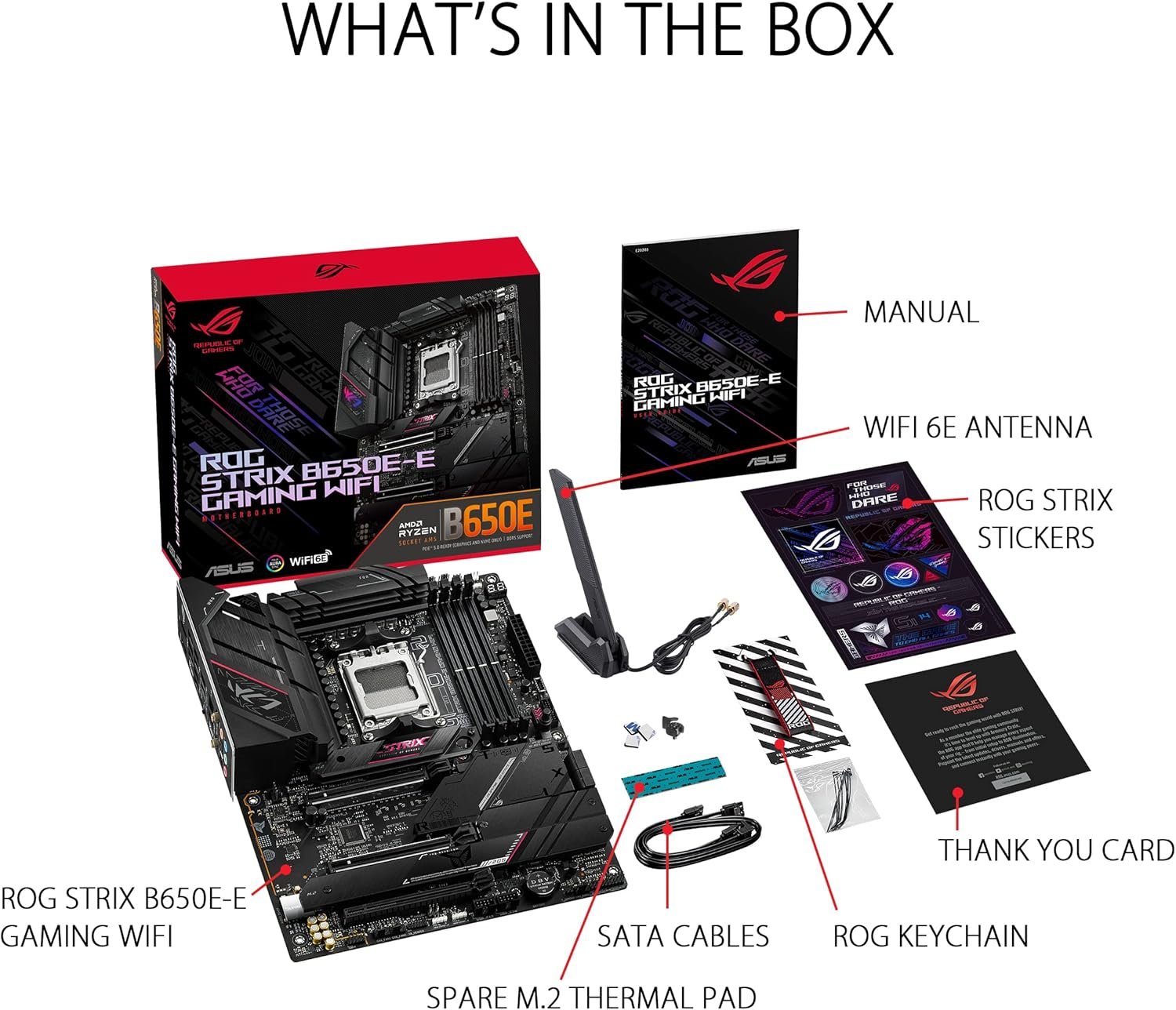

| אביזרים כלולים | :Cables
x2 SATA 6Gb/s cables
Additional Cooling Kit
x1 Thermal pad for M.2 :Miscellaneous
x1 ASUS Wi-Fi moving antennas
x1 Cable ties pack
x1 M.2 Q-Latch package
x1 ROG key chain
x1 ROG Strix stickers
x1 ROG Strix thank you card
x2 Rubber Packages for M.2 :Documentation
x1 User guide |
|---|
| תצורה | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|
| קישור לאתר היצרן | https://rog.asus.com/motherboards/rog-strix/rog-strix-b650e-e-gaming-wifi-model/ |
|---|
| Ram Memory | DDR5 |
|---|
| Socket | AM5 |
|---|
