| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Asus |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1700 |
|---|
| ערכת שבבים | Z790 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | ATX |
|---|
| NVMe PCIe M.2 Connector | 4 |
|---|
| קישוריות | WIFI & Bluetooth |
|---|
| תמיכת מעבד | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|
| ערכת שבבים | Z790 Chipset |
|---|
| זיכרון RAM | x4 DIMM, Max. 128GB, DDR5
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
|---|
| חיבורי גרפיקה | x1 HDMI® port**
x2 Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort*** and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
*** Support 8K@60Hz as specified in DisplayPort 1.4.
**** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel® Thunderbolt™ 4 ports, please refer to the user manual for more details. VGA resolution support depends on processors' or graphic cards' resolution. |
|---|
| חריצי הרחבה | x2 PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
x1 PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|
| אחסון | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
x8 SATA 6Gb/s ports**
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4. |
|---|
| תקשורת | x1 Marvell® AQtion 10Gb Ethernet
x1 Intel® 2.5Gb Ethernet
ASUS LANGuardWi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|---|

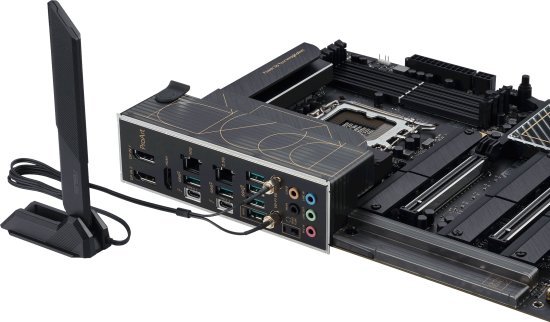

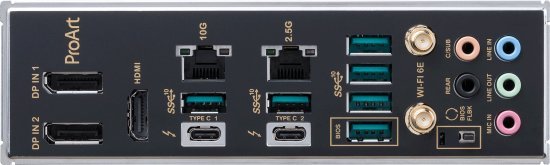

| חיבורים ויציאות | x2 Thunderbolt™ 4 USB Type-C® port(s)
x6 USB 3.2 Gen 2 port(s) (6 x Type-A)
x2 DisplayPort (Input only)
x1 HDMI® port
x1 ASUS Wi-Fi Module
x1 Marvell® AQtion 10Gb Ethernet port
x1 Intel® 2.5Gb Ethernet port
x5 Audio jacks
x1 BIOS FlashBack™ button |
|---|
| חיבורים פנימיים | x1 4-pin CPU Fan header(s)
x1 4-pin CPU OPT Fan header(s)
x1 4-pin AIO Pump header(s)
x5 4-pin Chassis Fan header(s)
x1 24-pin Main Power connector
x1 8-pin +12V Power connector
x1 4-pin +12V Power connector
x1 6-pin +12V Power connector
x4 M.2 slots (Key M)
x8 SATA 6Gb/s ports
x1 USB 3.2 Gen 2×2 (support(s) USB Type-C®)
x1 USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
x2 USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
x3 Addressable Gen 2 header(s)
x1 AURA RGB header(s)
x1 Clear CMOS header
x1 COM Port header
x CPU Over Voltage jumper
x1 Front Panel Audio header (AAFP)
x1 M.2 slot (Key E)
x1 SPI TPM header (14-1pin)
x1 20-3 pin System Panel header with Chassis intrude function
x1 Thermal Sensor header |
|---|
| תכונות מיוחדות | DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
LANGuard
Overvoltage Protection
SafeSlot
Stainless-Steel Back I/O
M.2 Q-Latch
Q-Connector
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
M.2 heatsink
VRM heatsink design
BIOS FlashBack™ button
BIOS FlashBack™ LED
Box Headers
ProCool II
Pre-mounted I/O shield
AURA RGB header(s)
Addressable Gen 2 header(s) |
|---|

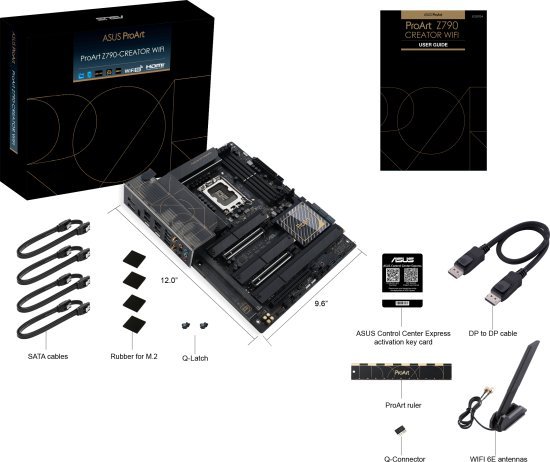

| אביזרים | :Cables
x1 DisplayPort cable
x2 SATA 6Gb/s cables
:Miscellaneous
x1 Asus Wi-Fi moving antennas
x1 Q-connector
x1 Rubber Packages for M.2
x1 Screw packages for M.2 SSD
x1 Screw package for M.2 Key E
x1 ProArt ruler
:Documentation
x1 ACC Express Activation Key Card
x1 User guide |
|---|
| תצורה | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|
| קישור לאתר היצרן | https://www.asus.com/motherboards-components/motherboards/proart/proart-z790-creator-wifi/ |
|---|
| Socket | LGA1700 |
|---|
