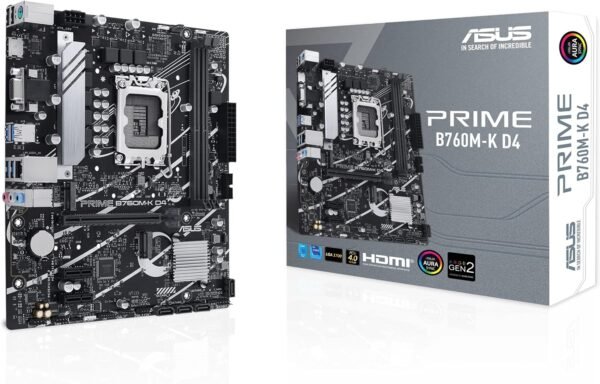

לוח אם – Asus Prime B760M-K D4 Micro-ATX LGA1700 DDR4

530.00

לוח אם איכותי מבית Asus, בעל תושבת LGA1700, ערכת שבבים B760, תאימות לזכרונות DDR4, יציאות HDMI ,VGA.

מק״ט 90MB1DS0-M1EAY0 קטגוריה תגיות , , , , , ,

עוד על - לוח אם – Asus Prime B760M-K D4 Micro-ATX LGA1700 DDR4

תקופת אחריות

3 שנים על ידי היבואן הרשמי

יצרן לוח אם

Asus

מבוסס

Intel

תושבת

LGA1700

ערכת שבבים

B760

סוג זיכרון לוח אם

DDR4

גודל

Micro-ATX

NVMe PCIe M.2 Connector

2

תמיכה במעבדים

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
.Refer to http://www.asus.com for CPU support list*
.Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**

תמיכה בזיכרונות

2x DIMM, Max. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

גרפיקה מובנית

1x VGA port
1x HDMI® port**
.Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
.Supports 4K@60Hz as specified in HDMI® 2.1**

חריצי הרחבה

Intel® Core™ Processors (14th &13th & 12th Gen)
1x PCIe 4.0 x16 slot
Intel® B760 Chipset
2x PCIe 4.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals

USB

Rear USB (Total 6 ports)
4x USB 3.2 Gen 1 ports (4 x Type-A)
(2x USB 2.0 ports (2 x Type-A
Front USB (Total 5 ports)
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 3 additional USB 2.0 ports

ממשק אחסון

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th &13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
.Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10*

שמע

Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking –
Supports up to 24-Bit/192 kHz playback –
Audio Features
Audio Shielding –
Premium audio capacitors –
.A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*

כרטיס רשת קווי

1x Realtek 2.5Gb Ethernet

חיבורים פנימיים

Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin Chassis Fan header

Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector

Storage related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports

USB
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous
2x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x Speaker header
1x SPI TPM header (14-1pin)
1x 10-1 pin System Panel header

חיבורים ויציאות

4x USB 3.2 Gen 1 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x VGA port
1x HDMI® port
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x PS/2 Keyboard/Mouse combo port

BIOS

128Mb Flash ROM, UEFI AMI BIOS

תכונות ייחודיות

ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core
Stainless-Steel Back I/O

ASUS Q-Design
Q-DIMM
Q-LED Core
Q-Slot

ASUS EZ DIY
ProCool

ASUS Thermal Solution
VRM heatsink design

Aura Sync
Aura RGB header
Addressable Gen 2 headers

תוכנות מצורפות

ASUS Exclusive Software
Armoury Crate
Aura Sync
Fan Xpert
Power Saving
AI Suite 3
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR

UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

אביזרים כלולים

Cables
2x SATA 6Gb/s cables

Miscellaneous
1x I/O Shield
2x M.2 anchors

Documentation
1x User guide

תצורה

mATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)

קישור לאתר היצרן

https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k-d4/
