| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1700
|
| ערכת שבבים |
B760
|
| סוג זיכרון לוח אם |
DDR4
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
3
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4x DIMM, Max. 192GB, DDR4
5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMI® port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 4K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
|
| חריצי הרחבה |
Intel® Core™ Processors (14th & 13th & 12th Gen)
1x PCIe 5.0 x16 slot
Intel® B760 Chipset
1x PCIe 3.0 x16 slot (supports x4 mode)*
2x PCIe 3.0 x1 slots*
PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode*
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
:Rear USB (Total 6 ports)
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1x USB 3.2 Gen 2 port (1 x Type-A)
3x USB 3.2 Gen 1 ports (3 x Type-A)
1x USB 2.0 port (1 x Type-A)
:Front USB (Total 7 ports)
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
|
| ממשק אחסון |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10*
|
| שמע |
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
:Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
TUF LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications*
|
| חיבורים פנימיים |
:Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
:Storage related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 3.2 Gen 2 connector (supports USB Type-C® )
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ (USB4®) header
|

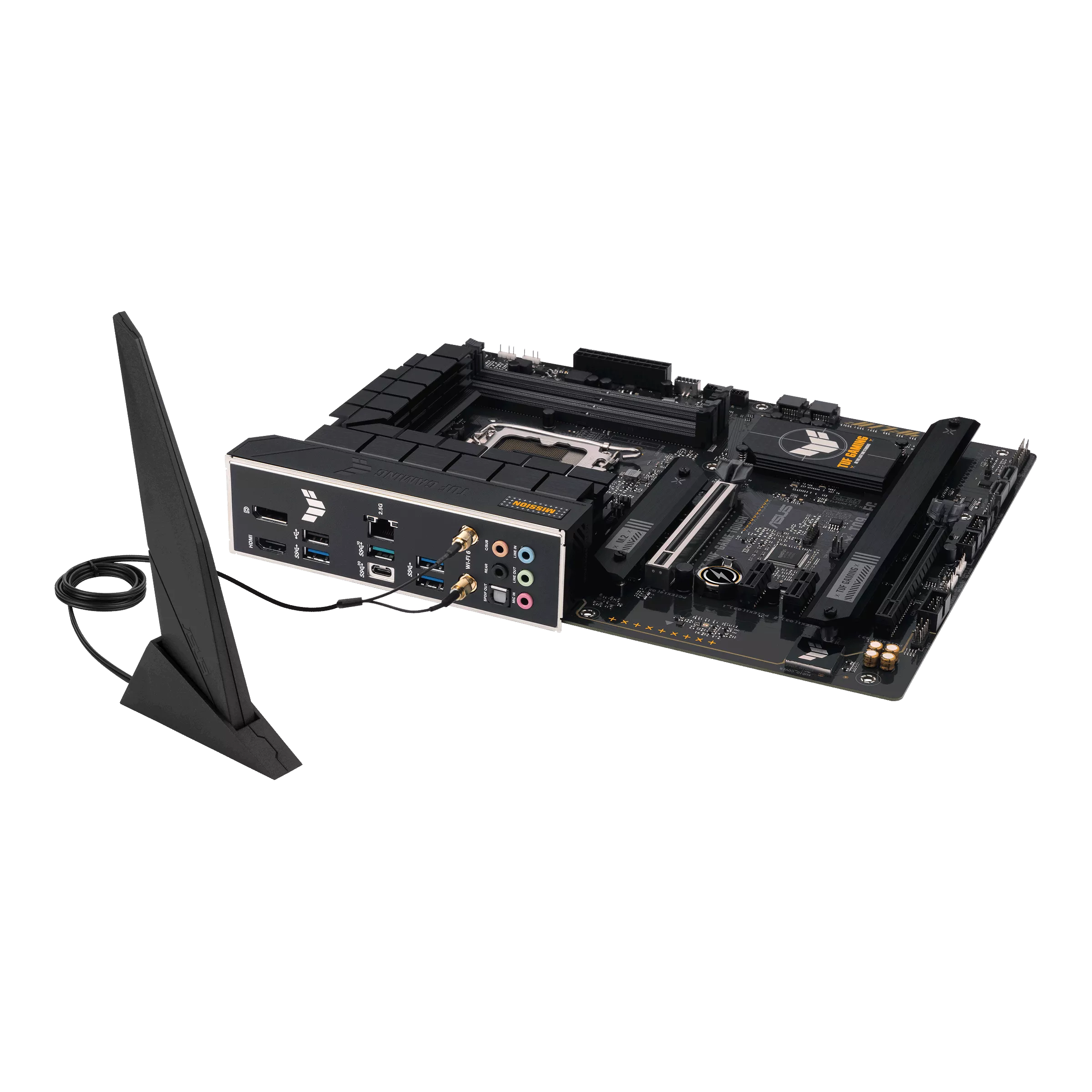

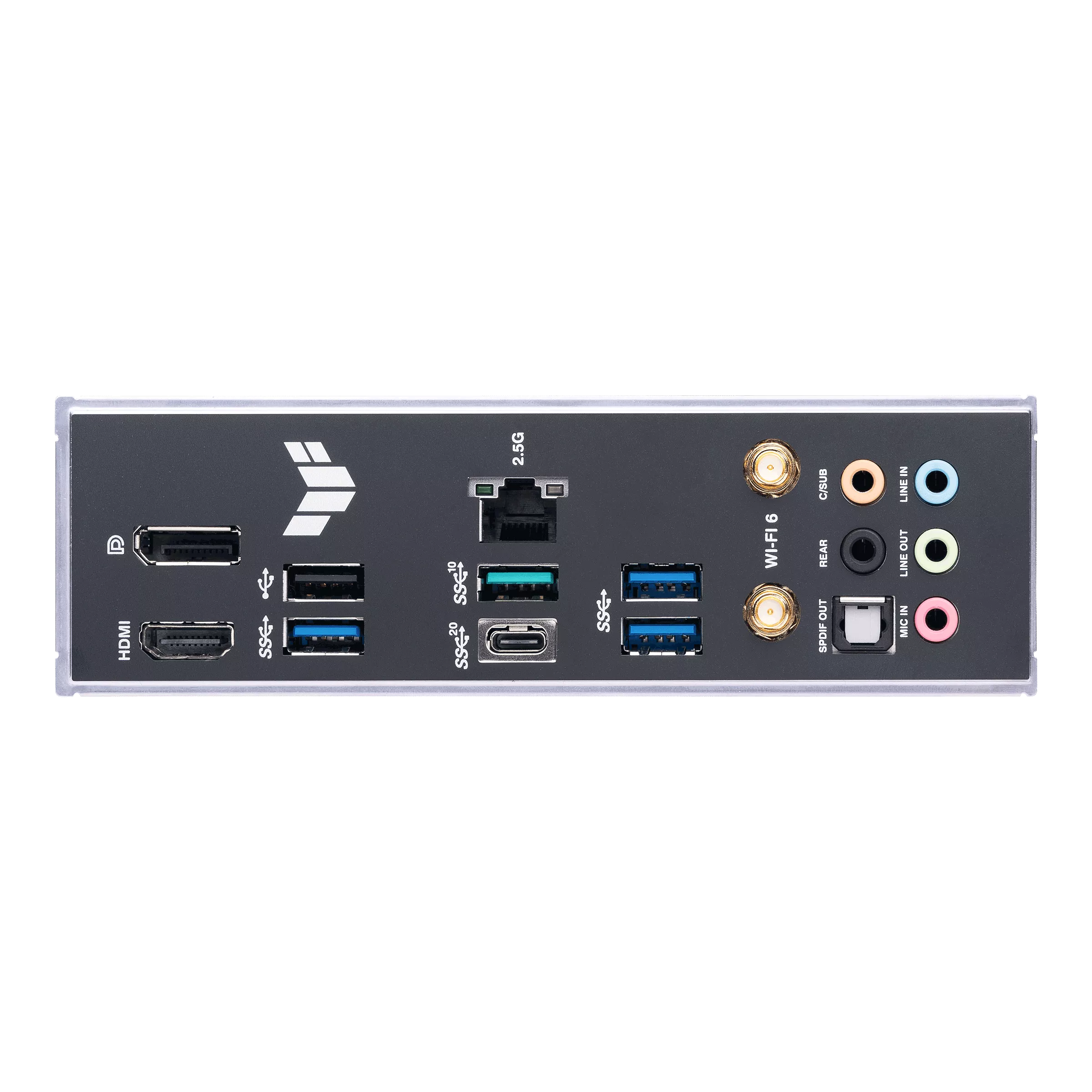

| חיבורים ויציאות |
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1x USB 3.2 Gen 2 port (1 x Type-A)
3x USB 3.2 Gen 1 ports (3 x Type-A)
1x USB 2.0 port (1 x Type-A)
1x DisplayPort
1x HDMI® port
1x Wi-Fi Module
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x Optical S/PDIF out port
|
| BIOS |
128Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
:ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot Core+
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|

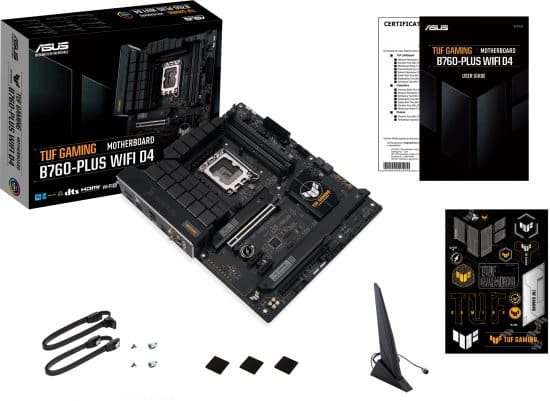

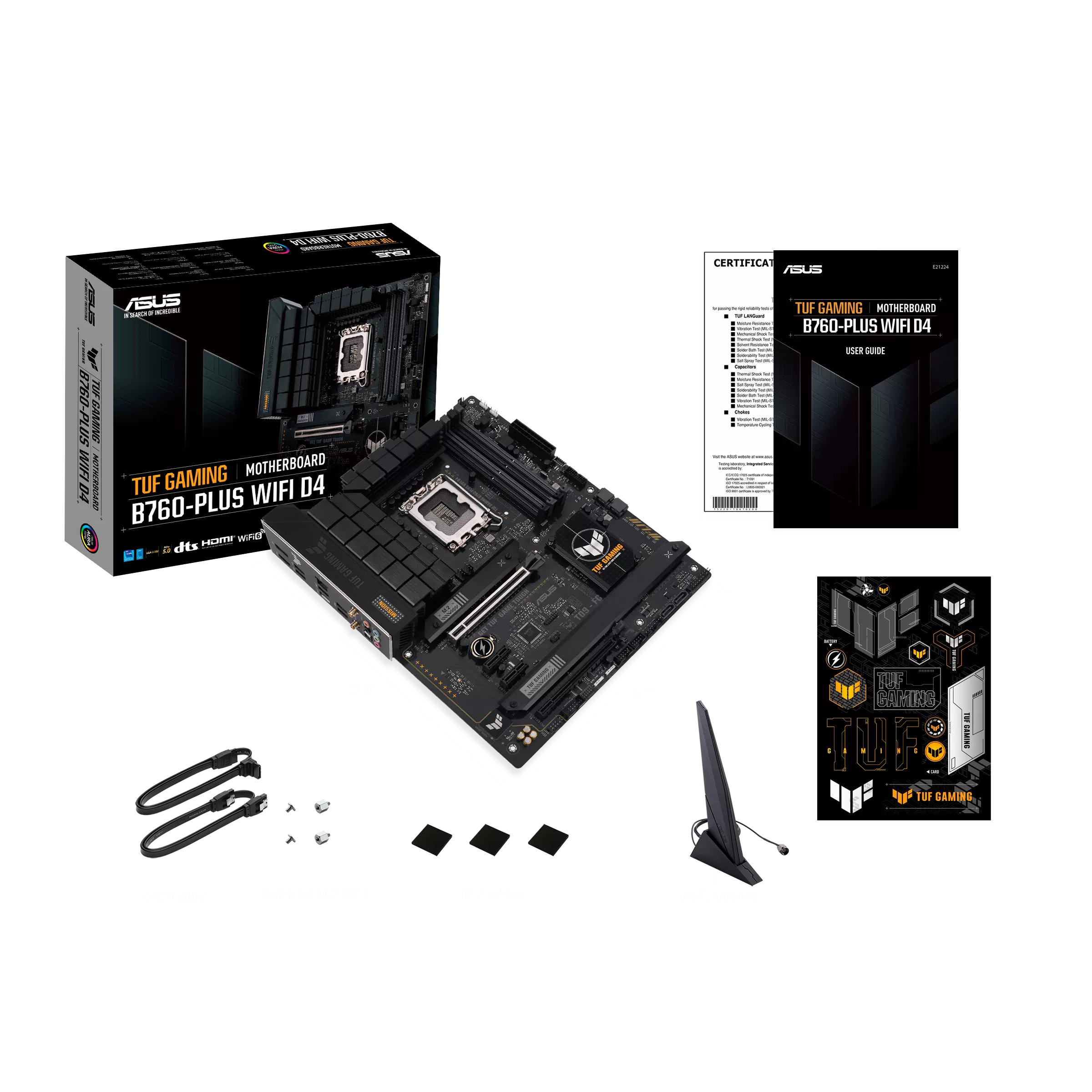

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous
1x ASUS Wi-Fi moving antenna
1x TUF Gaming sticker
2x M.2 Rubber Packages
1x Screw package for M.2 SSD
:Documentation
1x TUF Certification card
1x User guide
|
| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760-plus-wifi-d4/
|
