| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Asus |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1700 |
|---|
| ערכת שבבים | H610 |
|---|
| סוג זיכרון לוח אם | DDR4 |
|---|
| גודל לוח אם | Micro-ATX |
|---|
| NVMe PCIe M.2 Connector | 2 |
|---|
| תמיכה במעבדים | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
.Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
|---|
| תמיכה בזיכרונות | 2x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists)* |
|---|
| גרפיקה מובנית | 1x DisplayPort**
1x D-Sub port
1x HDMI® port***
.Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates* .Supports max. 4K@60Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** |
|---|
| חריצי הרחבה | Intel® Core™ Processors (14th & 13th & 12th Gen)
1x PCIe 4.0 x16 slot
Intel® H610 Chipset
1x PCIe 3.0 x1 slot |
|---|
| USB | Rear USB (Total 6 ports)
2x USB 3.2 Gen 2 ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 3 USB 2.0 ports |
|---|
| שמע | Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking –
Supports up to 24-Bit/192 kHz playback –
Audio Features
Audio Shielding –
Premium audio capacitors –
Dedicated audio PCB layers –
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output* |
|---|
| ממשק אחסון | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4x SATA 6Gb/s ports |
|---|
| כרטיס רשת קווי | 1x Intel® 1Gb Ethernet |
|---|
| חיבורים פנימיים | Fan and Cooling related
1x 4-pin CPU Fan header
2x 4-pin Chassis Fan headers Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector Storage related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports USB
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous
3x Addressable Gen 2 headers
2x AURA RGB headers
1x Clear CMOS header
1x Front Panel Audio header (AAFP)
1x COM Port header
1x S/PDIF Out header
1x Speaker header
1x SPI TPM header (14-1pin)
1x 10-1 pin System Panel header |
|---|

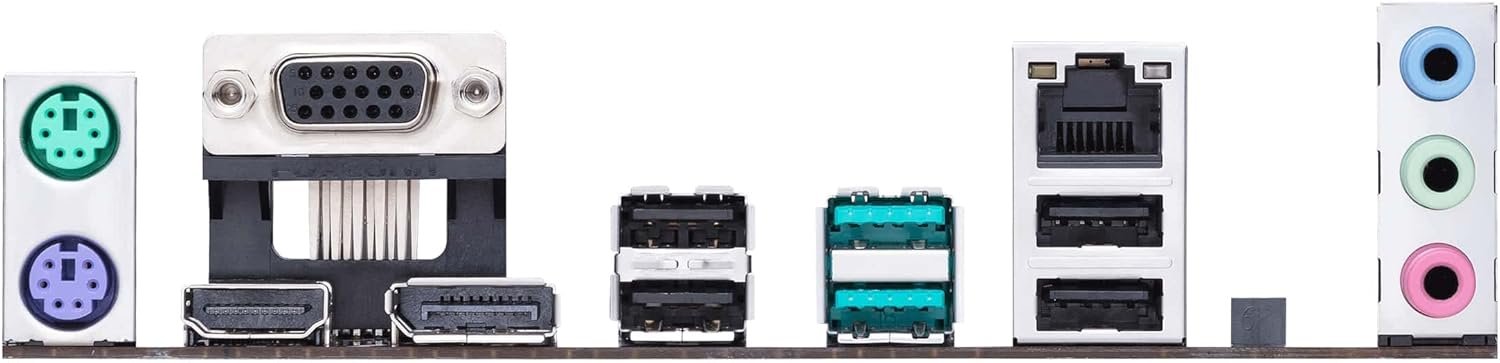

| חיבורים ויציאות | 2x USB 3.2 Gen 2 ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI® port
1x D-Sub port
1x V-M.2 slot (Key E)
1x Intel® 1Gb Ethernet port
3x Audio jacks
1x PS/2 Keyboard (purple) port
1x PS/2 Mouse (green) port |
|---|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
|---|
| תכונות ייחודיות | ASUS 5X PROTECTION III
DIGI+ VRM –
LANGuard –
Overvoltage Protection –
SafeSlot Core –
Stainless-Steel Back I/O –
ASUS Q-Design
Q-DIMM –
Q-Slot –
ASUS Thermal Solution
VRM heatsink design –
AURA Sync
AURA RGB headers –
Addressable Gen 2 headers – |
|---|
| תוכנות מצורפות | ASUS Exclusive Software
Armoury Crate
AURA Creator –
AURA Sync –
Fan Xpert 2+ –
AI Suite 3
Performance And Power Saving Utility –
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
IT Management software supported
ASUS Control Center Express(ACCE) –
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3 –
ASUS EZ Flash 3 –
ASUS UEFI BIOS EZ Mode – |
|---|
| אביזרים כלולים | Cables
2x SATA 6Gb/s cables Miscellaneous
1x I/O Shield
1x M.2 SSD screw package Installation Media
1x Support DVD Documentation
1x ACC Express Activation Key Card
1x User guide |
|---|
| תצורה | mATX Form Factor 9.6inch x 8.3 inch (24.4 cm x 21.1 cm) |
|---|
| קישור לאתר היצרן | https://www.asus.com/motherboards-components/motherboards/csm/prime-h610m-a-d4-csm/ |
|---|
| Ram Memory | DDR4 |
|---|
| Socket | LGA1700 |
|---|
