| תקופת אחריות | 3 שנות אחריות על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Msi |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1851 |
|---|
| ערכת שבבים | B860 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | ATX |
|---|
| NVMe PCIe M.2 Connector | 3 |
|---|
| תמיכה במעבדים | Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851 |
|---|
| תמיכה בזיכרונות | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
:Max. overclocking frequency
1DPC 1R Max speed up to 8800+ MT/s •
1DPC 2R Max speed up to 7200+ MT/s •
2DPC 1R Max speed up to 6400+ MT/s •
2DPC 2R Max speed up to 5600+ MT/s • Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM The DIMM slots on this motherboard only have single-sided latches •
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/ |
|---|
| גרפיקה מובנית | 1x HDMI
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed* |
|---|
| חריצי הרחבה | 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|---|
| USB | 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front) |
|---|
| ממשק אחסון | 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G Please refer to the manual for M.2 SSD heatsink restrictions* Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display |
|---|
| שמע | Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
|---|
| כרטיס רשת קווי | Realtek® 8126 5Gbps LAN |
|---|
| חיבורים פנימיים | 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
4x EZ Debug LED |
|---|

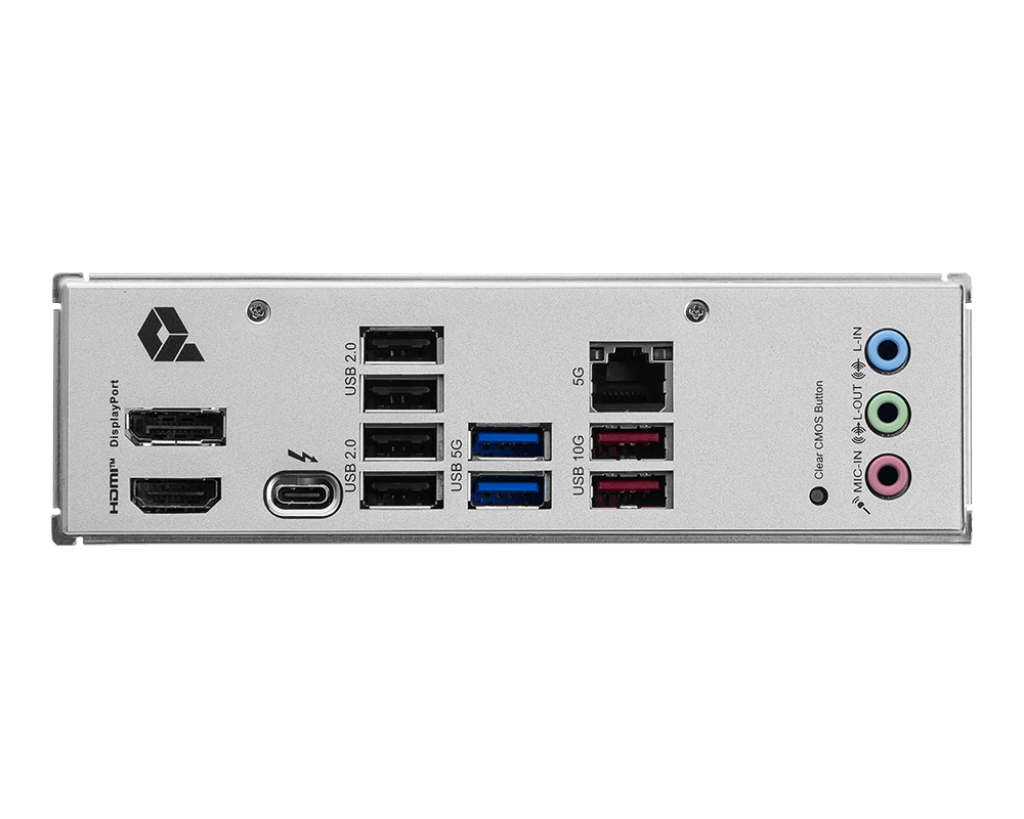

| חיבורים ויציאות | DisplayPort
USB 2.0
USB 5Gbps Type-A
5G LAN
Audio Connectors
HDMI
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-A
Clear CMOS Button |
|---|
| תצורה | ATX
243.84mmx304.8mm |
|---|
| קישור לאתר היצרן | https://www.msi.com/Motherboard/PRO-B860-P |
|---|
| Ram Memory | DDR5 |
|---|
| Socket | LGA1851 |
|---|
