תקופת אחריות	3 שנות אחריות על ידי היבואן הרשמי
יצרן לוח אם	Msi
מבוסס לוח אם	AMD
תושבת	AM5
ערכת שבבים	X870
סוג זיכרון לוח אם	DDR5
גודל לוח אם	ATX
NVMe PCIe M.2 Connector	4
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
תמיכה בזיכרונות	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s :Ryzen™ 9000 Series Processors max. overclocking frequency 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s • Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility • The DIMM slots on this motherboard have double-sided latches • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the • product’s Support page or visit https://www.msi.com/support/
גרפיקה מובנית	1x HDMI Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed*
חריצי הרחבה	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) • PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot* AMD MULTI-GPU Support
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
ממשק אחסון	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 & M2_2 slots Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors* USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4 PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot* Please refer to the manual for M.2 SSD heatsink restrictions**** Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices • RAID 5 configuration is only supported by Ryzen™ 9000 series processors* RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors*
שמע	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
כרטיס רשת קווי	Realtek® 8126-CG 5G LAN
מודול תקשורת אלחוטית	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2 The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2**
חיבורים פנימיים	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports 4x EZ Debug LED 1x EZ Digit Debug LED

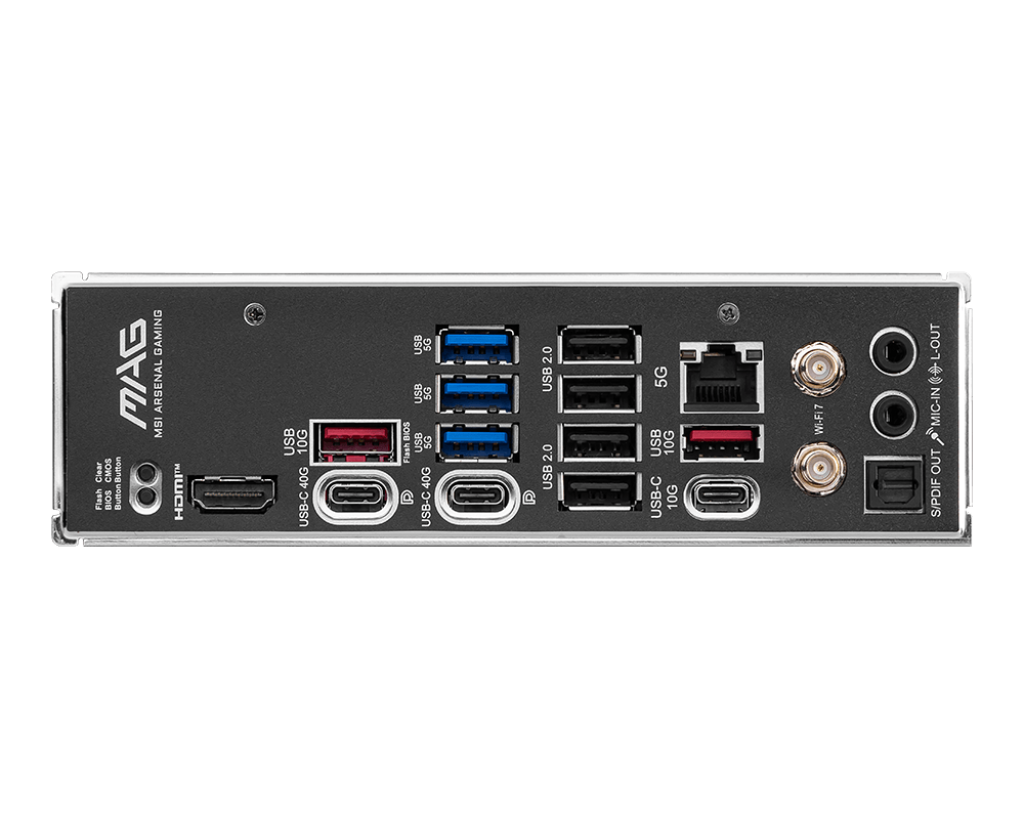

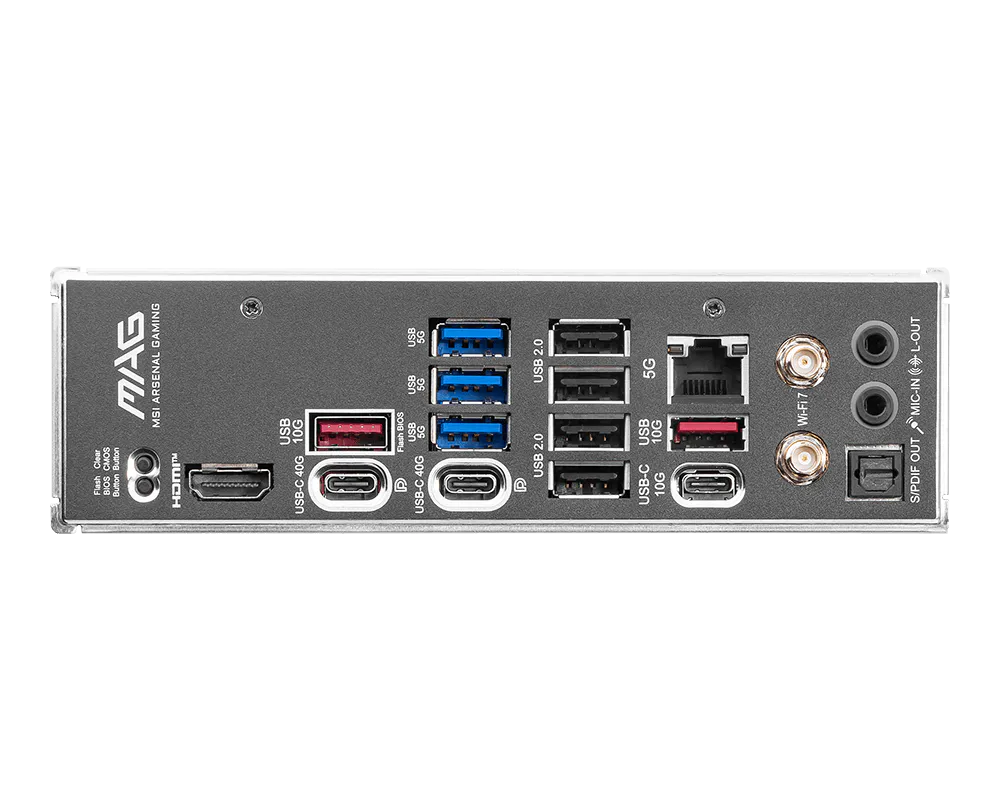

חיבורים ויציאות	Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A
תצורה	ATX 304.8mmx243.84mm
קישור לאתר היצרן	https://www.msi.com/Motherboard/MAG-X870-TOMAHAWK-WIFI

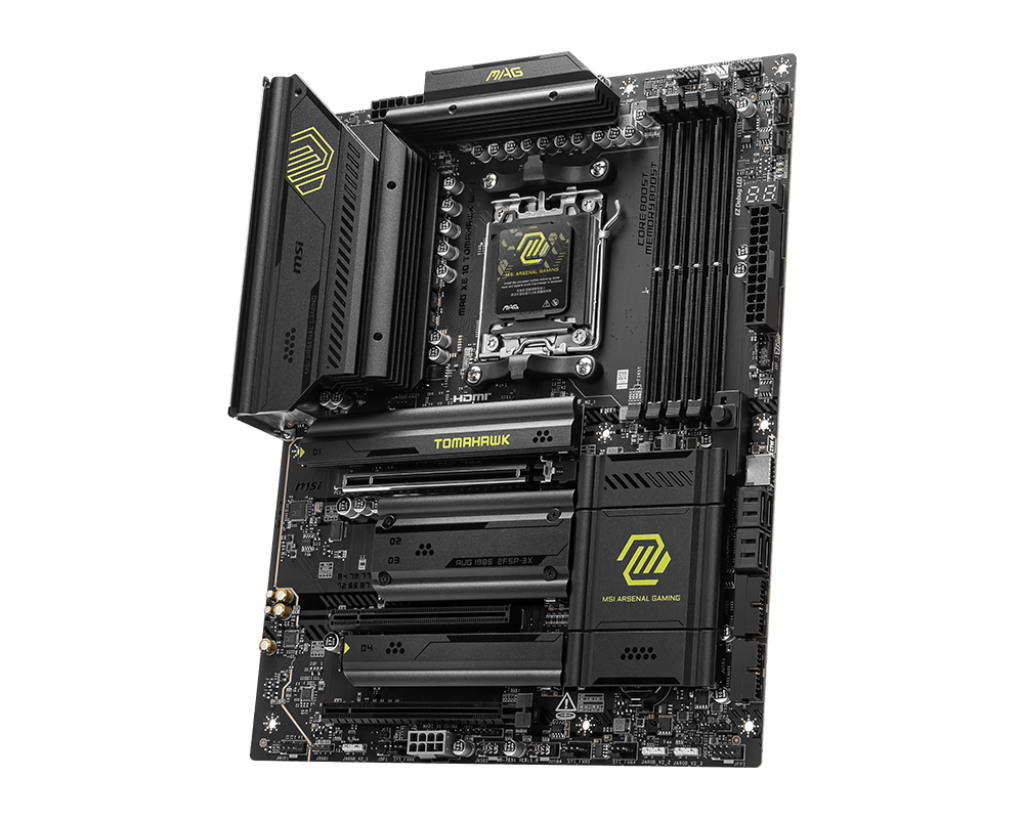

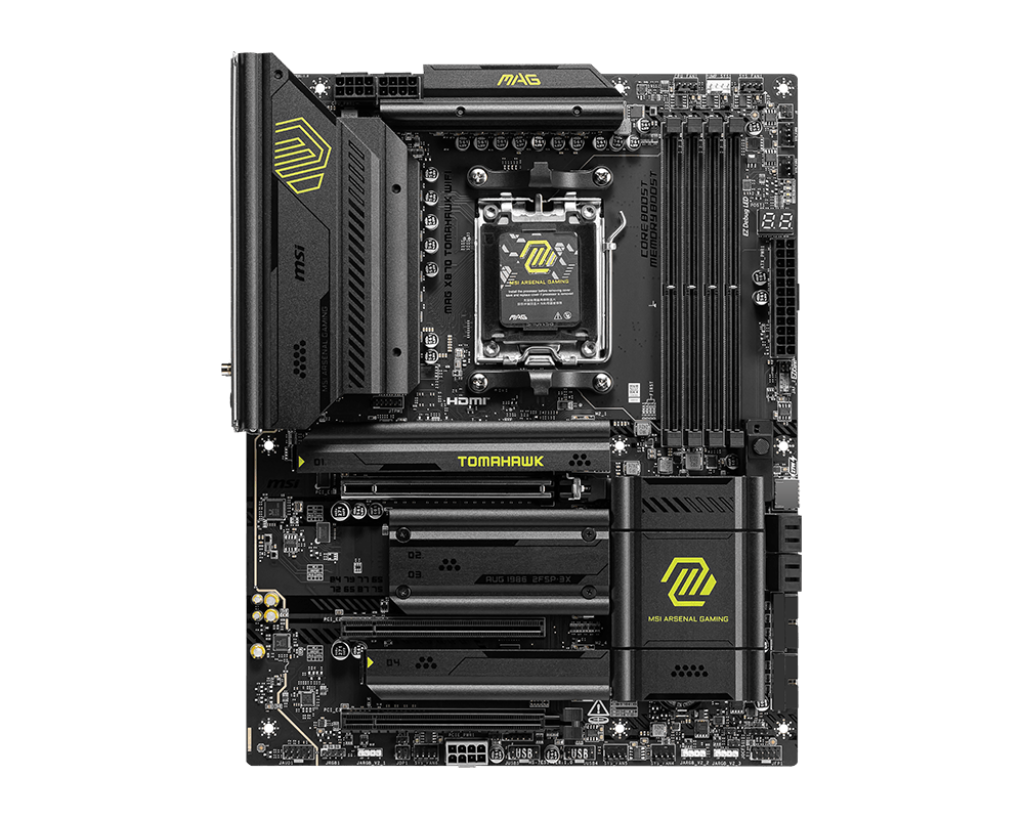

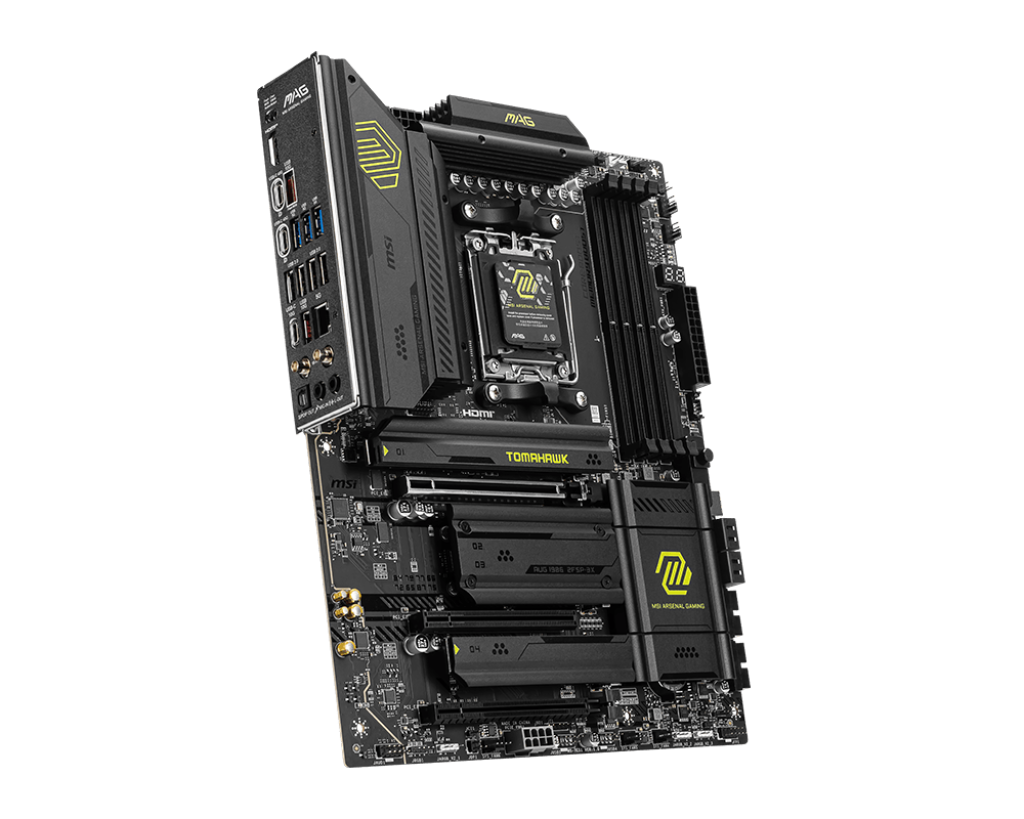

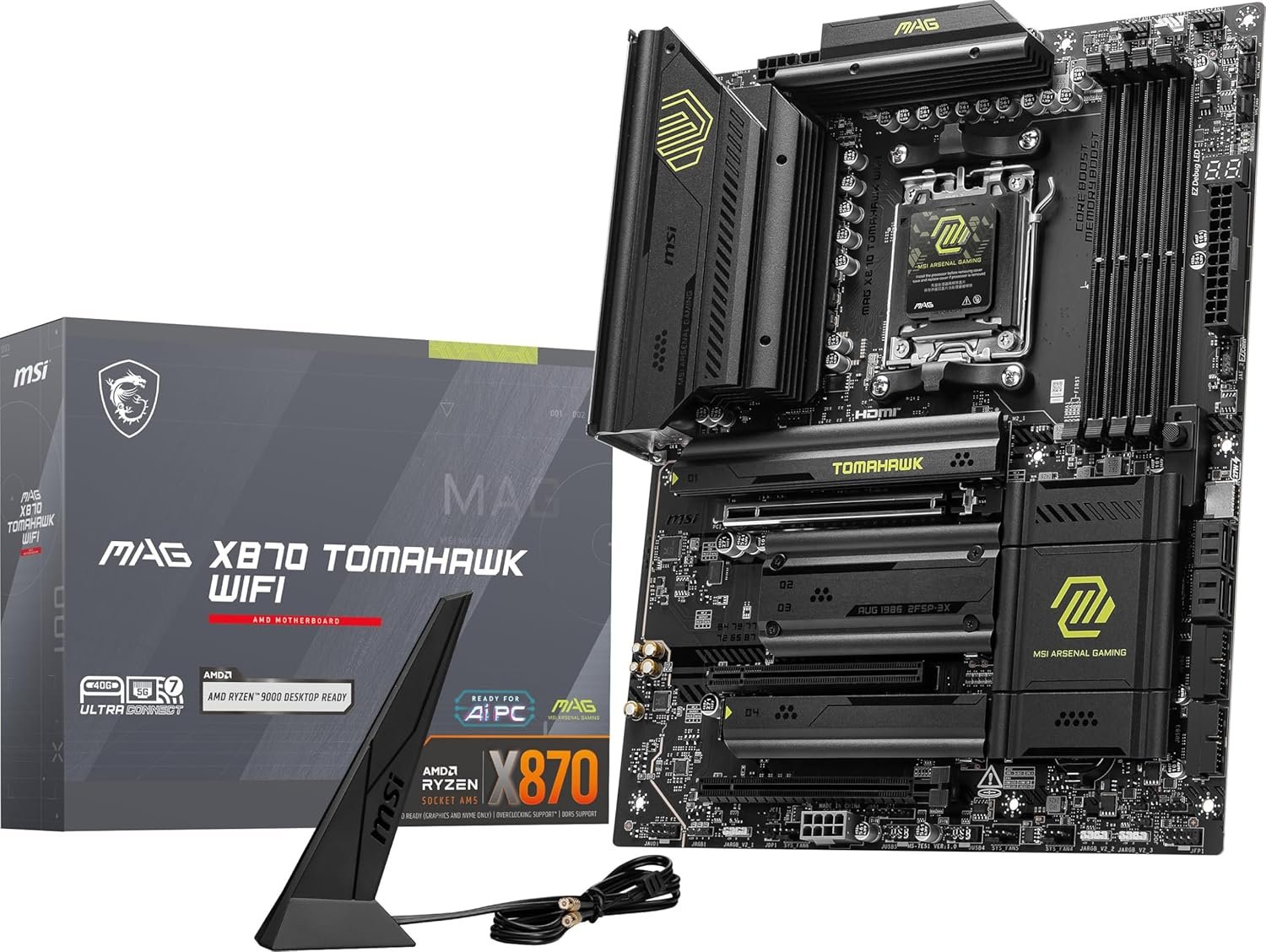

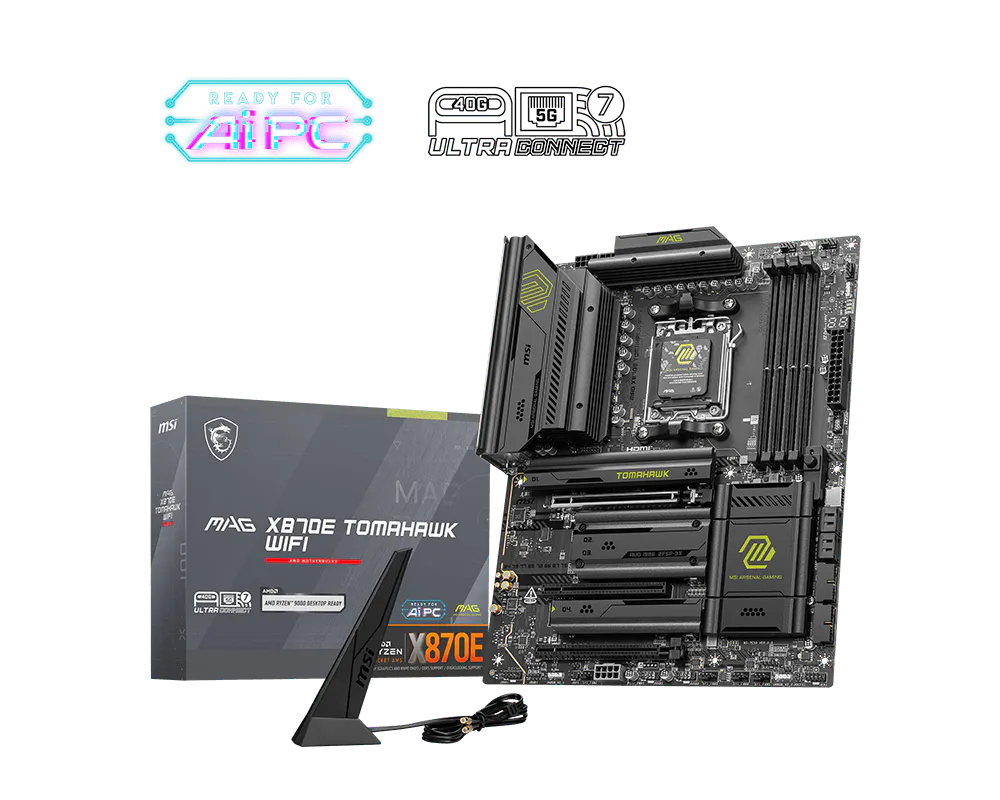

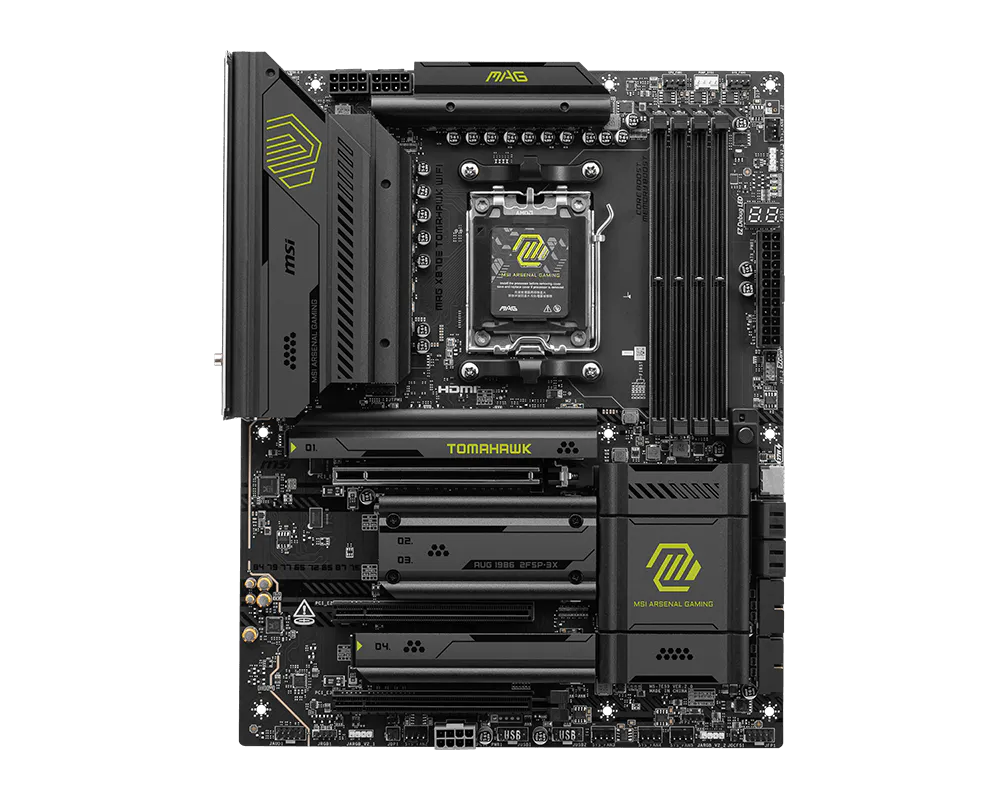

לוח אם – MSI MAG X870 TOMAHAWK WIFI7 ATX AM5 DDR5
