לוח אם – MSI GAMING PLUS Z890 WIFI7 ATX LGA1851 DDR5

⁦לוח אם – MSI GAMING PLUS Z890 WIFI7 ATX LGA1851 DDR5⁩ – תמונה ⁦2⁩

⁦לוח אם – MSI GAMING PLUS Z890 WIFI7 ATX LGA1851 DDR5⁩ – תמונה ⁦3⁩

⁦לוח אם – MSI GAMING PLUS Z890 WIFI7 ATX LGA1851 DDR5⁩ – תמונה ⁦4⁩

לוח אם – MSI GAMING PLUS Z890 WIFI7 ATX LGA1851 DDR5

1,140.00 ₪

לוח אם איכותי מבית MSI, בעל תושבת LGA1851, ערכת שבבים Z890, תאימות לזיכרונות DDR5, בעל יציאות HDMI ,DisplayPort.

מק״ט 85073 קטגוריה לוחות אם תגיות 1851, ATX, DDR5, Msi, WIFI & Bluetooth, Z890, שחור

עוד על - לוח אם – MSI GAMING PLUS Z890 WIFI7 ATX LGA1851 DDR5

תקופת אחריות	3 שנות אחריות על ידי היבואן הרשמי
יצרן לוח אם	Msi
מבוסס לוח אם	Intel
תושבת	LGA1851
ערכת שבבים	Z890
סוג זיכרון לוח אם	DDR5
גודל לוח אם	ATX
NVMe PCIe M.2 Connector	4
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
תמיכה בזיכרונות	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s :Max. overclocking frequency 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s • Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM The DIMM slots on this motherboard only have single-sided latches• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
גרפיקה מובנית	1x HDMI Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed*
חריצי הרחבה	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
ממשק אחסון	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G Please refer to the manual for M.2 SSD heatsink restrictions* Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
שמע	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
כרטיס רשת קווי	Intel® Killer™ E5000 5Gbps LAN
מודול תקשורת אלחוטית	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3 The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan**
חיבורים פנימיים	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports 4x EZ Debug LED

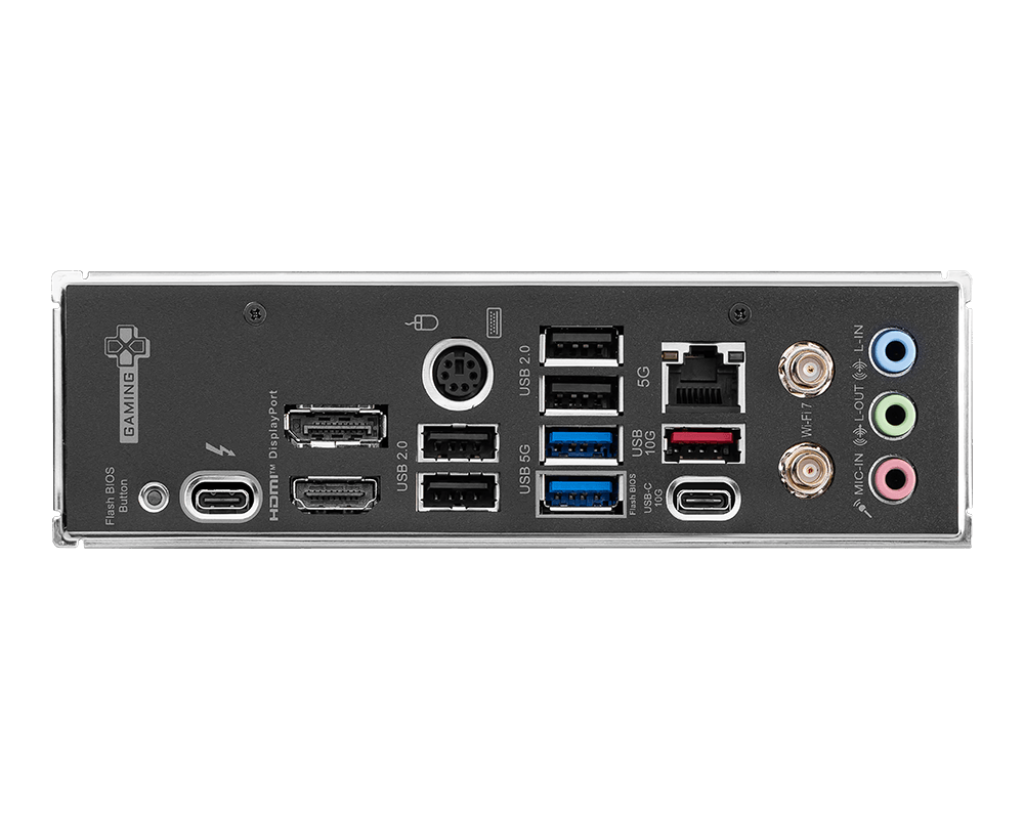

חיבורים ויציאות	DisplayPort Keyboard / Mouse USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI USB 2.0 USB 5Gbps Type A ports USB 10 Gbps Type C ports USB 10 Gbps Type A ports
תצורה	ATX 243.84mmx304.8mm
קישור לאתר היצרן	https://www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI
