| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Gigabyte
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1851
|
| ערכת שבבים |
Z890
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
E-ATX
|
| NVMe PCIe M.2 Connector |
4
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list)
L3 cache varies with CPU
|
| תמיכה בזיכרונות |
Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules
2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
|
| גרפיקה מובנית |
:Integrated Graphics Processor-Intel® HD Graphics support
1x Intel® Thunderbolt™ 4 connector (USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output)
Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
Support for DisplayPort 2.1 version and HDCP 2.3*
1x front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output)
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output)
Support for DisplayPort 2.1 version and HDCP 2.3*
(Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality. Graphics specifications may vary depending on CPU support)
|
| חריצי הרחבה |
:CPU
1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot*
1x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode*
The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD**
|
| USB |
:CPU
1x USB4® USB Type-C® port onboard
1x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
:Chipset
1x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
5x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2x USB 3.2 Gen 1 ports available through the internal USB header
2x USB 2.0/1.1 ports available through the internal USB header
|
| ממשק אחסון |
:CPU
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU)
1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2B_CPU)
:Chipset
1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0×4/x2 SSD support) (M2M_SB)
4x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
| שמע |
Realtek® ALC1220 CODEC
The back panel line out jack supports DSD audio*
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
|
| כרטיס רשת קווי |
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
| מודול תקשורת אלחוטית |
Realtek® Wi-Fi 7 RTL8922AE
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)*
Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations**
|
| חיבורים פנימיים |
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x CPU fan header
1x CPU fan/water cooling pump header
4x system fan headers
3x system fan/water cooling pump headers
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
4x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 2 support
1x Thunderbolt™ 4 connector (Note) (USB4® USB Type-C® port)
1x USB 3.2 Gen 1 header
1x USB 2.0/1.1 header
1x noise detection header
2x temperature sensor headers
1x Clear CMOS jumper
1x power button (PWR)
1x reset button (RST)
1x Clear CMOS button (CMOS)
1x Cold Reset button (RTY)
1x Protection Mode button (LIMP_MODE)
1x CPU Clock up button (CLK+)
1x CPU Clock down button (CLK-)
1x BIOS switch (BIOS_SW)
1x LN2 Mode switch (LN2)
1x OC Trigger switch (TGR)
1x OC Ignition switch (OC_IGNIT)
2x reserved switches (RSV_SW1/RSV_SW2)
Voltage Measurement Points
(Note) Actual support may vary by CPU
|

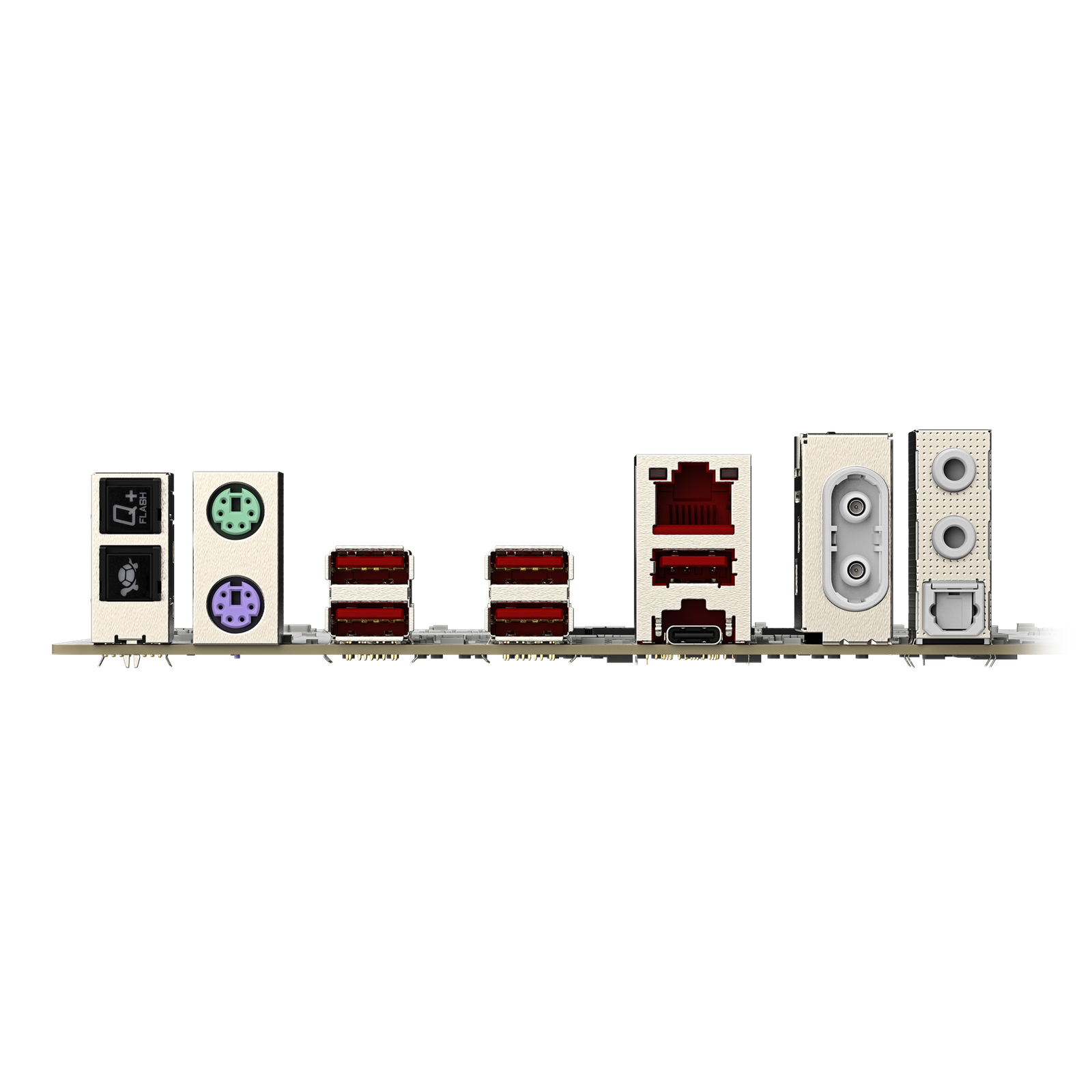

| חיבורים ויציאות |
1x Q-Flash Plus button
1x Protection Mode button
1x PS/2 keyboard port
1x PS/2 mouse port
2x antenna connectors (2T2R)
1x USB Type-C® port, with USB 3.2 Gen 2×2 support
5x USB 3.2 Gen 2 Type-A ports (red)
1x RJ-45 port
1x optical S/PDIF Out connector
2x audio jacks
|
| BIOS |
2x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| תכונות מיוחדות |
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
|
| תוכנות מצורפות |
Norton® Internet Security (OEM version)
LAN bandwidth management software
|
| תצורה |
E-ATX Form Factor; 30.5cm x 28.5cm
|
| קישור לאתר היצרן |
https://www.gigabyte.com/Motherboard/Z890-AORUS-TACHYON-ICE
|
