| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Gigabyte
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
X870
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
4
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
:AMD Socket AM5, support for
AMD Ryzen™ 9000 Series Processors
AMD Ryzen™ 8000 Series Processors
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)
|
| תמיכה בזיכרונות |
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules
4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
|
| גרפיקה מובנית |
:Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller
2x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
Support for DisplayPort 1.4 version and HDR*
:Integrated Graphics Processor with AMD Radeon™ Graphics support
1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR*
Support for native HDMI 2.1 TMDS compatible ports**
1x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
Support for HDMI 1.4 version*
(Graphics specifications may vary depending on CPU support)
|
| חריצי הרחבה |
:1x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot*
:Chipset
1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
|
| USB |
:CPU+ASMedia USB4® controller
2x USB4® USB Type-C® ports on the back pane
:CPU
1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
:Chipset+USB 3.2 Gen 1 Hub
4x USB 3.2 Gen 1 ports available through the internal USB headers
:Chipset
1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors*
1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
5x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3x USB 3.2 Gen 1 ports on the back panel
4x USB 2.0/1.1 ports available through the internal USB headers
|
| ממשק אחסון |
:1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
:1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable
2x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors*
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
|
| שמע |
Realtek® ALC1220 CODEC
The back panel line out jack supports DSD audio*
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
Support for S/PDIF Out
|
| כרטיס רשת קווי |
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
|
| מודול תקשורת אלחוטית |
Qualcomm® Wi-Fi 7 QCNCM865
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)*
Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations**
Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details***
|
| חיבורים פנימיים |
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x PCIe power connector
1x CPU fan header
1x CPU fan/water cooling pump header
4x system fan headers
2x system fan/water cooling pump headers
3x addressable RGB Gen2 LED strip headers
1x RGB LED strip header
4x SATA 6Gb/s connectors
4x M.2 Socket 3 connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 2×2 support
2x USB 3.2 Gen 1 headers
2x USB 2.0/1.1 headers
1x noise detection header
1x HDMI port (Note)
1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
2x temperature sensor headers
1x reset jumper
1x Clear CMOS jumper
(Note) Actual support may vary by CPU
|

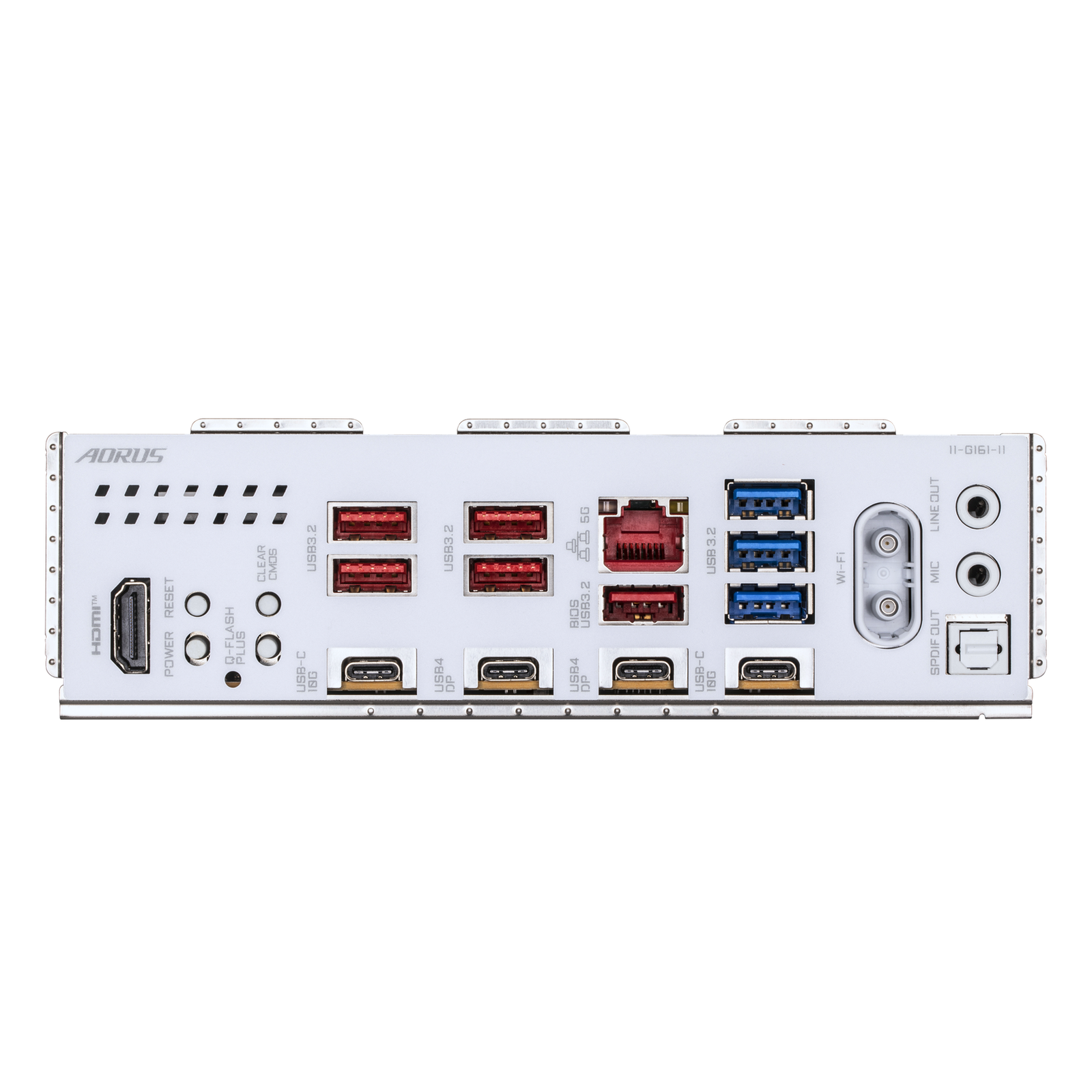

| חיבורים ויציאות |
1x HDMI port (Note)
1x reset button
1x power button
1x Clear CMOS button
1x Q-Flash Plus button
5x USB 3.2 Gen 2 Type-A ports (red)
2x USB Type-C® ports, with USB 3.2 Gen 2 support
2x USB4® USB Type-C® ports (DisplayPort (Note))
1x RJ-45 port
3x USB 3.2 Gen 1 ports
2x antenna connectors (2T2R)
2x audio jacks
1x optical S/PDIF Out connector
(Note) Actual support may vary by CPU
|
| BIOS |
1x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| תכונות מיוחדות |
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
|
| תוכנות מצורפות |
Norton® Internet Security (OEM version)
|
| תצורה |
ATX Form Factor; 30.5cm x 24.4cm
|
| קישור לאתר היצרן |
https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO-X3D-ICE
|
