לוח אם – Gigabyte X870E AORUS PRO ICE WIFI7 ATX AM5 DDR5

חדש באתר

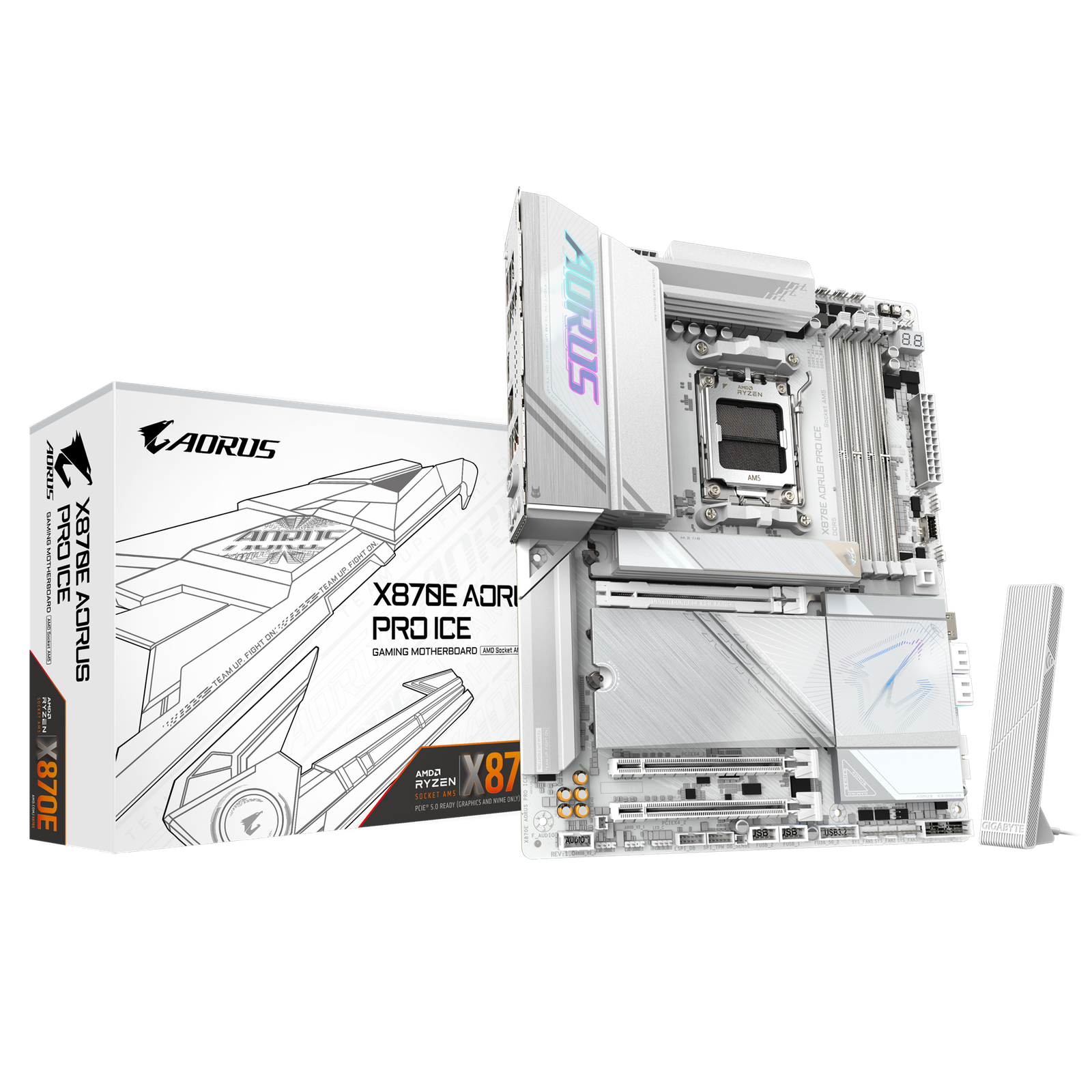

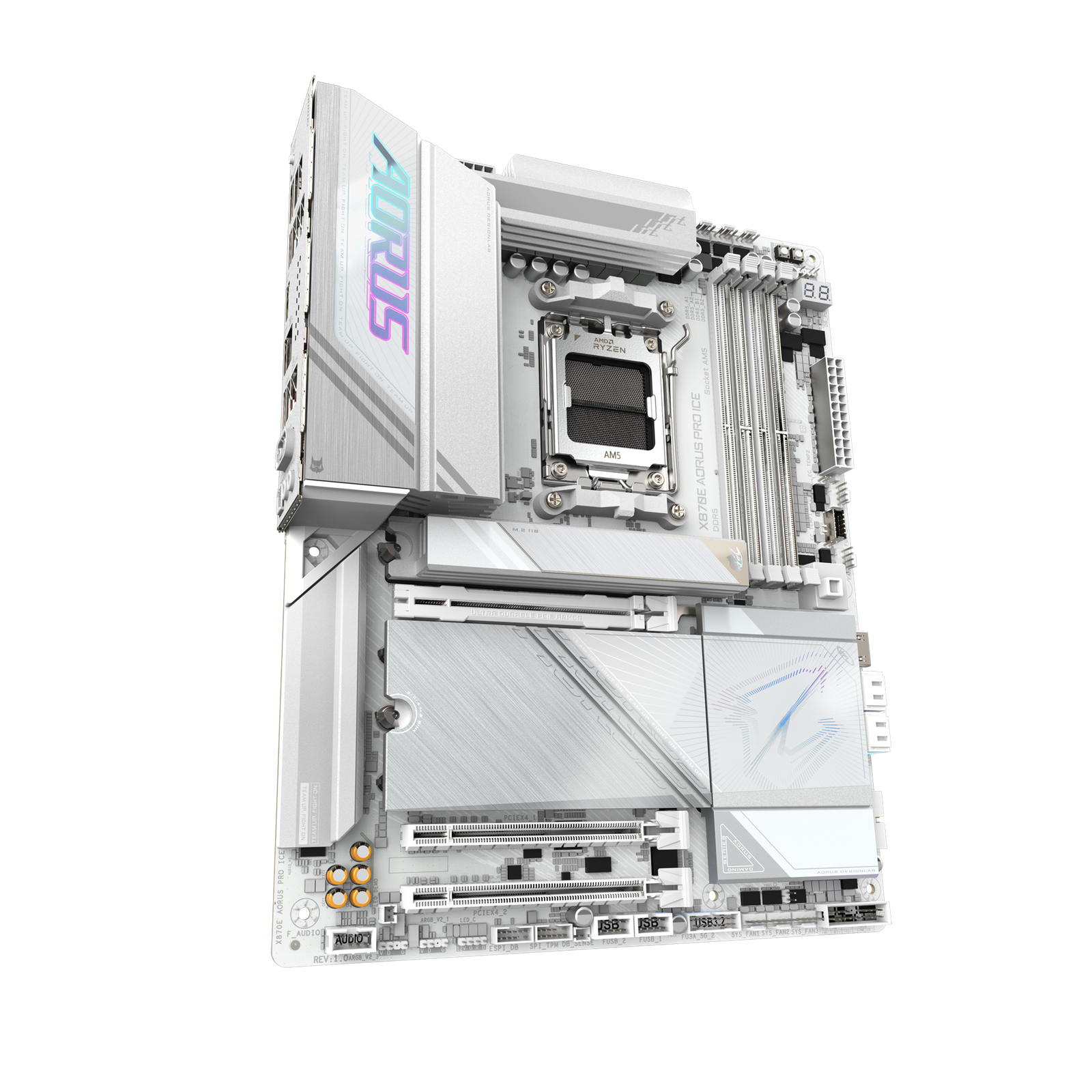

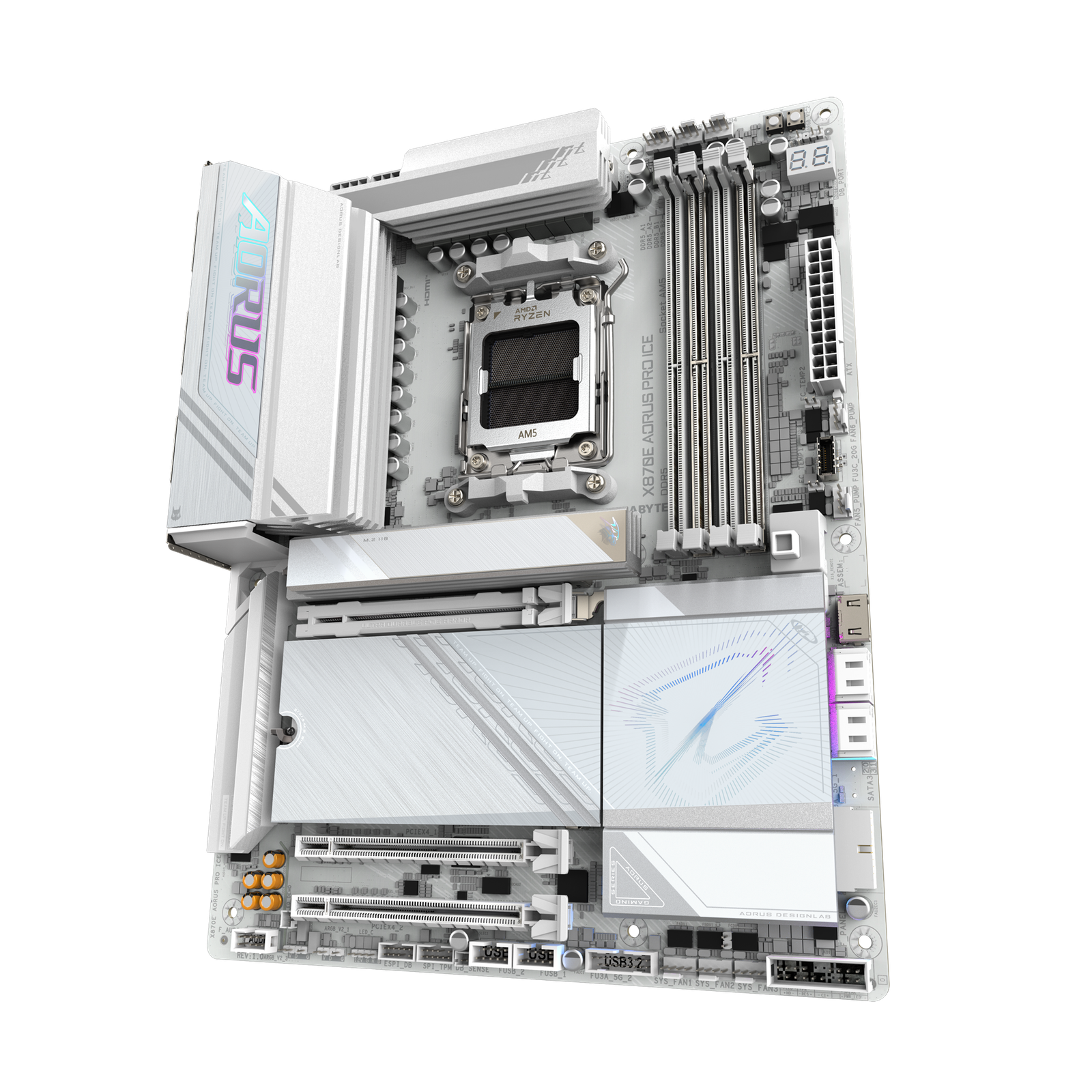

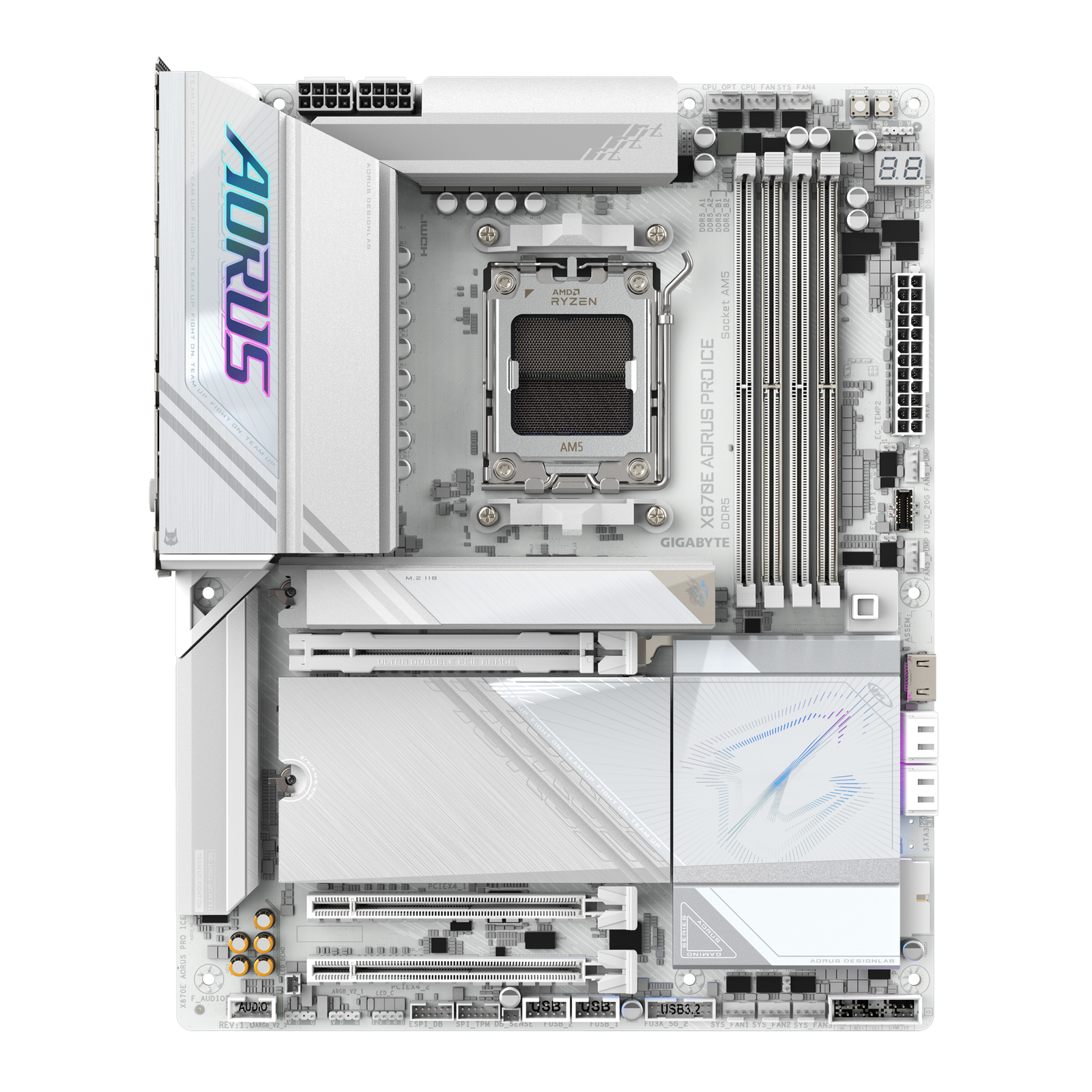

⁦לוח אם – Gigabyte X870E AORUS PRO ICE WIFI7 ATX AM5 DDR5⁩ – תמונה ⁦2⁩

⁦לוח אם – Gigabyte X870E AORUS PRO ICE WIFI7 ATX AM5 DDR5⁩ – תמונה ⁦3⁩

⁦לוח אם – Gigabyte X870E AORUS PRO ICE WIFI7 ATX AM5 DDR5⁩ – תמונה ⁦4⁩

לוח אם – Gigabyte X870E AORUS PRO ICE WIFI7 ATX AM5 DDR5

1,790.00 ₪

לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים X870, תאימות לזכרונות DDR5 ובעל יציאת HDMI.

מק״ט GX870EAORUSPROICE קטגוריה לוחות אם תגיות AM5, AMD, ATX, DDR5, Gigabyte, WIFI & Bluetooth, X870, לבן

עוד על - לוח אם – Gigabyte X870E AORUS PRO ICE WIFI7 ATX AM5 DDR5

תקופת אחריות	3 שנים על ידי היבואן הרשמי
יצרן לוח אם	Gigabyte
מבוסס לוח אם	AMD
תושבת	AM5
ערכת שבבים	X870
סוג זיכרון לוח אם	DDR5
גודל לוח אם	ATX
NVMe PCIe M.2 Connector	4
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	:AMD Socket AM5, support for AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list)
תמיכה בזיכרונות	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
גרפיקה מובנית	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. 1x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz Support for HDMI 1.4 version* (Graphics specifications may vary depending on CPU support)
חריצי הרחבה	:1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot* When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot) :Chipset 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
USB	:CPU+ASMedia USB4® controller 2x USB4® USB Type-C® ports on the back panel :CPU 1x USB 3.2 Gen 2 Type-A port (red) on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel 8x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 6x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
ממשק אחסון	:1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors* AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors 1x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen™ 9000 Series Processors* RAID 0, RAID 1, and RAID 10 support for SATA storage devices
שמע	Realtek® ALC1220 CODEC The back panel line out jack supports DSD audio* High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure* 7.1-channel audio, access the audio software for audio settings Support for S/PDIF Out
כרטיס רשת קווי	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

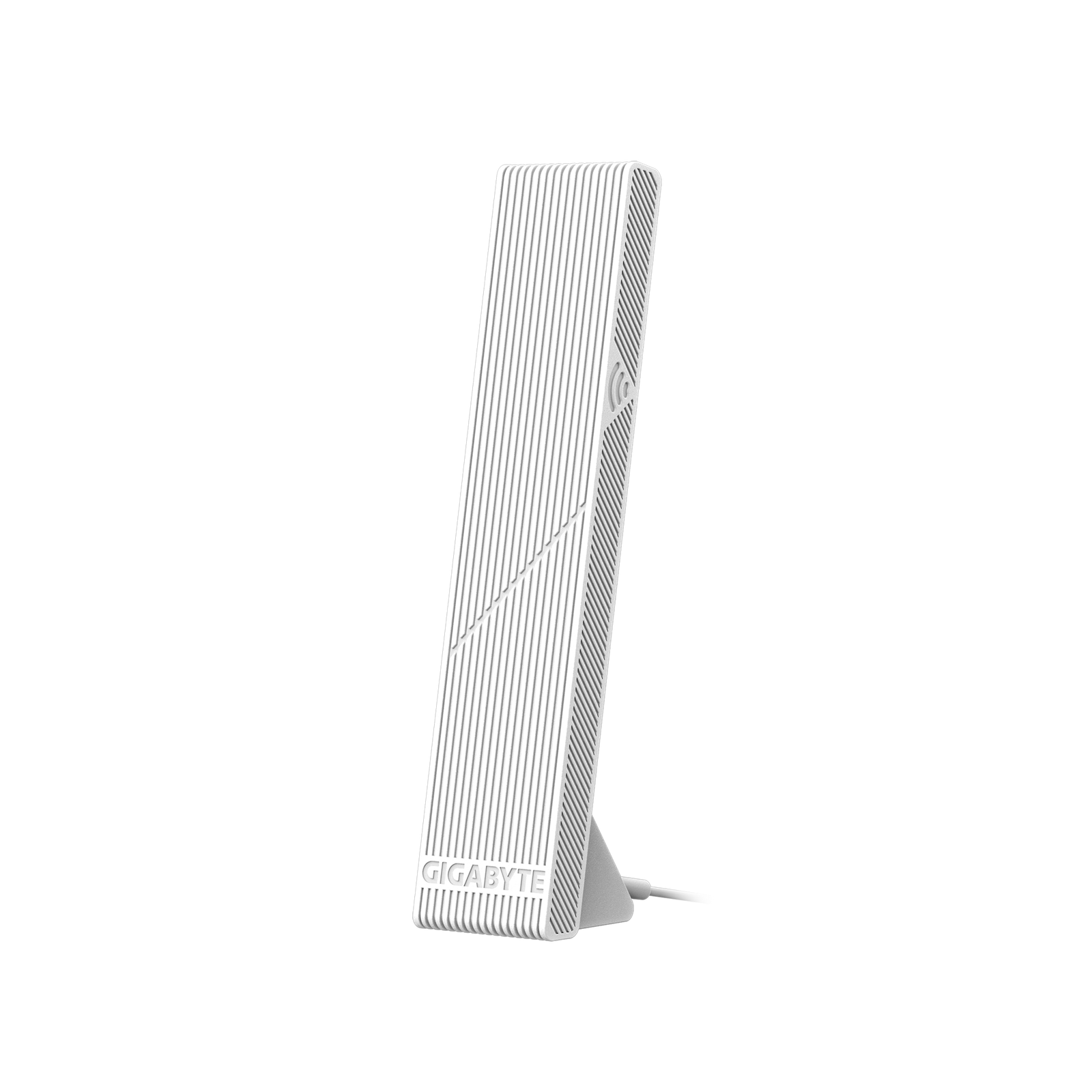

מודול תקשורת אלחוטית	Qualcomm® Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details*
חיבורים פנימיים	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x CPU fan/water cooling pump header 4x system fan headers 2x system fan/water cooling pump headers 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 4x SATA 6Gb/s connectors 4x M.2 Socket 3 connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2×2 support 2x USB 3.2 Gen 1 headers 2x USB 2.0/1.1 headers 1x noise detection header 1x HDMI port (Note) 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1x power button 1x reset button 2x temperature sensor headers 1x reset jumper 1x Clear CMOS jumper

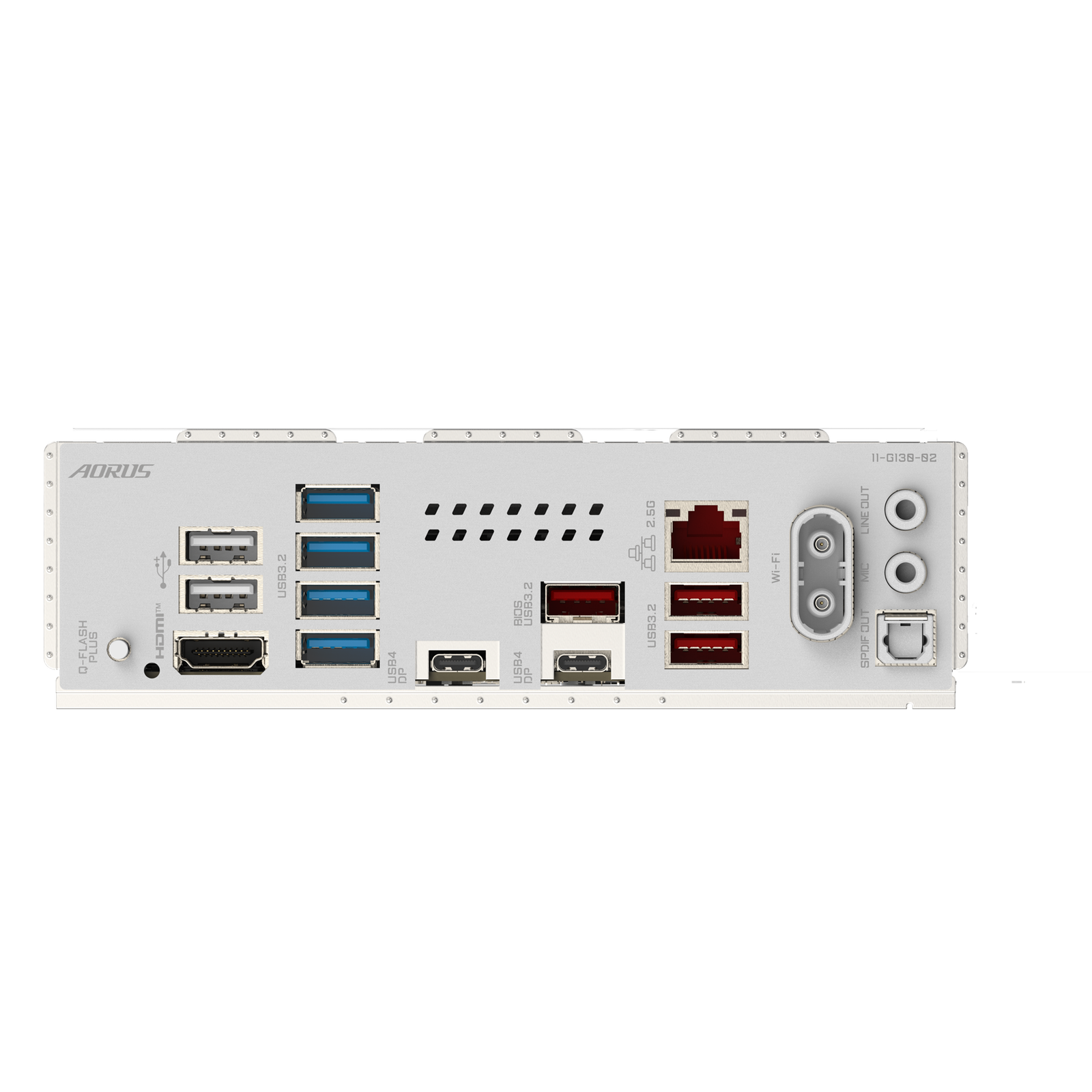

חיבורים ויציאות	1x Q-Flash Plus button 2x USB 2.0/1.1 ports 1x HDMI port (Note) 4x USB 3.2 Gen 1 ports 2x USB4® USB Type-C® port (DisplayPort (Note)) 3x USB 3.2 Gen 2 Type-A ports (red) 1x RJ-45 port 2x antenna connectors (2T2R) 1x optical S/PDIF Out connector 2x audio jacks
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
תכונות מיוחדות	Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
תוכנות מצורפות	Norton® Internet Security (OEM version) LAN bandwidth management software
תצורה	ATX Form Factor; 30.5cm x 24.4cm
קישור לאתר היצרן	https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO-ICE-rev-10#kf
