לוח אם – Gigabyte TRX50 AERO D WIFI7 E-ATX sTR5 DDR5 ECC

חדש באתר

⁦לוח אם – Gigabyte TRX50 AERO D WIFI7 E-ATX sTR5 DDR5 ECC⁩ – תמונה ⁦2⁩

לוח אם – Gigabyte TRX50 AERO D WIFI7 E-ATX sTR5 DDR5 ECC

3,120.00 ₪

לוח אם איכותי מבית Gigabyte, בעל תושבת sTR5, ערכת שבבים TRX50, תאימות לזיכרונות DDR5 ECC, בעל יציאת DisplayPort.

מק״ט TRX50 AERO D rev1.2 קטגוריה לוחות אם תגיות AMD, DDR5 ECC, E-ATX, Gigabyte, sTR5, TRX50, WIFI & Bluetooth, לבן

עוד על - לוח אם – Gigabyte TRX50 AERO D WIFI7 E-ATX sTR5 DDR5 ECC

תקופת אחריות	3 שנים על ידי היבואן הרשמי
יצרן לוח אם	Gigabyte
מבוסס לוח אם	AMD
תושבת	sTR5
ערכת שבבים	TRX50
סוג זיכרון לוח אם	ECC DDR5
גודל לוח אם	E-ATX
NVMe PCIe M.2 Connector	4
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	:AMD Socket sTR5, support for AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/ AMD Ryzen™ Threadripper™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list)
תמיכה בזיכרונות	Support for DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C) / 6800(O.C.) / 6400(O.C.) / 6000(O.C.) / 5600(O.C.) / 5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
חריצי הרחבה	:2x PCI Express x16 slots (PCIEX16_1/PCIEX16_2), integrated in the CPU – AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000/7000 Series Processors support PCIe 5.0 x16 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot) :1x PCI Express x16 slot (PCIEX16_3), integrated in the CPU – AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000/7000 Series Processors support PCIe 4.0 x16 mode
USB	:CPU 3x USB 3.2 Gen 2 Type-A ports (red) on the back panel :Chipset+Intel® JHL8540 USB4® controller 2x USB4® USB Type-C® ports on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 1x USB 3.2 Gen 2 Type-A port (red) on the back panel 2x USB 3.2 Gen 1 ports available through the internal USB header :CPU+USB 3.2 Gen 1 Hub 4x USB 3.2 Gen 1 ports on the back panel :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports available through the internal USB headers
ממשק אחסון	:CPU 1x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU) :CPU+Chipset 8x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
שמע	Realtek® ALC4080 CODEC (rear panel audio) – Support for DTS:X® Ultra – High Definition Audio – 2-channel Realtek® ALC897 CODEC (front panel audio)
כרטיס רשת קווי	Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
מודול תקשורת אלחוטית	Qualcomm® Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment) :Note Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations
חיבורים פנימיים	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x CPU fan header 1x CPU fan/water cooling pump header 4x system fan headers 4x system fan/water cooling pump headers 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 4x M.2 Socket 3 connectors 8x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2×2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x noise detection header 1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1x power button 1x Clear CMOS button 1x reset button 1x reset jumper 2x temperature sensor headers 1x Clear CMOS jumper

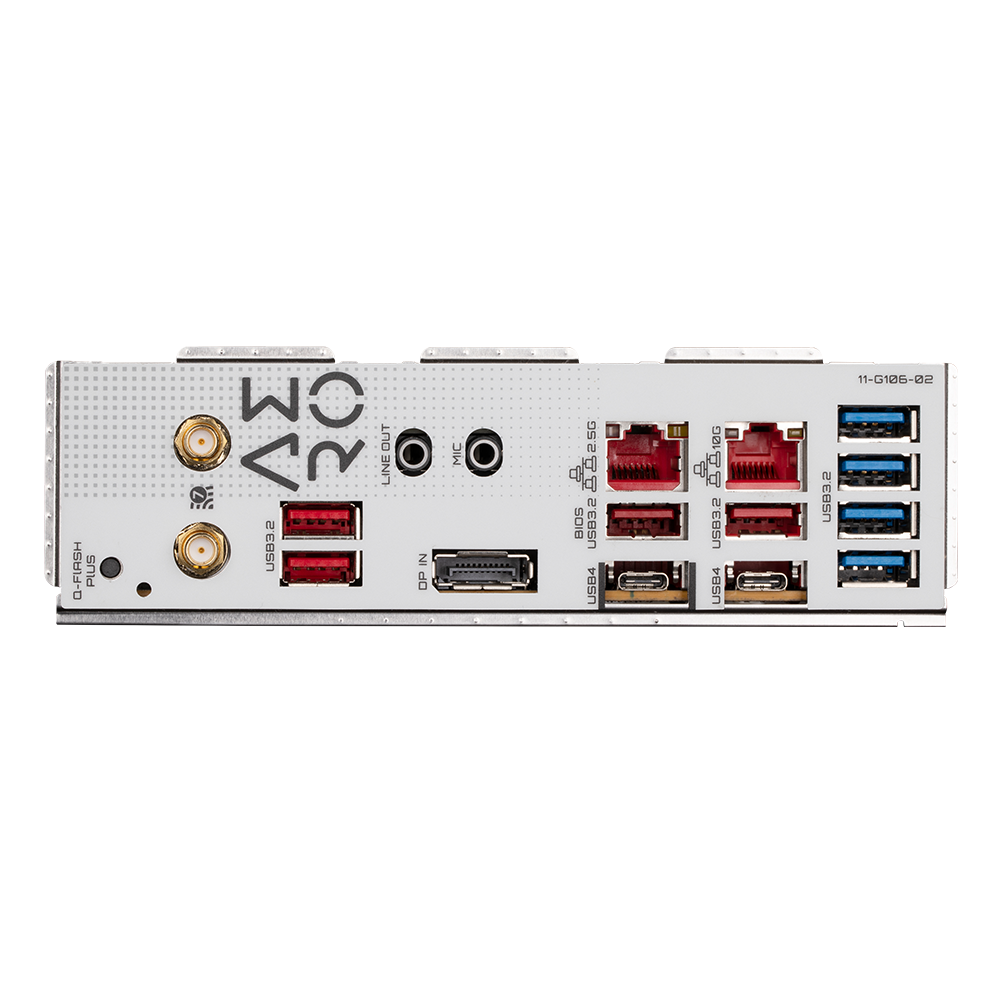

חיבורים ויציאות	1x Q-Flash Plus button 2x SMA antenna connectors (2T2R) 1x DisplayPort In port 1x USB4® USB Type-C® port (DisplayPort) 1x USB4® USB Type-C® port 4x USB 3.2 Gen 2 Type-A ports (red) 4x USB 3.2 Gen 1 ports 2x RJ-45 ports 2x audio jacks
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
תכונות מיוחדות	Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus
תוכנות מצורפות	Norton® Internet Security (OEM version) LAN bandwidth management software
תצורה	E-ATX Form Factor; 30.5cm x 26.4cm
קישור לאתר היצרן	https://www.gigabyte.com/Motherboard/TRX50-AERO-D-rev-12
