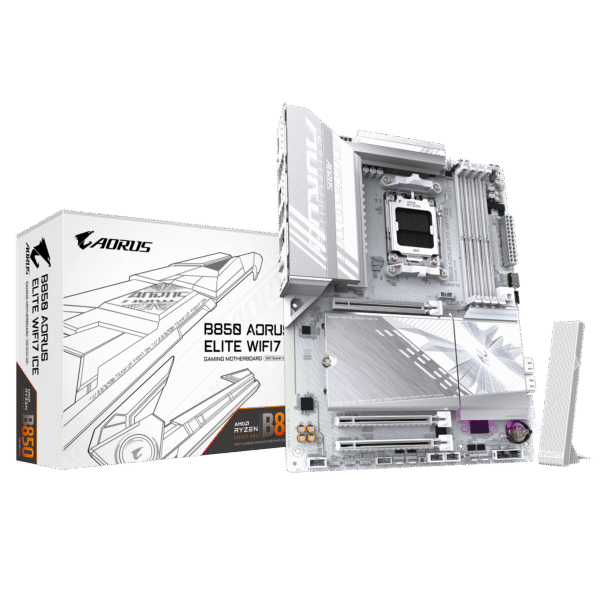

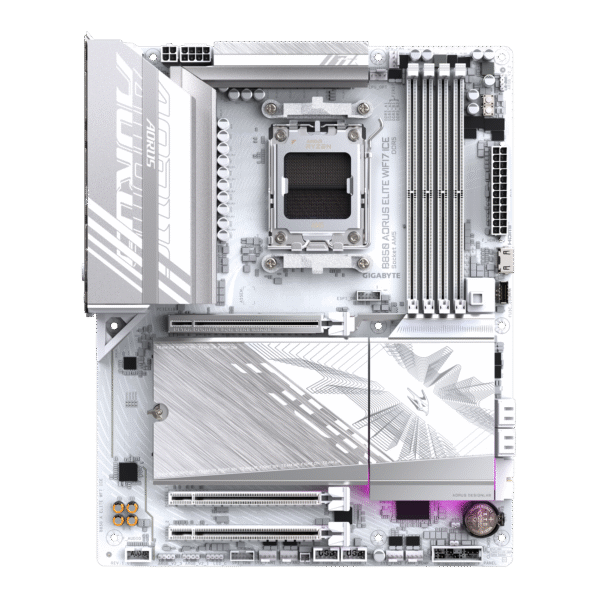

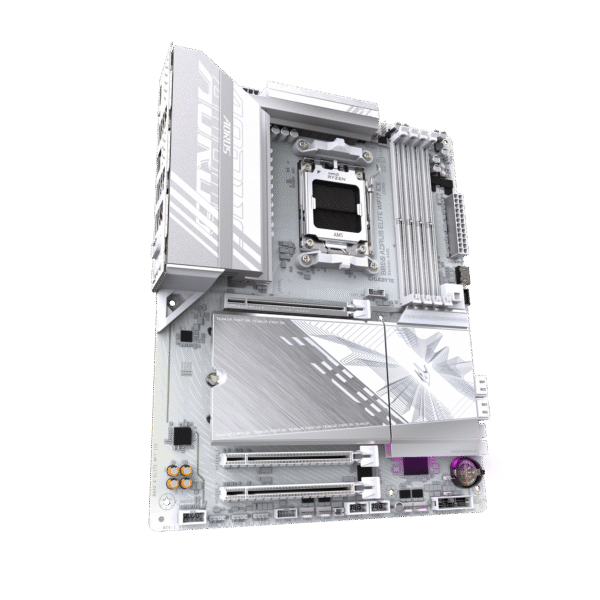

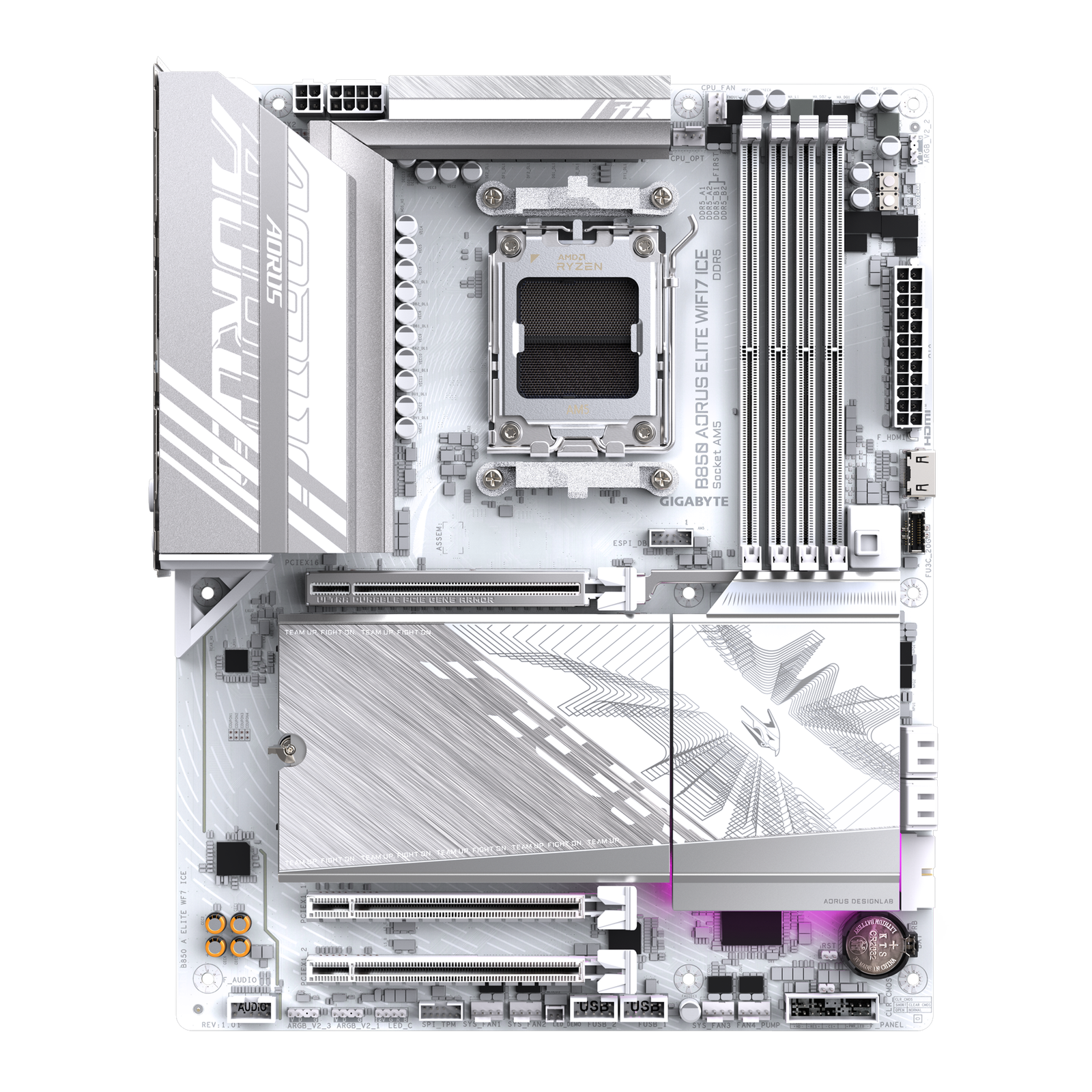

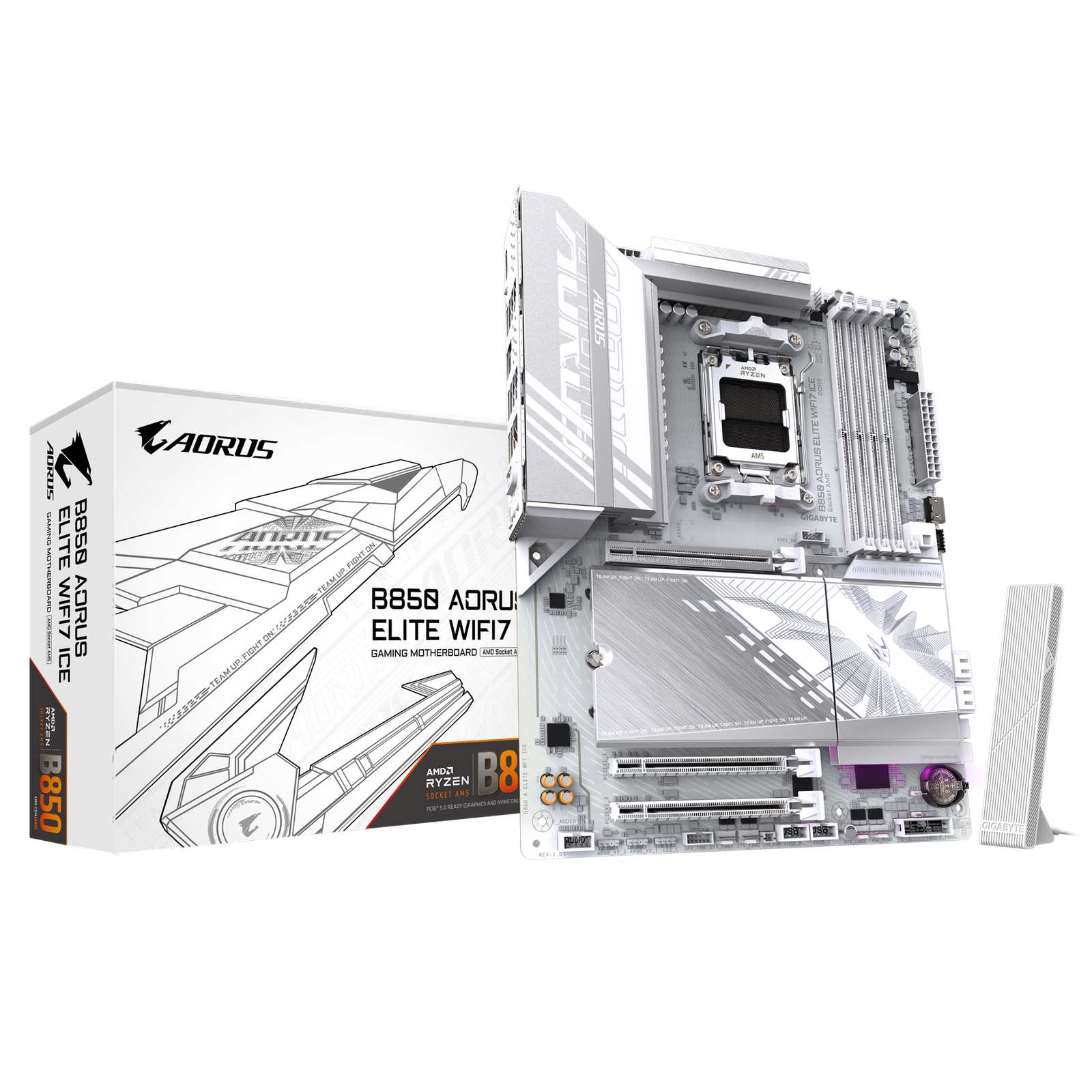

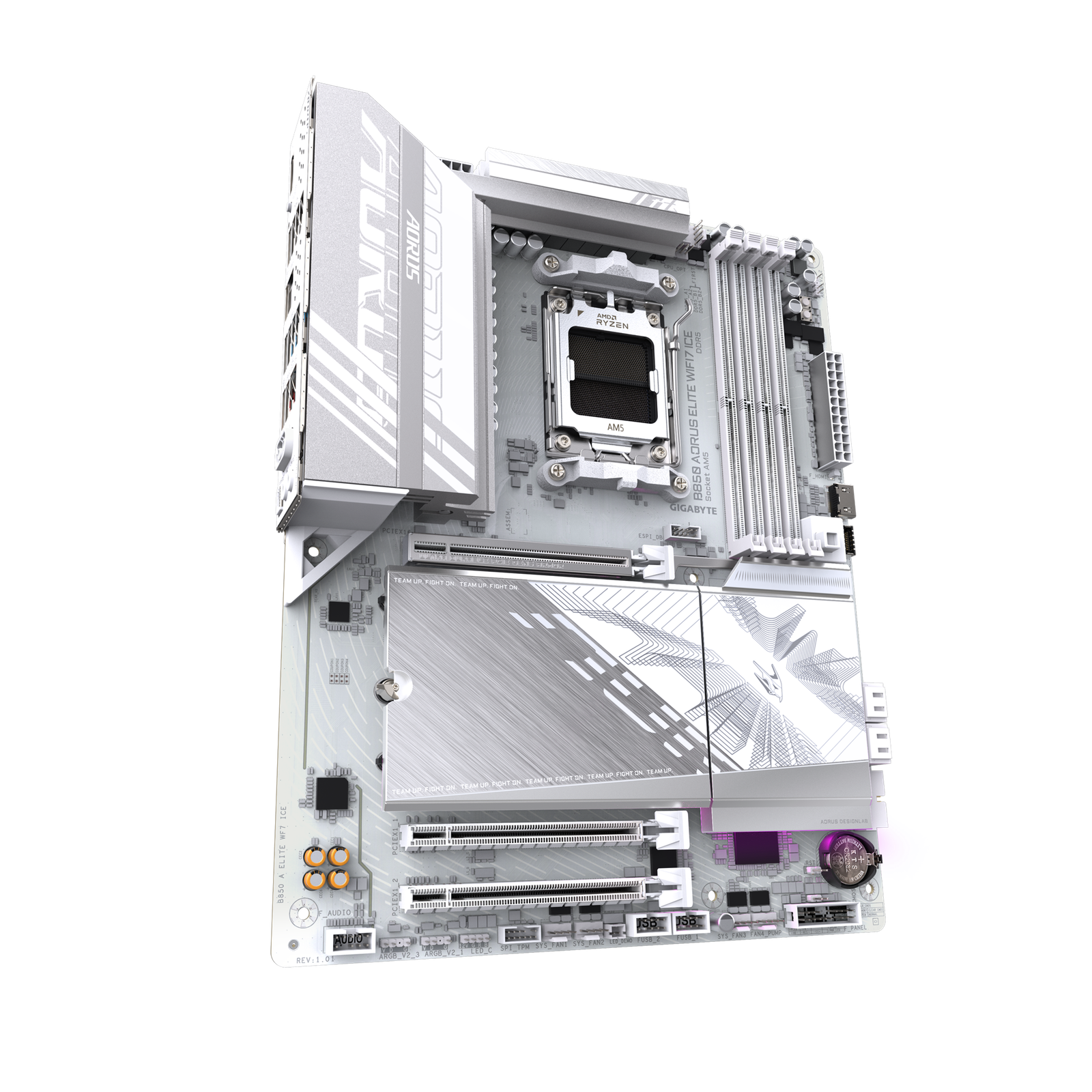

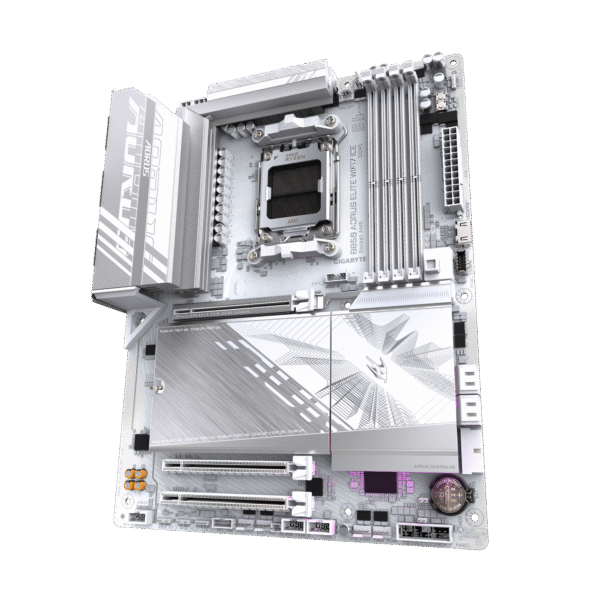

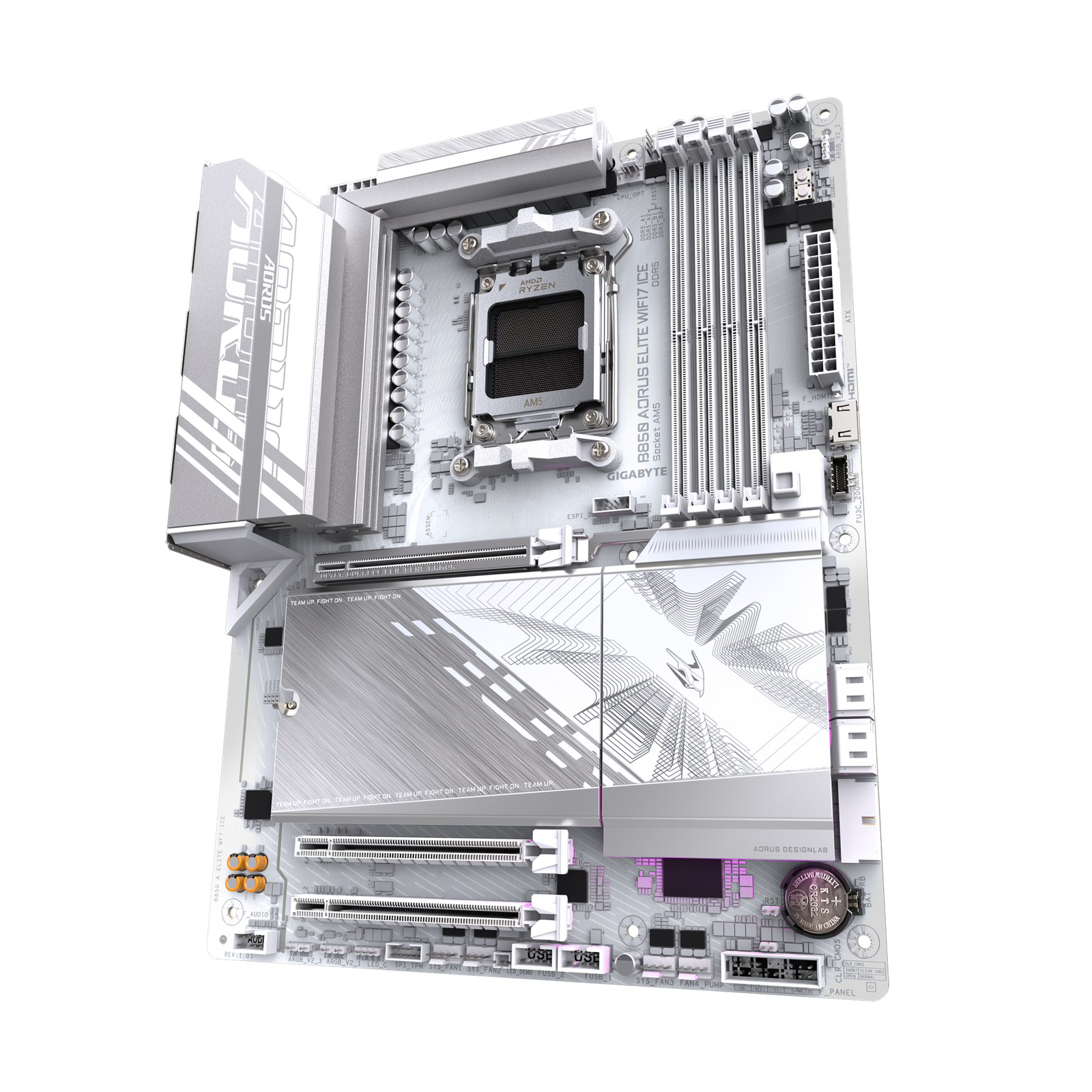

Gigabyte B850 Aorus Elite WIFI7 ICE ATX 2.5GbE Lan AM5 DDR5

לוח אם – Gigabyte B850 Aorus Elite WIFI7 ICE ATX 2.5GbE Lan AM5 DDR5 – צבע לבן

1,200.00 ₪

לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים B850, תאימות לזכרונות DDR5 ובעל יציאת DisplayPort.

מק״ט B850 A ELITE WF7 ICE קטגוריה לוחות אם תגיות AM5, AMD, ATX, B850, DDR5, Gigabyte, WIFI & Bluetooth, לבן

עוד על - לוח אם – Gigabyte B850 Aorus Elite WIFI7 ICE ATX 2.5GbE Lan AM5 DDR5 – צבע לבן

תקופת אחריות	3 שנים על ידי היבואן הרשמי
יצרן לוח אם	Gigabyte
מבוסס לוח אם	AMD
תושבת	AM5
ערכת שבבים	B850
סוג זיכרון לוח אם	DDR5
גודל לוח אם	ATX
NVMe PCIe M.2 Connector	3
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	:AMD Socket AM5, support for AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list)
תמיכה בזיכרונות	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
גרפיקה מובנית	:Integrated Graphics Processor with AMD Radeon™ Graphics support 1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 1.4 version and HDR* 1x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz Support for HDMI 1.4 version* (Graphics specifications may vary depending on CPU support)
חריצי הרחבה	:1x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 2x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
USB	:CPU 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel :CPU+USB 2.0 Hub 4x USB 2.0/1.1 ports on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 3x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4x USB 2.0/1.1 ports available through the internal USB headers :Chipset+USB 3.2 Gen 1 Hub 4x USB 3.2 Gen 1 ports on the back panel
ממשק אחסון	:1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs :1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices .RAID 5 is only available on AMD Ryzen™ 9000 Series Processors* RAID 0, RAID 1, and RAID 10 support for SATA storage devices
שמע	Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel .You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings* Support for S/PDIF Out Realtek® ALC1220 CODEC(Only for rev. 1.1) .The back panel line out jack supports DSD audio* High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
כרטיס רשת קווי	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
מודול תקשורת אלחוטית	Realtek® Wi-Fi 7 RTL8922AE 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)* Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations**
חיבורים פנימיים	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 3x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2×2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x HDMI port (Note) 1x power button 1x reset button 1x reset jumper 1x Clear CMOS jumper (Note) Actual support may vary by CPU

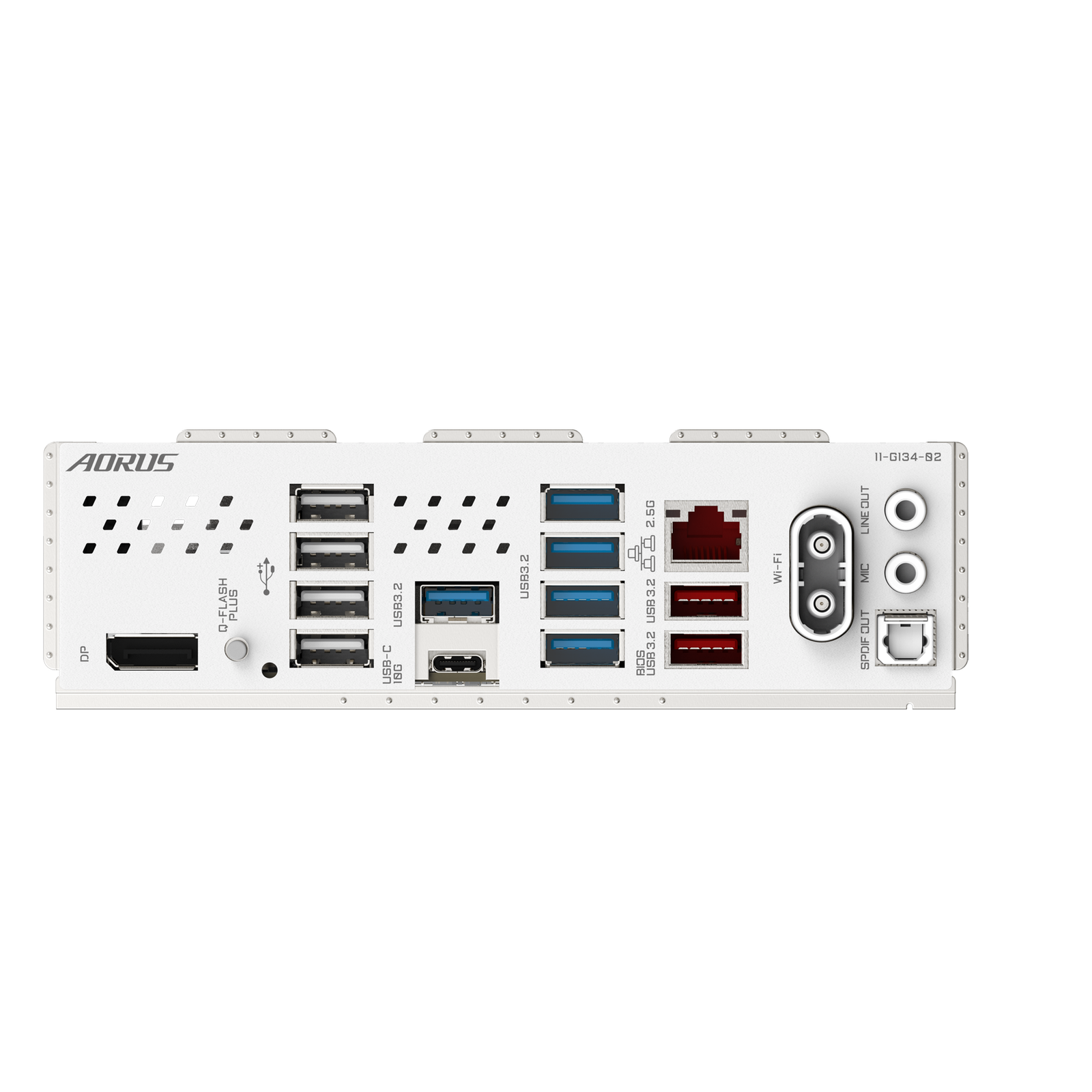

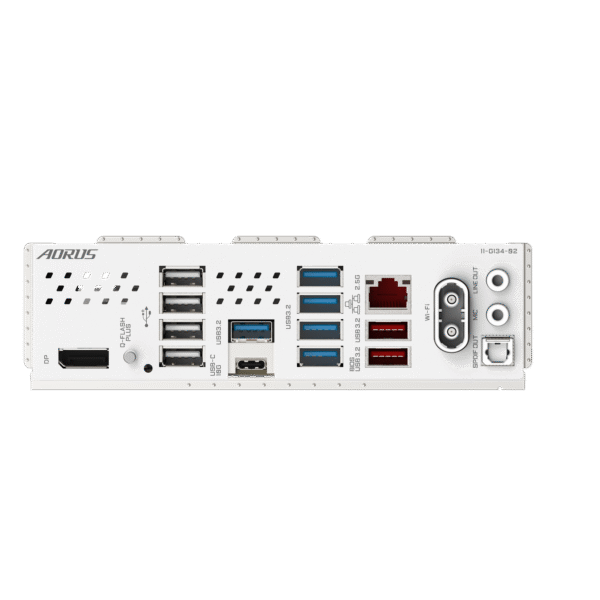

חיבורים ויציאות	1x DisplayPort (Note) 1x Q-Flash Plus button 4x USB 2.0/1.1 ports 1x USB Type-C® port, with USB 3.2 Gen 2 support 5x USB 3.2 Gen 1 ports 1x RJ-45 port 2x USB 3.2 Gen 2 Type-A ports (red) 2x antenna connectors (2T2R) 2x audio jacks 1x optical S/PDIF Out connector (Note) Actual support may vary by CPU
I/O Controller	iTE® I/O Controller Chip
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
תכונות ייחודיות	Support for GIGABYTE Control Center (GCC) .Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
תוכנות מצורפות	Norton® Internet Security (OEM version) LAN bandwidth management software
תצורה	ATX Form Factor; 30.5cm x 24.4cm
קישור לאתר היצרן	https://www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-ICE-rev-1x#kf
