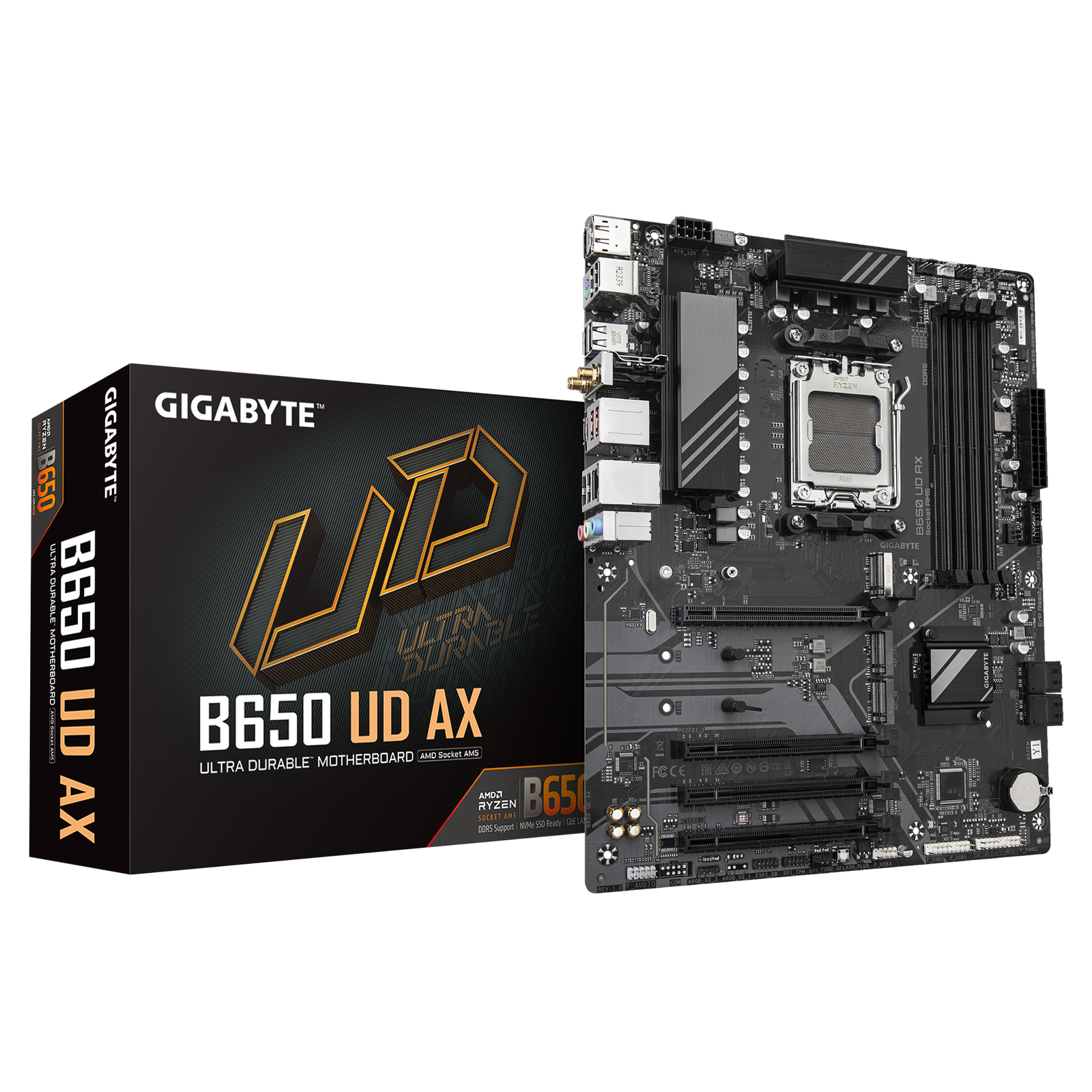

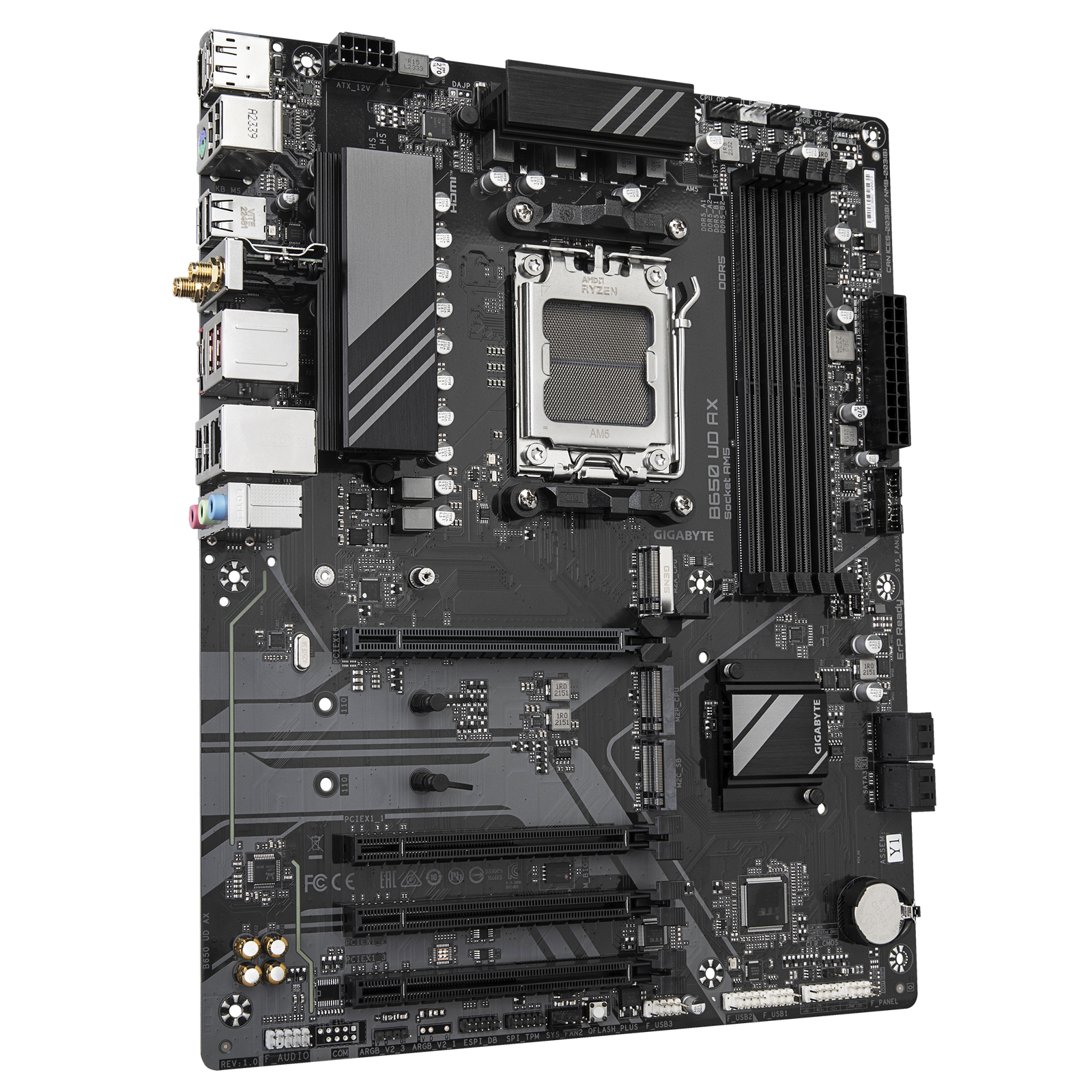

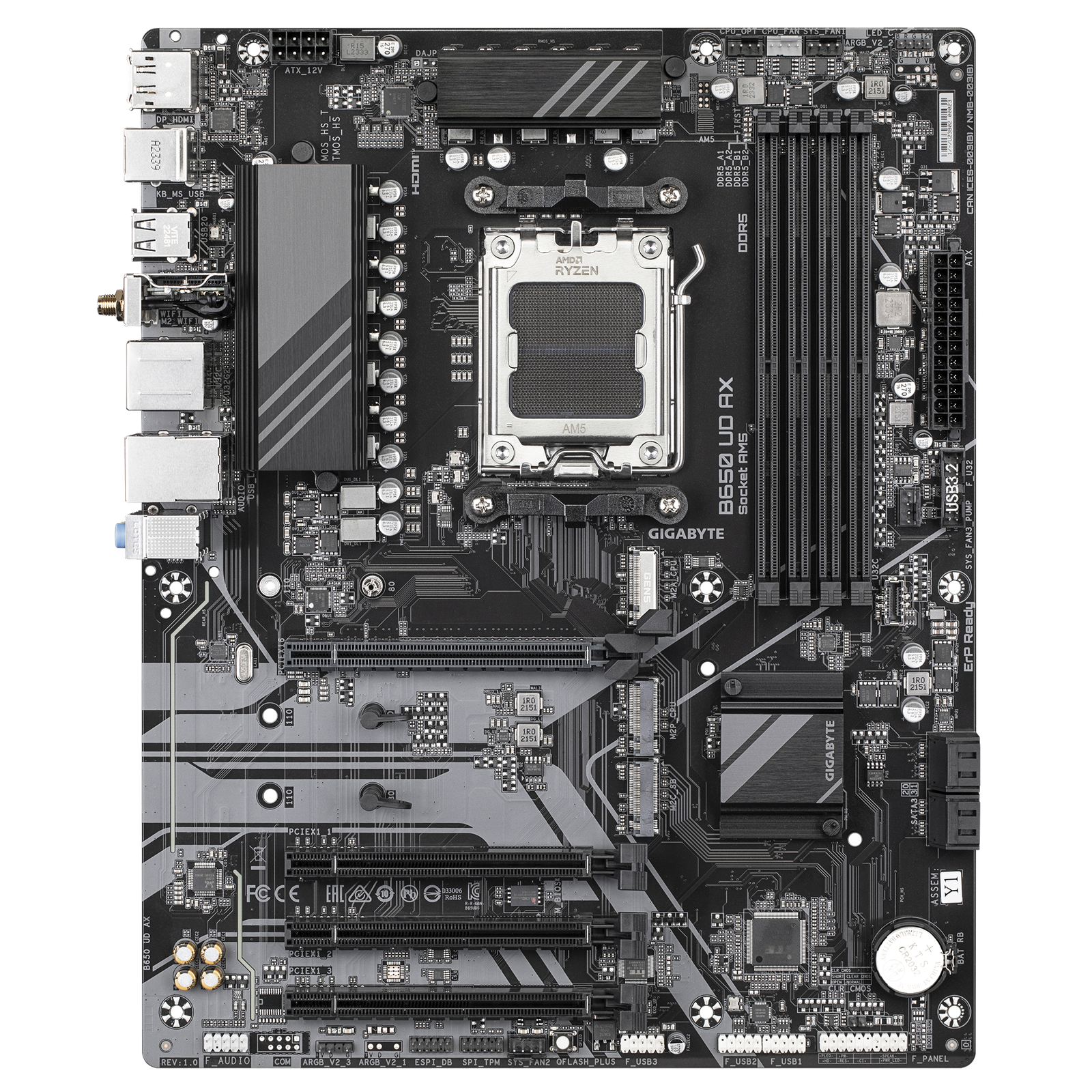

לוח אם – Gigabyte B650 UD AX WIFI6 ATX AM5 DDR5

חדש באתר

⁦לוח אם – Gigabyte B650 UD AX WIFI6 ATX AM5 DDR5⁩ – תמונה ⁦2⁩

לוח אם – Gigabyte B650 UD AX WIFI6 ATX AM5 DDR5

719.00 ₪

לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים B650, תאימות לזיכרונות DDR5, בעל יציאות HDMI ,DisplayPort.

המלאי אזל

מק״ט B650 UD AX קטגוריה לוחות אם תגיות AM5, AMD, ATX, B650, DDR5, Gigabyte, WIFI & Bluetooth, שחור

עוד על - לוח אם – Gigabyte B650 UD AX WIFI6 ATX AM5 DDR5

תקופת אחריות	3 שנות אחריות על ידי היבואן הרשמי
יצרן לוח אם	Gigabyte
מבוסס לוח אם	AMD
תושבת	AM5
ערכת שבבים	B650
סוג זיכרון לוח אם	DDR5
גודל לוח אם	ATX
NVMe PCIe M.2 Connector	3
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	:AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information)
תמיכה בזיכרונות	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
גרפיקה מובנית	:Integrated Graphics Processor 1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 1.4 version* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support for native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support)
חריצי הרחבה	:1x PCI Express x16 slot (PCIEX16), integrated in the CPU – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* 2x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used* 1x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
USB	:CPU 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support :CPU+USB 2.0 Hub 4x USB 2.0/1.1 ports on the back panel :Chipset 2x USB 3.2 Gen 1 ports available through the internal USB header 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) :Chipset+USB 2.0 Hub 4x USB 2.0/1.1 ports available through the internal USB headers
ממשק אחסון	:1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs :1x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
שמע	Realtek® Audio CODEC ALC897 High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
כרטיס רשת קווי	Realtek® RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
מודול תקשורת אלחוטית	Realtek® RTL8851 WIFI 6 module – WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.0 – Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment)
חיבורים פנימיים	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 2x system fan headers 1x system fan/water cooling pump header 1x addressable RGB Gen2 LED strip header 1x RGB LED strip header 3x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header 3x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x Q-Flash Plus button 1x Clear CMOS jumper

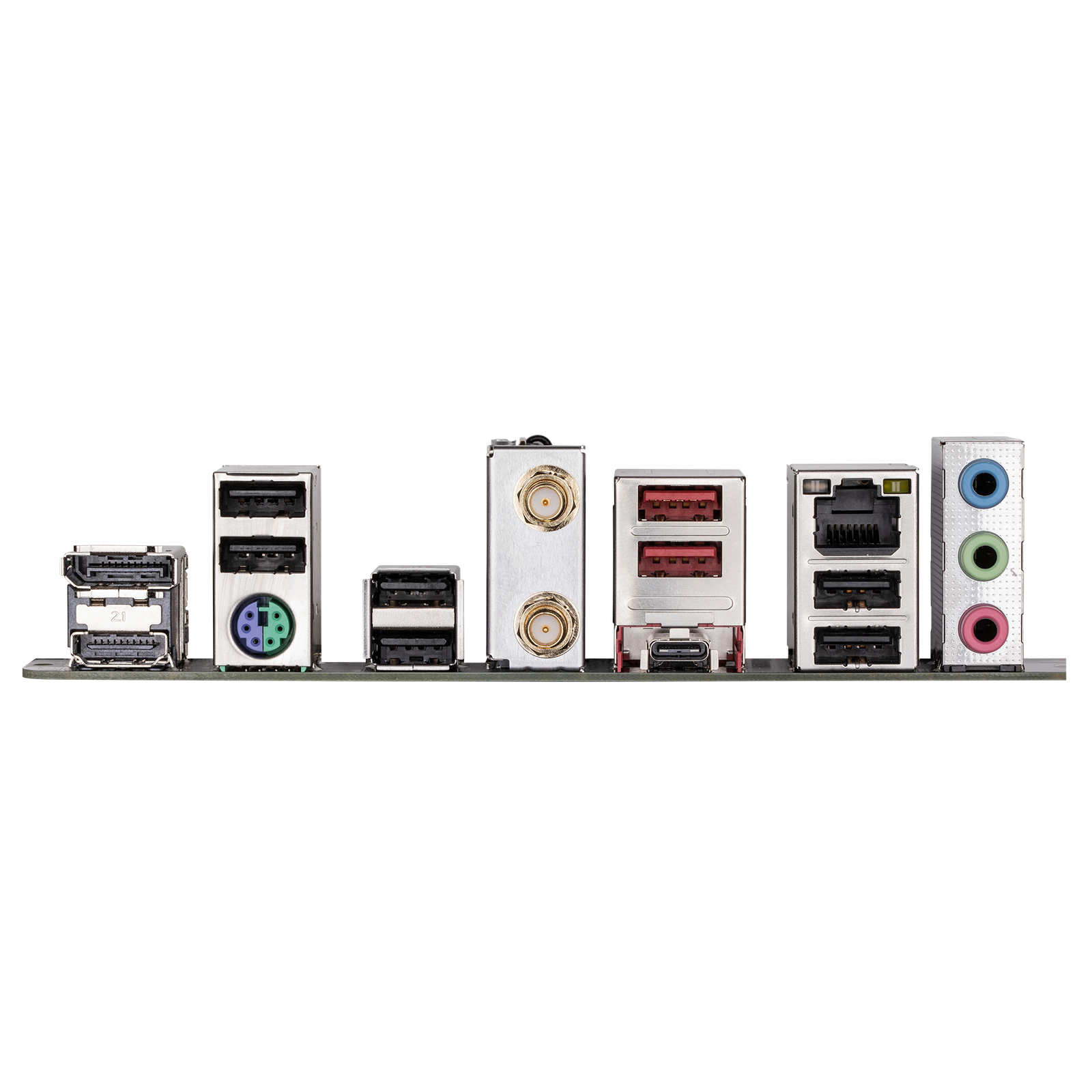

חיבורים ויציאות	1x DisplayPort 1x HDMI port 1x PS/2 keyboard/mouse port 2x SMA antenna connectors (1T1R) 1x USB Type-C® port, with USB 3.2 Gen 1 support 2x USB 3.2 Gen 2 Type-A ports (red) 6x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
תכונות מיוחדות	Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus
תוכנות מצורפות	Norton® Internet Security (OEM version) LAN bandwidth management software
תצורה	ATX Form Factor; 30.5cm x 24.4cm
קישור לאתר היצרן	https://www.gigabyte.com/Motherboard/B650-UD-AX-rev-10#kf
