לוח אם – Gigabyte B650 AORUS ELITE AX V2 WIFI6E ATX AM5 DDR5

חדש באתר

⁦לוח אם – Gigabyte B650 AORUS ELITE AX V2 WIFI6E ATX AM5 DDR5⁩ – תמונה ⁦2⁩

לוח אם – Gigabyte B650 AORUS ELITE AX V2 WIFI6E ATX AM5 DDR5

899.00 ₪

לוח אם איכותי מבית Gigabyte, בעל תושבת AM5, ערכת שבבים B650, תאימות לזיכרונות DDR5, בעל יציאות HDMI ,DisplayPort.

מק״ט B650 A ELITE AX V2 קטגוריה לוחות אם תגיות AM5, AMD, ATX, B650, DDR5, Gigabyte, WIFI & Bluetooth

עוד על - לוח אם – Gigabyte B650 AORUS ELITE AX V2 WIFI6E ATX AM5 DDR5

תקופת אחריות	3 שנות אחריות על ידי היבואן הרשמי
יצרן לוח אם	Gigabyte
מבוסס לוח אם	AMD
תושבת	AM5
ערכת שבבים	B650
סוג זיכרון לוח אם	DDR5
גודל לוח אם	ATX
NVMe PCIe M.2 Connector	3
קישוריות	WIFI & Bluetooth
תמיכה במעבדים	:AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors Please refer to "CPU Support List" for more information*
תמיכה בזיכרונות	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information)
גרפיקה מובנית	:Integrated Graphics Processor with AMD Radeon™ Graphics support 1x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz Support for DisplayPort 1.4 version and HDR* 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3* Support for native HDMI 2.1 TMDS compatible ports** (Graphics specifications may vary depending on CPU support)
חריצי הרחבה	:1x PCI Express x16 slot (PCIEX16), integrated in the CPU – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot* :Chipset 2x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
USB	:CPU 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2x USB 3.2 Gen 2 Type-A ports (red) on the back panel :CPU + USB 2.0 Hub 4x USB 2.0/1.1 ports on the back panel :Chipset 1x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 3x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4x USB 2.0/1.1 ports available through the internal USB headers :Chipset+USB 3.2 Gen 1 Hub 4x USB 3.2 Gen 1 ports on the back panel
ממשק אחסון	:1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs :1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs – AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
שמע	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
כרטיס רשת קווי	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
מודול תקשורת אלחוטית	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment)
חיבורים פנימיים	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 3x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2×2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x reset button 1x reset jumper 1x Clear CMOS jumper

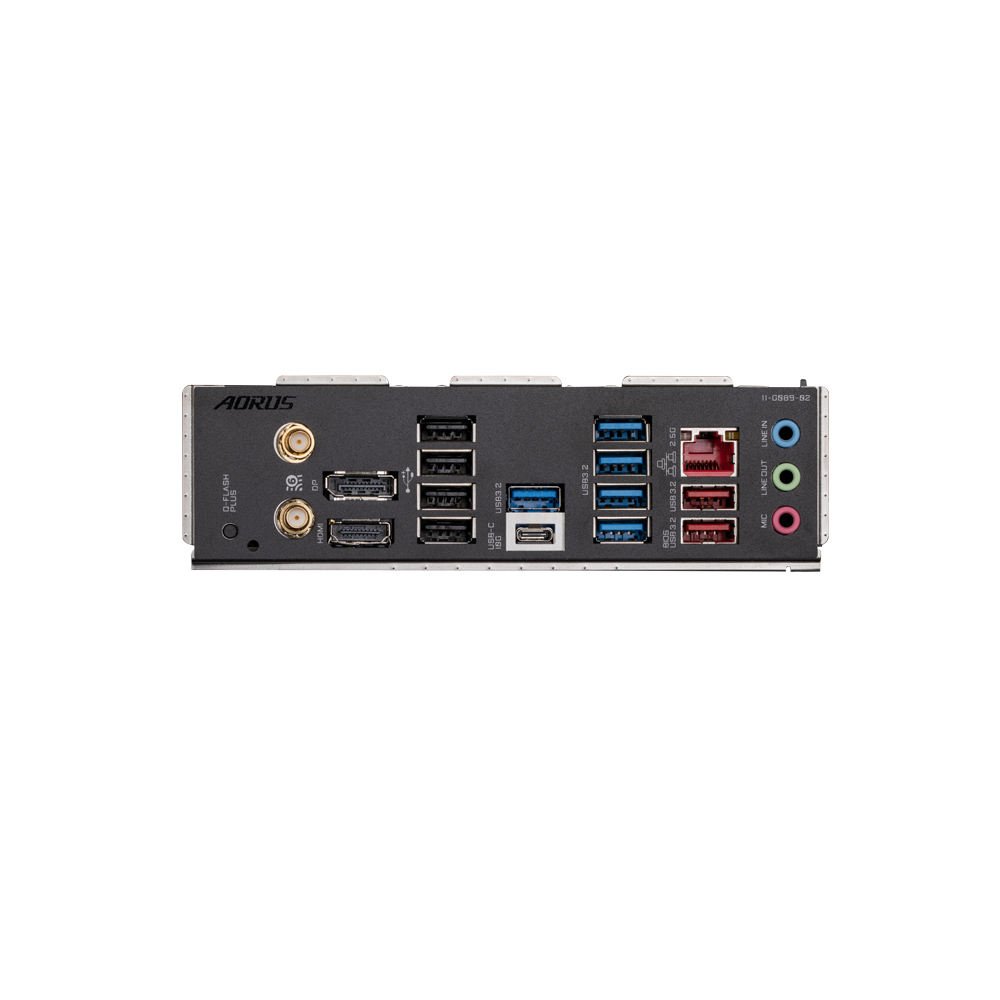

חיבורים ויציאות	1x Q-Flash Plus button 2x antenna connectors (2T2R) 1x DisplayPort 1x HDMI port 1x USB Type-C® port, with USB 3.2 Gen 2 support 2x USB 3.2 Gen 2 Type-A ports (red) 5x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks
BIOS	1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
תכונות מיוחדות	Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications* Support for Q-Flash Support for Q-Flash Plus
תוכנות מצורפות	Norton® Internet Security (OEM version) LAN bandwidth management software
תצורה	ATX Form Factor; 30.5cm x 24.4cm
קישור לאתר היצרן	https://www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-V2#kf
