| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Gigabyte
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM4
|
| ערכת שבבים |
B550
|
| סוג זיכרון לוח אם |
DDR4
|
| גודל לוח אם |
Micro-ATX
|
| NVMe PCIe M.2 Connector |
2
|
| תמיכה במעבדים |
:AMD Socket AM4, support for
AMD Ryzen™ 5000 G-Series Processors
AMD Ryzen™ 5000 Series Processors
AMD Ryzen™ 4000 G-Series Processors
AMD Ryzen™ 3000 G-Series Processors
AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list)
|
| תמיכה בזיכרונות |
4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information)
|
| גרפיקה מובנית |
:Integrated Graphics Processor with AMD Radeon™ Graphics support
1x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
Support for DisplayPort 1.4 version, HDCP 2.3, and HDR*
1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR*
Support for native HDMI 2.1 TMDS compatible ports**
(Graphics specifications may vary depending on CPU support.)
Maximum shared memory of 16 GB
|
| חריצי הרחבה |
:1x PCI Express x16 slot (PCIEX16), integrated in the CPU
AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot*
:Chipset
1x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
1x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
|
| USB |
:CPU
4x USB 3.2 Gen 1 ports on the back panel
:Chipset
1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2x USB 3.2 Gen 1 ports available through the internal USB header
4x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
|
| ממשק אחסון |
:1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
|
| שמע |
Realtek® ALC1220 CODEC
The back panel line out jack supports DSD audio*
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings*
|
| כרטיס רשת קווי |
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
|
| חיבורים פנימיים |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
2x system fan headers
2x addressable LED strip headers
2x RGB LED strip headers
1x CPU cooler LED strip/RGB LED strip header
2x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x USB Type-C® header, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header
1x USB 2.0/1.1 header
1x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1x serial port header
1x Clear CMOS jumper
1x Q-Flash Plus button
|

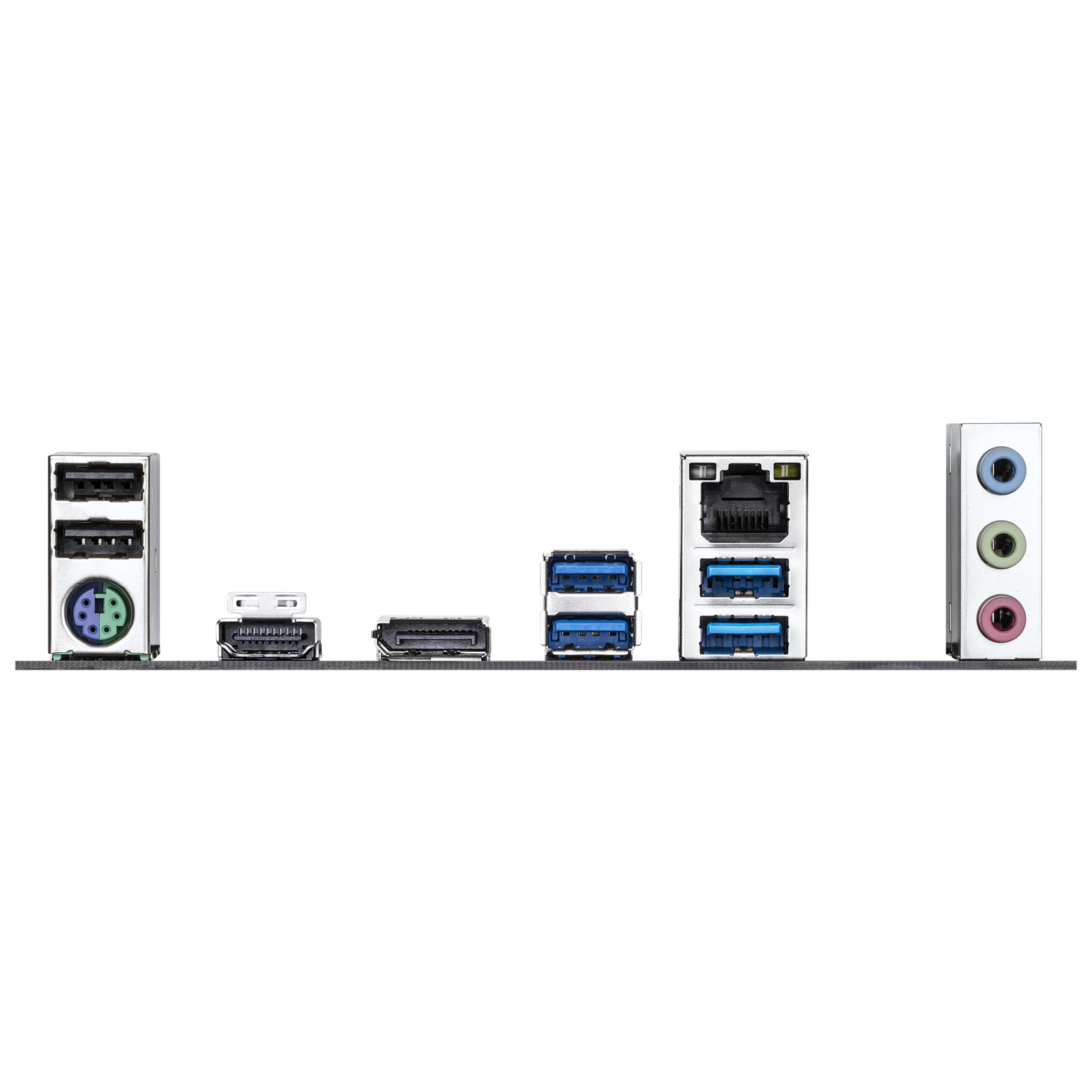

| חיבורים ויציאות |
2x USB 2.0/1.1 ports
1x PS/2 keyboard/mouse port
1x HDMI port (Note)
1x DisplayPort (Note)
4x USB 3.2 Gen 1 ports
1x RJ-45 port
3x audio jacks
(Note) Actual support may vary by CPU
|
| BIOS |
1x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| תכונות מיוחדות |
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications*
– @BIOS
– EasyTune
– RGB Fusion
– Smart Backup
– System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
|
| תוכנות מצורפות |
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Whether the fan speed control function is supported will depend on the fan you install*
|
| תצורה |
Micro ATX Form Factor; 24.4cm x 24.4cm
|
| קישור לאתר היצרן |
https://www.gigabyte.com/Motherboard/B550M-DS3H-R2#kf
|
