| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Asus |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1700 |
|---|
| ערכת שבבים | Z790 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | ATX |
|---|
| NVMe PCIe M.2 Connector | 4 |
|---|
| קישוריות | WIFI & Bluetooth |
|---|
| תמיכת מעבד | Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to http://www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|
| ערכת שבבים | Z790 Chipset |
|---|
| זיכרון RAM | x4 DIMM slots, max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|---|
| חיבורי גרפיקה | x1 DisplayPort**
x1 HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1. |
|---|
| חריצי הרחבה | x1 PCIe 5.0 x16 slot
x1 PCIe 4.0 x16 slot (supports x4 mode)
x1 PCIe 4.0 x4 slot
x1 PCIe 3.0 x16 slot (supports x1 mode)
x1 PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|
| אחסון | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
x4 SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|---|
| תקשורת | x1 Intel® 2.5Gb Ethernet
TUF LANGuard
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* Wi-Fi 6GHz frequency band regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|---|

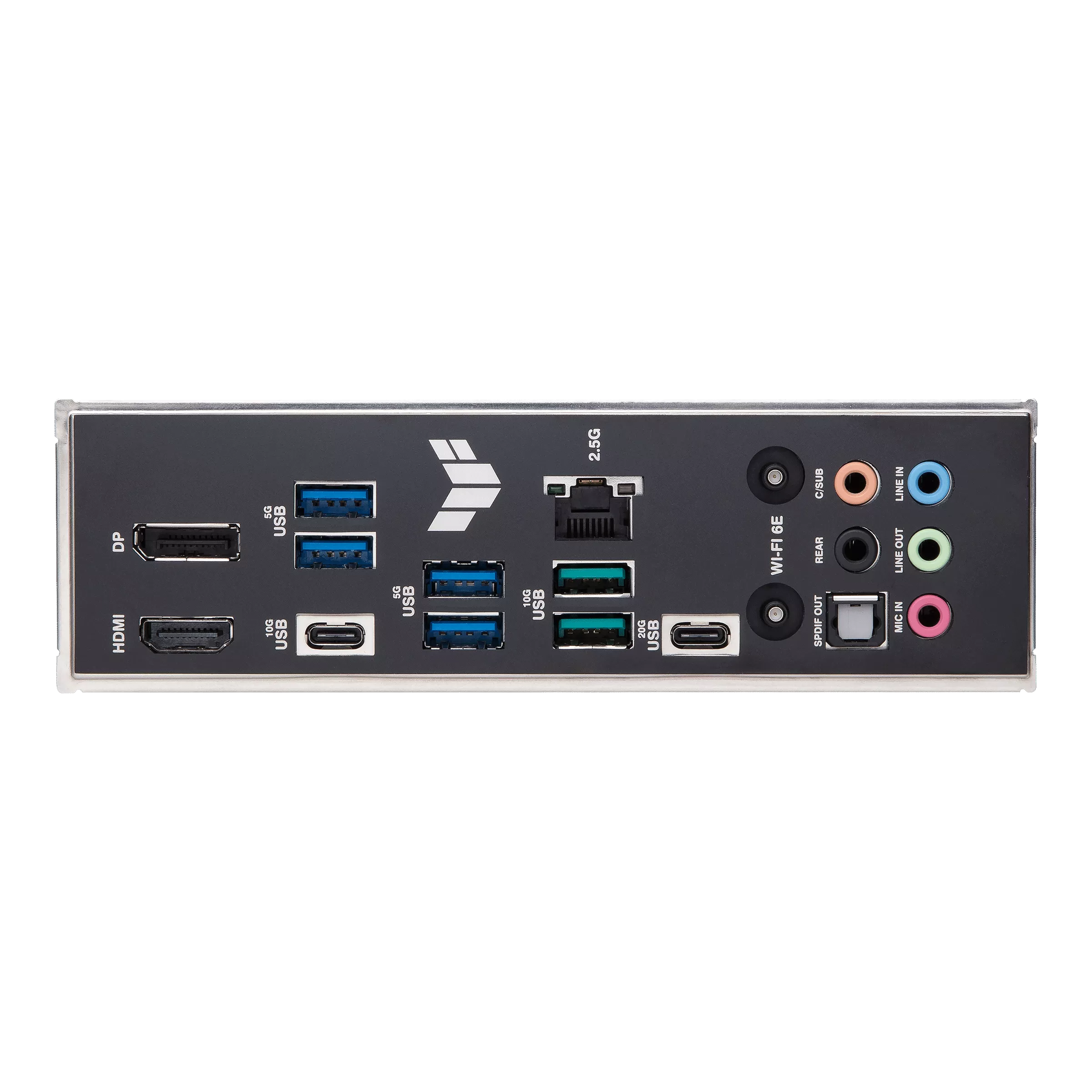

| חיבורים ויציאות | x1 USB 20Gbps port (1 x USB Type-C®)
x3 USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
x4 USB 5Gbps ports (4 x Type-A)
x1 DisplayPort
x1 HDMI™ port
x1 Wi-Fi module
x1 Intel® 2.5Gb Ethernet port
x5 Audio jacks
x1 Optical S/PDIF out port |
|---|
| חיבורים פנימיים | x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x4 4-pin Chassis Fan headers
x1 24-pin main power connector
x2 8-pin +12V power connectors
x4 M.2 slots (Key M)
x4 SATA 6Gb/s ports
x1 USB 20Gbps connector (supports USB Type-C®)
x1 USB 5Gbps header supports 2 additional USB 5Gbps ports
x2 USB 2.0 headers support additional 4 USB 2.0 ports
x3 Addressable Gen 2 headers
x Aura RGB header
x1 Clear CMOS header
x1 COM port header
x1 Front panel audio header (F_AUDIO)
x1 20-3 pin system panel header with chassis intrusion function
x1 Thunderbolt™ (USB4®) header |
|---|
| תכונות מיוחדות | x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x4 4-pin Chassis Fan headers |
|---|
| אביזרים | x2 SATA 6Gb/s cables
x1 ASUS WiFi Q-Antenna
x1 TUF GAMING sticker
x2 M.2 rubber packages
x1 Screw package for M.2 SSD
x1 TUF certification card
x1 Quick start guide |
|---|
| תצורה | 30.5 cm x 24.4 cm |
|---|
| קישור לאתר היצרן | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z790-pro-wifi/ |
|---|
