| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
B650
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
3
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
.Refer to https://www.asus.com/support/download-center/ for CPU support list*
|
| תמיכה בזיכרונות |
4x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Adjustments will be made based on the specifications of mass-produced memory products available on the market*
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMI™ port***
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications*
Supports max. 8K@30Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
|
| חריצי הרחבה |
:AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1x PCIe 5.0 x16 slot (supports x16 mode)
:AMD Ryzen™ 8000 Series Desktop Processors
1x PCIe 4.0 x16 slot (supports x8/x4 mode)**
:AMD B650 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)***
2x PCIe 4.0 x1 slots
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
Specifications vary by CPU types**
The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs***
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals
|
| USB |
Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
6 x USB 2.0 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A.
|
| ממשק אחסון |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
4x SATA 6Gb/s ports
Specifications vary by CPU types*
The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs**
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
|
| שמע |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
TUF LANGuard
|

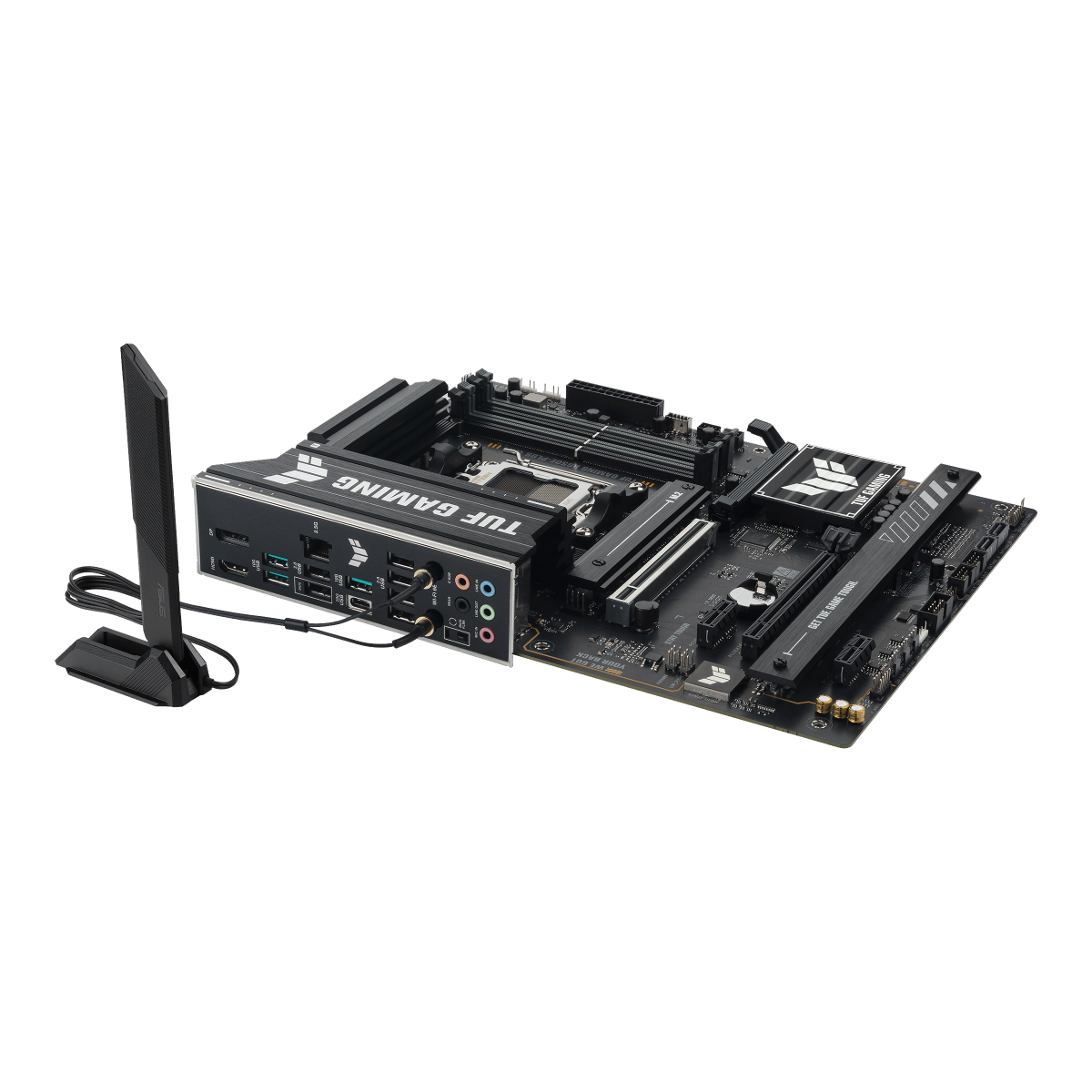

| מודול תקשורת אלחוטית |
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later*
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications**
|
| חיבורים פנימיים |
:Fan and Cooling Related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
:Power Related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connectors
:Storage Related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 10Gbps connector (supports USB Type-C® )
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x Clear CMOS header
1x Chassis Intrusion header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x 10-1 pin Front System Panel header
1x Thunderbolt™ (USB4®) header
|

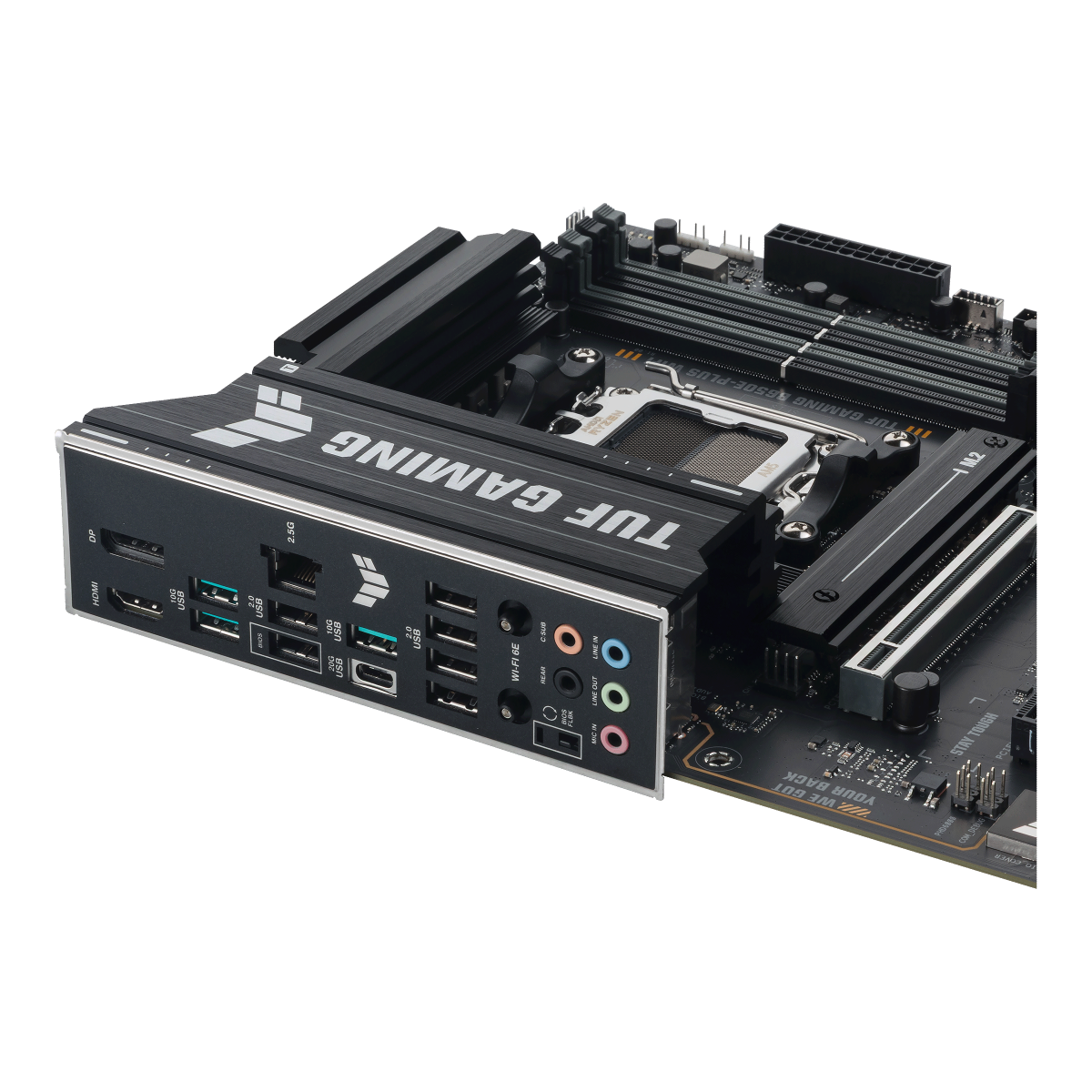

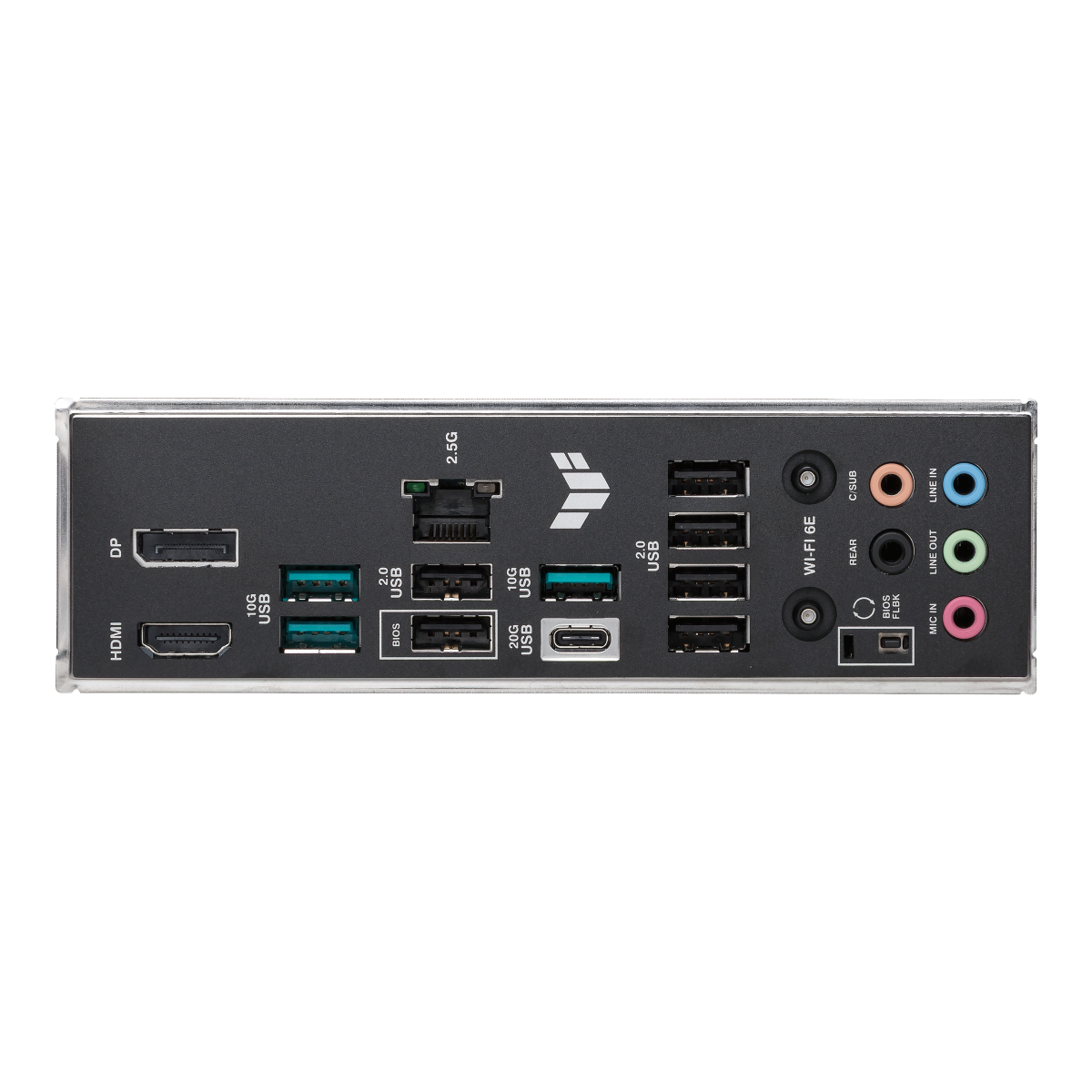

| חיבורים ויציאות |
1x USB 20Gbps port (1 x USB Type-C®)
3x USB 10Gbps ports (3 x Type-A)
6x USB 2.0 ports (6 x Type-A)
1x DisplayPort
1x HDMI™ port
1x Wi-Fi module
1x Realtek 2.5Gb Ethernet port
5x Audio jacks
1x BIOS FlashBack™ button
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS DriverHub
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|

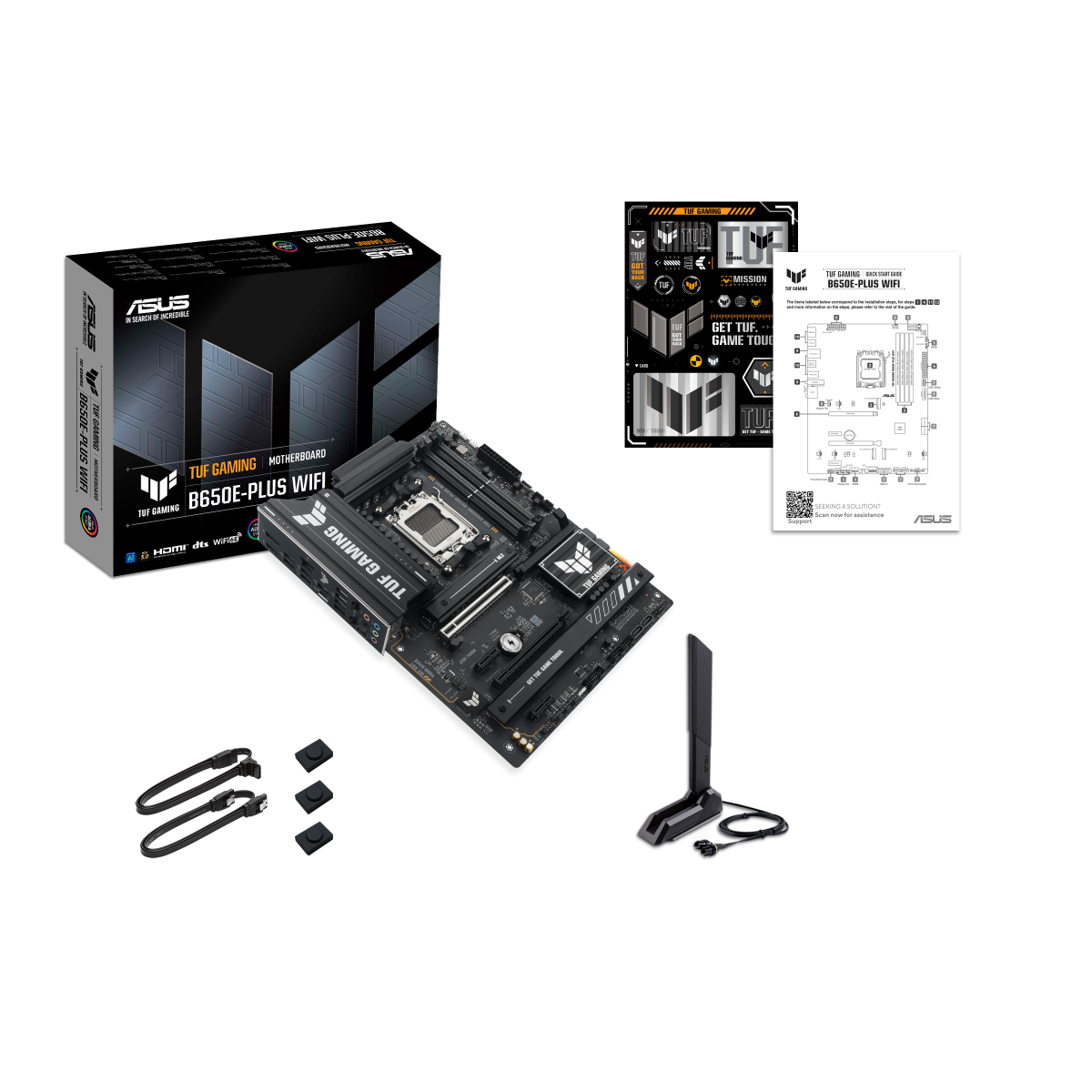

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous
1x ASUS WiFi Q-Antenna
1x TUF GAMING sticker
2x M.2 rubber packages
:Documentation
1x Quick start guide
|

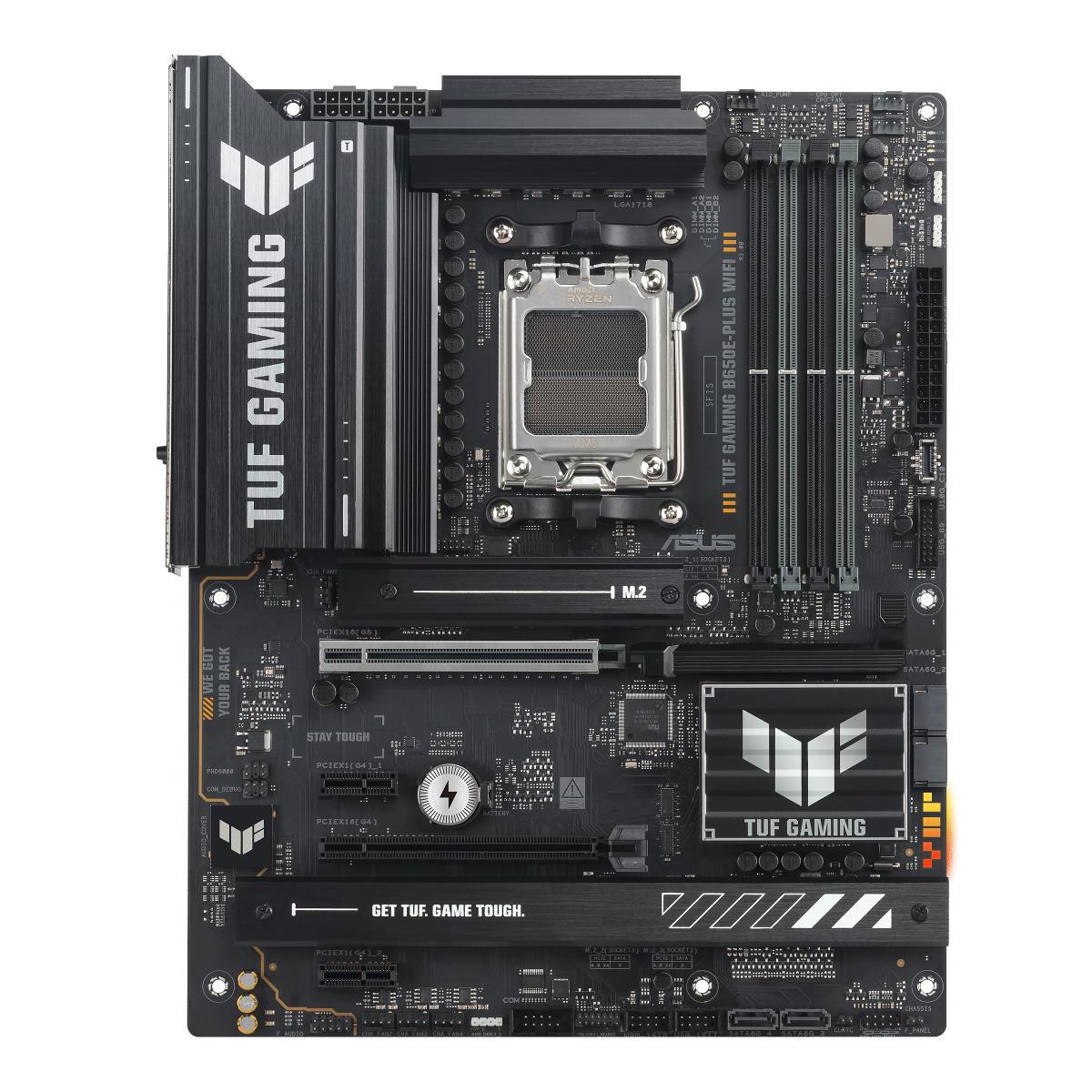

| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650e-plus-wifi/
|
