| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1700
|
| ערכת שבבים |
Z790
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
5
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4x DIMM slots, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*"
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMI® port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 8K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
VGA resolution support depends on processors' or graphic cards' resolution****
|
| חריצי הרחבה |
Intel® CoreTM Processors (14th & 13th & 12th Gen)*
1x PCIe 5.0×16 slot (supports x16 mode)
Intel® Z790 Chipset**
1x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 3.0 x1 slot
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
Rear USB (Total 14 ports)
1x USB 20Gbps port (1 x USB Type-C®)
3x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4x USB 5Gbps ports (4 x Type-A)
6x USB 2.0 ports (6 x Type-A)
Front USB (Total 7 ports)
1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**
1x USB 5Gbps header supports 2 additional USB 5G ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A*
USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A**
|
| ממשק אחסון |
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10*
|
| שמע |
ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
:Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
The LINE OUT port on the rear I/O does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use an USB interface audio device
|
| כרטיס רשת קווי |
1x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
Intel® Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth® v5.4****
Compatible with Windows 11 or later*
Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later**
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries***
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications****
|
| חיבורים פנימיים |
:Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
5x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
2x 8-pin +12V Power connector
:Storage related
5x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)
1x USB 5Gbps header supports 2 additional USB 5G ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x CPU Over Voltage jumper
1x Front Panel Audio header (F_AUDIO)
1x Start button
1x 20-3 pin System Panel header with Chassis intrude function
1x Thermal Sensor header
1x Thunderbolt™ (USB4®) header
|

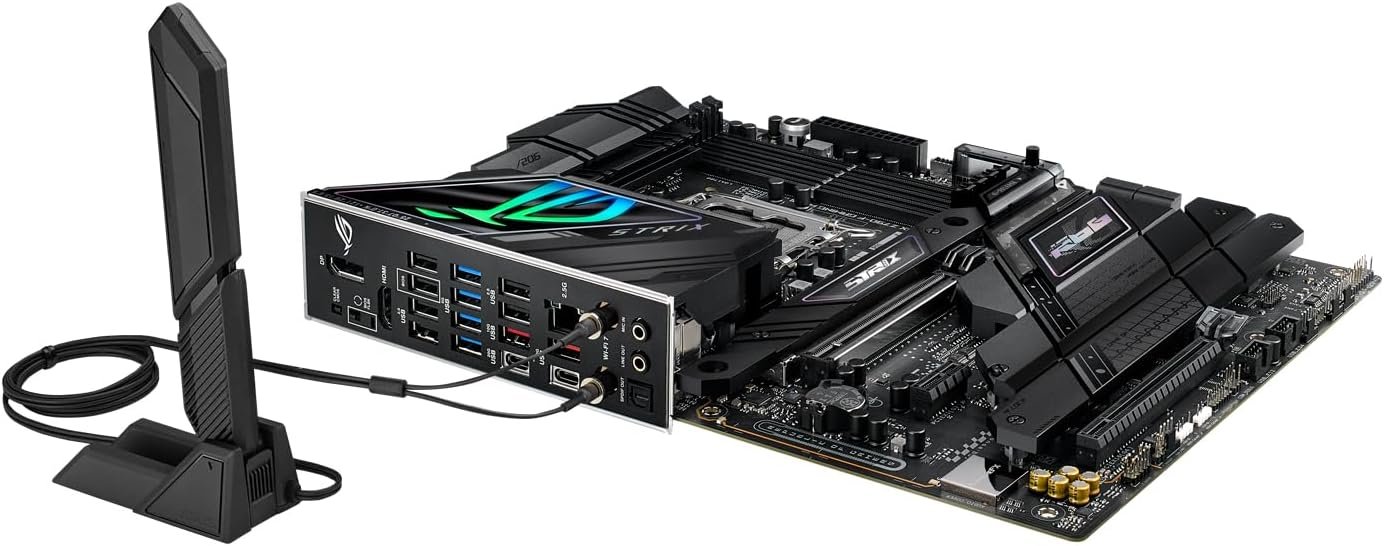

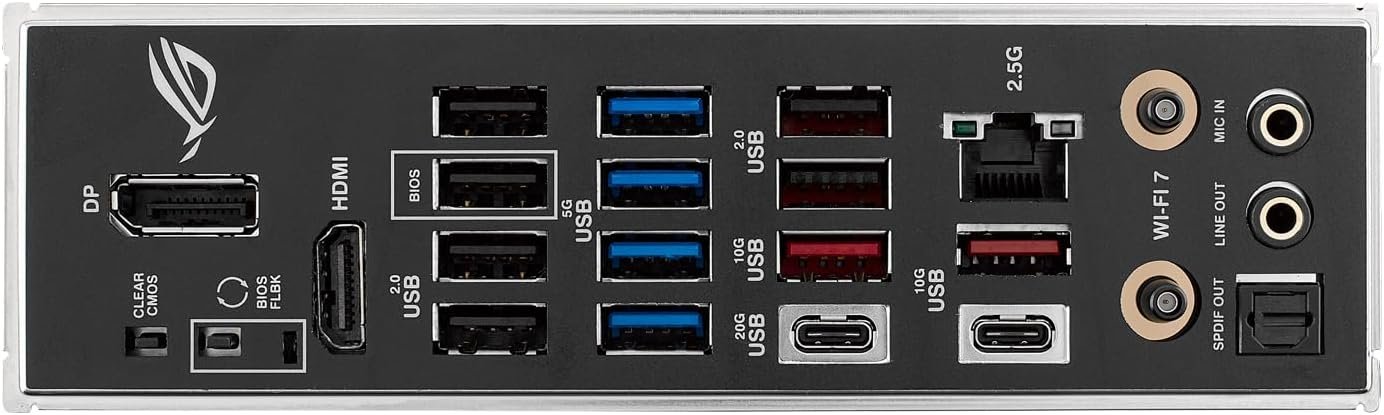

| חיבורים ויציאות |
1x USB 20Gbps port (1 x USB Type-C®)
3x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
4x USB 5Gbps ports (4 x Type-A)
6x USB 2.0 ports (6 x Type-A)
1x DisplayPort
1x HDMITM port
1x Wi-Fi Module
1x Intel® 2.5Gb Ethernet
2x Gold-plated audio jacks
1x Optical S/PDIF out port
1x BIOS FlashBack™ button
1x Clear CMOS button
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
+Extreme Engine Digi
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3A, 12V max 2.5A
– Compatible with PD3.0
|
| תוכנות מצורפות |
ROG Exclusive Software
– ROG CPU-Z
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
-AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– Power Saving
– Sonic Studio
– Two-Way AI Noise Cancelation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyASUS
USB Wattage Watcher
Intel® Unison™
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
FlexKey
MemTest86
|

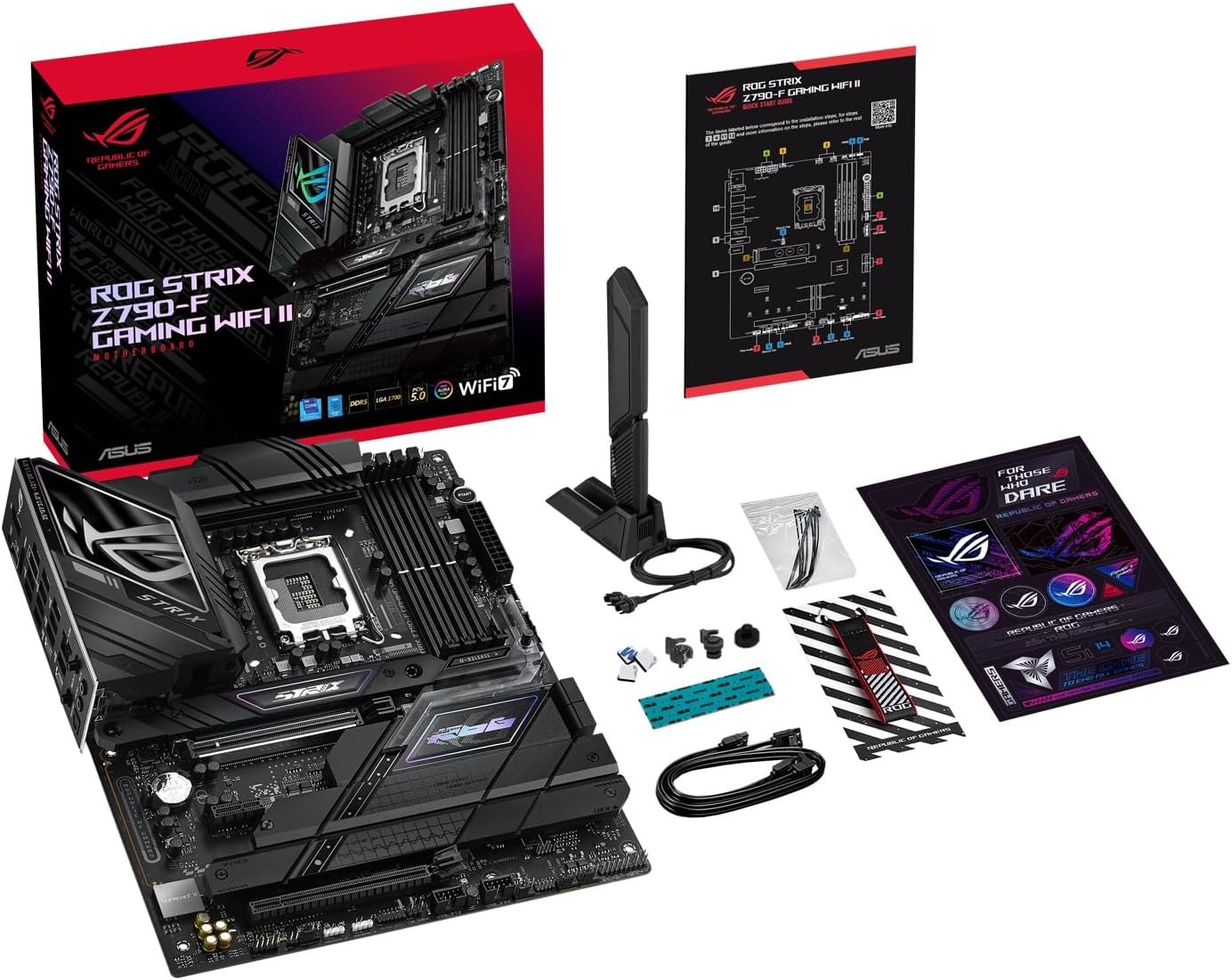

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Additional Cooling Kit
1x Thermal pad for M.2
:Miscellaneous
1x ASUS Wi-Fi Q-Antenna
1x Cable ties package
1x M.2 backplate Q-Latch package
1x M.2 Q-Latch package
1x ROG key chain
1x ROG Strix stickers
2x M.2 Rubber packages
1x M.2 backplate Rubber package
:Documentation
1x Quick start guide
|
| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/
|
