| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
X870
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
Mini-ITX
|
| NVMe PCIe M.2 Connector |
2
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Refer to https://www.asus.com/support/download-center/ for CPU support list*
|
| תמיכה בזיכרונות |
2x DIMM slots, max. 128GB, DDR5
Supports up to
8400MT/s(OC) with Ryzen™ 9000 Series Processors+
8600MT/s(OC) with Ryzen™ 8000 Series Processors+
8000MT/s(OC) with Ryzen™ 7000 Series Processors+
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory*
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
1x HDMI™ port**
2x USB4® (40Gbps) ports support USB Type-C® display outputs***
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications*
Supports 4K@60Hz as specified in HDMI 2.1**
Supports max. 4K@60Hz as specified in DisplayPort 1.4a***
VGA resolution support depends on processors' or graphic cards' resolution****
|
| חריצי הרחבה |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1x PCIe 5.0 x16 slot
AMD Ryzen™ 8000 Series Desktop Processors
1x PCIe 4.0 x16 slot (supports x8/x4 mode)*
Specifications vary by CPU types*
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
Rear USB (Total 10 ports)
2x USB4® (40Gbps) port(s)(2 x USB Type-C®)
5x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
3x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1x USB 10Gbps connector (supports USB Type-C®)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
USB Type-C® power delivery output: max. 5V/3A*
ROG STRIX HIVE II(Total 2 ports)
2x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
ROG FPS Card (Total 3 ports)
2x USB 2.0 headers additional 3 USB 2.0 ports
|
| ממשק אחסון |
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2x SATA 6Gb/s ports***
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1*
Install ROG FPS Card to support 2 x SATA 6Gb/s ports***
|
| שמע |
ROG Strix Hive II Audio Features
– ROG Hyper-Grounding Technology
– ESS® SABRE9260Q DAC
– Silver-plated audio jacks
– Dedicated audio PCB layers
|
| כרטיס רשת קווי |
1x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate
Bluetooth® v5.4***
Wi-Fi features may vary depending on the operating system*
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries**
"The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications***
|
| חיבורים פנימיים |
:Fan and Cooling Related
1x 4-pin CPU Fan header(s)
1x 4-pin AIO Pump header(s)
1x 4-pin Chassis Fan header(s)
:Power Related
1x 24-pin Main Power connector
1x 8-pin +12V CPU Power connector
:Storage Related
2x M.2 slots (Key M)
:USB
1x USB 10Gbps connector (supports USB Type-C® )
1x USB 5Gbps header support(s) 2
additional USB 5Gbps ports
:Miscellaneous
2x Addressable Gen 2 headers
1x 2-pin Power Button header
1x Thermal Sensor header
2x USB Type-C® connectors to install ROG FPS card

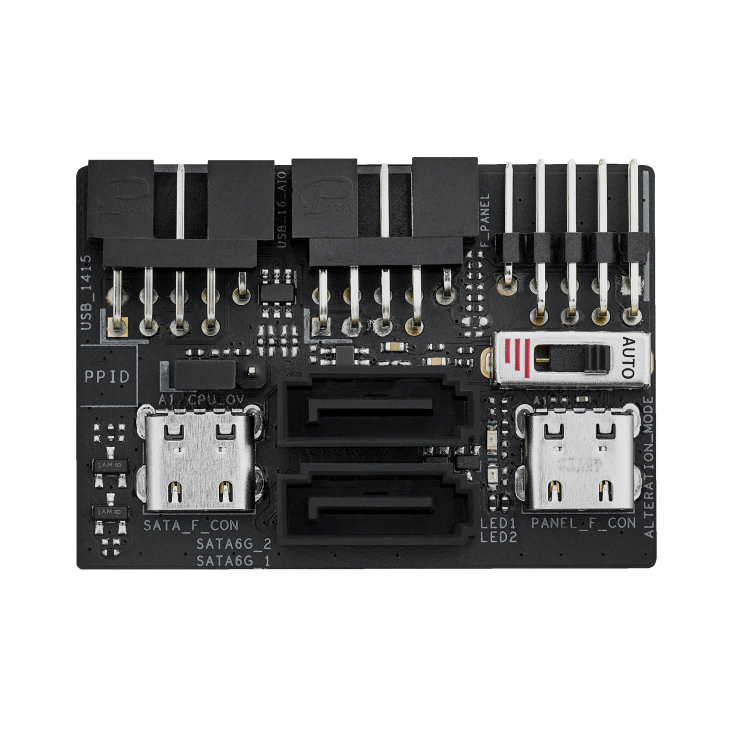

:ROG FPS card
2x SATA 6Gb/s ports
1x CPU Over Voltage jumper
1x Front Panel header
1x Alteration PCIe Mode switch
2x USB 2.0 headers suppor 3
additional USB 2.0 ports
|

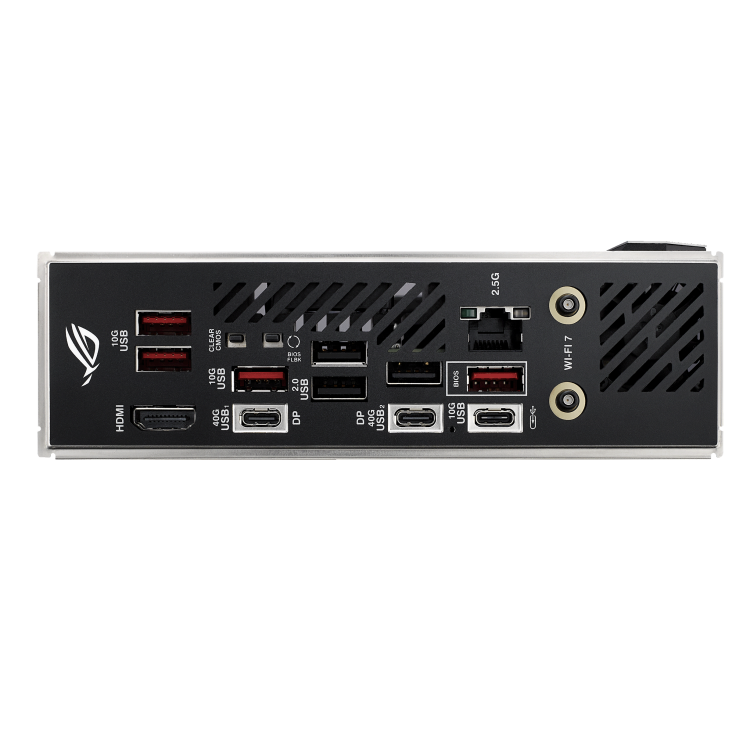

| חיבורים ויציאות |
2x USB4® (40Gbps)(2 x USB Type-C®)
5x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)
3x USB 2.0 port(s) (2 x Type-A)
1x HDMI™ port
1x Wi-Fi module
1x Intel® 2.5Gb Ethernet port
1x BIOS FlashBack™ button
1x Clear CMOS button
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink

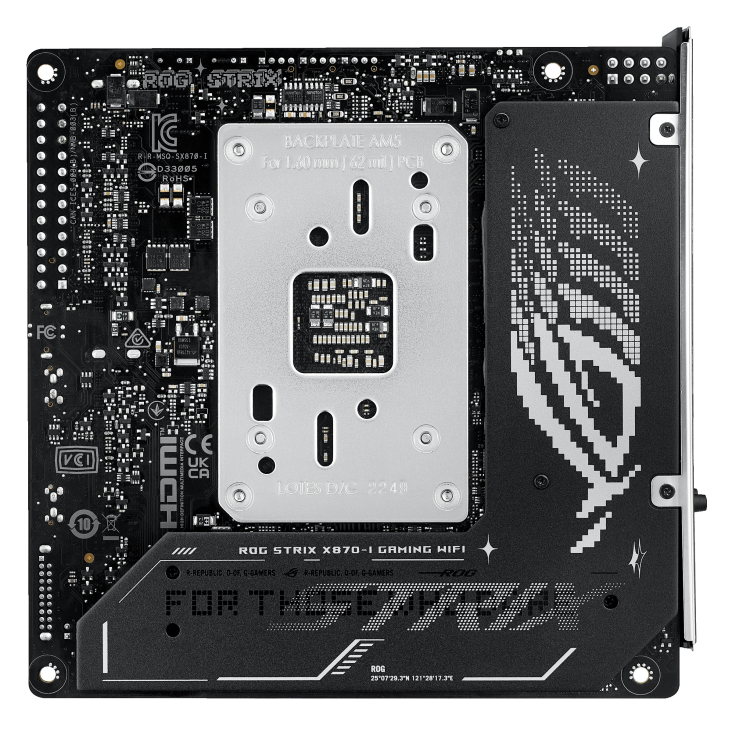

– Aluminum backplate
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 header(s)
ROG STRIX HIVE II
1x USB Type-C® connects to motherboard
2x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1x Headphone jack with mic in
1x Power button
1x FlexKey button
1x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
|
| תוכנות מצורפות |
ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI
BIOS EZ Mode
– ASUS
MyHotkey
FlexKey
Dynamic OC Switcher
|

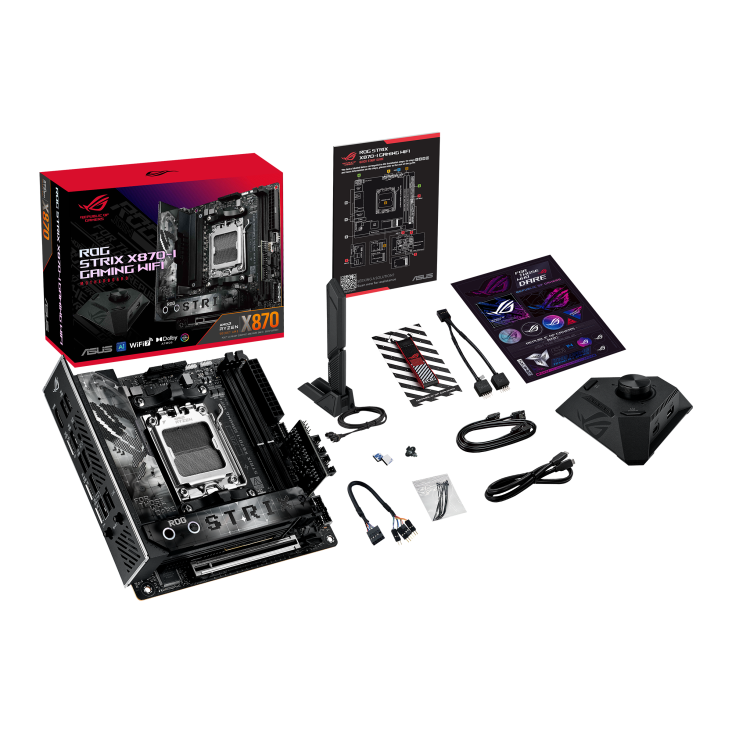

| אביזרים כלולים |
:Cables
1x Panel cable
1x ROG USB2.0 splitter cable
2x SATA 6Gb/s cables
:ROG FPS Card
1x ROG FPS Card
:ROG STRIX HIVE II
1x ROG STRIX HIVE II
1x USB Type-C® power connection cable
:Miscellaneous
1x ASUS WiFi Q-Antenna
1x Cable ties package
1x M.2 Q-Latch package(s)
1x ROG key chain
1x ROG Strix stickers
1x M.2 rubber package(s)
:Documentation
1x Quick start guide
|
| תצורה |
Mini-ITX Form Factor
6.7inch x 6.7 inch (17 cm x 17 cm)
|
| קישור לאתר היצרן |
https://rog.asus.com/motherboards/rog-strix/rog-strix-x870-i-gaming-wifi/
|
