| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
B850
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
4
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Refer to https://www.asus.com/support/download-center/ for CPU support list*
|
| תמיכה בזיכרונות |
4x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function**
|
| גרפיקה מובנית |
1x DisplayPort*
1x HDMI™ port**
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications
Supports max. 8K@30Hz as specified in DisplayPort 1.4*
Supports 4K@60Hz as specified in HDMI 2.1**
VGA resolution support depends on processors' or graphic cards' resolution***
|
| חריצי הרחבה |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen™ 8000 Series Desktop Processors
1x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*
AMD B850 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)**
Specifications vary by CPU types*
PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3**
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals
|
| USB |
Rear USB (Total 10 ports)
1x USB 20Gbps port (1 x USB Type-C®)
3x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4x USB 5Gbps ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1x USB 10Gbps connector (supports USB Type-C®)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A*
|
| ממשק אחסון |
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
2x SATA 6Gb/s ports
Specifications vary by CPU types*
M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled**
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
|
| שמע |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
:Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
.A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*
The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device
|
| כרטיס רשת קווי |
1x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth® v5.4***
Wi-Fi features may vary depending on the operating system*
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details
.Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries**
.The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications***
|
| חיבורים פנימיים |
:Fan and Cooling Related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
:Power Related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connector
:Storage Related
4x M.2 slots (Key M)
2x SATA 6Gb/s ports
:USB
1x USB 10Gbps connector (supports USB Type-C®)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x CPU Over voltage jumper
1x Front Panel Audio header (F_AUDIO)
1x Power button
1x 10-1 pin Front System Panel header
1x Thermal Sensor header
1x Thunderbolt™ (USB4®) header
|

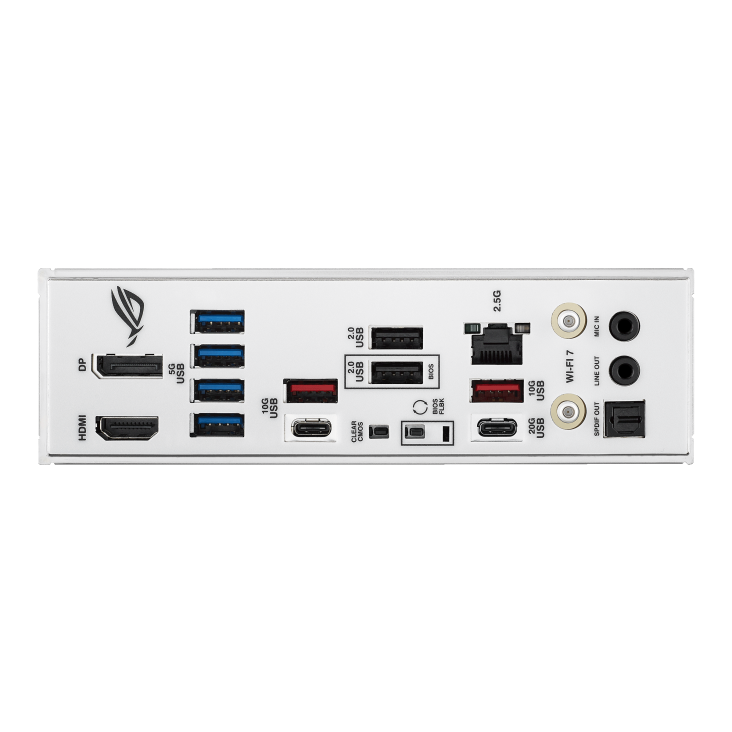

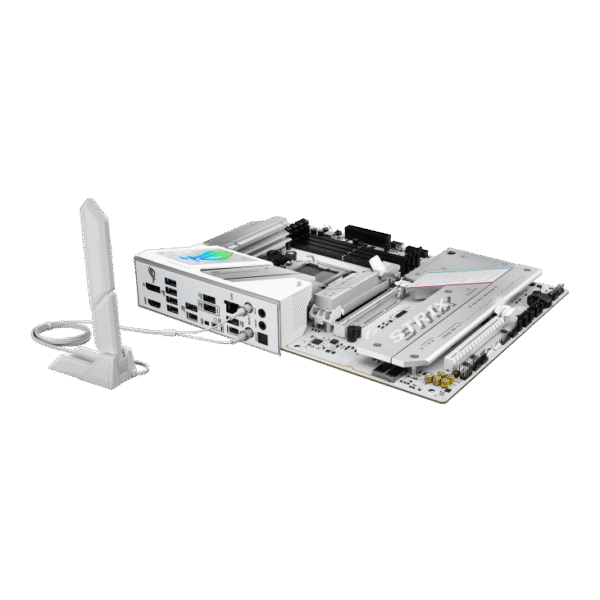

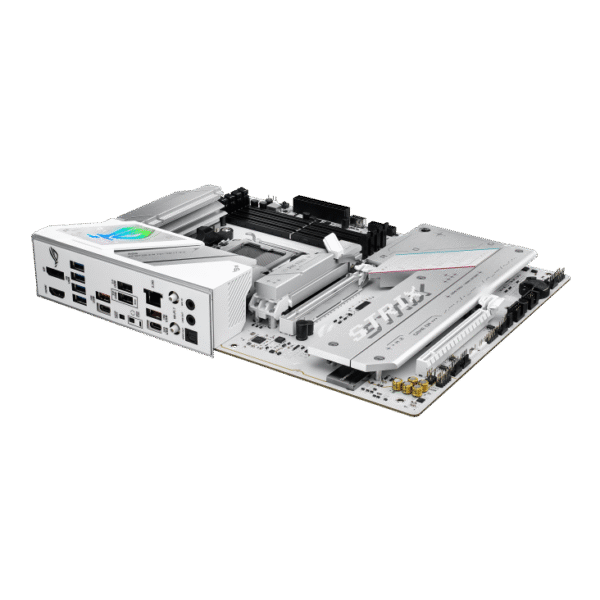

| חיבורים ויציאות |
1x USB 20Gbps port (1 x USB Type-C®)
3x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4x USB 5Gbps ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x DisplayPort
1x HDMI™ port
1x Wi-Fi module
1x Intel® 2.5Gb Ethernet port
2x Audio jacks
1x Optical S/PDIF out port
1x BIOS FlashBack™ button
1x Clear CMOS button
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
+Extreme Engine Digi
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– GameFirst
– HWiNFO
– Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
|

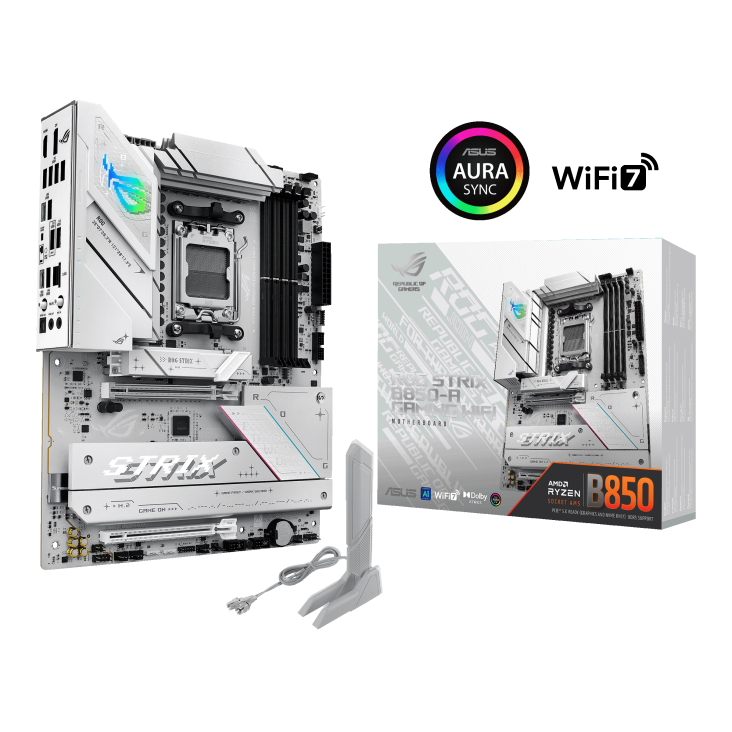

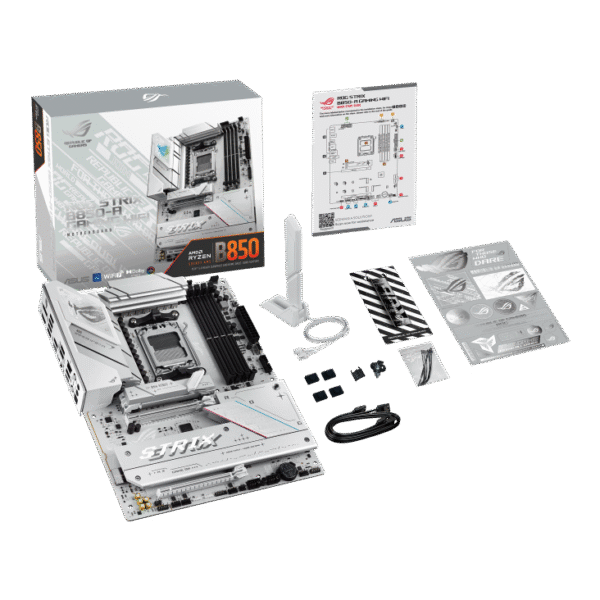

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous

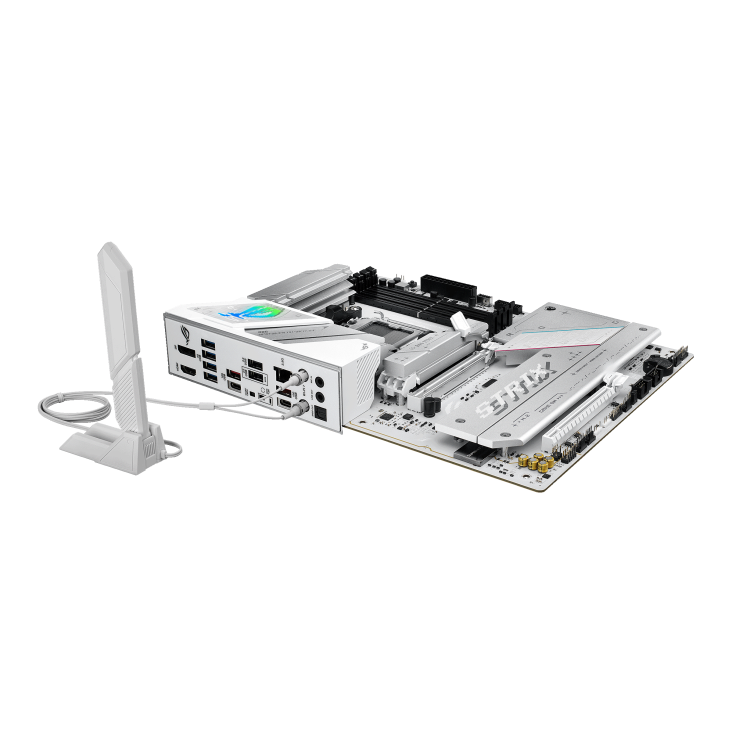

1x ASUS WiFi Q-Antenna
1x Cable ties package
1x M.2 Q-Latch package
1x M.2 Q-Slide package
1x ROG key chain
1x ROG Strix stickers
4x M.2 rubbers
:Documentation
1x Quick start guide
|
| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-a-gaming-wifi/
|
