| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1700
|
| ערכת שבבים |
B760
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
3
|
| תמיכה במעבדים |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
x1 DisplayPort**
x1 HDMI® port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 8K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
|
| חריצי הרחבה |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
x4 SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10*
|
| USB |
:Rear USB (Total 8 ports)
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1x USB 3.2 Gen 2 port (1 x Type-A)
6x USB 3.2 Gen 1 ports (6 x Type-A)
:Front USB (Total 7 ports)
1x USB 3.2 Gen 2 connector
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
|
| ממשק אחסון |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10*
|
| שמע |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback"
:Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis*
|
| כרטיס רשת קווי |
x1 Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
WiFi 6E 6GHz regulatory may vary between countries*
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications**
|
| חיבורים פנימיים |
x1 4-pin CPU Fan header
x1 4-pin CPU OPT Fan header
x1 4-pin AIO Pump header
x4 4-pin Chassis Fan headers
x1 24-pin Main Power connector
x1 8-pin +12V Power connector
x1 4-pin +12V Power connector
x3 M.2 slots (Key M)
x4 SATA 6Gb/s ports
x1 USB 3.2 Gen 2 connector (supports USB Type-C® )
x1 USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
x2 USB 2.0 headers support 4 additional USB 2.0 ports
x3 Addressable Gen 2 headers
x1 Aura RGB header
x1 Front Panel Audio header (AAFP)
x1 20-3 pin System Panel header with Chassis intrude function
x1 Thermal Sensor header
x1 Thunderbolt™ (USB4®) header
|

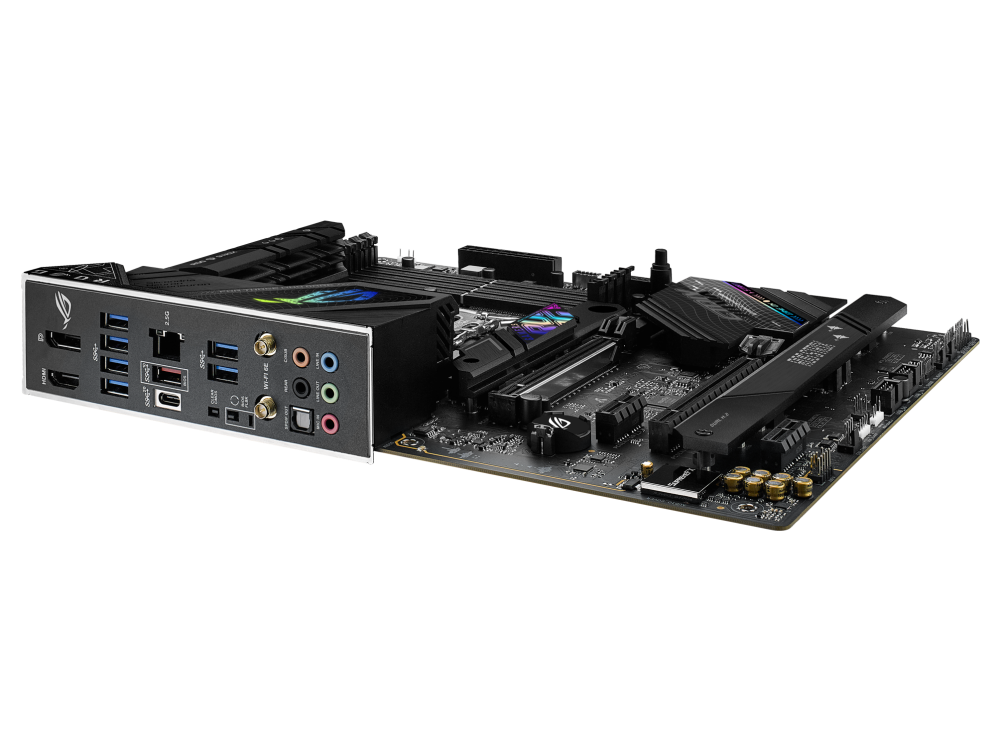

| חיבורים ויציאות |
x1 USB 3.2 Gen 2×2 port (1 x USB Type-C®)
x1 USB 3.2 Gen 2 port (1 x Type-A)
x6 USB 3.2 Gen 1 ports (6 x Type-A)
x1 DisplayPort
x1 HDMI® port
x1 Wi-Fi Module
x1 Intel® 2.5Gb Ethernet port
x5 Audio jacks*
x1 Optical S/PDIF out port
x1 BIOS FlashBack™ button
x1 Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
5K Black Metallic Capacitors
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
M.2 heatsink
VRM heatsink
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura RGB header
Addressable Gen 2 headers
|
| תוכנות מצורפות |
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Performance And Power Saving Utility
– DIGI+ VRM
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86
|
| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Additional Cooling Kit
1x Thermal pad for M.2
:Miscellaneous

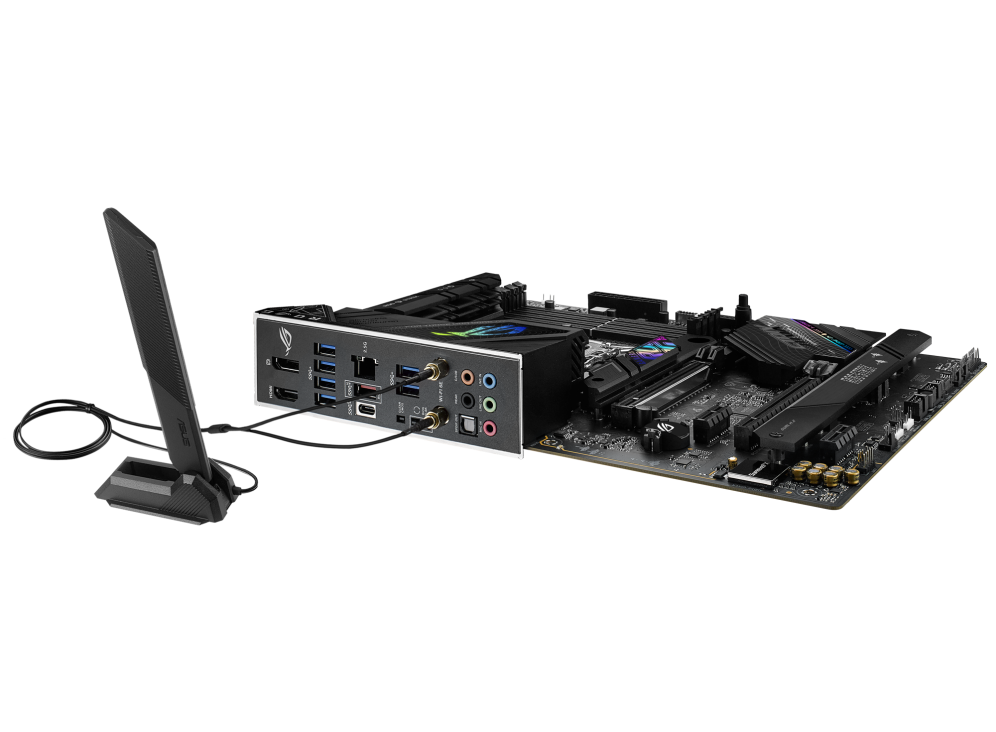

1x ASUS Wi-Fi moving antennas
1x Cable ties package
1x M.2 Q-Latch package
2x M.2 Rubber Package
1x ROG key chain
1x ROG Strix stickers
1x ROG Strix thank you card
:Documentation
1x User guide
|
| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-f-gaming-wifi-model/
|
