| תקופת אחריות | 3 שנים על ידי היבואן הרשמי |
|---|
| יצרן לוח אם | Asus |
|---|
| מבוסס לוח אם | Intel |
|---|
| תושבת | LGA1700 |
|---|
| ערכת שבבים | B760 |
|---|
| סוג זיכרון לוח אם | DDR5 |
|---|
| גודל לוח אם | ATX |
|---|
| NVMe PCIe M.2 Connector | 3 |
|---|
| קישוריות | WIFI & Bluetooth |
|---|
| תמיכה במעבדים | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types** |
|---|
| תמיכה בזיכרונות | 4x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function* |
|---|
| גרפיקה מובנית | 1x DisplayPort**
1x HDMITM port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. // Please refer to AMD CPU specifications*
Supports max. 4K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
VGA resolution support depends on processors' or graphic cards' resolution**** |
|---|
| חריצי הרחבה | Intel® Core™ Processors (14th & 13th & 12th Gen)
1x PCIe 5.0 x16 slot Intel® B760 Chipset
1x PCIe 3.0 x16 slot (supports x4 mode)*
2x PCIe 3.0 x1 slots* PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode* To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals |
|---|
| USB | Rear USB (Total 9 ports)
1x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C®)
1x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C®)
4x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports)
1x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports |
|---|
| ממשק אחסון | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10* |
|---|
| שמע | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis* |
|---|
| כרטיס רשת קווי | x1 Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E 1x Intel® 2.5Gb Ethernet
ASUS LANGuard |
|---|
| מודול תקשורת אלחוטית | Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
WiFi 6E 6GHz regulatory may vary between countries*
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications** |
|---|

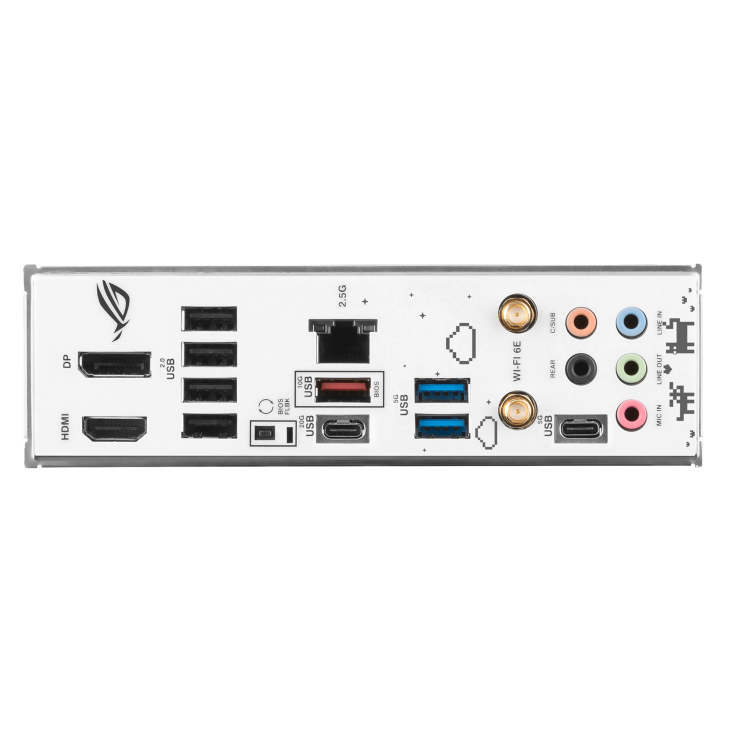

| חיבורים ויציאות | 1x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C®)
1x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI™ port
1x Wi-Fi Module
1x Intel® 2.5Gb Ethernet port
5x Audio jacks
1x BIOS FlashBack™ button |
|---|
| חיבורים פנימיים | :Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers :Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector :Storage related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports :USB
1x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports :Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x 20-5 pin System Panel header
1x Thermal Sensor header
1x Thunderbolt™ (USB4®) header |
|---|
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
|---|
| תכונות מיוחדות | 5K Black Metallic Capacitors
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
BIOS FlashBack™ button
BIOS FlashBack™ LED
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura RGB header
Addressable Gen 2 headers |
|---|
| תוכנות מצורפות | ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
– Performance and Power Saving Utility
AI Suite 3
– DIGI+ VRM
– PC Cleaner
MyAsus
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers
WinRAR UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86 |
|---|
| אביזרים כלולים | :Cables
2x SATA 6Gb/s cables :Additional Cooling Kit
1x Thermal pad for M.2 :Miscellaneous
1x ASUS Wi-Fi moving antennas
1x Cable ties package
1x M.2 Q-Latch package
1x ROG Strix stickers
1x ROG Strix thank you card
1x M.2 Rubber Packages :Documentation
1x User guide |
|---|
| תצורה | ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|
