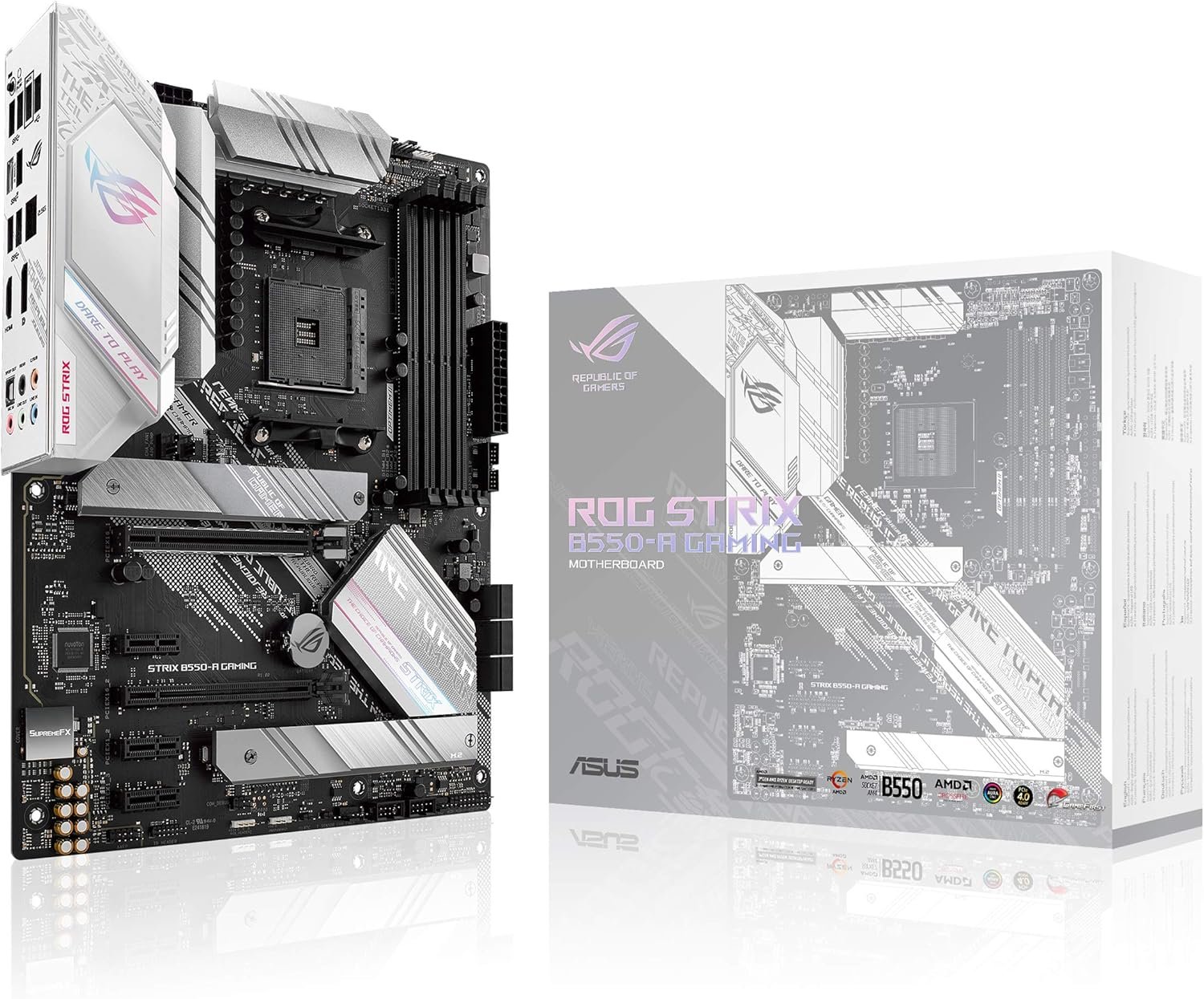

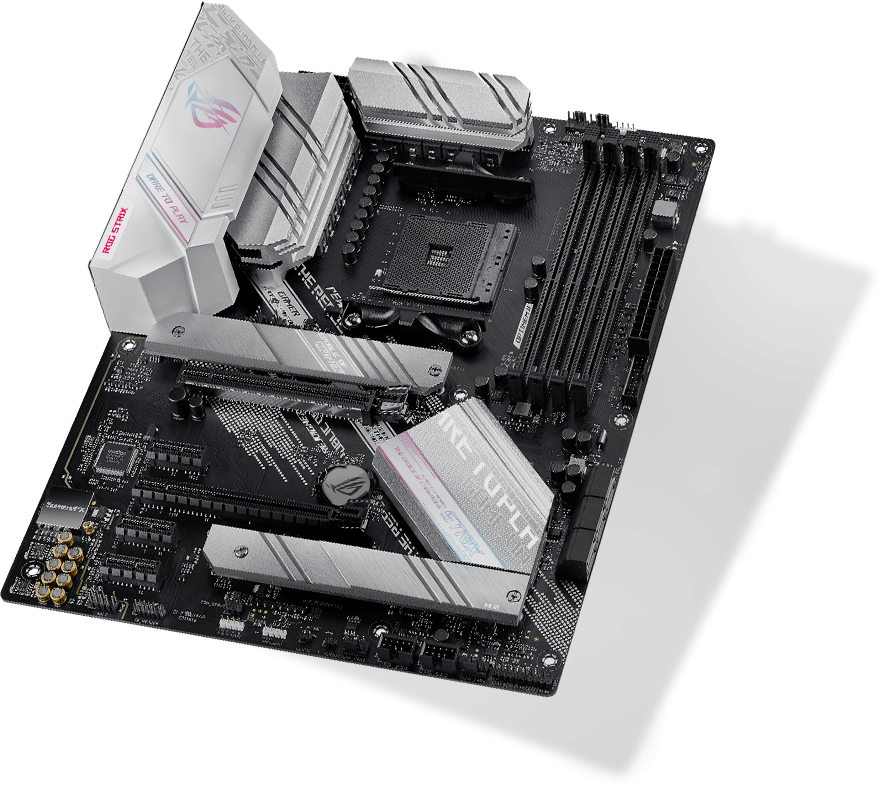

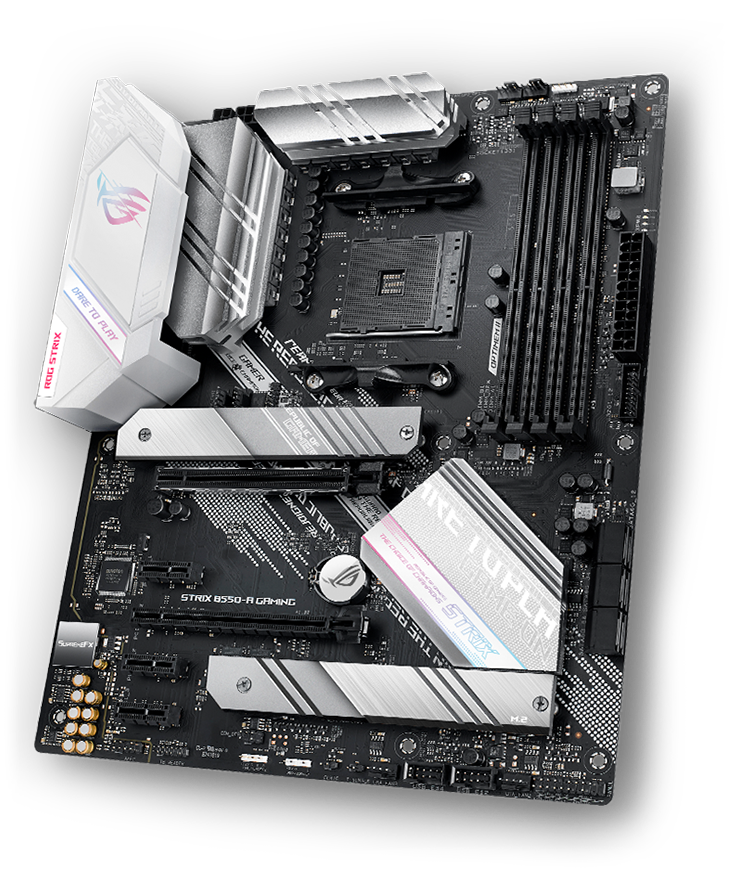

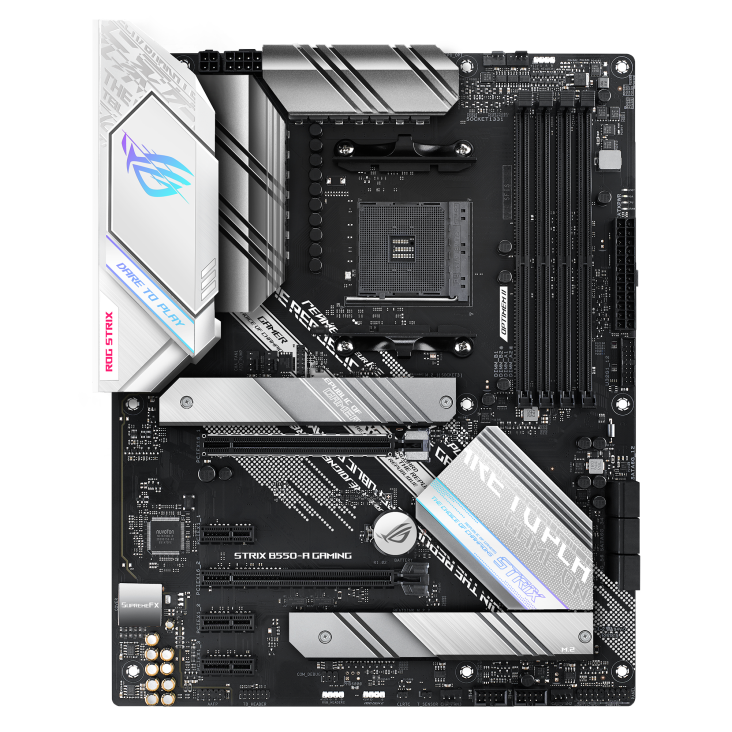

לוח אם – Asus ROG STRIX B550-A Gaming ATX AM4 DDR4

⁦לוח אם – Asus ROG STRIX B550-A Gaming ATX AM4 DDR4⁩ – תמונה ⁦2⁩

לוח אם – Asus ROG STRIX B550-A Gaming ATX AM4 DDR4

739.00 ₪

לוח אם איכותי מבית Asus, בעל תושבת AM4, ערכת שבבים B550, תאימות לזיכרונות DDR4 ובעל יציאות HDMI ,DisplayPort.

מק״ט 90MB15J0-M0EAY0 קטגוריה לוחות אם תגיות AM4, AMD, Asus, ATX, B550, DDR4, שחור

עוד על - לוח אם – Asus ROG STRIX B550-A Gaming ATX AM4 DDR4

תקופת אחריות	3 שנים על ידי היבואן הרשמי
יצרן לוח אם	Asus
מבוסס לוח אם	AMD
תושבת	AM4
ערכת שבבים	B550
סוג זיכרון לוח אם	DDR4
גודל לוח אם	ATX
NVMe PCIe M.2 Connector	3
תמיכה במעבדים	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Refer to http://www.asus.com for CPU support list
תמיכה בזיכרונות	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory AMD RyzenTM 4000 G-Series Processors 4x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture OptiMem II ECC Memory (ECC mode) support varies by CPU. Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists)*
גרפיקה מובנית	Integrated Graphics Processor 1x DisplayPort 1.2 1x HDMI 2.1(4K@60HZ) Graphics specifications may vary between CPU types*
חריצי הרחבה	:AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x PCIe 4.0 x16 (x16 mode) :AMD RyzenTM 4000 G-Series Processor 1x PCIe 3.0 x16 (x16 mode) :AMD B550 Chipset 1x PCIe 3.0 x16 (x4 mode) 3x PCIe 3.0 x1
USB	:Rear USB Port (Total 8) 2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) 2x USB 2.0 port(s) :Front USB Port (Total 6) 2x USB 3.2 Gen 1 port(s) 4x USB 2.0 port(s)
ממשק אחסון	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports :AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) :AMD RyzenTM 4000 G-Series Processor 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* :AMD B550 Chipset 1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6x SATA 6Gb/s port(s), Support Raid 0, 1, 10
שמע	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A Dual OP Amplifiers Impedance sense for front and rear headphone outputs Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/192kHz playback * :Audio Feature SupremeFX Shielding™ Technology Gold-plated jacks Optical S/PDIF in port(s) at back panel Audio Shielding Premium Japanese audio capacitors Audio Cover Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio*
כרטיס רשת קווי	Intel® I225-V 2.5Gb Ethernet ASUS LANGuard
חיבורים פנימיים	1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 3x Chassis Fan connector(s) 1x AIO_PUMP connector 1x AAFP connector 2x Aura RGB Strip Header(s) 1x Addressable Gen 2 header(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6x SATA 6Gb/s connector(s) 1x Thunderbolt header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x System panel(s) 1x Thermal sensor connector(s) 1x Clear CMOS jumper(s)
חיבורים ויציאות	1x Intel® I225-V 2.5Gb Ethernet 1x DisplayPort 1x HDMI 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4x USB 3.2 Gen 1 2x USB 2.0 1x Optical S/PDIF out 1x BIOS FlashBack™ Button(s) 5x Gold-plated audio jacks
BIOS	256Mb Flash ROM, UEFI AMI BIOS
תכונות ייחודיות	Aura Sync Standard RGB header(s) Addressable Gen 2 RGB header(s) ASUS Q-Design ASUS Q-DIMM ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) ASUS Q-Slot ASUS Thermal Solution Aluminum M.2 heatsink ASUS EZ DIY BIOS FlashBack™ button -BIOS FlashBack™ LED Clear CMOS header ProCool Pre-mounted I/O shield SafeSlot
תוכנות מצורפות	OG Exclusive Software RAMCache III ROG CPU-Z GameFirst VI Sonic Studio III + Sonic Studio Virtual Mixer Sonic Radar III DTS® Sound Unbound Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate Aura Creator Aura Sync AI Noise Cancelling Microphone AI Suite 3 PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO EZ update WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
אביזרים כלולים	User´s manual 4x SATA 6Gb/s cable(s) 1x Supporting DVD 1x ROG Strix stickers 1x Cable ties pack(s) 1x Extension cable for Addressable LED 1x ROG Thank you card 1x M.2 SSD screw package(s) 1x M.2 Rubber Package(s)
תצורה	ATX Form Factor 12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
קישור לאתר היצרן	https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-a-gaming-model/
