| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
X870
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
4
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Refer to https://www.asus.com/support/download-center/ for CPU support list*
|
| תמיכה בזיכרונות |
4x DIMM slots, max. 256GB, DDR5
Support up to
8000MT/s(OC) with Ryzen™ 9000 Series Processors+
8000MT/s(OC) with Ryzen™ 8000 Series Processors+
8000MT/s(OC) with Ryzen™ 7000 Series Processors+
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Adjustments will be made based on the specifications of mass-produced memory products available on the market*
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function***
|
| גרפיקה מובנית |
1x HDMI™ port**
2x USB4® (40Gbps) ports support USB Type-C® display outputs***
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications*
Supports 4K@60Hz as specified in HDMI 2.1**
Supports max. 8K@60Hz as specified in DisplayPort 1.4***
VGA resolution support depends on processors' or graphic cards' resolution****
|
| חריצי הרחבה |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
1x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
1x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)
AMD X870E Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each**
PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4***
To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
Rear USB (Total 11 ports)
2x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1x USB 20Gbps port(s) (1 x USB Type-C®)
7x USB 10Gbps port(s) (7 x Type-A)
1x USB 2.0 port (1 x Type-A)
Front USB (Total 9 ports)
1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**
1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3x USB 2.0 headers support 6 additional USB 2.0 ports
"USB Type-C® power delivery output: max. 5V/3.0A*"
USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A**
|
| ממשק אחסון |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
PCIEX16(G5)_2 slot shares bandwidth with M.2_2*
AMD RAIDXpert2 Technology
Ryzen™ 7000 series processors: PCIe RAID 0/1/10
Ryzen™ 8000 series processors: PCIe RAID 0/1
Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10
X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10
|
| שמע |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
:Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio*
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output**
|
| כרטיס רשת קווי |
1x Marvell® AQtion 10Gb Ethernet
1x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)*
2×2 Wi-Fi 7** (802.11be)
Supports 2.4/5/6GHz frequency band***
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® v5.4****
The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details*
Wi-Fi features may vary depending on the operating system**
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries***
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications****
|
| חיבורים פנימיים |
:Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
5x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connector
:Storage related
4x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
3x USB 2.0 headers support 6 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x Chassis Intrusion header
1x COM Port header
1x CPU Over Voltage jumper
1x Front Panel Audio header (F_AUDIO)
1x 10-1 pin System Panel header
1x Thermal Sensor header
|

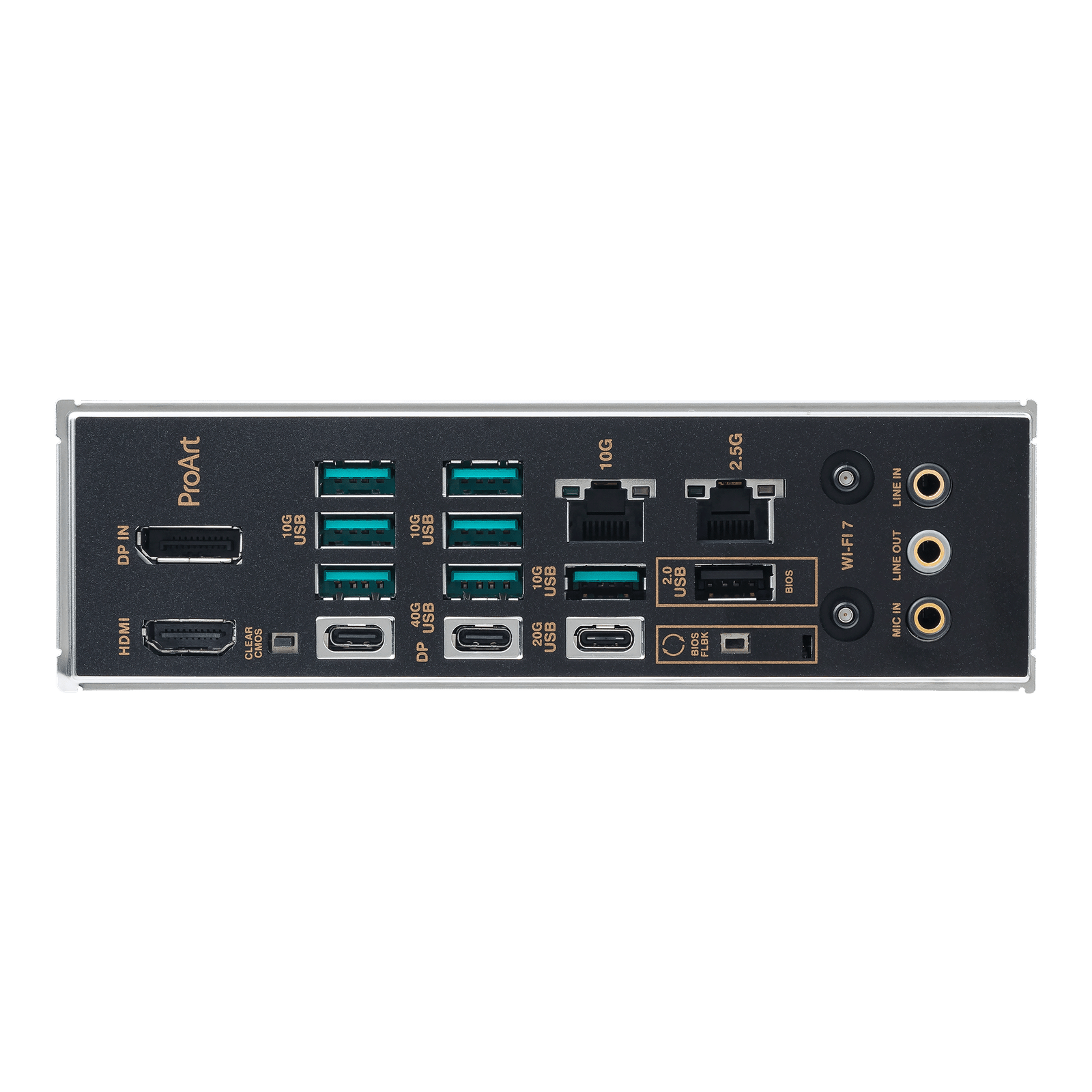

| חיבורים ויציאות |
2x USB4® (40Gbps) port(s) (2 x USB Type-C®)
1x USB 20Gbps port (1 x USB Type-C®)
7x USB 10Gbps ports (7 x Type-A)
1x USB 2.0 port (1 x Type-A)
1x DisplayPort (Input only)
1x HDMITM port
1x Wi-Fi Module
1x Marvell® AQtion 10Gb Ethernet
1x Intel® 2.5Gb Ethernet
3x Audio jacks
1x BIOS FlashBack™ button
1x Clear CMOS button
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent Protection
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
– Compatible with PD3.0
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
|

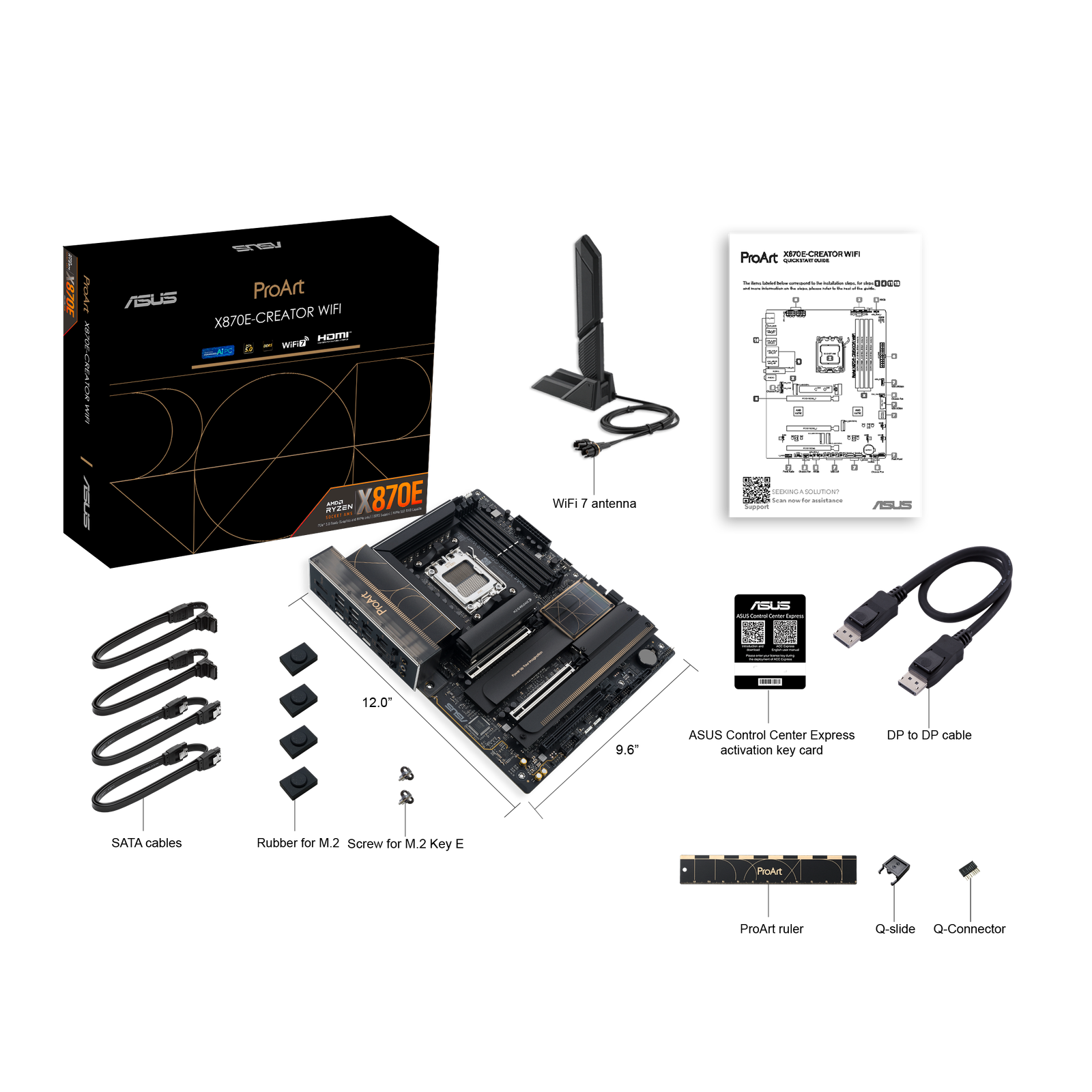

| אביזרים כלולים |
:Cables
1x DisplayPort cable
4x SATA 6Gb/s cables
:Additional Cooling Kit
1x Thermal pad for M.2 22110
:Miscellaneous
1x ASUS WiFi Q-Antenna
1x Q-connector
1x M.2 Q-Latch package
1x M.2 Q-Latch Q-Slide package for M.2 backplate
2x Rubber Packages for M.2
1x ProArt ruler
:Documentation
1x Quick start guide
1x ACC Express Activation Key Card
|
| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
|
