| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1851
|
| ערכת שבבים |
Z890
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
4
|
| תמיכה במעבדים |
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to https://www.asus.com/support/download-center/ for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function**
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMITM port***
1x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 4K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
Supports max. 4K@120Hz as specified in DisplayPort 1.4****
VGA resolution support depends on processors' or graphic cards' resolution*****
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card******
|
| חריצי הרחבה |
Intel® Core™ Ultra Processors (Series 2)*
1x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2x PCIe 4.0 x16 slots (support x4 mode)
1x PCIe 4.0 x16 slot (supports x1 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals
|
| USB |
Rear USB (Total 8 ports)
1x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
2x USB 5Gbps ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)**
Front USB (Total 9 ports)
1x USB 10Gbps connector (supports USB Type-C®)
2x USB 5Gbps headers support 4 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports**
USB Type-C® power delivery output: max. 5V/3A*
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth**
USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth**
|
| ממשק אחסון |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5*
|
| שמע |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
:Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
ASUS LANGuard
|
| חיבורים פנימיים |
:Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connector
:Storage related
4x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 10Gbps connector (supports USB Type-C®)
2x USB 5Gbps headers support 4 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 10-1 pin Front PanelSystem header
1x Thunderbolt™ (USB4®) header
:Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connector
:Storage related
4x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 10Gbps connector (supports USB Type-C®)
2x USB 5Gbps headers support 4 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 10-1 pin Front Panel System header
1x Thunderbolt™ (USB4®) header
|

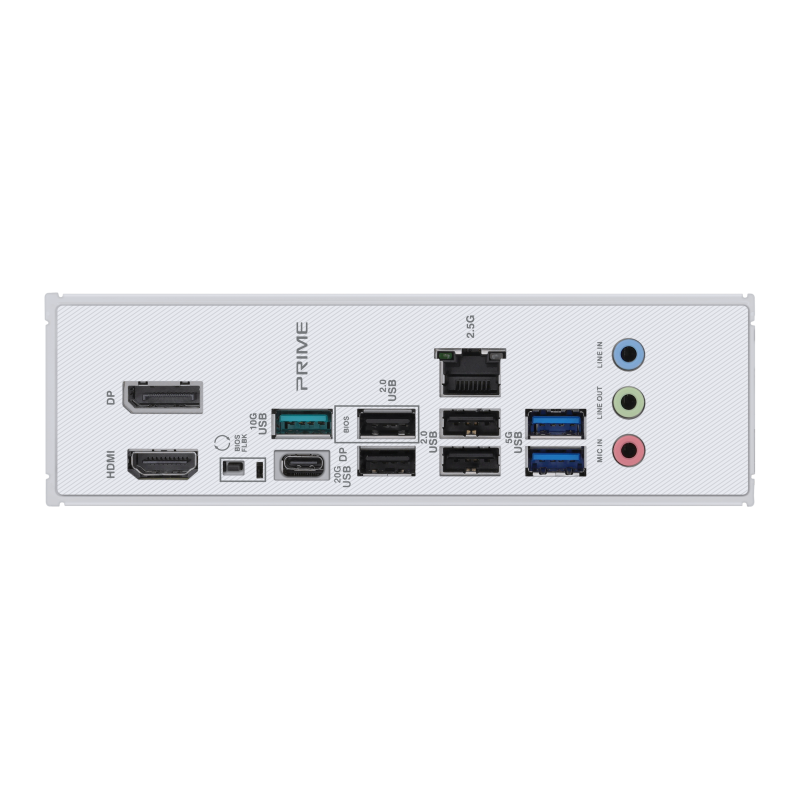

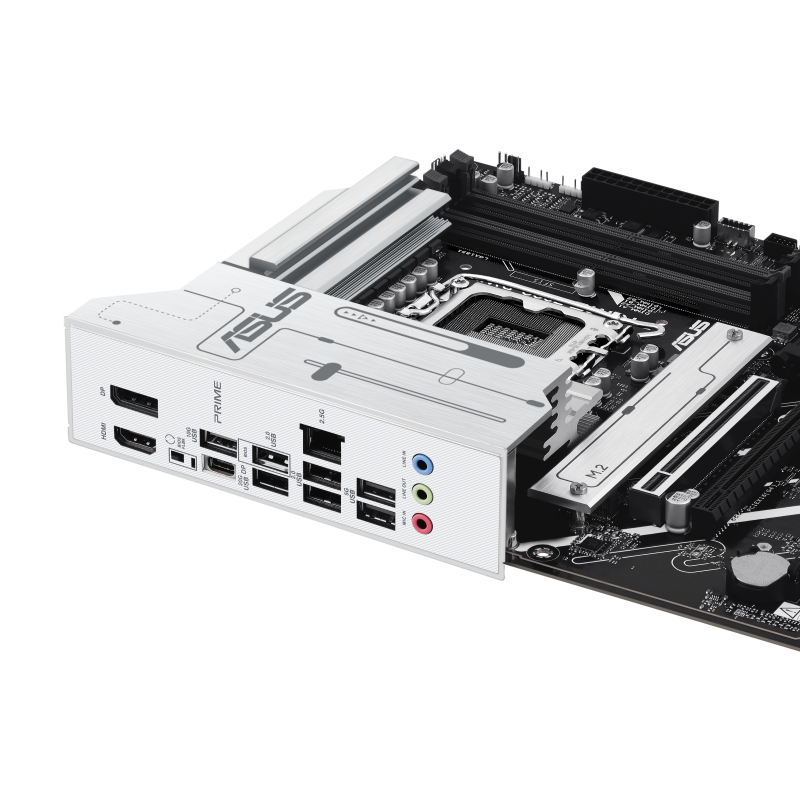

| חיבורים ויציאות |
1x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
2x USB 5Gbps ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI port
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack™ button
|
| BIOS |
(128+128)256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
:ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
:ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
:ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
:ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
:Aura Sync
– Aura RGB header
– Addressable Gen2 headers
|
| תוכנות מצורפות |
:ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS DriverHub
ASUS CPU-Z
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
:UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost (Intel K-series Processors only)
|

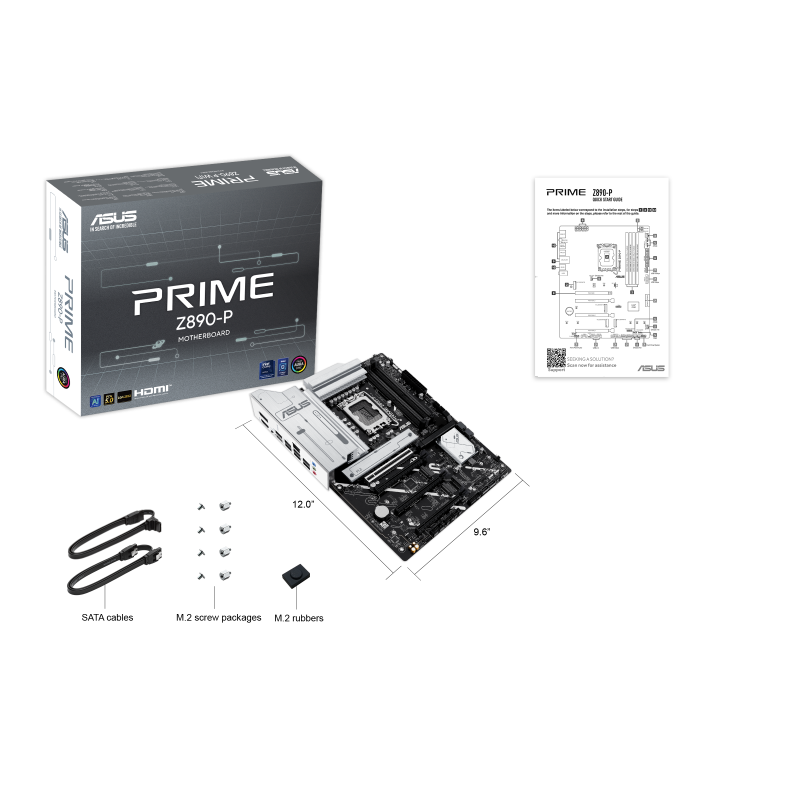

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous
1x M.2 rubber package
2x Screw packages for M.2 SSD
:Documentation
1x Quick start guide
|
| תצורה |
ATX Form Factor
12inch x 9.6inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/prime/prime-z890-p/
|
