| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1700
|
| ערכת שבבים |
Z790
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| תמיכה במעבדים |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMI® port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 4K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
|
| חריצי הרחבה |
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3x PCIe 4.0 x16 slots (support x4 mode)
1x PCIe 3.0 x1 slot
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
Rear USB (Total 8 ports)
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1x USB 3.2 Gen 2 port (1 x Type-A)
2x USB 3.2 Gen 1 ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth*
USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth*
|
| ממשק אחסון |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10*
|
| שמע |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking –
Supports up to 24-Bit/192 kHz playback –
:Audio Features
Audio Shielding –
Premium audio capacitors –
Dedicated audio PCB layers –
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
|
| חיבורים פנימיים |
:Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
:Storage related
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
2x Aura RGB headers
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 20-5pin System Panel header
1x Thunderbolt™ (USB4®) Header
|

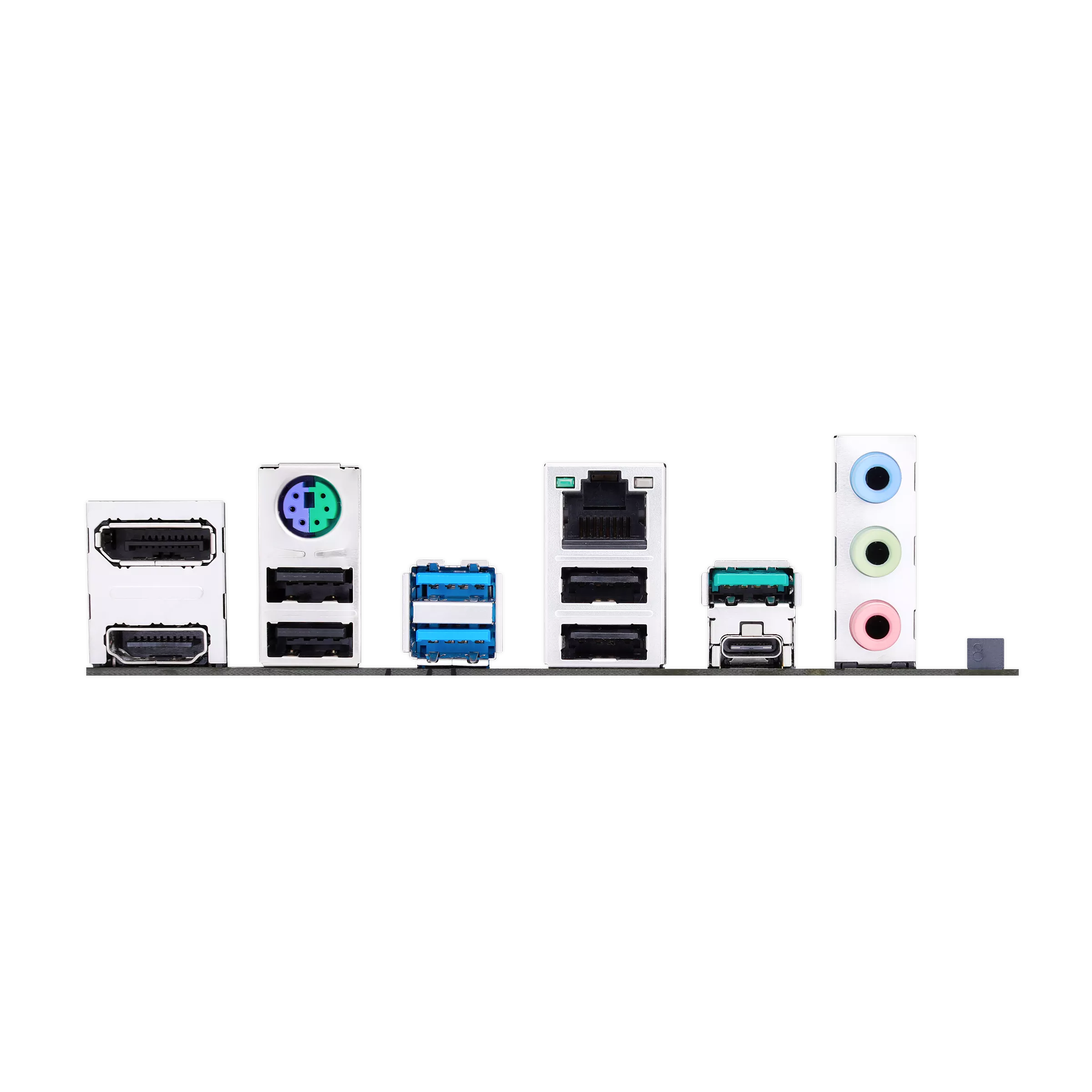

| חיבורים ויציאות |
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1x USB 3.2 Gen 2 port (1 x Type-A)
2x USB 3.2 Gen 1 ports (2 x Type-A)
4x USB 2.0 ports (4 x Type-A)
1x DisplayPort
1x HDMI® port
1x Vertical M.2 slot (Key E)
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x PS/2 Keyboard/Mouse combo port
|
| BIOS |
(128+64)192Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|

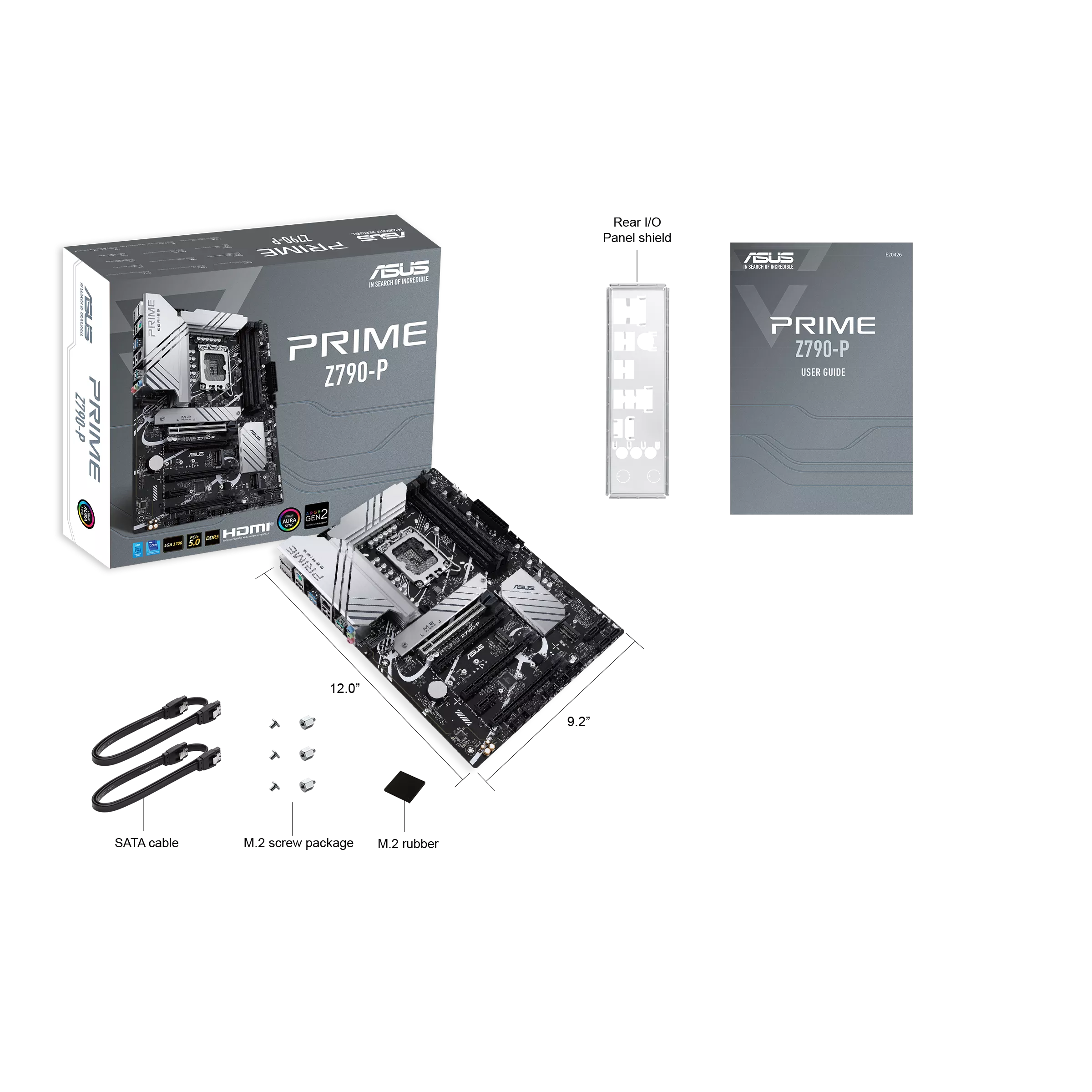

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous

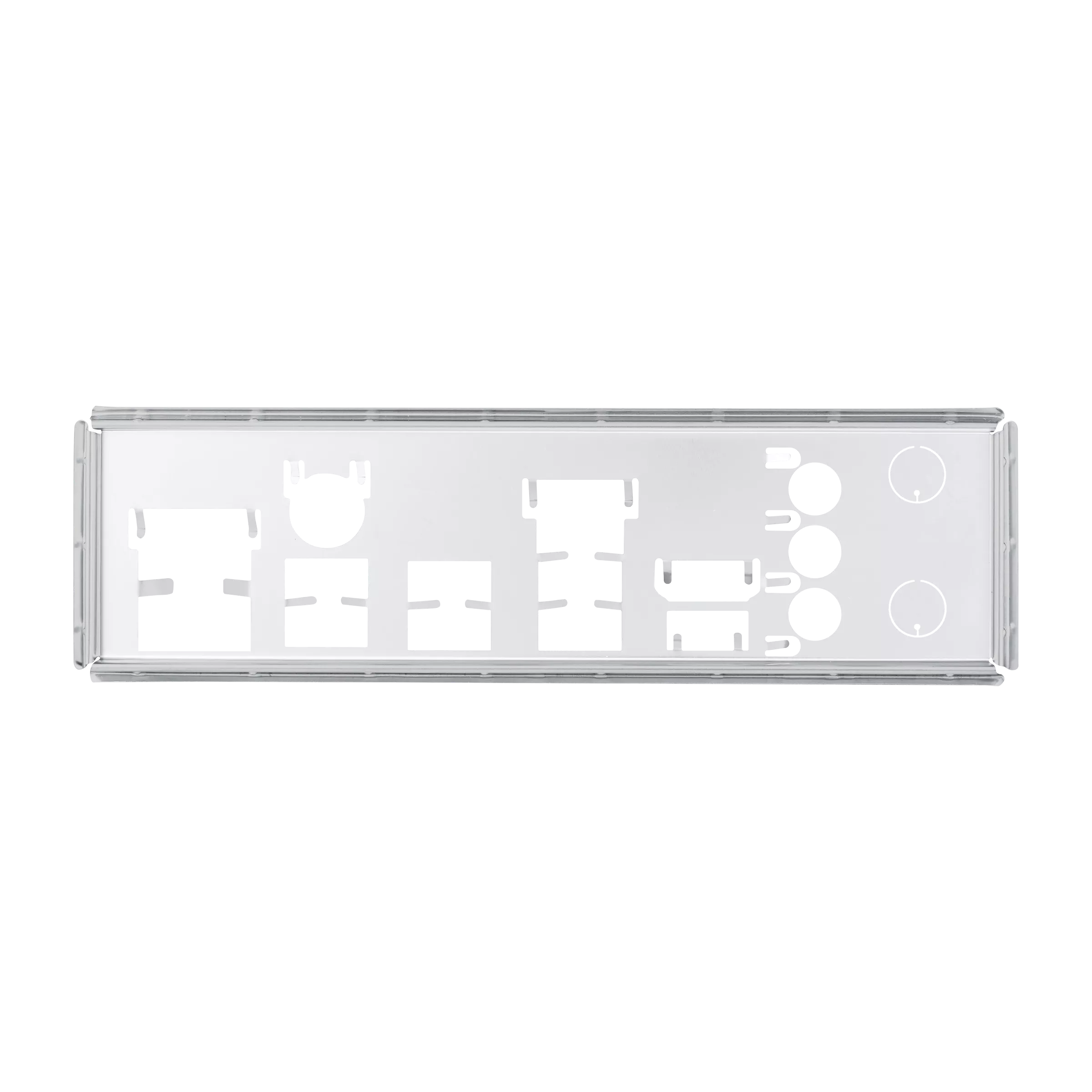

1x I/O Shield
1x M.2 Rubber Package
2x Screw packages for M.2 SSD
:Documentation
1x User guide
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/prime/prime-z790-p/
|
