| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
LGA1700
|
| ערכת שבבים |
Z790
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
4
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to http://www.asus.com for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
4x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMI® port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 8K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
VGA resolution support depends on processors' or graphic cards' resolution****
|
| חריצי הרחבה |
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 4.0 x4 slot
2x PCIe 3.0 x1 slots
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
|
| USB |
Rear USB (Total 8 ports)
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
|
| ממשק אחסון |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10*
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10*
|
| שמע |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*
:Audio Features
– Audio Shielding
– Power pre-regulator reduces power input noise to ensure consistent performance
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio*
|
| כרטיס רשת קווי |
1x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
WiFi 6E 6GHz regulatory may vary between countries*
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications**
|
| חיבורים פנימיים |
:Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
:Power related
1x 24-pin Main Power connector
2x 8-pin +12V Power connectors
:Storage related
4x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 3.2 Gen 2 connector (supports USB Type-C® )
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x CPU Over Voltage jumper
1x Front Panel Audio header (AAFP)
1x Power button
1x SPI TPM header (14-1pin)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ header
|

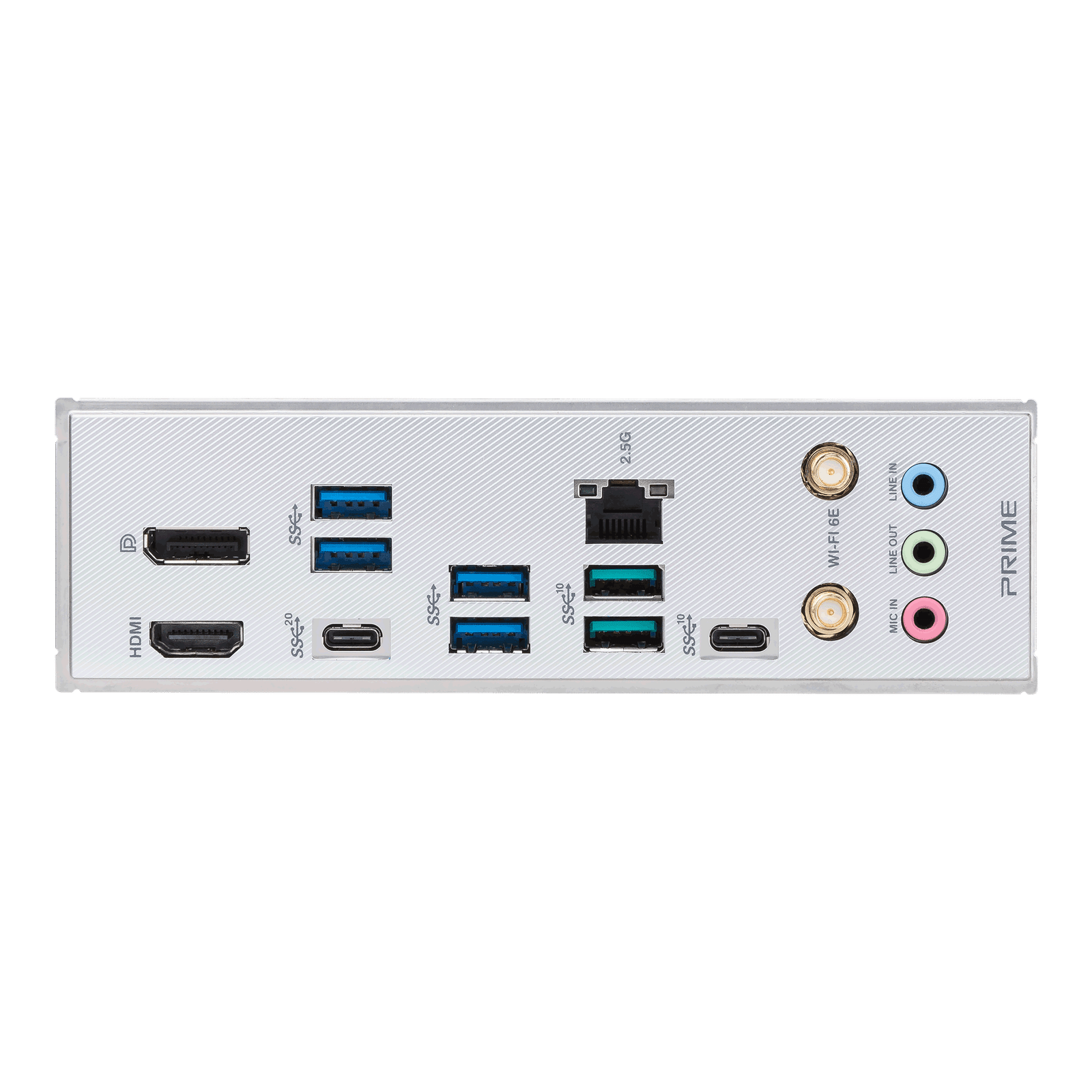

| חיבורים ויציאות |
1x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)
4x USB 3.2 Gen 1 ports (4 x Type-A)
1x DisplayPort
1x HDMI® port
1x Wi-Fi Module
1x Intel® 2.5Gb Ethernet port
3x Audio jacks
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– Box Headers
– Clear CMOS button
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
DTS:X® Ultra
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
MemTest86
|

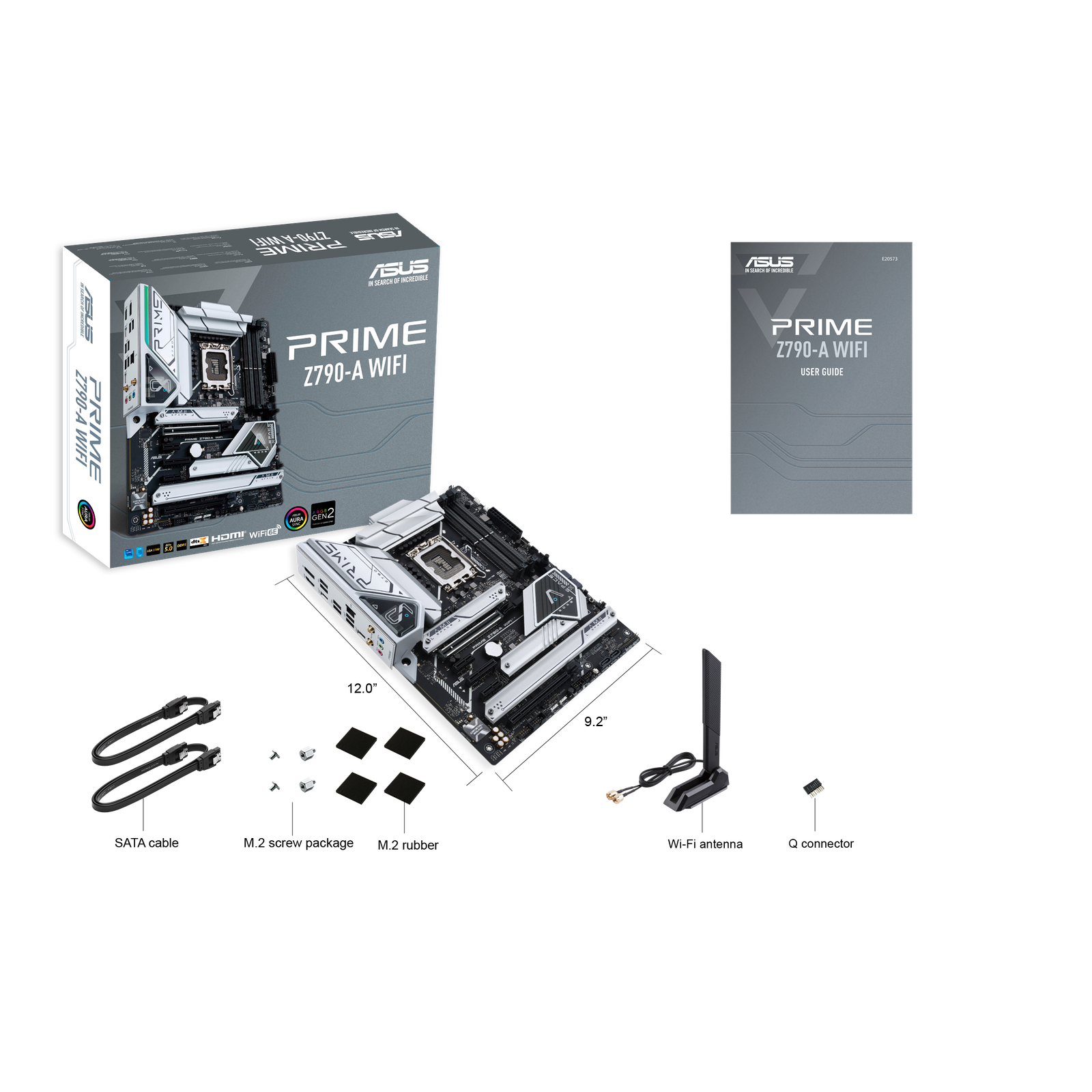

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous
1x ASUS Wi-Fi moving antenna
1x Q-connector
2x M.2 Rubber Packages
1x Screw package for M.2 SSD
:Documentation
1x User guide
|
| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/prime/prime-z790-a-wifi/
|
