| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
AMD
|
| תושבת |
AM5
|
| ערכת שבבים |
X870
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
ATX
|
| NVMe PCIe M.2 Connector |
4
|
| קישוריות |
WIFI & Bluetooth
|
| תמיכה במעבדים |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Refer to https://www.asus.com/support/download-center/ for CPU support list*
|
| תמיכה בזיכרונות |
4x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Adjustments will be made based on the specifications of mass-produced memory products available on the market*
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function*
|
| גרפיקה מובנית |
1x HDMI™ port**
2x USB4® (40Gbps) ports support USB Type-C® display outputs***
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications*
Supports 4K@60Hz as specified in HDMI 2.1**
Supports max. 4K@60Hz as specified in DisplayPort 1.4a***
VGA resolution support depends on processors' or graphic cards' resolution***
|
| חריצי הרחבה |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
3x PCIe 4.0 x16 slots (support x1 mode)***
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)*
Specifications vary by CPU types**
PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs***
PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs***
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals
|
| USB |
Rear USB (Total 10 ports)
2x USB4® (40Gbps) ports (2 x USB Type-C®)
1x USB 10Gbps port (1 x Type-A)
3x USB 5Gbps ports (3 x Type-A)
4x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1x USB 10Gbps connector (supports USB Type-C®)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A*
|
| ממשק אחסון |
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***
2x SATA 6Gb/s ports***
PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs*
PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs**
M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs***
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
|
| שמע |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
:Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
ASUS LANGuard
|
| מודול תקשורת אלחוטית |
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
Wi-Fi features may vary depending on the operating system*
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries**
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications***
|
| חיבורים פנימיים |
:Fan and Cooling Related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
:Power Related
1x 24-pin Main Power connector
2x 8-pin +12V CPU Power connectors
:Storage Related
4x M.2 slots (Key M)
2x SATA 6Gb/s ports
:USB
1x USB 10Gbps connector (supports USB Type-C®)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
3x Addressable Gen 2 headers
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x S/PDIF Out header
1x SPI TPM header (14-1 pin)
1x 10-1 pin System Panel header
|

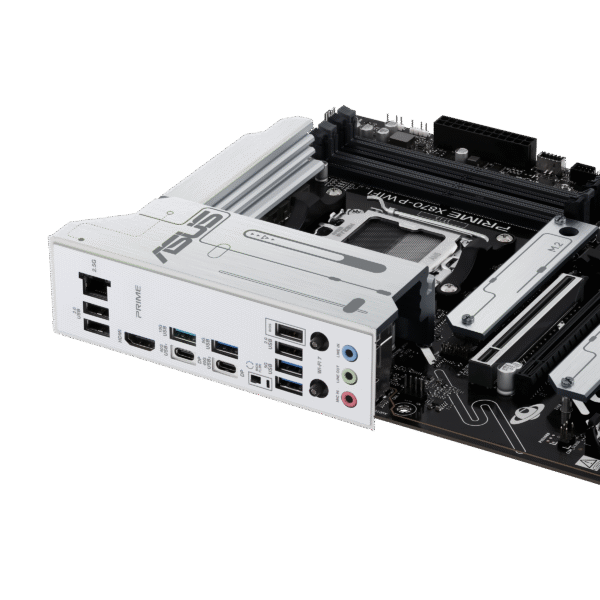

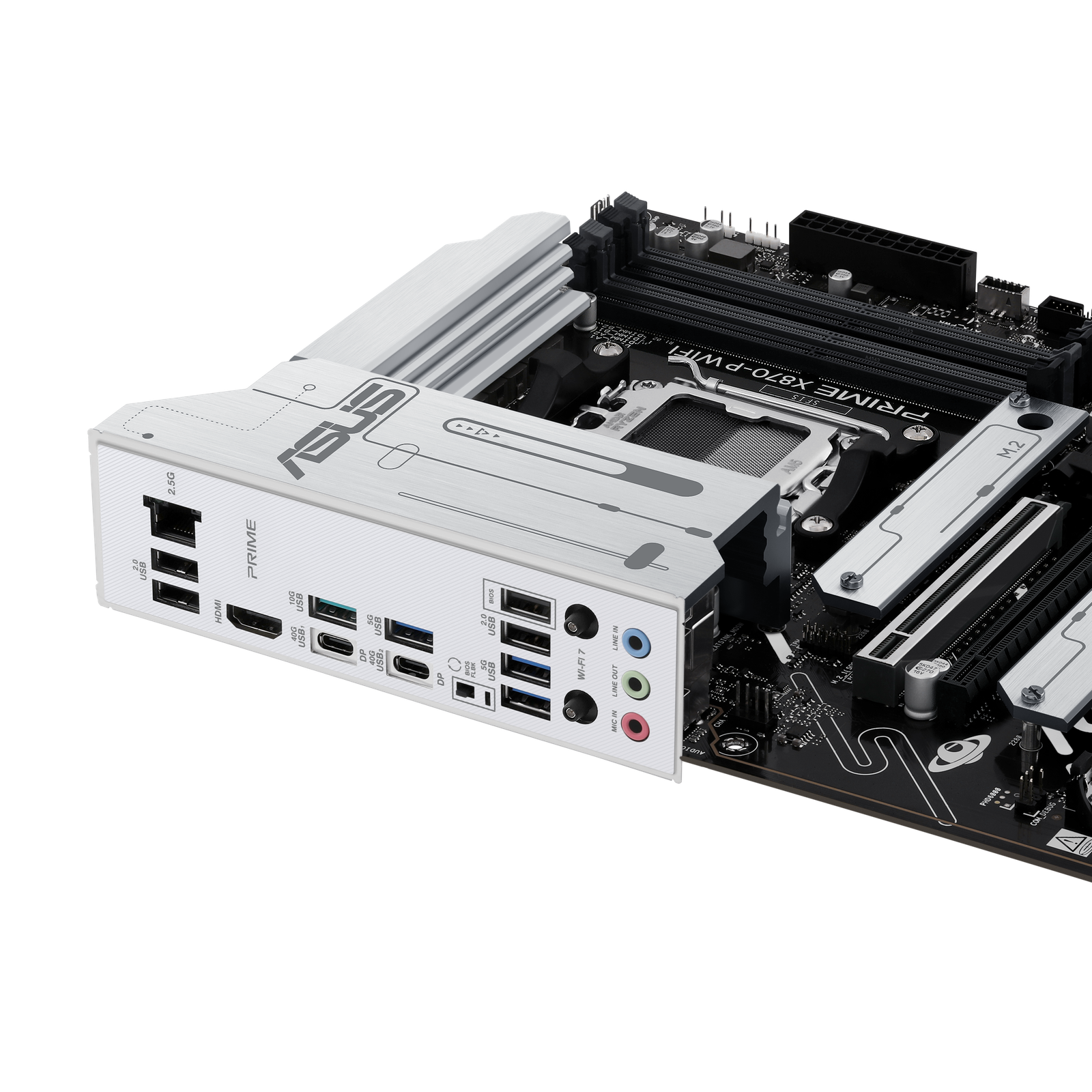

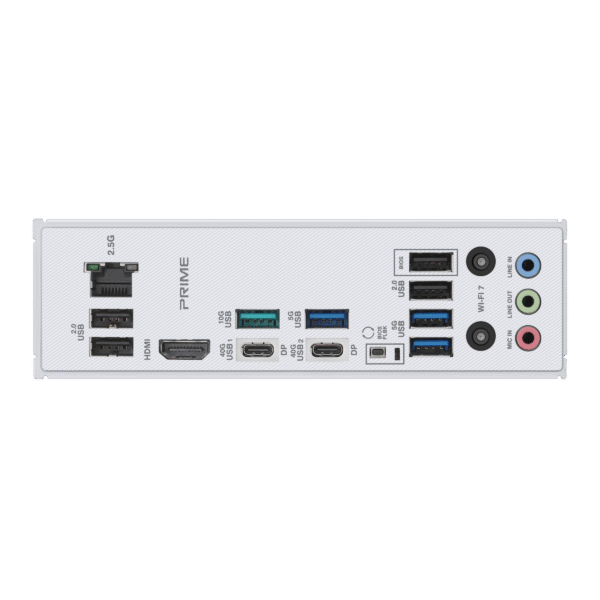

| חיבורים ויציאות |
2x USB4® (40Gbps) ports (2 x USB Type-C®)
1x USB 10Gbps port (1 x Type-A)
3x USB 5Gbps ports (3 x Type-A)
4x USB 2.0 ports (4 x Type-A)
1x HDMI™ port
1x Wi-Fi module
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack™ button
|
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
Aura Sync
– Addressable Gen 2 headers
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
|

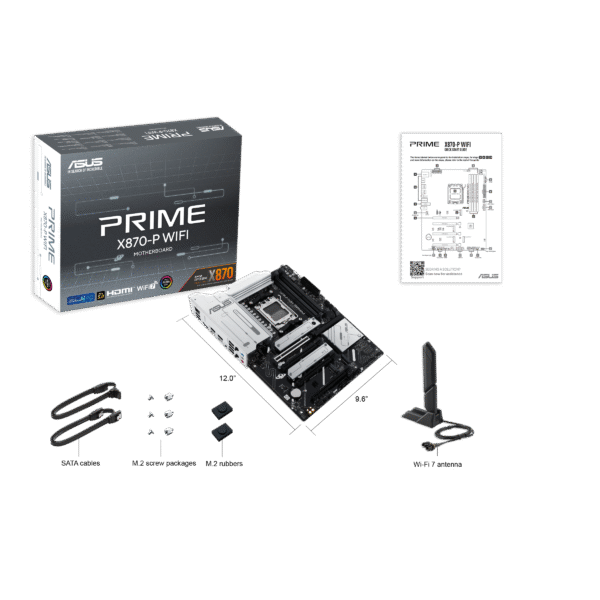

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous

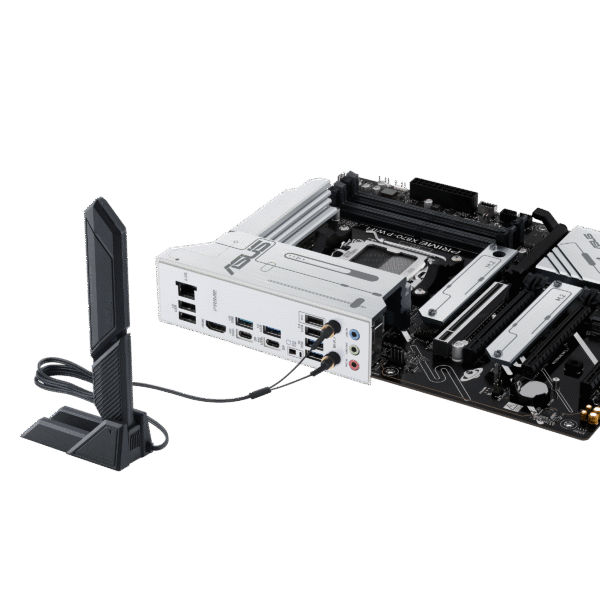

1x ASUS WiFi Q-Antenna
1x M.2 rubber package
2x Screw packages for M.2 SSD
:Documentation
1x Quick start guide
|
| תצורה |
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p-wifi/
|
