| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
Asus
|
| מבוסס לוח אם |
Intel
|
| תושבת |
1851
|
| ערכת שבבים |
B860
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל לוח אם |
Micro-ATX
|
| NVMe PCIe M.2 Connector |
2
|
| תמיכה במעבדים |
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to https://www.asus.com/support/download-center/ for CPU support list*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types**
|
| תמיכה בזיכרונות |
2x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function**
|
| גרפיקה מובנית |
1x DisplayPort**
1x HDMI™ port***
Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates*
Supports max. 4K@60Hz as specified in DisplayPort 1.4**
Supports 4K@60Hz as specified in HDMI 2.1***
VGA resolution support depends on processors' or graphic cards' resolution****
|
| חריצי הרחבה |
Intel® Core™ Ultra Processors (Series 2)
1x PCIe 4.0 x16 slot
Intel® B860 Chipset
2x PCIe 4.0 x1 slots
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals
|
| USB |
Rear USB (Total 6 ports)
1x USB 10Gbps port (1 x Type-A)
2x USB 5Gbps ports (2 x Type-A)
3x USB 2.0 ports (3 x Type-A)**
Front USB (Total 7 ports)
1x USB 5Gbps connector (supports USB Type-C®)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports**
USB Type-C® power delivery output: max. 5V/3A*
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth**
|
| ממשק אחסון |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
.Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10*
|
| שמע |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
:Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
.A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output*
|
| כרטיס רשת קווי |
1x Realtek 2.5Gb Ethernet
ASUS LANGuard
|
| חיבורים פנימיים |
:Fan and Cooling Related
1x 4-pin CPU Fan header
2x 4-pin Chassis Fan headers
:Power Related
1x 24-pin Main Power connector
1x 8-pin +12V CPU Power connector
:Storage Related
2x M.2 slots (Key M)
4x SATA 6Gb/s ports
:USB
1x USB 5Gbps connector (supports USB Type-C® )
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
2x USB 2.0 headers support 4 additional USB 2.0 ports
:Miscellaneous
2x Addressable Gen2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (F_AUDIO)
1x S/PDIF Out header
1x SPI TPM header (14-1 pin)
1x 10-1 pin Front Panel System header
|

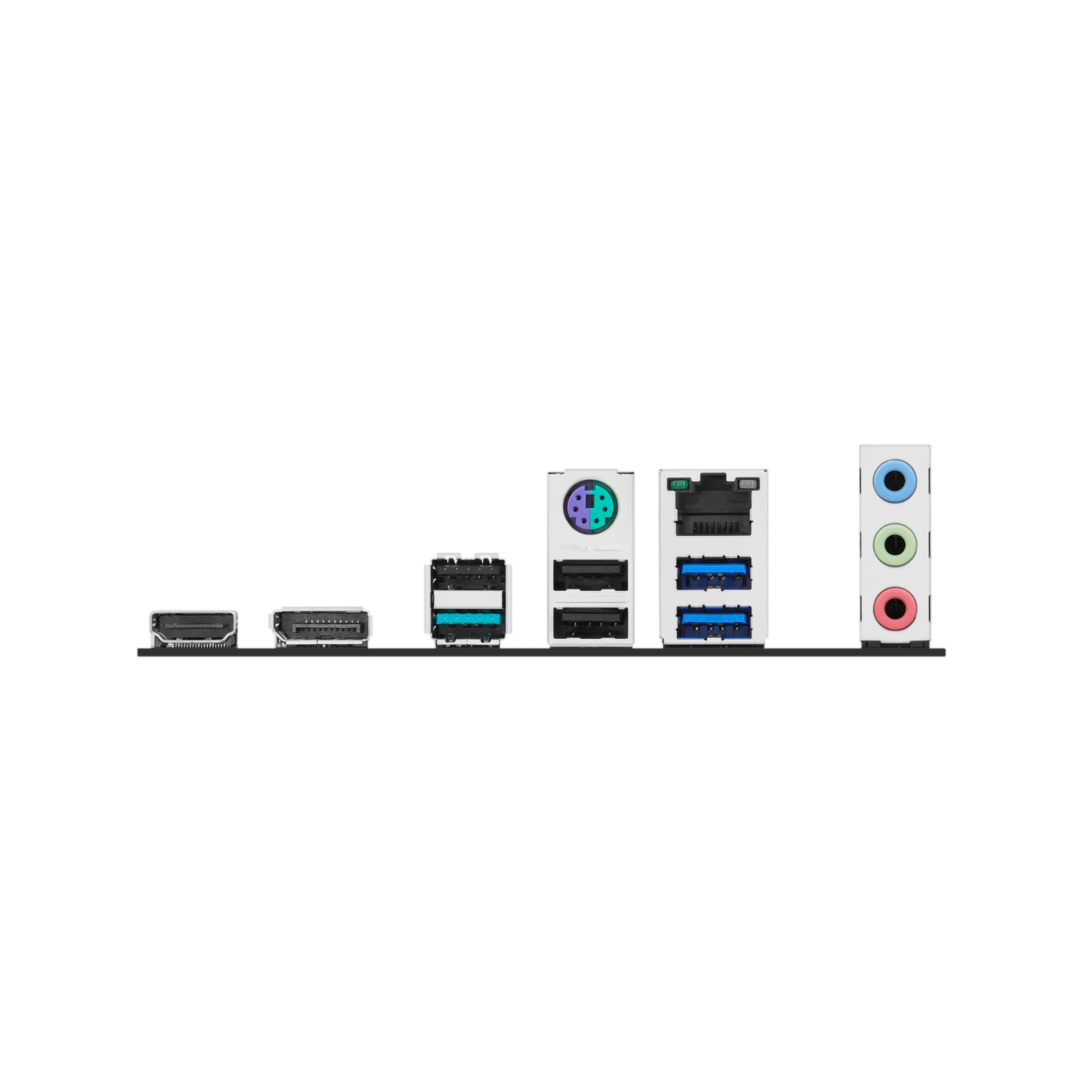

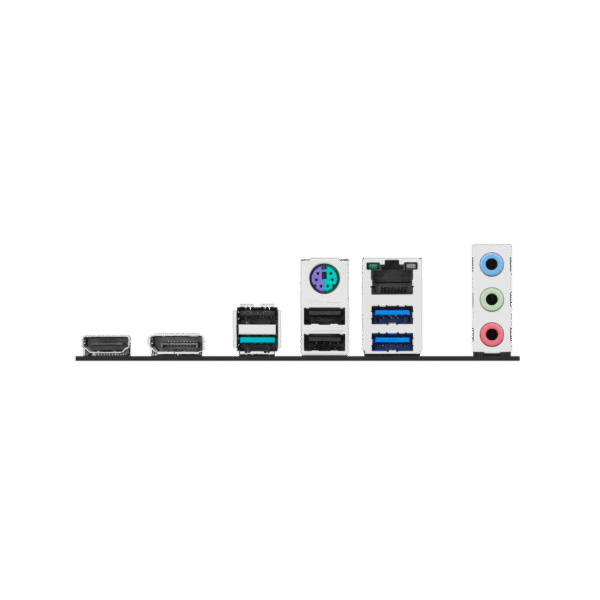

| חיבורים ויציאות |
1x USB 10Gbps port (1 x Type-A)
2x USB 5Gbps ports (2 x Type-A)
3x USB 2.0 ports (3 x Type-A)
1x DisplayPort
1x HDMITM port
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x PS/2 Keyboard/Mouse combo port
|
| BIOS |
(128+128) 256Mb Flash ROM, UEFI AMI BIOS
|
| תכונות מיוחדות |
ASUS 5X PROTECTION III
– DIGI+VRM
– LANGuard
– Overvoltage protection
– SafeSlot Core+
– Stainless-steel back I/O
ASUS Q-Design
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen2 headers
|
| תוכנות מצורפות |
ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
|

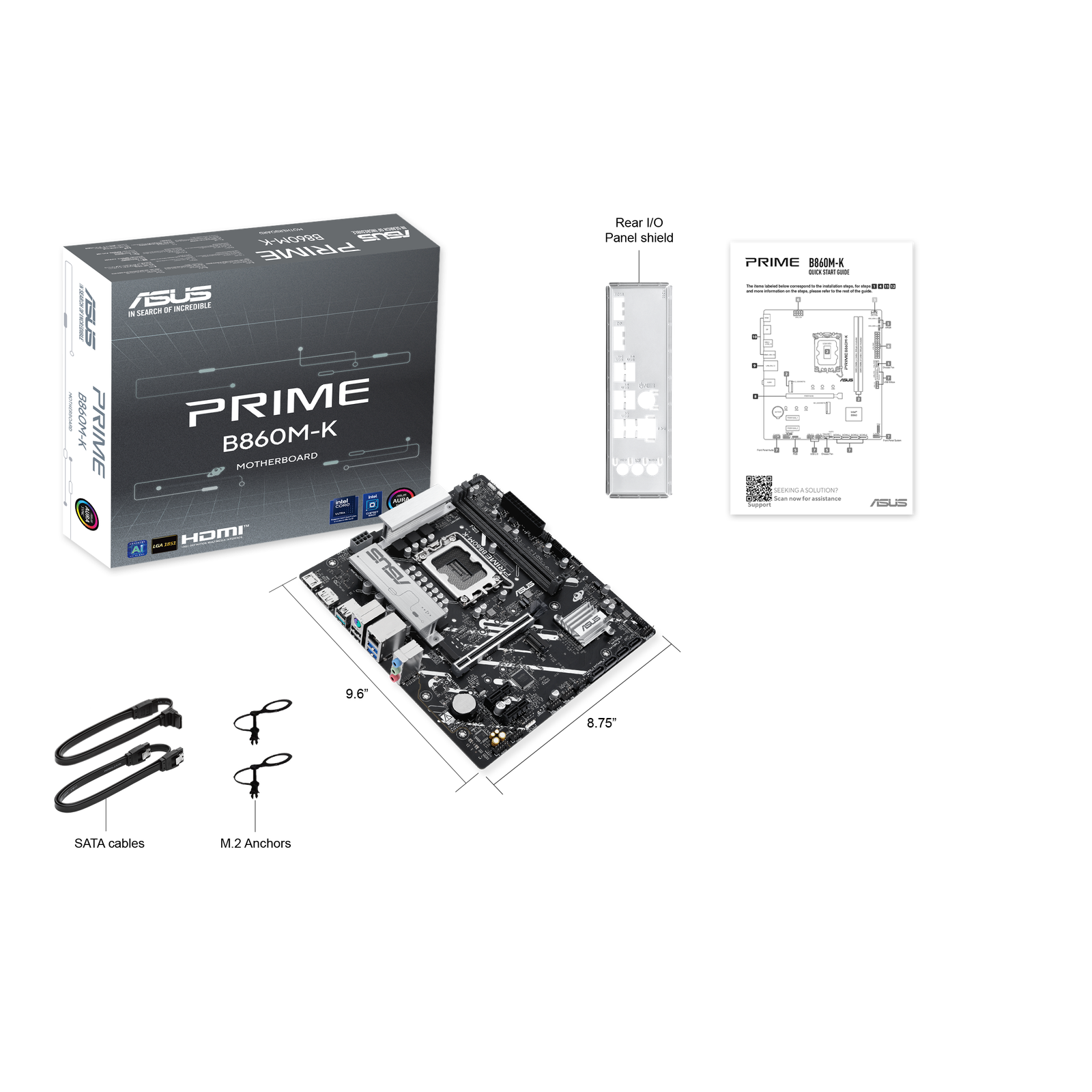

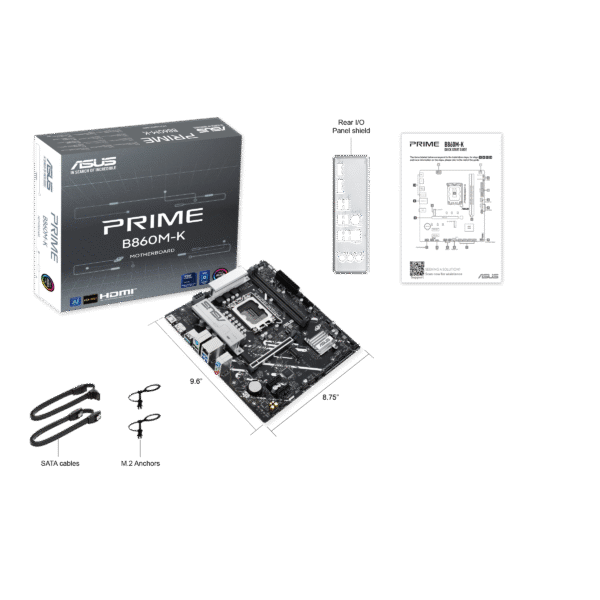

| אביזרים כלולים |
:Cables
2x SATA 6Gb/s cables
:Miscellaneous

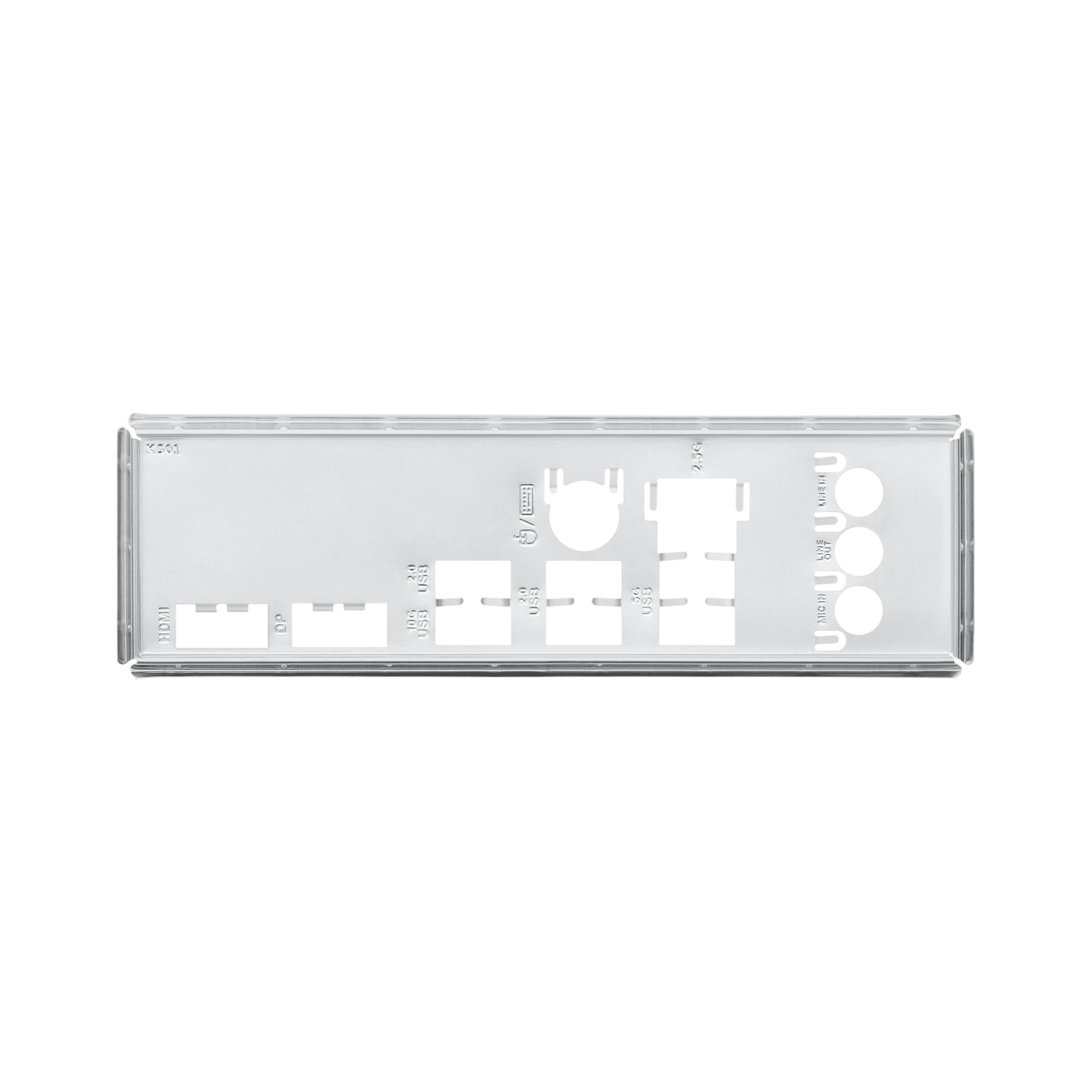

1x I/O Shield
1x M.2 anchor package
:Documentation
1x Quick start guide
|
| תצורה |
micro-ATX Form Factor
9.6inch x 8.75 inch (24.4cm x 22.2cm)
|
| קישור לאתר היצרן |
https://www.asus.com/motherboards-components/motherboards/prime/prime-b860m-k/
|
