| תקופת אחריות |
3 שנים על ידי היבואן הרשמי
|
| יצרן לוח אם |
ASRock
|
| מבוסס |
Intel
|
| תושבת |
LGA1851
|
| ערכת שבבים |
Z890
|
| סוג זיכרון לוח אם |
DDR5
|
| גודל |
ATX
|
| NVMe PCIe M.2 Connector |
4
|
| תמיכה במעבדים |
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
|
| תמיכה בזיכרונות |
Dual Channel DDR5 Memory Technology
4x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x
1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively*
1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively
2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively
2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively
|
| גרפיקה מובנית |
Intel® Xe LPG Graphics Architecture
1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
|
| חריצי הרחבה |
:CPU
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
:Chipset
2x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
1x PCIe 4.0 x1 Slot (PCIE2)*
1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots*
Supports NVMe SSD as boot disks
|
| USB |
:CPU
1x Thunderbolt™ 4 Type-C (Rear)
1x USB 3.2 Gen2x2 Type-C (Rear)
:Chipset
1x USB 3.2 Gen2x2 Type-C (Front)
1x USB 3.2 Gen2 Type-A (Rear)
6x USB 3.2 Gen1 (2 Rear, 4 Front)
8x USB 2.0 (4 Rear, 4 Front)
All USB ports support ESD Protection*
|
| ממשק אחסון |
:CPU
1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
:Chipset
1x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
4x SATA3 6.0 Gb/s Connectors
Supports Intel® Volume Management Device (VMD)*
Supports NVMe SSD as boot disks
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*
|
| שמע |
7.1CH HD Audio (Realtek ALC897 Audio Codec)
|
| כרטיס רשת קווי |
2.5Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
|
| חיבורים פנימיים |
1x SPI TPM Header
1x Power LED and Speaker Header
1x RGB LED Header*
3x Addressable LED Headers**
2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
5x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1x 24 pin ATX Power Connector
2x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1x Front Panel Audio Connector
2x USB 2.0 Headers (Support 4 USB 2.0 ports)
2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Supports in total up to 12V/3A, 36W LED Strip*
Support in total up to 5V/3A, 15W LED Strip**
CPU_FAN1 supports the fan power up to 1A (12W)***
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W)
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use
|

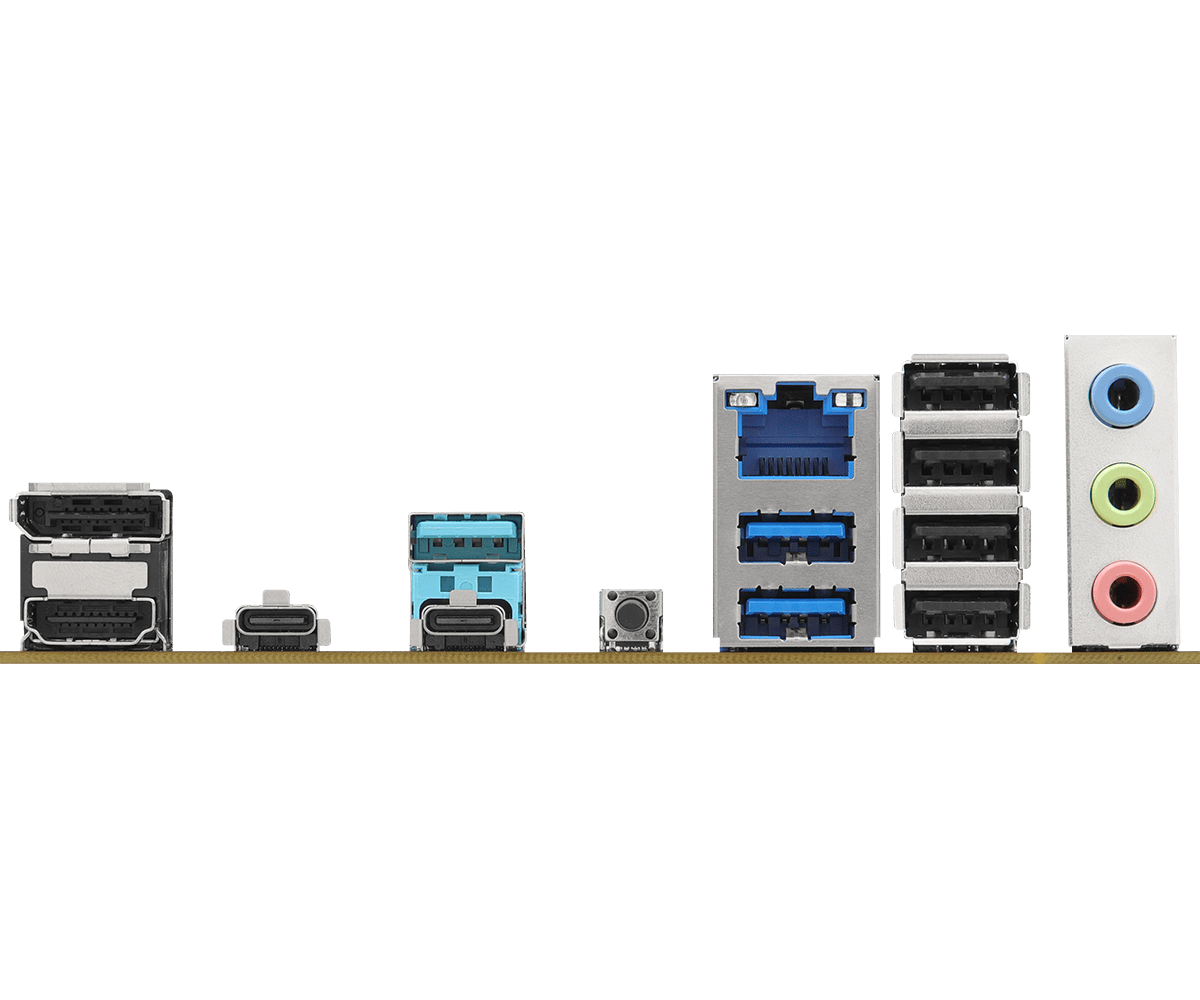

| חיבורים ויציאות |
2x Antenna Mounting Points
1x HDMI Port
1x DisplayPort 1.4
1x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1x USB 3.2 Gen2 Type-A Port (10 Gb/s)
2x USB 3.2 Gen1 Ports
4x USB 2.0 Ports
1x RJ-45 LAN Port
1x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Supports USB PD 3.0 up to 5V@3A (15W) charging*
|
| BIOS |
256Mb AMI UEFI Legal BIOS with GUI support
|
| תכונות ייחודיות |
:Superb Productivity
PCIe Gen5 (Graphics, M.2)
Dual Channel DDR5
Thunderbolt™ 4 Type-C Port (40 Gb/s)
:Rock-Solid Durability
16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
Memory OC Shield
:Ultrafast Connectivity
2.5G LAN
:EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
:EZ Troubleshooter
ASRock Post Status Checker
|
| תוכנות מצורפות |
:Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
:UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
These utilities can be downloaded from ASRock Live Update & APP Shop*
|
| אביזרים כלולים |
1x I/O Shield
2x SATA Data Cables
1x Screw for M.2 Socket
|
| תצורה |
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
2oz Copper PCB
|
| קישור לאתר היצרן |
https://www.asrock.com/mb/Intel/Z890Pro-A/index.asp
|
